| Product Parameter | |
| Model Number | SELS-2835X120-12/24-Y |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700K / 3000K / 4000K / 6500K |
| Lamp Power | 10W/mt |
| Luminous Efficacy(lm/w) | 115 |
| Lamp Luminous Flux(lm) | 1150lm/w |
| FPC Width | 8mm |
| Warranty(Year) | 3-YEAR |
| CRI (Ra>) | 80/90 |
| Life time(Hour) | 50,000 |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Source | 2835 SMD |
| Support Dimmer | yes |

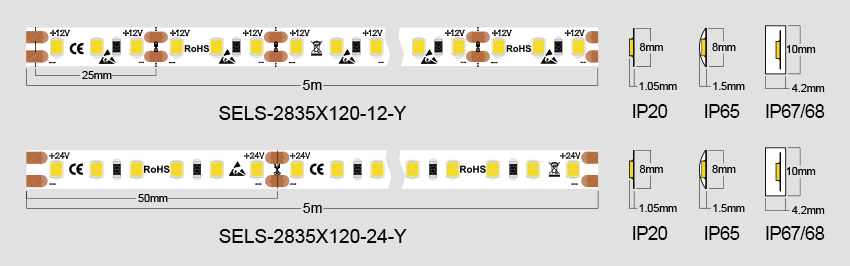

| Cutting Unit | 25/50mm |
| Input Voltage(V) | DC 12/24V |
| Length | 5mt, any length can be customized |
| Ambient Temp. (℃) | (-20~+50℃) |
| Storage Temp. (℃) | (-20~+60℃) |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| 2835 Standard Series | ||||
| Part No. | SELS-2835X60-12/24-Y | SELS-2835X120-12/24-Y | SELS-2835X240-12/24-YA | SELS-2835X240-24-YB |
| Voltage | DC12 / 24V | DC12 / 24V | DC12 / 24V | DC24V |
| LED Qty/mt | 60pcs | 120pcs | 240pcs | 240pcs |
| Watt/mt | 5W | 10W | 22W | 24W |
| FPCB Width | 8mm | 10mm | 10mm | 15mm |
| Cutting Unit | 50 100mm | 50 100mm | 25mm | 50mm |
| Efficiency | 100~110lm/W | 105~115lm/W | 110~120lm/W | 105~115lm/W |
| Lumen/mt | 500~550LM | 1050~1150LM | 2420~2640LM | 2500~2760LM |
| Color | 2700K/ 3000K / 4000K / 6000K Red Green Blue Yellow | 2700K/ 3000K / 4000K / 6000K Red Green Blue Yellow | 2700K/ 3000K / 4000K / 6000K | 2700K/ 3000K / 4000K / 6000K |
| Product Description | |
2835 LED Strip Lights in Room 120LEDs 12V 24V Supplier can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. We are a professional LED Strip Lights Supplier, providing quality LED Light Strips for a variety of home and commercial lighting needs. Bring the light into your life with our LED Strip Lights! 1. Low power consumption, environment friendly. 2. Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers 3. Cut table every 6 LEDs along the cutting marks, according to practical requirement. 4. Super long lifespan, 50,000 hours 5. Super bright 2835 SMD top LED, high intensity and reliability. 6. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection. 7. Ultra-bright but running at low temperature 8. High brightness, low power, long life, easy installation, the production of highly customizable. 9. Completely smooth and even light spread, solving the uneven luminous problem | |
| Application | |
2835 LED Strip Lights in Room 120LEDs 12V 24V with widely application below: 1. It’s widely used for architectural lighting, sign letter lighting, concealed lighting, perimeter lighting among many other applications |
| Product packaging |
| Installation Instructions |
Notice：
1. Installation 2835 LED Strip Lights in Room must comply with local international electrical safety instructions.
2. In order to ensure 2835 LED Strip Lights in Room safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of 2835 LED Strip Lights in Room should comply with CE standard; With constant voltage LED power supply.
4. Do not install the 2835 LED Strip Lights Room in overheat environment.
5. Do not install the non-waterproof 2835 LED Strip Lights in Room in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, 2835 LED Strip Lights in Room and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The 2835 LED Strip Lights in Room with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
Our Professional LED Strip Supplier is the perfect choice for any lighting project. With its energy-efficient design and increased brightness, you can be sure of achieving the highest quality results. Create your own unique ambience with our LED Strip Supplier - perfect for outdoor lighting, business lighting, and more.
