| Product Parameter | |
| Model Number | SELS-2835X192-12/24 –5Y/YC |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700K / 3000K / 4000K / 6500K |
| Lamp Power | 16W/mt |
| Luminous Efficacy(lm/w) | Max: 175 |
| Lamp Luminous Flux(lm) | Max: 2800lm/w |
| FPC Width | 8mm |
| Warranty(Year) | 5-YEAR |
| CRI (Ra>) | 80/90 |
| Life time(Hour) | 50,000 |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Source | 2835 SMD |
| Support Dimmer | yes |

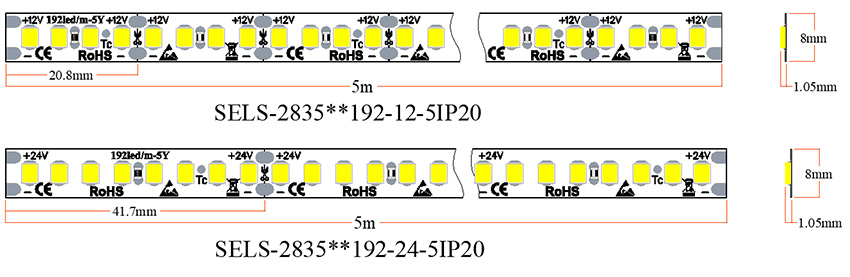

| Cutting Unit | 20.8mm,41.7mm |
| Input Voltage(V) | DC 12 / 24V |
| Length | 5mt, any length can be customized |
| Ambient Temp. (℃) | (-20~+50℃) |
| Storage Temp. (℃) | (-20~+60℃) |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| 192psc 5Years Warranty Series | ||
| Part No. | SELS-2835X192-12/24 –5Y | SELS-2835X192-24 –5YC |
| Voltage | DC 12/24V | DC 24V |
| LED Qty/mt | 192pcs | 192pcs |
| Watt/mt | 16W | 16W |
| FPCB Width | 8mm | 8mm |
| Cutting Unit | 20.8mm/41.7mm | 41.7mm |
| Efficiency | 130-160lm/W | 175lm/W |
| Lumen/mt | 2160-2560LM | 2800LM |
| CRI (Ra>) | 80/90 | 80 |
| Product Description | |

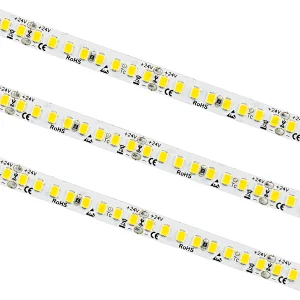

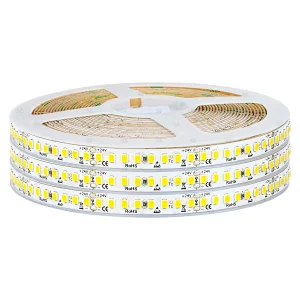

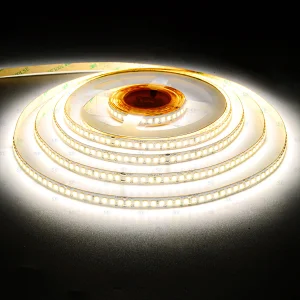

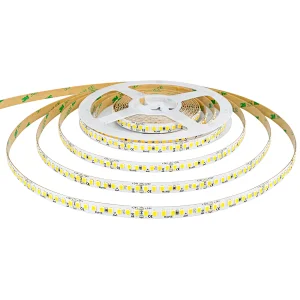

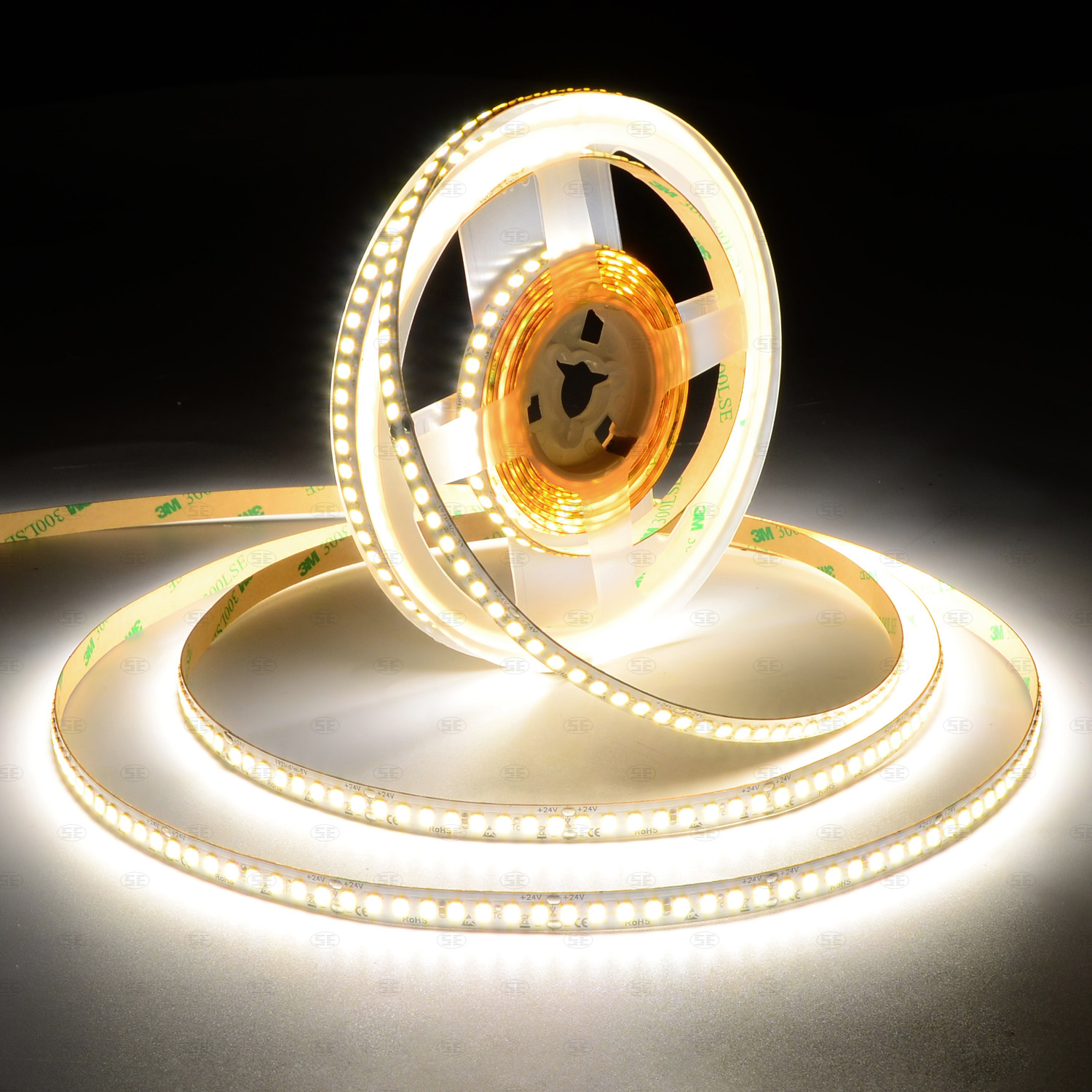

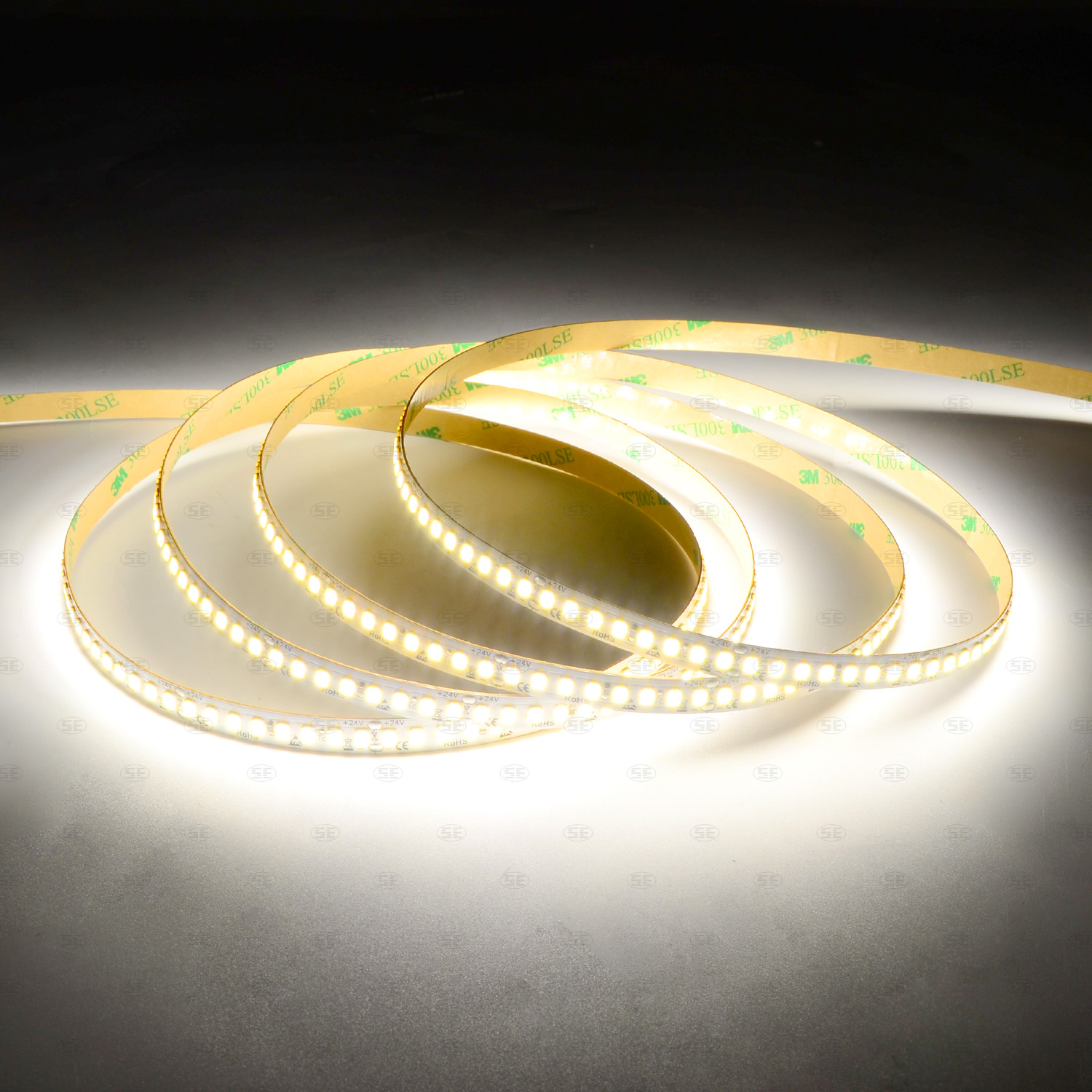

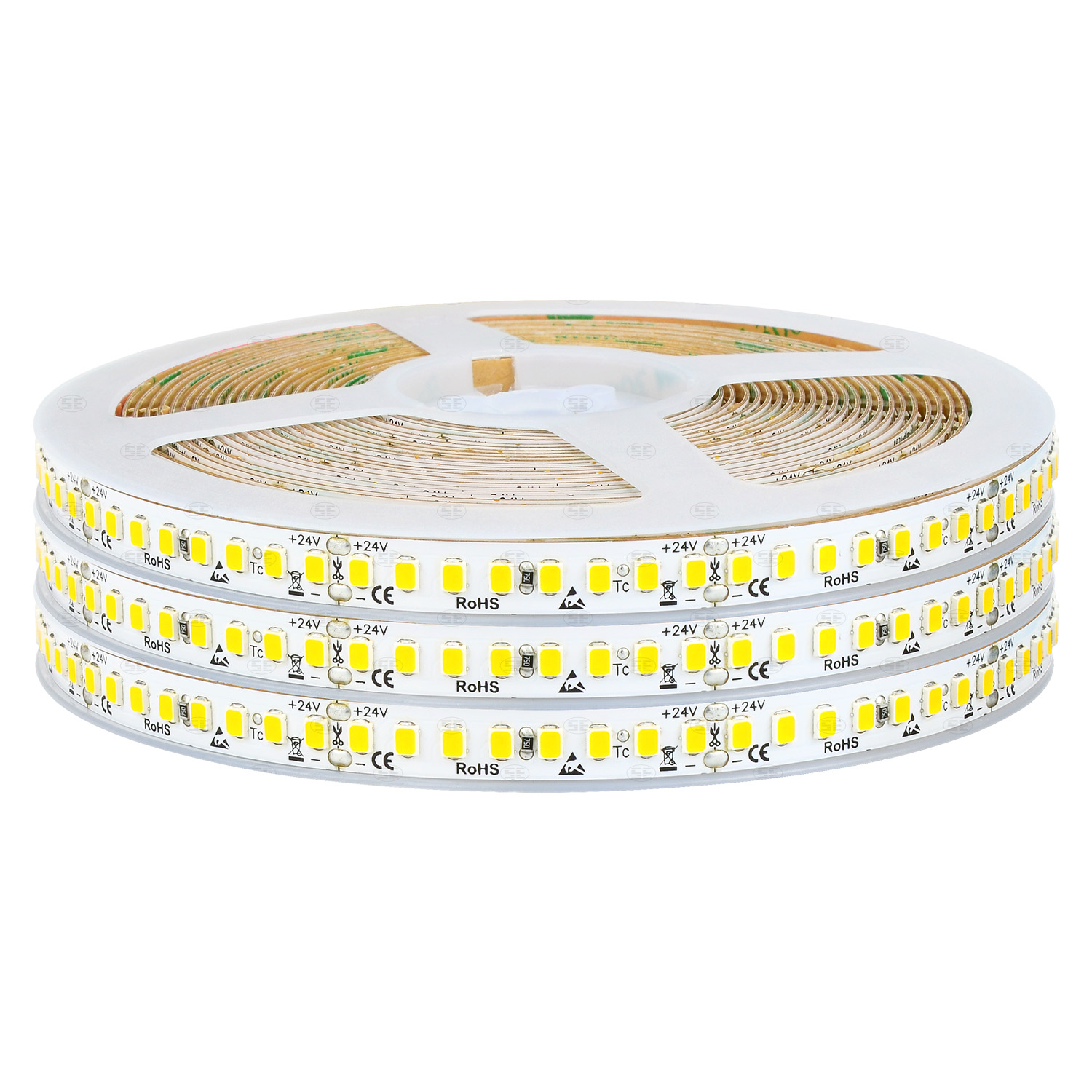

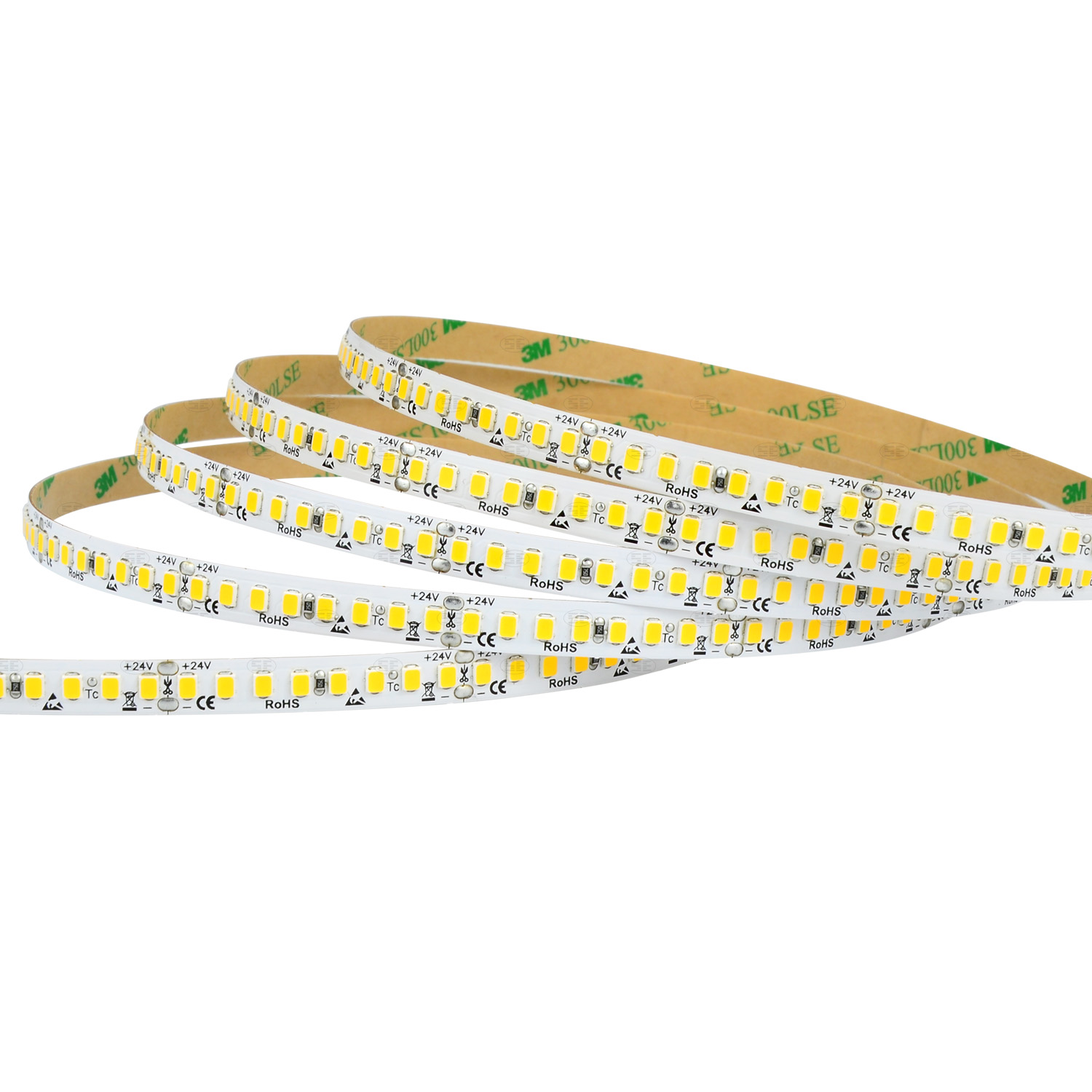

2835LED Tape Light Outdoor 5Years Warranty 192LEDs 175LM/W can do IP20/IP65, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. As a best 2835 Flexible LED Strip Lights manufacturer and supplier in China, SE.Lighting provides all kinds of led light strips 1.192pcs 2835 SMD per meter, Cut every 4pcs LEDs for 12VDC, Cut every 8pcs LEDs for 24VDC, to reach high lumen efficacy. 2.Standard packing is 5m per roll; Any other different length can be customized. 3.Waterproof grade IP20/ IP65/ IP67/ IP68 option. 4.5 years warranty. 5. Low power consumption. 6. Flexible ribbon for curving around bends. 7. Long life span 50,000+ hours. 8. Completely smooth and even light spread, solving the uneven luminous problem. 9. Ultra-bright but running at low temperature. | |
| Application | |
2835 LED Tape Light Outdoor 5Years Warranty 192LEDs 175LM/W 1. It’s widely used as a decorative lights, and use it as the lights |
| Product packaging |
| Installation Instructions |
Notice：
1. Installation 2835 Flexible LED Strip Lights must comply with local international electrical safety instructions.
2. In order to ensure 2835 Flexible LED Strip Lights safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of 2835 Flexible LED Strip Lights should comply with CE standard; With constant voltage LED power supply.
4. Do not install the 2835 LED Tape Light Outdoor in overheat environment.
5. Do not install the non-waterproof 2835 LED Tape Light Outdoor in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, 2835 LED Tape Light Outdoor and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The 2835 LED Tape Light Outdoor with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
FAQs:
Flexible LED Strip Lights come with many pros and a few cons. Whether you’re looking for LED Tape Light for bedrooms, Flexible LED Strip Lights for kitchen cabinets, or bedroom LED Tape Light etc… the answers to these common questions may help.
Q: Are 2835 Flexible LED Strip Lights safe?
LED Strip Lights are safe as long as they’re installed and operated according to the manufacturer’s instructions. For example, indoor lights shouldn’t be installed outside, and some lights should not be installed where they can get wet.
Q: How long can you run 2835 Flexible LED Strip Lights?
LED Strip Lights can run for hours on end without being shut off. They get warm, but they’re designed to underdrive the LEDs, which means they don’t overheat.
Q: Do 2835 LED Tape Light Strip have to be plugged in to work?
Yes, you have to leave 2835 LED Tape Light Outdoor plugged in for them to work.
Q: Do 2835 Flexible LED Strip Lights work with dimmer switches?
Almost every 2835 LED Tape Light Outdoor is compatible with a dimmer switch. In order to make an 2835 LED Strip Lighting dimmable, it’s input wire must first be connected to a dimmer unit, then connect the unit to the power supply.
Q: How can I create ambient light with 2835 LED Tape Light Outdoor?
To create ambient light in your home with 2835 Flexible LED Strip Lights, the optimal locations are under or above cabinets and counters in the kitchen, behind mirrors in the bathroom, or even around large pieces of furniture like bookshelves and home entertainment units.
Q: How do you properly recycle old 2835 LED Tape Light Outdoor?
2835 Flexible LED Strip Lights can be disposed of by recycling them by taking them to a local recycling center.
Q: How long do 2835 LED Tape Light Outdoor last?
Most 2835 Flexible LED Strip Lights are built to last for up to 50,000 hours of use, which is roughly 10 to 20 years of runtime.
SE.Lighting's LED Tape Light, with 2835 / 3528 / 5050 / 5630 / COB etc, SDCM3 / SDCM5, CRI 80 / 90 / 95, CCT&Color: 1600~30000K / CCT / RGB / RGBW / RGBCCT / RGB Magic, Various Specifications option, any needs pls feel free to contact us.
We’ll be more than happy to hear from you.
