| Product Parameter | |
| Model Number | SELS-5050RGB84-24-Y |
| Working Temperature(℃) | -20-50℃ |
| Length | 5mt, any length can be customized |
| FPC Width | 10mm |
| Cutting Unit | 50mm |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | ●●●RGB |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 24V |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Application | Residential, Shopping Mall Light |
| Source | 5050 SMD |
| Warranty(Year) | 3-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Life time(Hour) | 50,000 |
| Lamp Power | 14W/mt |
| RGB Color Series | ||||
| Part No. | SELS-5050RGB84-24-Y | SELS-5050RGB60-12/24-Y | SELS-3838RGB120-24-Y | SELS-2835RGB120-24-Y |
| Voltage | DC 24V | DC 12 / 24V | DC 24V | DC 24V |
| LED Qty/mt | 84pcs | 60pcs | 120pcs | 120pcs |
| Watt/mt | 14W | 14W | 14W | 14W |
| FPCB Width | 10mm | 10mm | 10mm | 8mm |
| Cutting Unit | 50mm | 50mm/100mm | 50mm | 50mm |
| Product Description | |
84LEDs 5050 RGB LED Strip Light 24V can do IP20/IP65/IP67/IP68, Different waterproof grade. Can be RGB and Different Color. 1. High Bright 5050SMD RGB Color; | |

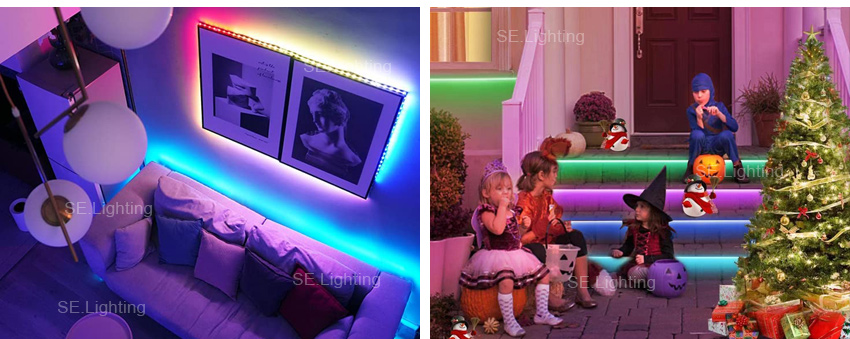

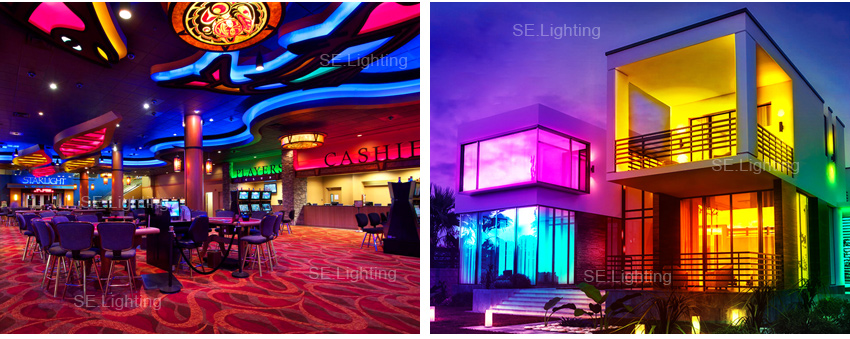

| Application | |
84LEDs 5050 RGB LED Strip Light 24V with widely application below: 1. It’s wodely used as a decorative lights, and use it as the lights |
| Product packaging |
| Installation Instructions |
Notice：
1. Installation 5050 RGB LED Strip Light must comply with local international electrical safety instructions.
2. In order to ensure 5050 RGB LED Strip Light safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of 5050 RGB LED Strip Light should comply with CE standard; With constant voltage LED power supply.
4. Do not install the 5050 RGB LED Strip Light in overheat environment.
5. Do not install the non-waterproof 5050 RGB LED Strip Light in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, 5050 RGB LED Strip Light and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The 5050 RGB LED Strip Light with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
- Accent any room with these bright and colorful 5050 RGB LED Strip Light. Ideal for home or commercial applications, they easily install with the included 24V power supply. Transform any area with a variety of colors and adjustable brightness levels!
- Light up your room with 24V 5050 RGB LED Strip Light. Create countless color combinations with the integrated color-mixing features for your desired effects or decor. Easy to install, these lights are sure to add a lively touch to your home.
- Our 5050 RGB LED Strip Light provide bright and colorful lighting for any occasion. With 24V power and a variety of colors, you can easily customize the look and feel of any space. Perfect for parties or decorating your home.
- More videos of our 5050 RGB LED Strip Light on Youtube.
- Youtube: https://www.youtube.com/@se.lighting
