5050 RGB LED Strip Lights 60LEDs 24V 12V Supplier

5050 RGB LED Strip Lights 60LEDs 24V 12V Supplier

Model NO.: SELS-5050RGB60-12/24-Y
Delivery: FOB
Minimum order quantity: 5 meters
Supply Ability: 50000000 meters / Month
Country of Origin: Shenzhen, China
Stock Time: 7~15 Days

Quantity:

Product Description
All comments(1)

Product Parameter
Model Number	SELS-5050RGB60-12/24-Y
Working Temperature(℃)	-20-50℃
Length	5mt, any length can be customized
FPC Width	10mm
Cutting Unit	50mm/100mm
Beam Angle	120°
Waterproof Grade	IP20/IP65/IP67/IP68
Color Temperature(CCT)	●●●RGB
Support Dimmer	yes
Lighting solutions service	Lighting and circuitry design; DIALux evo layout; CAD layout
Input Voltage(V)	DC 12 / 24V
Lamp Body Material	Copper
Certification	CE EMC FCC PSE RoHS
Application	Residential, Shopping Mall Light
Source	5050 SMD
Warranty(Year)	3-YEAR
Switch Mode	Bluetooth Remote Control Wifi Manual Button
Life time(Hour)	50,000
Lamp Power	14W/mt

RGB Color Series
Part No.	SELS-5050RGB84-24-Y	SELS-5050RGB60-12/24-Y	SELS-3838RGB120-24-Y	SELS-2835RGB120-24-Y
Voltage	DC 24V	DC 12 / 24V	DC 24V	DC 24V
LED Qty/mt	84pcs	60pcs	120pcs	120pcs
Watt/mt	14W	14W	14W	14W
FPCB Width	10mm	10mm	10mm	8mm
Cutting Unit	50mm	50mm/100mm	50mm	50mm

Product Description
5050 RGB LED Strip Lights 60LEDs 24V 12V can do IP20/IP65/IP67/IP68, Different waterproof grade. Can be RGB and Different Color. 1. Cut table every 3 LEDs(DC12V) or 6 LEDs (DC24V) along the cutting marks, according to practical requirement 2. Flexible ribbon for curving around bends 3. 5050 RGB LED Strip Lights Long life span 50,000+ hours 4. 5050 RBG SMD top LED, high intensity and reliability. 5. Completely smooth and even light spread, solving the uneven luminous problem 6. Unused wires of LED strip must be isolated to prevent potential short circuit. 7. Test all components before cutting or permanently mounting the strip. 8. Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).
Application

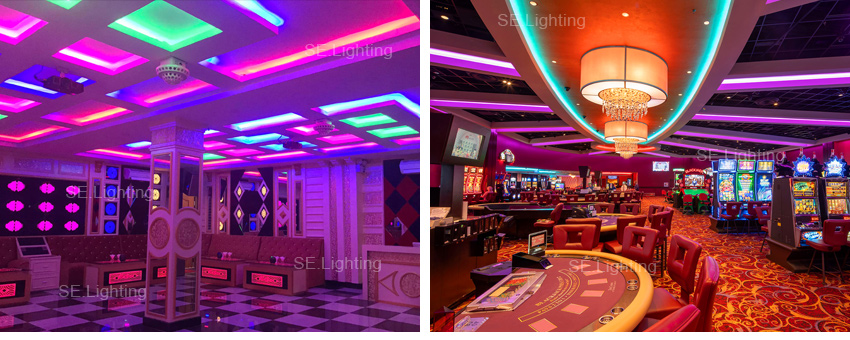

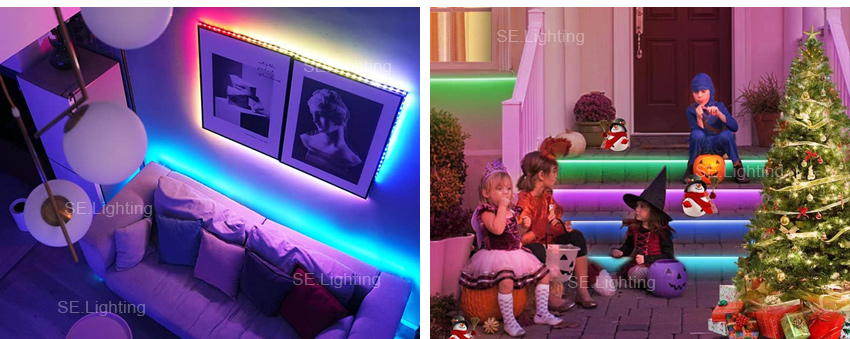

5050 RGB LED Strip Lights 60LEDs 24V 12V with widely application below: 1. It’s widely used as a decorative lights, and use it as the lights 2. IP20 Non-waterproof used in indoor lighting, such as hotels, night clubs, shopping malls, offices...etc 3. Emergency & security lighting, advertisement sign lighting 4. Festival, exhibition,Stage decoration, weedings; 5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

Product packaging

Installation Instructions

Notice：
1. Installation 5050 RGB LED Strip Lights must comply with local international electrical safety instructions.
2. In order to ensure 5050 RGB LED Strip Light safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of 5050 RGB LED Strip should comply with CE standard; With constant voltage LED power supply.
4. Do not install the LED Light Strips in overheat environment.
5. Do not install the non-waterproof 5050 RGB LED Strip Lights in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, 5050 RGB LED Strip Lights and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The 5050 RGB LED Strip Lights with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.

Our 5050 RGB LED Strip Lights are perfect for adding color to any room. Enjoy the flexibility to customize your lighting with endless color possibilities and fun, vibrant lighting effects. The strip lights come in easy-to-install strips that provide high intensity lighting wherever you need it.

Light up your space in style with our 5050 RGB LED Strip Lights, boasting a vivid color palette and adjustable lighting intensity. Easily install them in any area to create a unique, colorful atmosphere and enjoy a stunning light show.

The 5050 RGB LED Strip Lights provide a bright, colorful display with 16 million colors to choose from. With the flexibility to be cut to the required size and a low-profile design for minimal visibility, this strip light is an easy-to-install source of bright illumination for your home.

The 5050 RGB LED Strip Lights feature a superior design that enables vibrant, eye-catching lighting schemes. Thanks to their multi-color capabilities, you can easily create any lighting effect you can imagine. Durable and energy-efficient, these LED lights are sure to highlight any space.
