| Product Parameter | |
| Model Number | SEF-100W |
| Waterproof Grade | IP66 |
| Color Temperature (CCT) | 3000K/4000K/5000K/6000K |
| Power | 100W |
| Beam Angle | 30°/ 60° / 90° / 120° option |
| Certification | CE ROHs |
| Application | Widely use like Courtyard, Sports Stadiums, Warehouse, Ground, Building etc. |
| Warranty(Year) | 5-YEAR |
| Luminous Efficacy(lm/w) | 120~130 |
| Life time(Hour) | 50,000 |
| Power Factor (PF) | ≥0.9 |
| Input Voltage(V) | AC 100-240V |
| LED | 2835 SMD |
| Ambient Temp. (℃) | -20~+50℃ |
| Storage Temp. (℃) | -40~+85℃ |
| Key Material | AluminumAlloy+Toughened Glass |
| CRI (Ra>) | 70 |
| Various Specifications | |||
| Model | Power | CCT | Luminous (+/-10%) |
| SEF-10W | 10W | 3000K | 1200LM |
| 4000K | 1250LM | ||
| 5000K | 1250LM | ||
| 6000K | 1250LM | ||
| SEF-20W | 20W | 3000K | 2400LM |
| 4000K | 2500LM | ||
| 5000K | 2500LM | ||
| 6000K | 2500LM | ||
| SEF-30W | 30W | 3000K | 3600LM |
| 4000K | 3750LM | ||
| 5000K | 3750LM | ||
| 6000K | 3750LM | ||
| SEF-50W | 50W | 3000K | 6000LM |
| 4000K | 6250LM | ||
| 5000K | 6250LM | ||
| 6000K | 6250LM | ||
| SEF-80W | 80W | 3000K | 9600LM |
| 4000K | 10000LM | ||
| 5000K | 10000LM | ||
| 6000K | 10000LM | ||
| SEF-100W | 100W | 3000K | 12000LM |
| 4000K | 12500LM | ||
| 5000K | 12500LM | ||
| 6000K | 12500LM | ||
| SEF-150W | 150W | 3000K | 18000LM |
| 4000K | 18750LM | ||
| 5000K | 18750LM | ||
| 6000K | 18750LM | ||
| SEF-200W | 200W | 3000K | 24000LM |
| 4000K | 25000LM | ||
| 5000K | 25000LM | ||
| 6000K | 25000LM | ||
| SEF-300W | 300W | 3000K | 36000LM |
| 4000K | 37500LM | ||
| 5000K | 37500LM | ||
| 6000K | 37500LM | ||
| Product Description | |
LED Flood Light IP66 10W 20W 30W 50W 80W 100W 150W 200W LED Lamp Waterproof 1.Optical lens for option: 30°/60°/90°, Normal Reflector 120° option; |

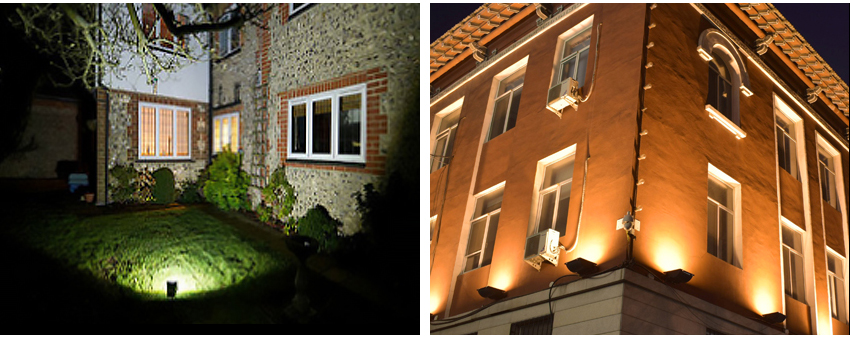

| Application | |
| LED Flood Light IP66 10W 20W 30W 50W 80W 100W 150W 200W LED Lamp Waterproof, is usually used in Public Lighting and Industrial Lighting Tunnel, Subway, Underground Lighting; Gymnasium, Sports Stadium Lighting; Building, Billboard Lighting; Gas Station, Garage Lighting; Park, Garden Lighting; Workshop, Factory Lighting; Warehouse, Storage Lighting; Yard, Square Lighting; Road, Highway Lighting; Station, Dock, Deck, Ship, Boat Lighting; Aquarium Lighting etc |
