Model NO.
SES-W150 N Type
Delivery:
EXW FOB
Minimum order quantity:
1 piece
Supply Ability:
30000.0 piece / Month
Country of Origin:
SHENZHEN
Quantity:

  • Model Number:SES-W150 N Type
  • Working Lifetime(Hour):50000
  • Brand Name:SE.Lighting
  • Beam Angle(°):120°
  • Dimmable:0~10V
  • IP Rate:IP65
  • Surge Protection:10KV
  • Color Temperature(CCT):3000K/4000K/5000K/6000K
  • Support Dimmer:yes
  • Lighting solutions service:Lighting and circuitry design; DIALux evo layout; auto CAD layout
  • Working Time (hours):50000
  • Light Source:LED
  • Input Voltage(V):AC 100-305V
  • Warranty(Year):5-Year
  • Application:Street Light
  • Color:Light Grey
  • Power Supply:AC
  • Lamp Luminous Efficiency(lm/w):120
  • CRI (Ra>):80
  • Working Temperature(℃):-30℃~+50℃
  • Certification:CE/ EMC/ FCC/ PSE/ RoHS/ Reach/ SASO

1. Aluminum Alloy Housing, simple and stylish appearance;
2. Large heat dissipation area, good heat dissipation for long life performance;
3. High temperature resistant tempered glass, surface baking process, strong corrosion resistance and durability;
4. Protection of the lamp shell is up to IP65, rugged all weather IP Construction;
5. Use super brighter 3030smd to obtain high light efficiency, 120 lumens per watt;

Product Paramenters
Part No.
SES-W30
SES-W60
SES-W90
SES-W120
SES-W150
Power
30W
60W
90W
120W
150W

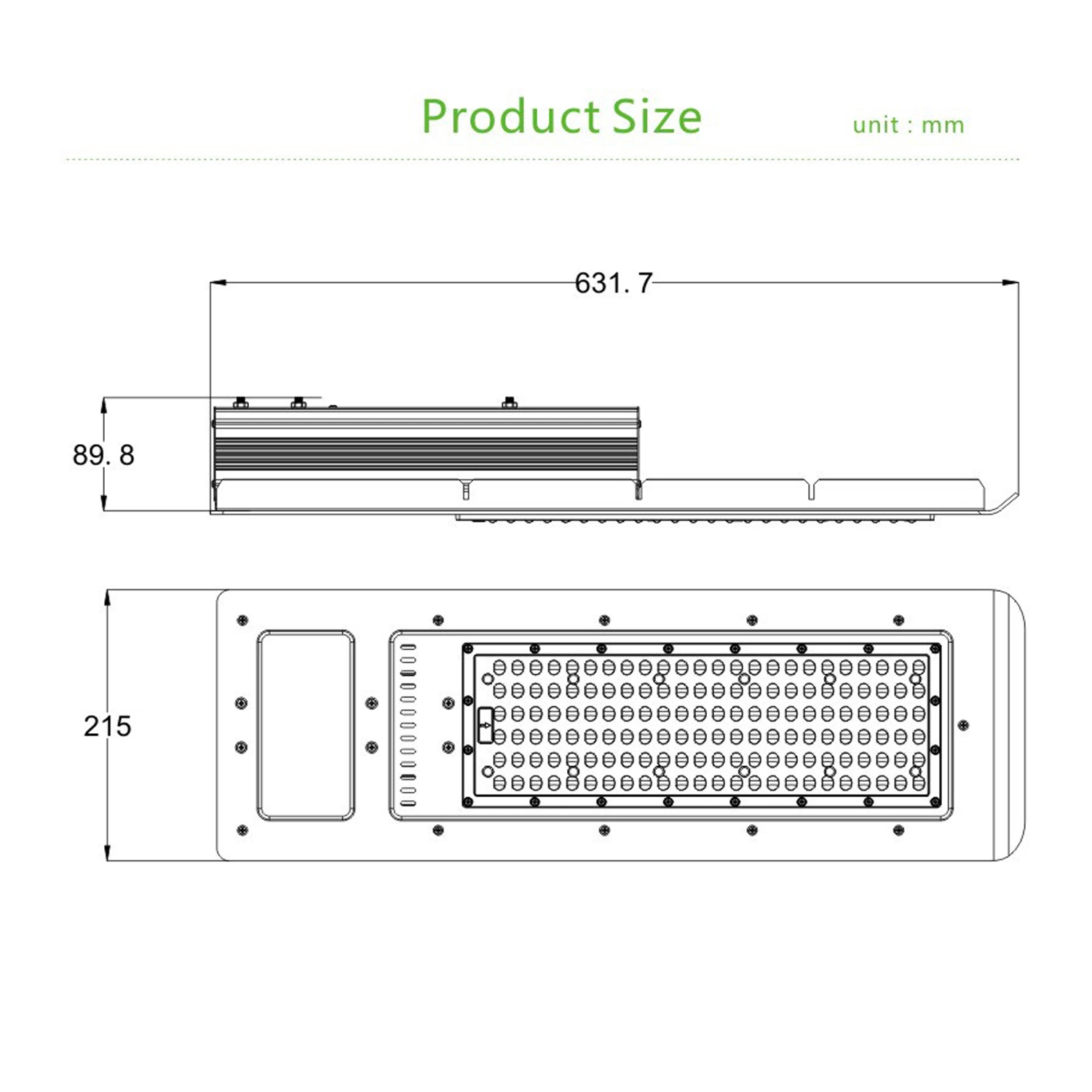

Size/mm
366*135*89
430*160*89
431*160*89
632*215*90
632*215*90
Luminous (LM)
3300LM
7200LM
10800LM
14400LM
18000LM
Efficacy (Lm/W)
120lm/W
Input Voltage
AC100~240V / AC100-305V
IP Grade
IP65
Warranty
5 Years
LED
3030 SMD
Driver
TUV / Mean Well
Function
ON-OFF/  0-10V Dimmable
Power Factor (PF)
≥0.95
Beam Angle
120°
CRI(Ra)
Ra>70 / 80
Lifespan(hrs)@25℃
50,000H
Ambient Temp. (℃)
-20~+50℃
Storage Temp. (℃)
-40~+85℃
Pole Size
40mm, 60mm Option
Key Material
Aluminum Alloy + PMMA
CCT Range
3000K / 4000K / 5000K / 6000K

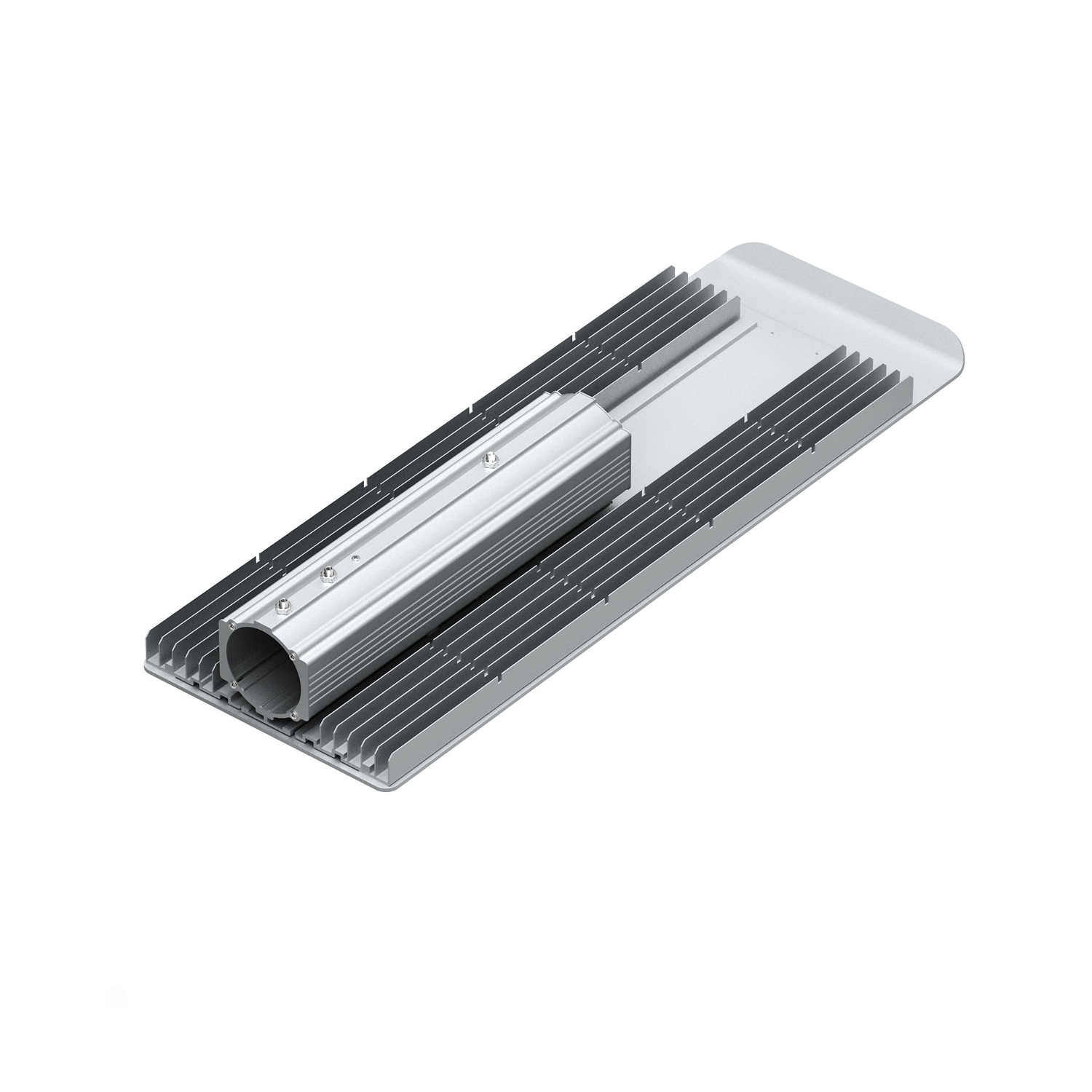

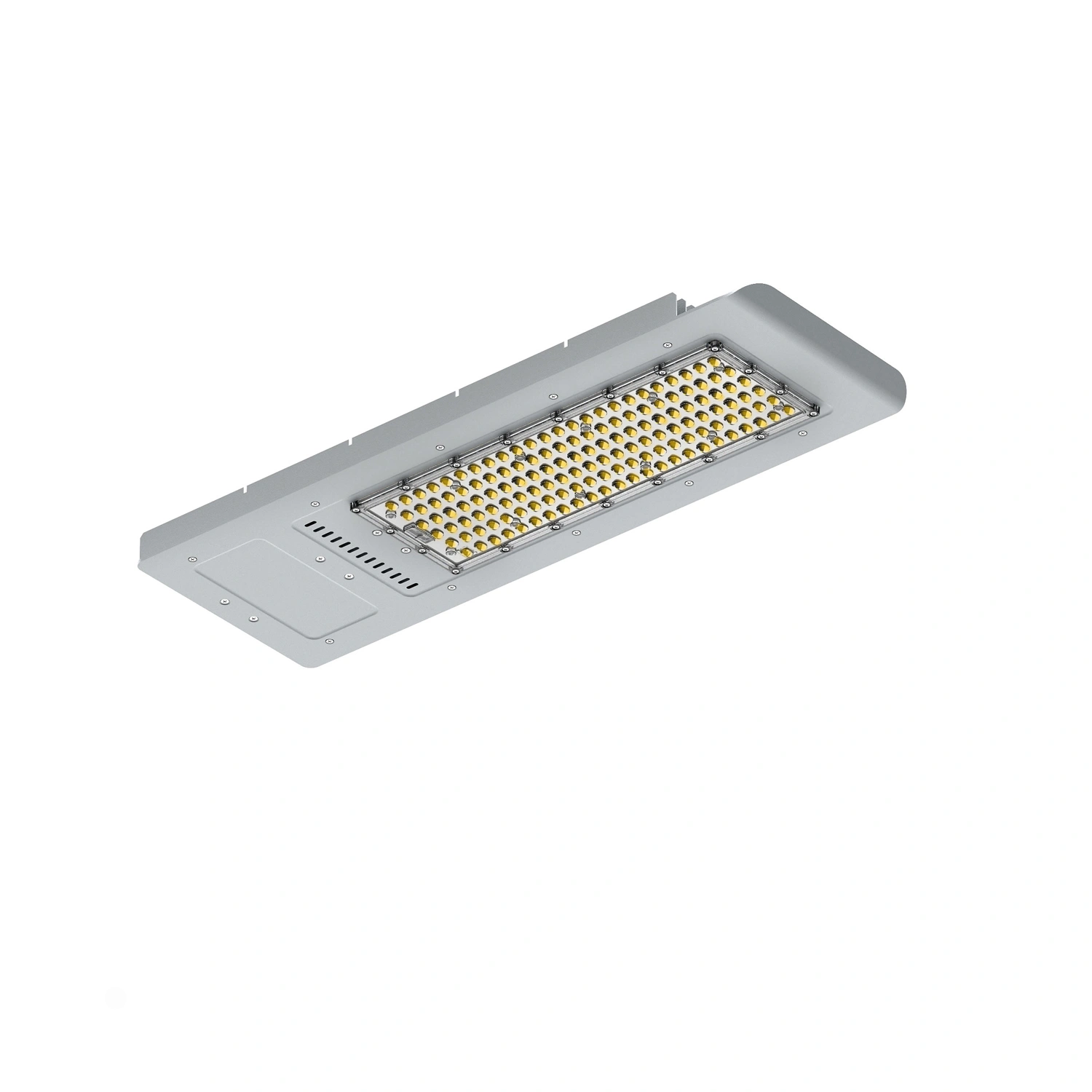

Detailed Images

Application

Suitable for Parking Lights, Road Lighting, Ramp Lighting, Sidewalk Lighting, Campus Lighting, Highway lighting and other outdoor places.
Product packaging
Installation Instructions
