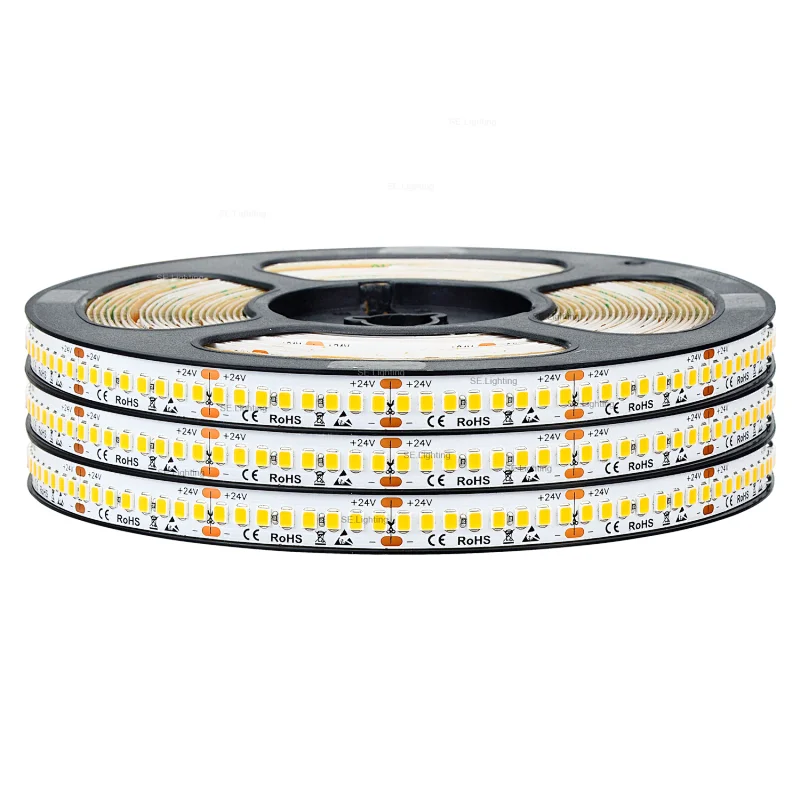

240LEDs 175LM/W 2835 High Lumen LED Strip

240LEDs 175LM/W 2835 High Lumen LED Strip

  • Model NO. SELS-2835X240-12/24-YC
  • Minimum order quantity:100 meters
  • Accept Min order:Yes
  • Supply Ability:300000 meters / Month
  • Country of Origin:SHENZHEN
  • Stock Time:5-10 Days
Basic Information
Product Description

Product Parameter
Model NumberSELS-2835X240-12/24-YC
Beam Angle120°
Waterproof GradeIP20/IP65/IP67
Color Temperature(CCT)2700K / 3000K / 4000K / 6500K
Lamp Power26W/mt
Luminous Efficacy(lm/w)175
Lamp Luminous Flux(lm)4550lm/w
FPC Width10mm
Warranty(Year)3-YEAR
CRI (Ra>)80/90
Life time(Hour)50,000
Switch ModeBluetooth Remote Control
Wifi Manual Button
Source2835 SMD
Support Dimmeryes
Cutting Unit16.7/33.3mm
Input Voltage(V)DC 12/24V
Length5mt, any length can
be customized
Ambient Temp. ()(-20~+50)
Storage Temp. ()(-20~+60)
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout

2835 High Lumen Series
Part No.SELS-2835X70-24-YSELS-2835X126-24-YASELS-2835X126-24-YBSELS-2835X182-24-YSELS-2835X144-12/24-YSELS-2835X192-12/24-YSELS-2835X240-12/24-YC
VoltageDC 24VDC 24VDC 24VDC 24VDC 12 / 24VDC 12 / 24VDC 12 / 24V
LED Qty/mt70pcs126pcs126pcs182pcs144pcs192pcs240pcs
Watt/mt6W11W17W20W16W21W26W
FPCB Width8mm10mm10mm10mm10mm10mm10mm
Cutting Unit100mm55mm55mm38mm27 / 55mm20 / 41mm16 / 33mm
Efficiency125-140lm/W120-135lm/W115-130lm/W115-130lm/W175lm/W175lm/W175lm/W
Lumen/mt750-840LM1320-1480LM1950-2200LM2300-2600LM2800LM3675LM4550LM
Product Description

240LEDs 175LM/W 2835 High Lumen LED Strip can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Cutttable every 8LEDs, approx every 1.31"at designated cut marks
2. Thick 2oz PCB board for maximum heat dispersion
3. Super bright 2835 SMD top LED, high intensity and reliability
4. Long life span 50,000+ hours
5. Completely smooth and even light spread, solving the uneven luminous problem
6. Low power consumption
7. Flexible ribbon for curving around bends
8. High brightness, low power, long life, easy installation, the production of highly customizable
9. Ultra-bright but running at low temperature
10. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.

Application

240LEDs 175LM/W 2835 High Lumen LED Strip with widely application below:

1. Designed for the average homeowner as well as lighting professionals
2. Widely used for architectural lighting, sign letter lighting, concealed lighting, perimeter lighting among many other applications
3. IP20 Non-waterproof used in indoor lighting, such as hotels, night clubs, shopping malls, offices...etc
4. IP65/67 water-resistant suitable for damp location, such as bathroom, indoor garden...etc

5. IP68 used in outdoor/underwater lighting, such as swimming pool, trees decoration..etc



Product packaging

Installation Instructions
