Lighting and circuitry design; DIALux evo layout; CAD layout
Input Voltage(V)
DC 24V
Lamp Body Material
Copper
Certification
CE EMC FCC PSE RoHS
Application
Residential, Shopping Mall Light
Source
5630 SMD
Warranty(Year)
3-YEAR
Switch Mode
Bluetooth Remote Control Wifi Manual Button
Luminous Efficacy(lm/w)
115
Life time(Hour)
50,000
Lamp Power
24W/mt
Lamp Luminous Flux(lm)
2760lm/w
CRI (Ra>)
80
CCT (Color Changing) Series

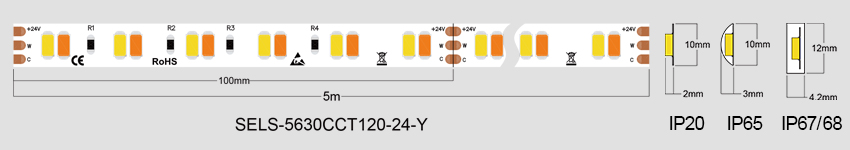

Part No.
SELS-3838CCT120-24-Y
SELS-5630CCT120-24-Y
Voltage
DC 24V
DC 24V
LED Qty/mt
120pcs
120pcs
Watt/mt
18W
24W
FPCB Width
10mm
10mm
Cutting Unit
100mm
25mm/50mm
Efficiency
WW85/PW85/WW+PW85lm/W
115lm/W
Lumen/mt
800~1500LM
2760LM
Color
Two color in one LED 3000K+6000K
60pcs 3000K + 60pcs 6000K
Product Description

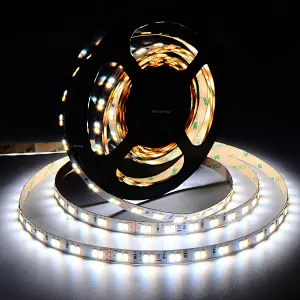

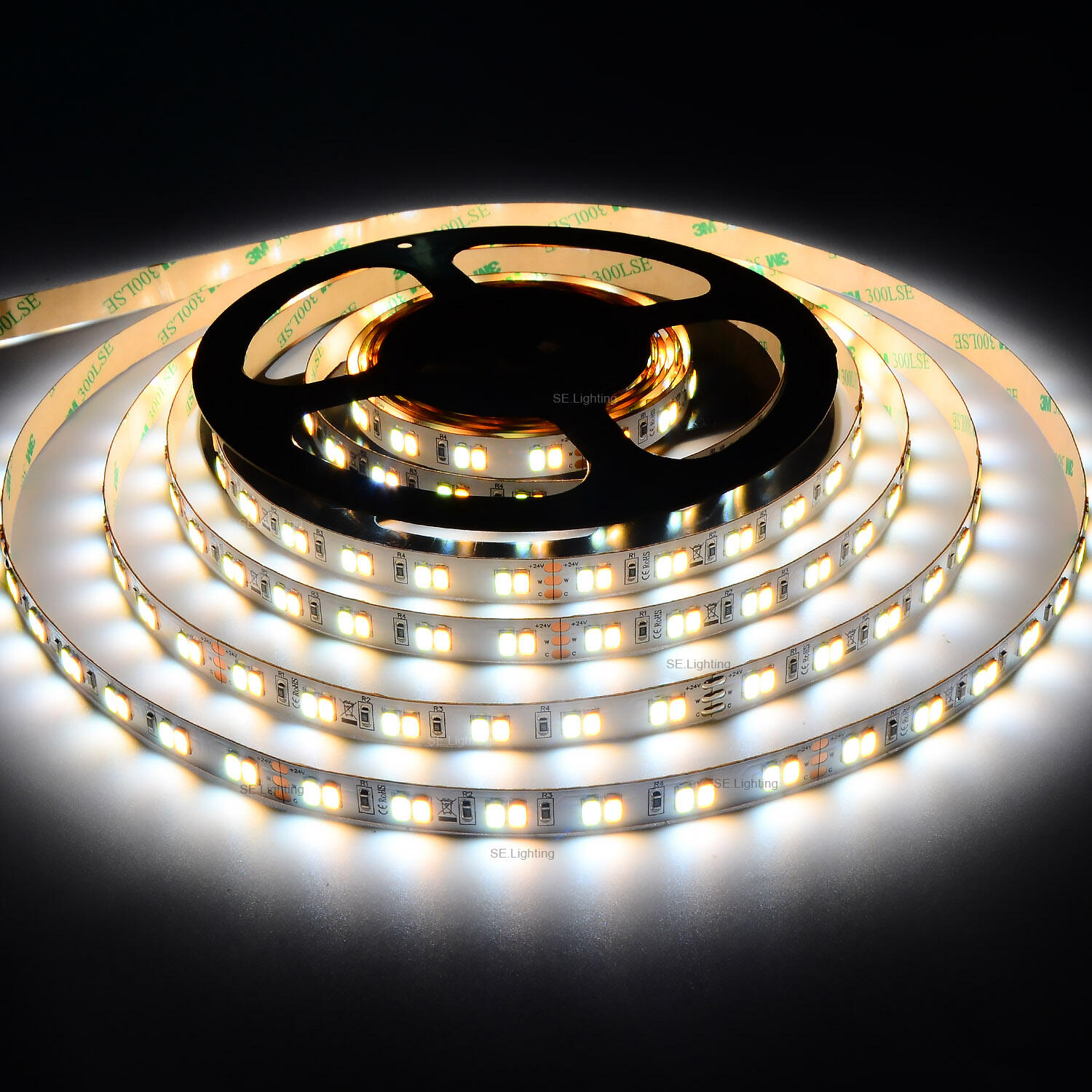

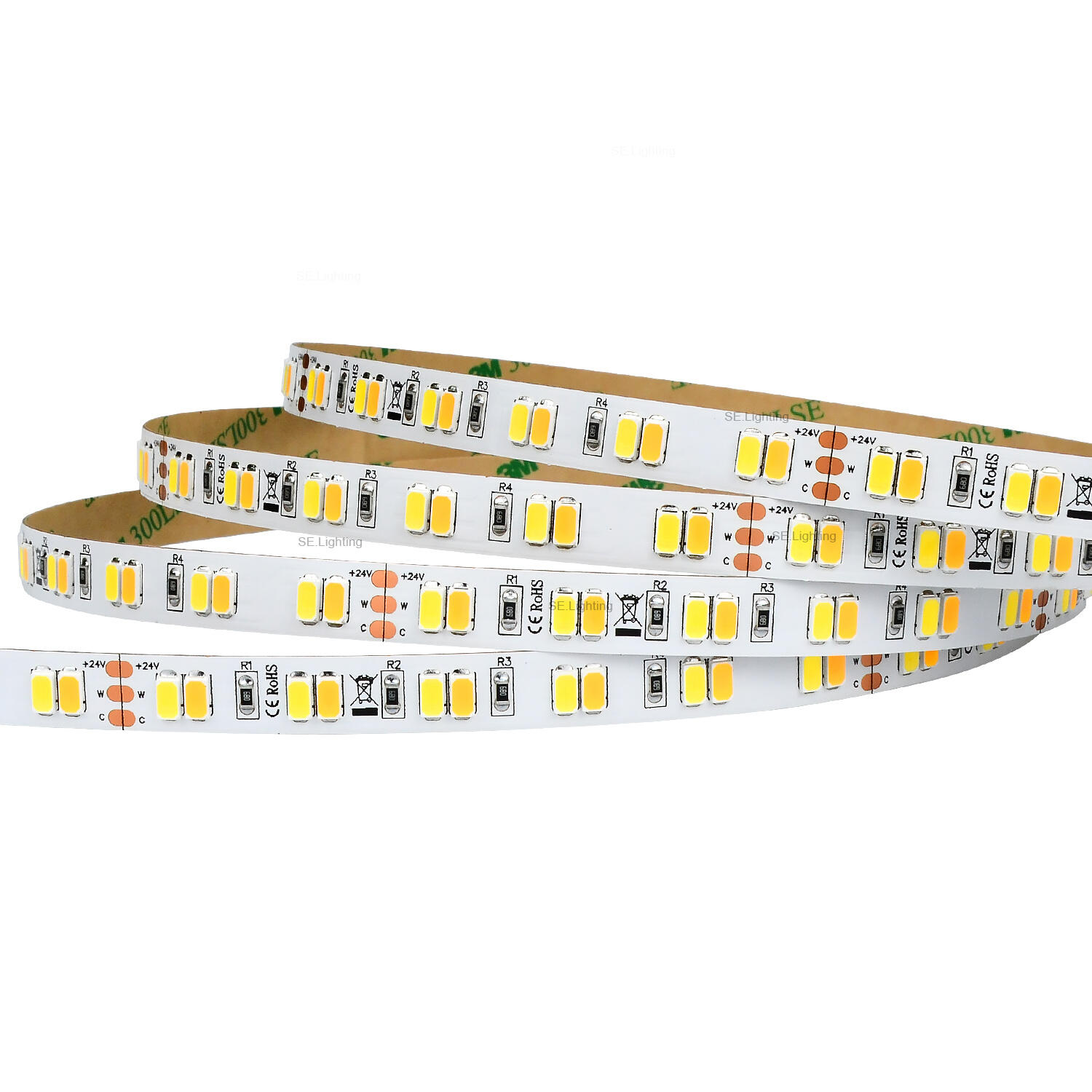

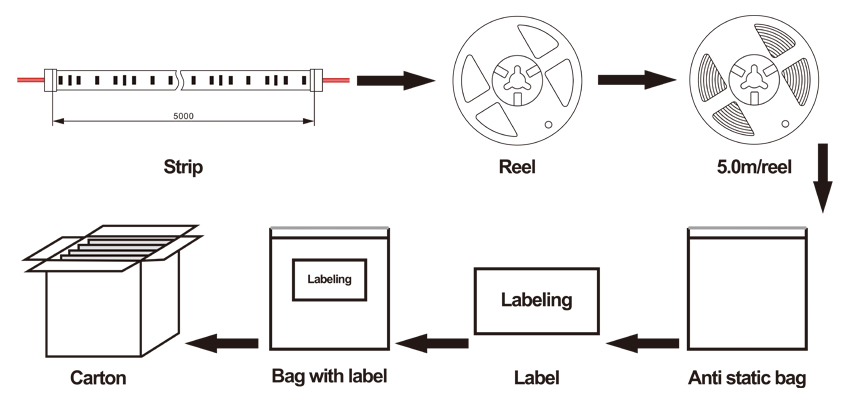

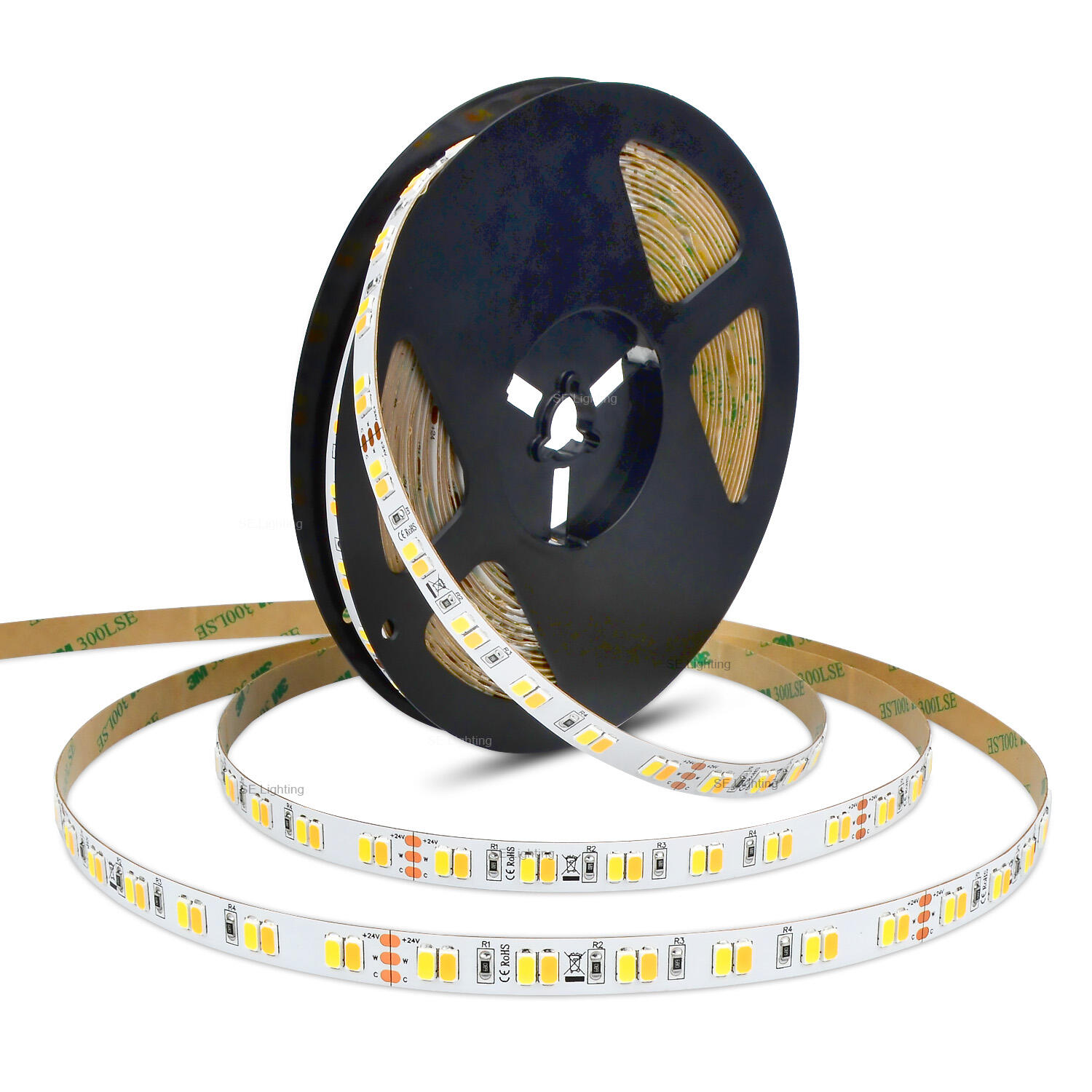

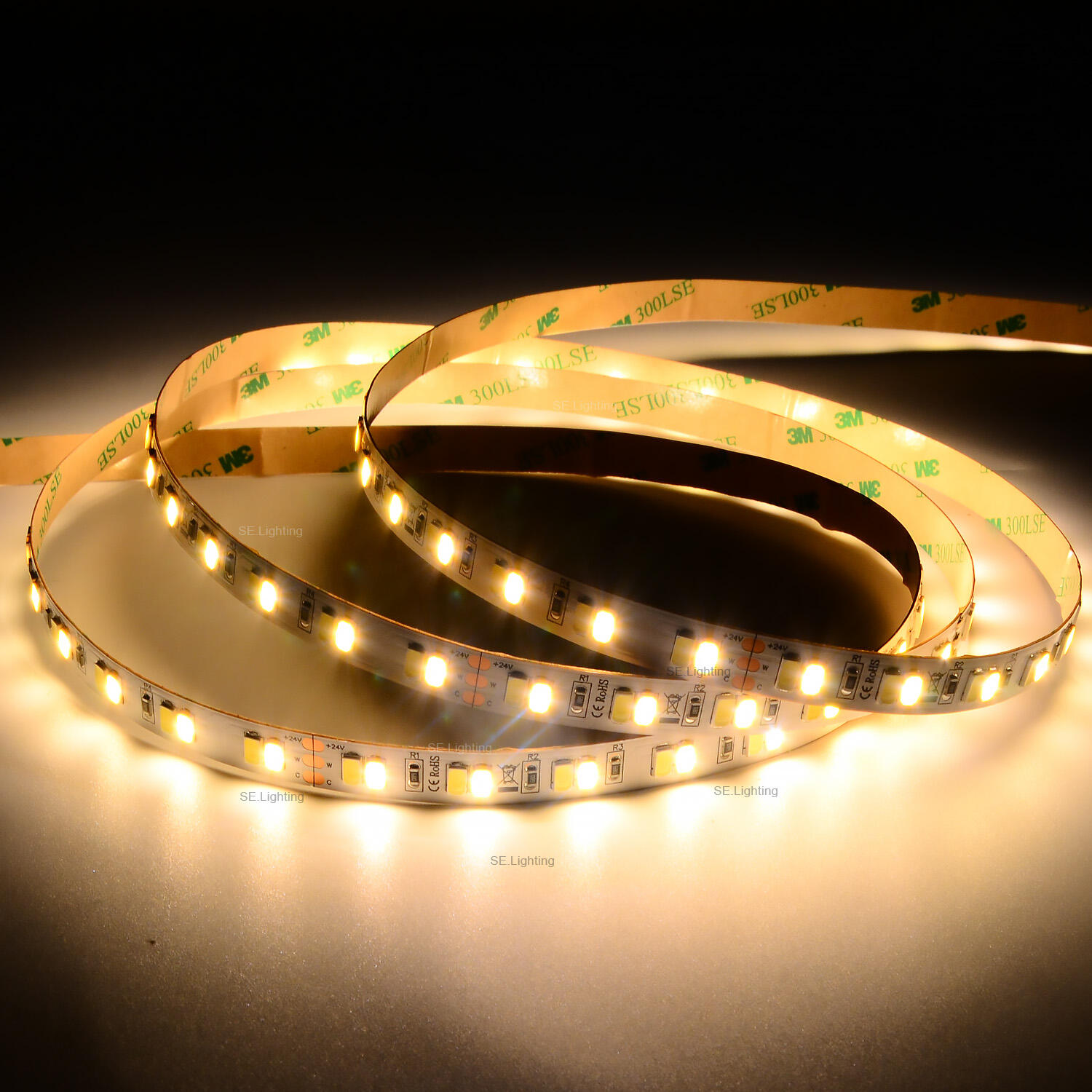

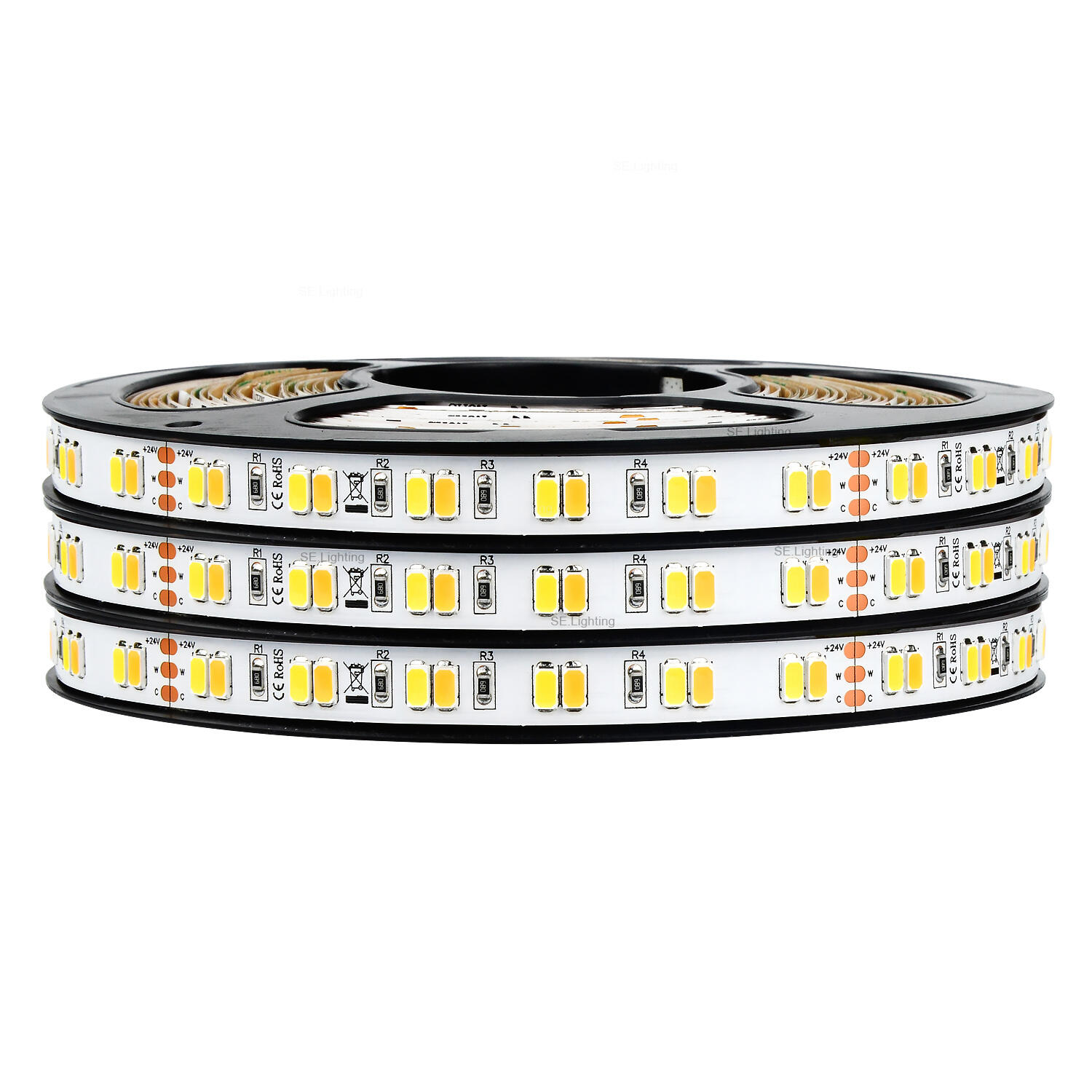

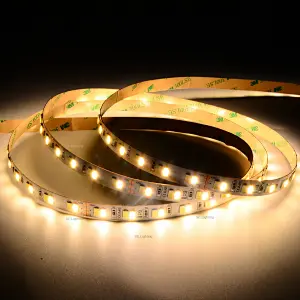

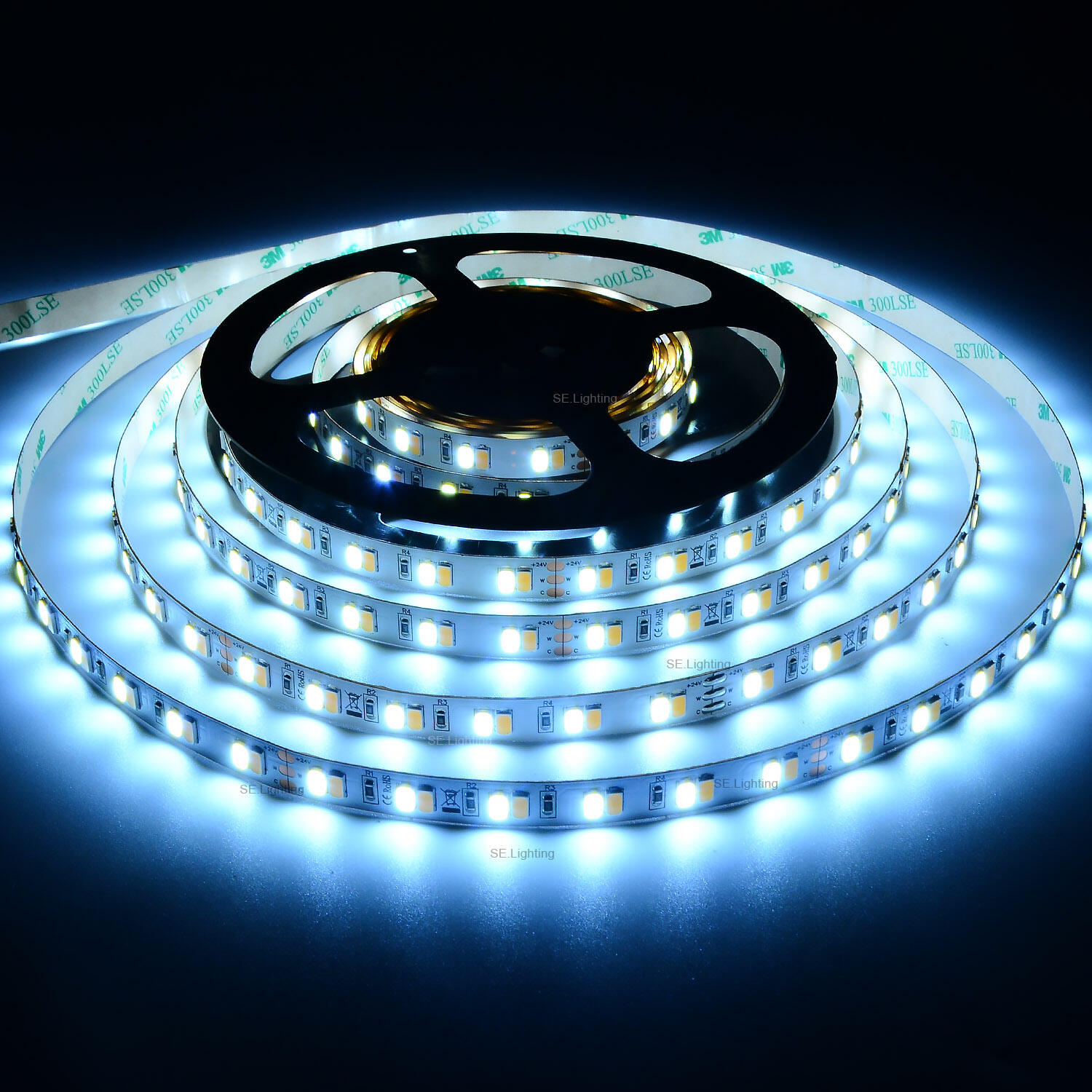

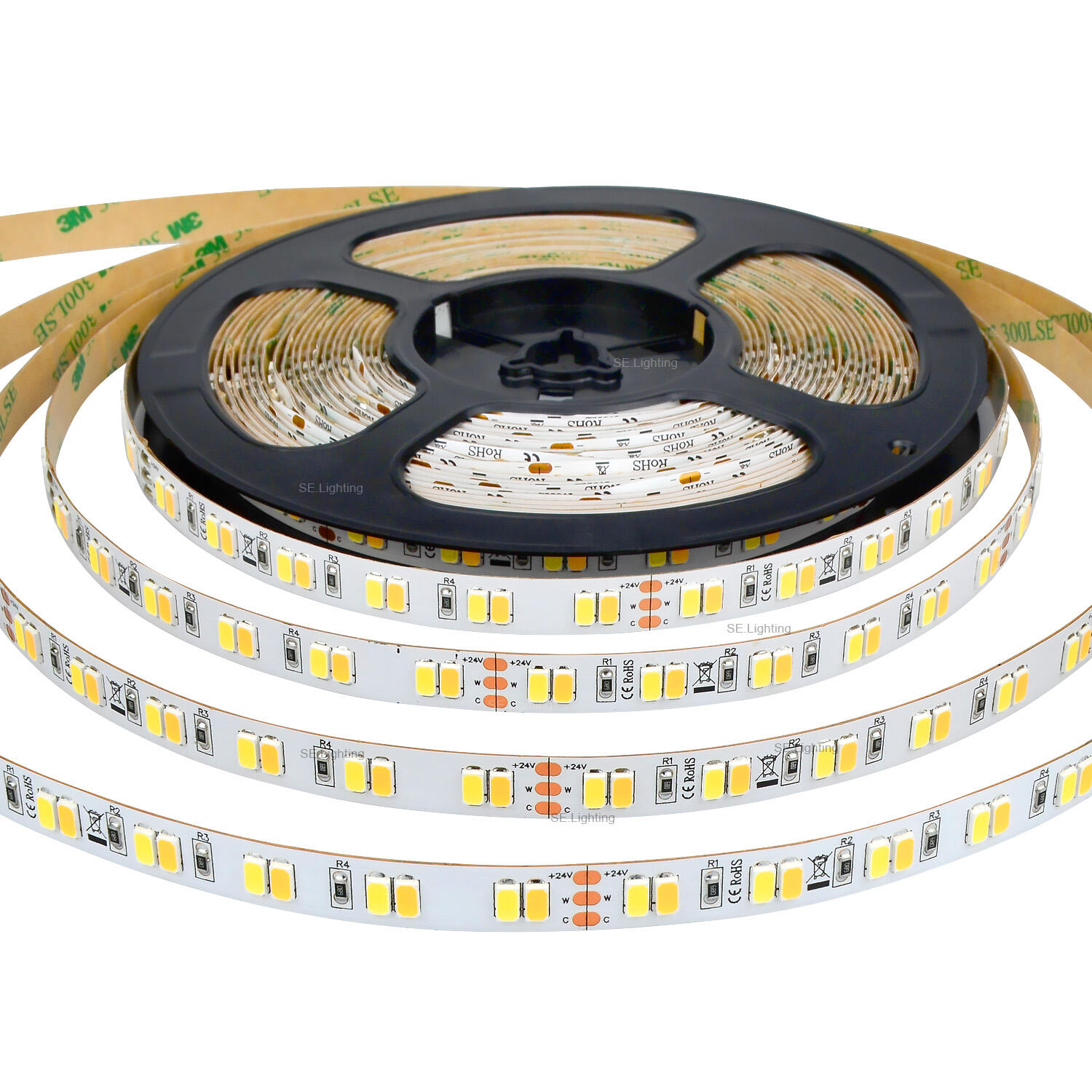

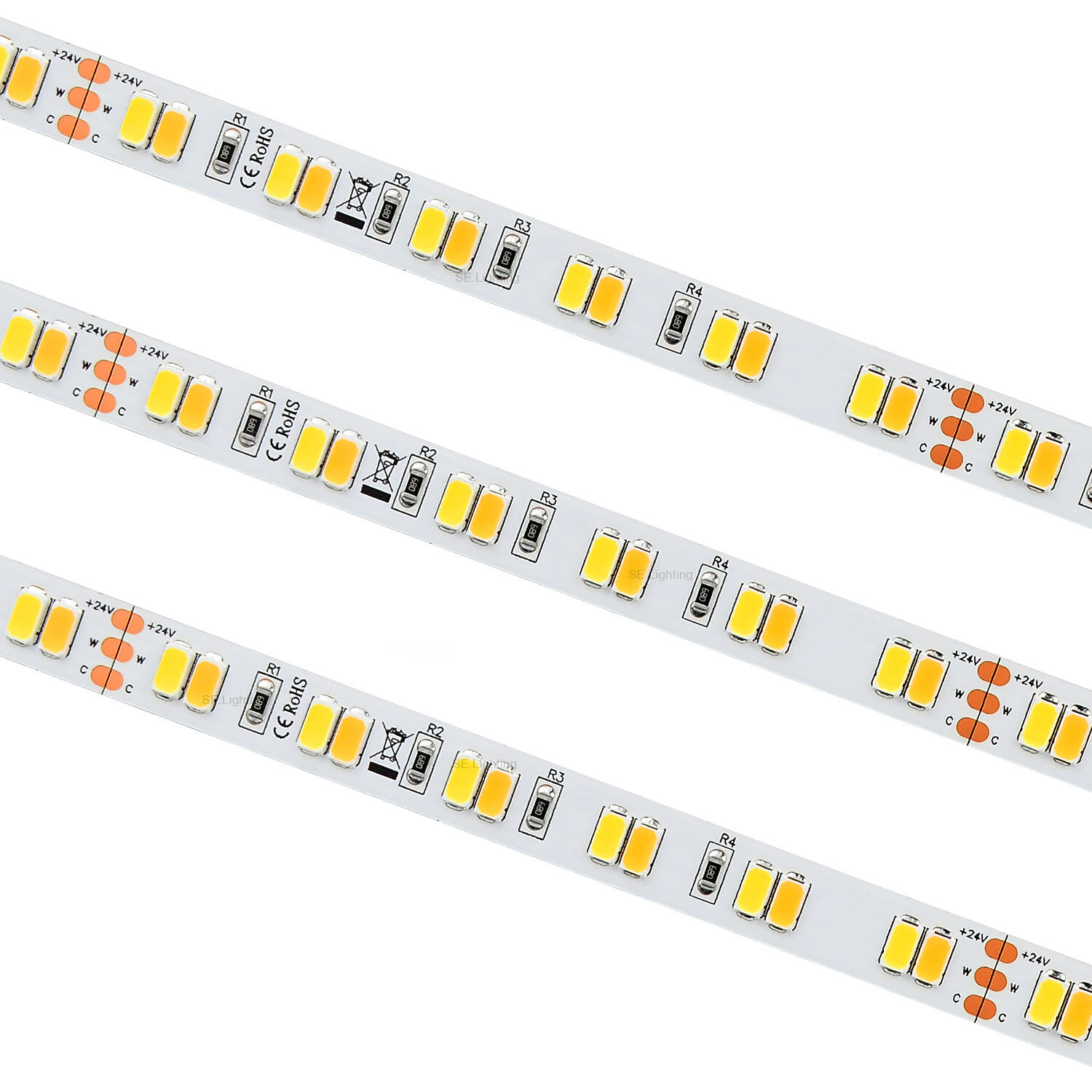

120LEDs 5630 Bi-Color Dual Color LED Strip can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1. Super bright 5630 SMD top LED 60pcs 3000K + 60pcs 6500K, high intensity and reliability. 2. Continuous length, normally 5m/roll. 3. 3 years warranty 4. Cut table every 6LEDs along the cutting marks, according to practical requirement. 5. Low power consumption 6. Flexible ribbon for curving around bends 7. Completely smooth and even light spread, solving the uneven luminous problem 8. High brightness, low power, long life, easy installation, the production of highly customizable. 9. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Application
120LEDs 5630 Bi-Color Dual Color LED Strip with widely application below:
1. It’s widely used as a decorative lights, and use it as the lights 2. LED Luminous characters; 3. Backlight of signage, Channel letters lighting; 4. Festival, exhibition,Stage decoration, weedings; 5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.
