| Product Parameter | |
| Model Number | SELS-5630X120-12/24-Y |
| Working Temperature(℃) | -20-50℃ |
| Package | 5m per roll, any length can be customized |
| FPC Width | 12mm |
| Cutting Unit | 50mm / 100mm |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700-6000K |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 12V/ 24V |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Application | Residential, Shopping Mall Light |
| Source | 5630 SMD |
| Warranty(Year) | 3-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Luminous Efficacy(lm/w) | 115 |
| Life time(Hour) | 50,000 |
| Lamp Power | 20W/mt |
| Lamp Luminous Flux(lm) | 2300lm/w |
| CRI (Ra>) | 80 |
| 5630 Series | |||

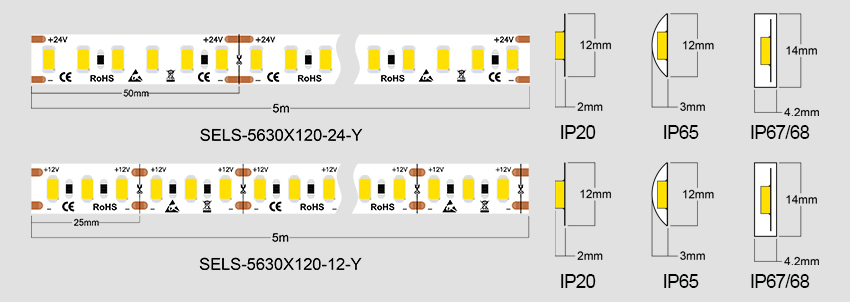

| Part No. | SELS-5630X60-12/24-Y | SELS-5630X64-12/24-Y | SELS-5630X120-12/24-Y |
| Voltage | DC12 / 24V | DC12 / 24V | DC12 / 24V |
| LED Qty/mt | 60pcs | 64pcs | 120pcs |
| Watt/mt | 12W | 12W | 20W |
| FPCB Width | 10mm | 10mm | 12mm |
| Cutting Unit | 50/100mm | 50/100mm | 25/50mm |
| Efficiency | 110lm/W | 150lm/W | 115lm/W |
| Lumen/mt | 1320LM | 1800LM | 2300LM |
| Color | 2700K/ 3000K / 4000K / 6000K/Red/Green/Blue | 2700K/ 3000K / 4000K / 6000K | 2700K/ 3000K / 4000K / 6000K |
| Product Description | |

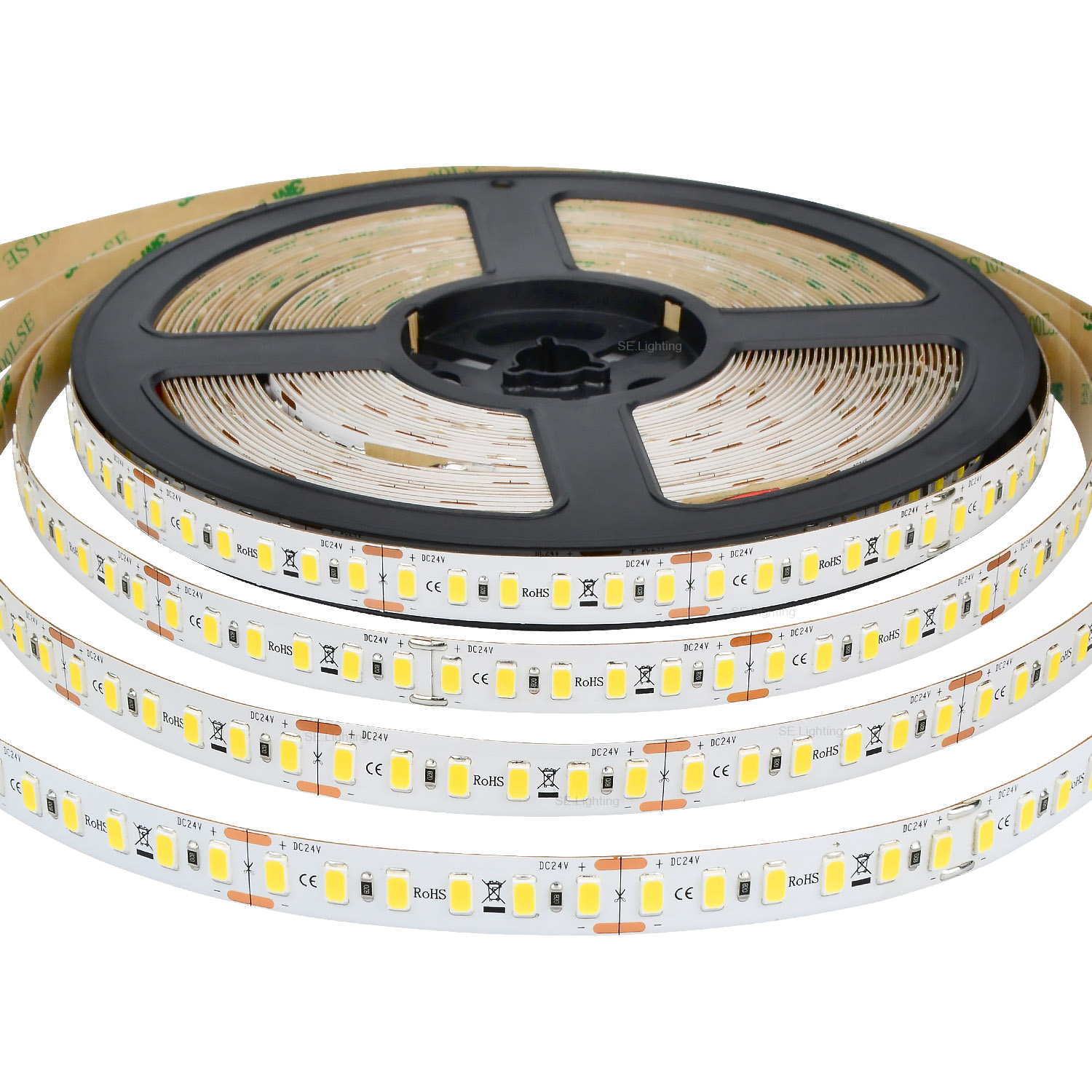

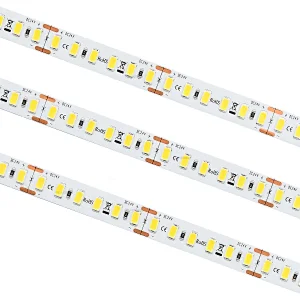

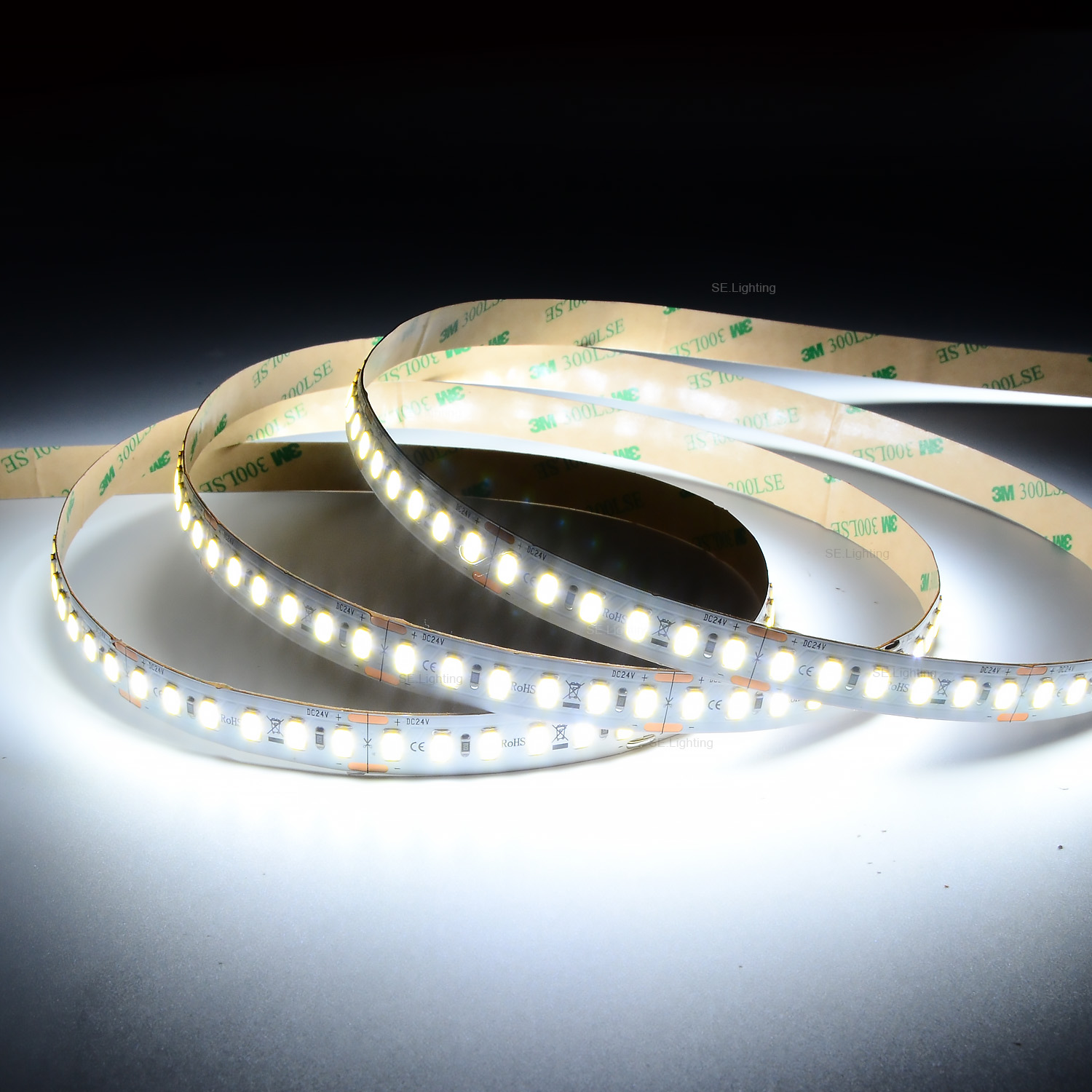

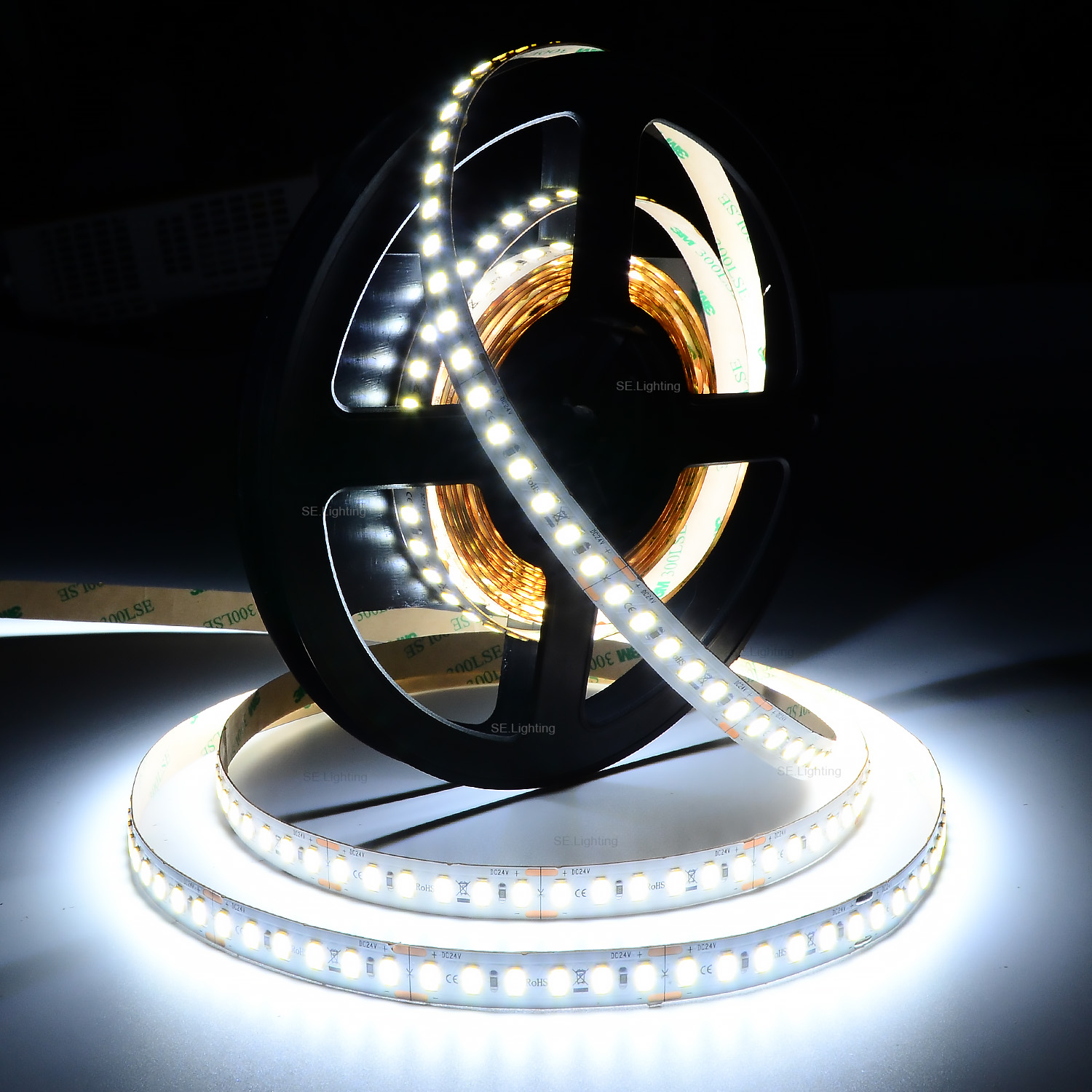

| 120LEDs 5630 115 LM/W Outdoor LED Strip Lights can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1. 5630 Strip Lights Super bright 5630 SMD top bin LED, high intensity and reliability. 2. Continuous length, packed with 5 meter. 3. 5630 Strip Lights Cuttable 12V at every 3 LEDs and 24V at every 6 LEDs along the cutting marks, according to practical requirement. 4. Outdoor LED Strip Lights Long life span 50,000+ hours 5. Flexible ribbon for curving around bends 6. CE & RoHS-recognized, high output 12V/24V LED strip with 600xSMD5630 LEDs 7. Thick 2oz PCB board for maximum heat dispersion 8. Exceptionally smooth linear effect 9. High grade, long lasting resistors to stop LED chip damage | |

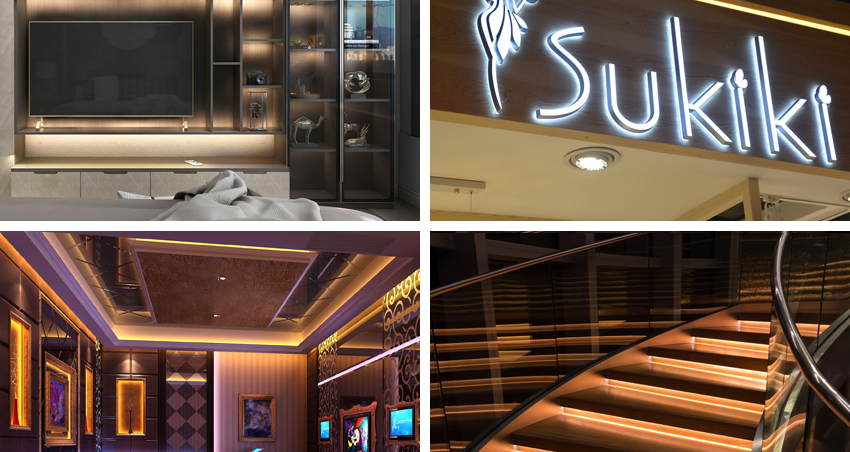

| Application | |
120LEDs 5630 115 LM/W Outdoor LED Strip Lights with widely application below: 1. It’s widely used as a decorative lights, and use it as the lights |
| Product packaging |
| Installation Instructions |
Notice：
1. Installation Outdoor LED Strip Lights must comply with local international electrical safety instructions.
2. In order to ensure Outdoor LED Strip Lights safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of led strip light should comply with CE standard; With constant voltage LED power supply.
4. Do not install the Outdoor LED Strip Lights in overheat environment.
5. Do not install the non-waterproof LED Strip Light in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, LED Strip Lights and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The Outdoor LED Strip Lights with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
- Experience an outdoor atmosphere like never before with these Outdoor LED Strip Lights! Enjoy a bright, vibrant, and beautiful light show that lasts up to 50,000 hours and has adjustable brightness. Make your outdoor setting unique and one-of-a-kind.
- Make your outdoor space shine with these Outdoor LED Strip Lights. Their weatherproof construction and bright color ensures that they'll look great in any season - so you can enjoy your outdoors even longer.
- Create a stylish outdoor space with our Outdoor LED Strip Lights. Boasting a bright, powerful illumination and a wide selection of colors, this light strip adds a modern aesthetic to any area. Enjoy the convenience of easy installation and durable waterproof protection, perfect for any environment!
- Create the perfect outdoor ambiance with these Outdoor LED Strip Lights. Featuring reliable waterproof construction, these lights will keep your outdoor space illuminated and inviting for years to come. Enjoy vibrant, eye-catching colors and adjustable brightness — bringing personality and life to any outdoor setting!
- Light up your backyard or patio with our vibrant Outdoor LED Strip Lights! Enjoy a bright, energy-efficient glow perfect for any outdoor gathering. Make sure your next party is a total hit - and save on your energy bill - with Outdoor LED Strip Lights!
- Light up the night with these Outdoor LED Strip Lights! With cutting-edge LED technology, these lights are energy efficient, long-lasting, and offer a vibrant, captivating lighting experience. So why wait? Transform your outdoor oasis with these exciting LED Strip Lights!
- More videos of our Outdoor LED Strip Lights on Youtube.
- Youtube: https://www.youtube.com/@se.lighting
