Model NO.
SELS-2835X126-24-YB
Quantity:

Product Parameter
Model NumberSELS-2835X126-24-YB
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)2700K / 3000K / 4000K / 6500K
Lamp Power17W/mt
Luminous Efficacy(lm/w)130
Lamp Luminous Flux(lm)1870-2200lm/w
FPC Width10mm
Warranty(Year)3-YEAR
CRI (Ra>)80/90
Life time(Hour)50,000
Switch ModeBluetooth Remote Control
Wifi Manual Button
Source2835 SMD
Support Dimmeryes

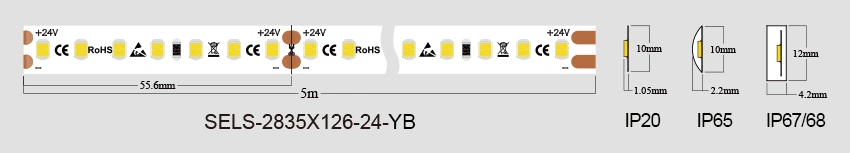

Cutting Unit55.6mm
Input Voltage(V)DC 24V
Length5mt, any length can
be customized
Ambient Temp. ()(-20~+50)
Storage Temp. ()(-20~+60)
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout

2835 High Lumen Series
Part No.SELS-2835X70-24-YSELS-2835X126-24-YASELS-2835X126-24-YBSELS-2835X182-24-YSELS-2835X144-12/24-YSELS-2835X192-12/24-YSELS-2835X240-12/24-YC
VoltageDC 24VDC 24VDC 24VDC 24VDC 12 / 24VDC 12 / 24VDC 12 / 24V
LED Qty/mt70pcs126pcs126pcs182pcs144pcs192pcs240pcs
Watt/mt6W11W17W20W16W21W26W
FPCB Width8mm10mm10mm10mm10mm10mm10mm
Cutting Unit100mm55mm55mm38mm27 / 55mm20 / 41mm16 / 33mm
Efficiency125-140lm/W120-135lm/W115-130lm/W115-130lm/W175lm/W175lm/W175lm/W
Lumen/mt750-840LM1320-1480LM1950-2200LM2300-2600LM2800LM3675LM4550LM
Product Description
126LEDs 130lm/W 2835 LED Light Strips For Room can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Cut table every 6LEDs along the cutting marks, according to practical requirement
2. Continuous length, packed with 5 meter
3. Super bright 2835 SMD top LED, high intensity and reliability.
4. Long life span 50,000+ hours
5. Completely smooth and even light spread, solving the uneven luminous problem
6. Low power consumption
7. Flexible ribbon for curving around bends
8. High brightness, low power, long life, easy installation, the production of highly customizable
9. Ultra-bright but running at low temperature
10. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Application

126LEDs 130lm/W 2835 LED Light Strips For Room with widely application below:

1. It’s wodely used as a decorative lights, and use it as the lights
2. LED Luminous characters;
3. Backlight of signage, Channel letters lighting;
4. Festival, exhibition,Stage decoration, weedings;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

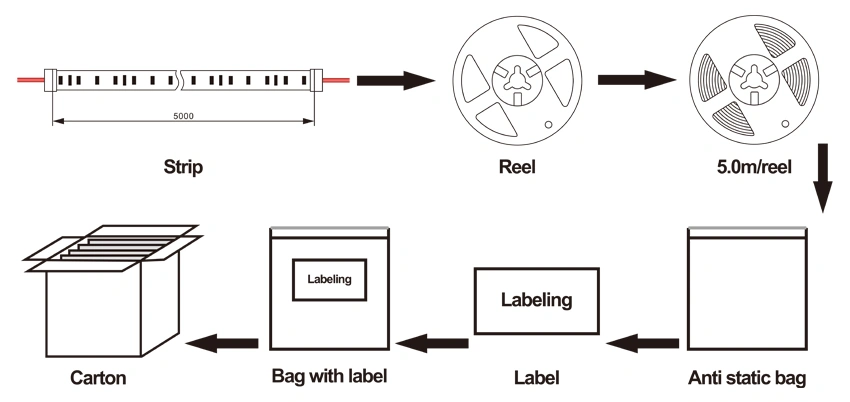

Product packaging

Installation Instructions
