128LEDs 160LM/W 2835 Flexible LED Strip Light
128LEDs 160LM/W 2835 Flexible LED Strip Light

128LEDs 160LM/W 2835 Flexible LED Strip Light

Model NO.
SELS-2835X128-12/24-Y
Quantity:
Product Parameter
Model NumberSELS-2835X128-12/24-Y
Beam Angle120°
Waterproof GradeIP20/IP65/IP67
Color Temperature(CCT)2700K / 3000K / 4000K / 6500K
Lamp Power10W/mt
Luminous Efficacy(lm/w)160
Lamp Luminous Flux(lm)1600lm/w
FPC Width8mm
Warranty(Year)3-YEAR
CRI (Ra>)80/90
Life time(Hour)50,000
Switch ModeBluetooth Remote Control
Wifi Manual Button
Source2835 SMD
Support Dimmeryes

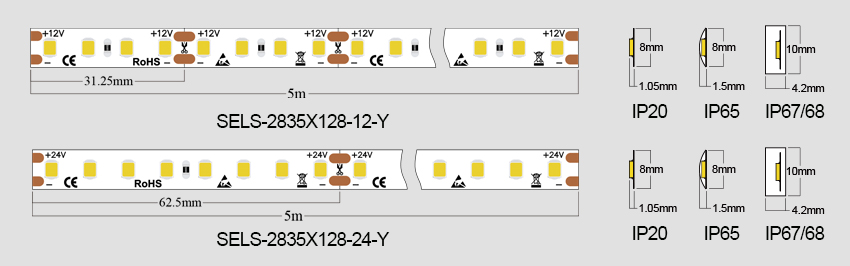

Cutting Unit31.25/62.5mm
Input Voltage(V)DC 12/24V
Length5mt, any length can
be customized
Ambient Temp. ()(-20~+50)
Storage Temp. ()(-20~+60)
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout

2835 High Lumen Series
Part No.SELS-2835X70-24-YSELS-2835X126-24-YASELS-2835X126-24-YBSELS-2835X182-24-YSELS-2835X144-12/24-YSELS-2835X192-12/24-YSELS-2835X240-12/24-YC
VoltageDC 24VDC 24VDC 24VDC 24VDC 12 / 24VDC 12 / 24VDC 12 / 24V
LED Qty/mt70pcs126pcs126pcs182pcs144pcs192pcs240pcs
Watt/mt6W11W17W20W16W21W26W
FPCB Width8mm10mm10mm10mm10mm10mm10mm
Cutting Unit100mm55mm55mm38mm27 / 55mm20 / 41mm16 / 33mm
Efficiency125-140lm/W120-135lm/W115-130lm/W115-130lm/W175lm/W175lm/W175lm/W
Lumen/mt750-840LM1320-1480LM1950-2200LM2300-2600LM2800LM3675LM4550LM
Product Description
128LEDs 160LM/W 2835 Flexible LED Strip Light can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Continuous length, packed with 5 meter.
2. Low power consumption
3.Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
4. Flexible ribbon for curving around bends
5. Long life span 50,000+ hours
6. Super bright 2835 SMD top LED, high intensity and reliability.
7. Completely smooth and even light spread, solving the uneven luminous problem
8. Ultra-bright but running at low temperature
9. High brightness, low power, long life, easy installation, the production of highly customizable.
10. Cut table every 8LEDs along the cutting marks, according to practical requirement.
Application

128LEDs 160LM/W 2835 Flexible LED Strip Light with widely application below:

1. It’s widely used as a decorative lights, and use it as the lights
2. LED Luminous characters;
3. Backlight of signage, Channel letters lighting;
4. Festival, exhibition,Stage decoration, weedings;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.



Product packaging

Installation Instructions
