| Product Parameter | |
| Model Number | SELS-5630X128-12/24-5Y |
| Working Temperature(℃) | -20-50℃ |
| Package | 5m per roll, any length can be customized |
| FPC Width | 10mm |

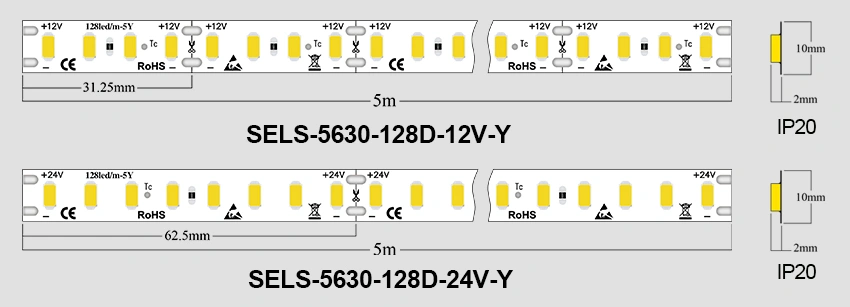

| Cutting Unit | 31.25mm / 62.5mm |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700-6500K |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 12V/ 24V |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Application | Residential, Shopping Mall Light |
| Source | 5630 SMD |
| Warranty(Year) | 5-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Luminous Efficacy(lm/w) | 150 |
| Life time(Hour) | 50,000 |
| Lamp Power | 22W/mt |
| Lamp Luminous Flux(lm) | 3300lm/w |
| CRI (Ra>) | 80/90 |
| 5630 Series | |||
| Part No. | SELS-5630X60-12/24-Y | SELS-5630X64-12/24-Y | SELS-5630X120-12/24-Y |
| Voltage | DC12 / 24V | DC12 / 24V | DC12 / 24V |
| LED Qty/mt | 60pcs | 64pcs | 120pcs |
| Watt/mt | 12W | 12W | 20W |
| FPCB Width | 10mm | 10mm | 12mm |
| Cutting Unit | 50/100mm | 50/100mm | 25/50mm |
| Efficiency | 110lm/W | 150lm/W | 115lm/W |
| Lumen/mt | 1320LM | 1800LM | 2300LM |
| Color | 2700K/ 3000K / 4000K / 6000K/Red/Green/Blue | 2700K/ 3000K / 4000K / 6000K | 2700K/ 3000K / 4000K / 6000K |
| Product Description | |

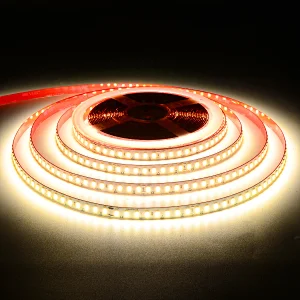

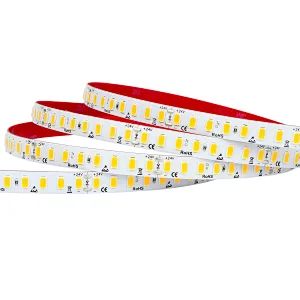

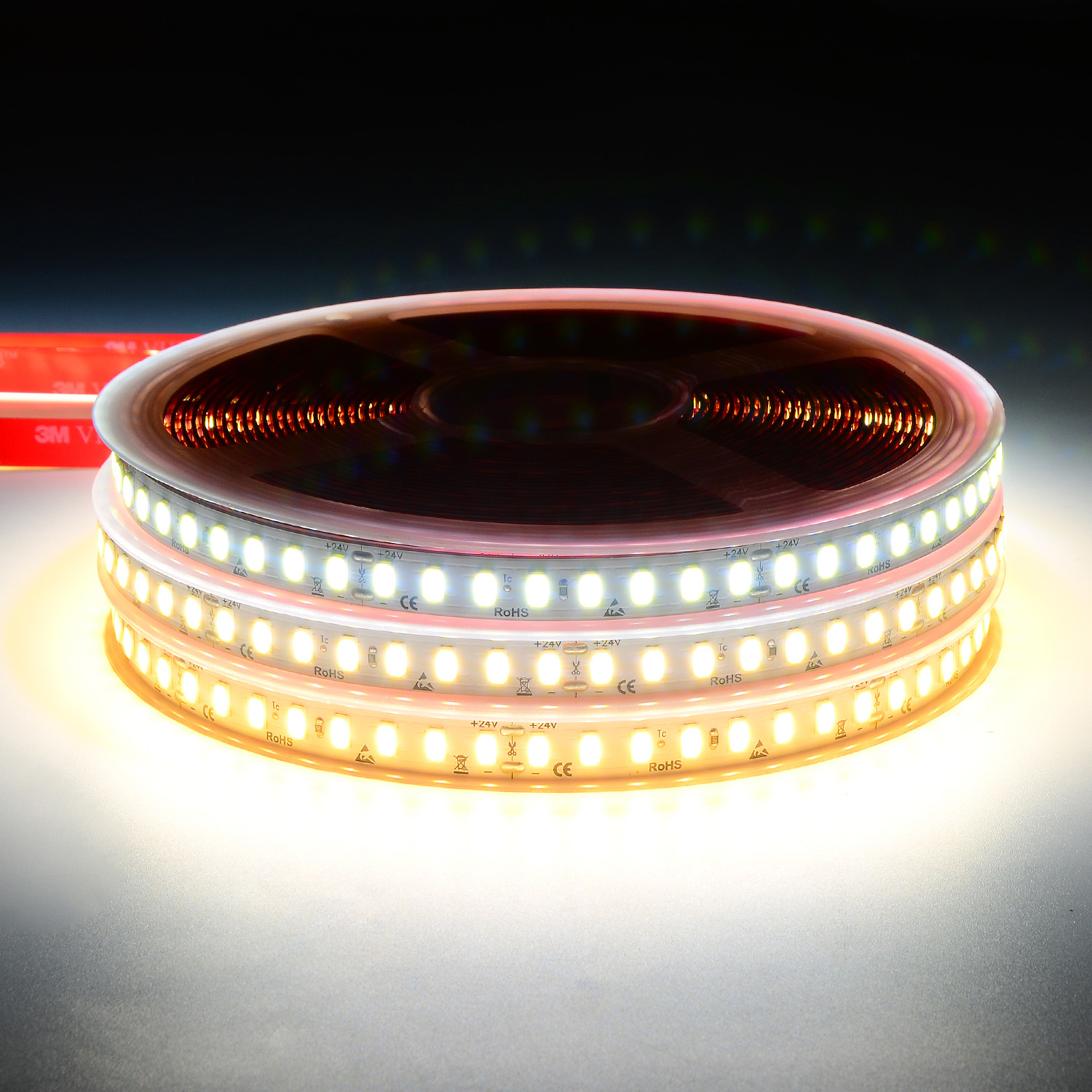

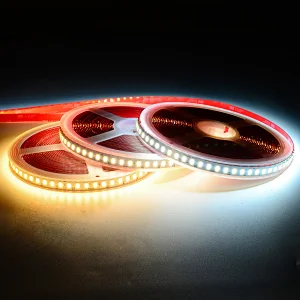

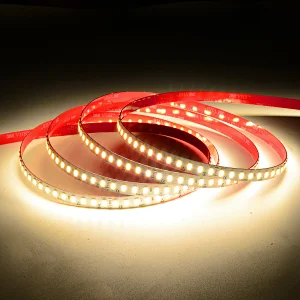

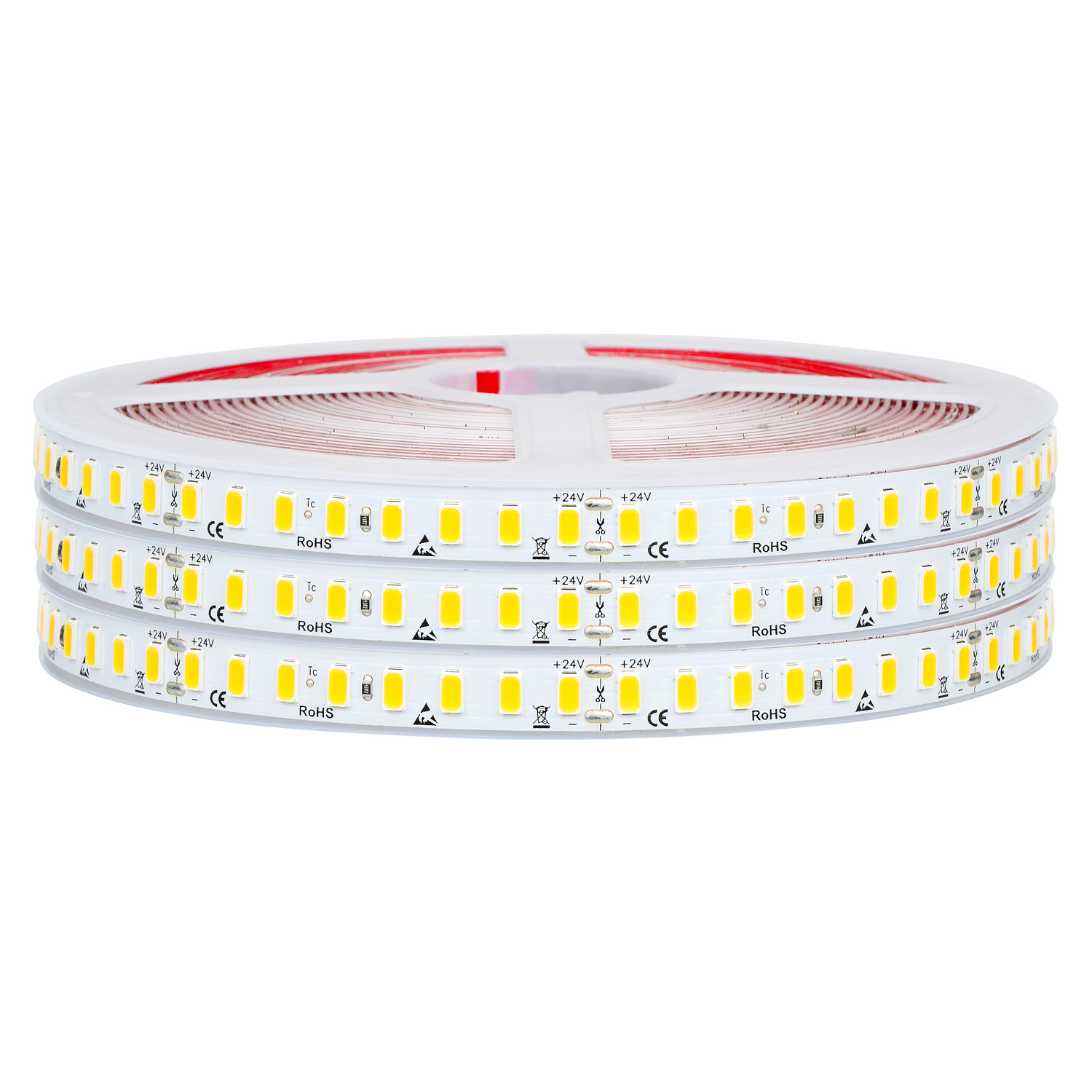

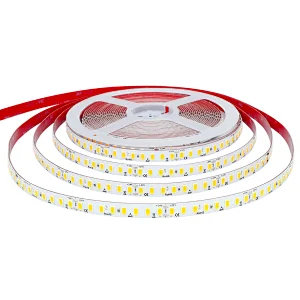

| 128LEDs 5630 150 LM/W Outdoor LED Strip Lighting 5Years Warranty can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1. Super bright 5630 SMD top bin LED, high intensity and reliability. 2. Continuous length, packed with 5 meter. 3. Cuttable 12V at every 4 LEDs and 24V at every 8 LEDs along the cutting marks, according to practical requirement. 4. Long life span 50,000+ hours 5. Flexible ribbon for curving around bends 6. CE & RoHS-recognized, high output 12V/24V LED strip with 600xSMD5630 LEDs 7. Thick 2oz PCB board for maximum heat dispersion 8. Exceptionally smooth linear effect 9. High grade, long lasting resistors to stop LED chip damage | |

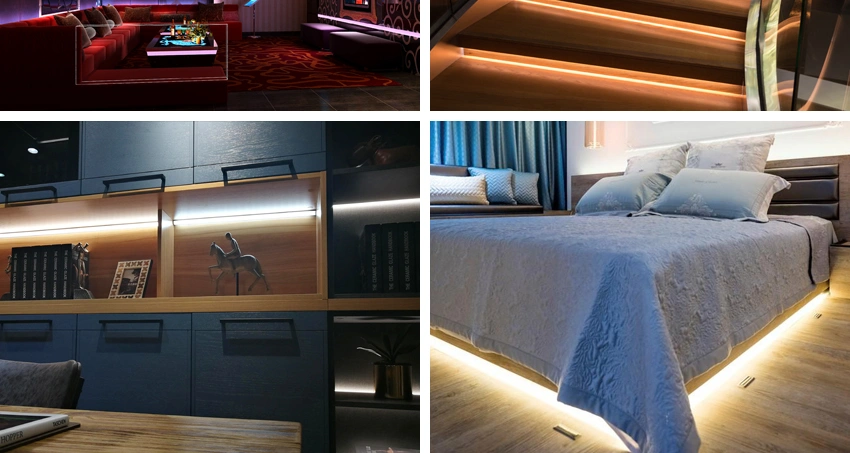

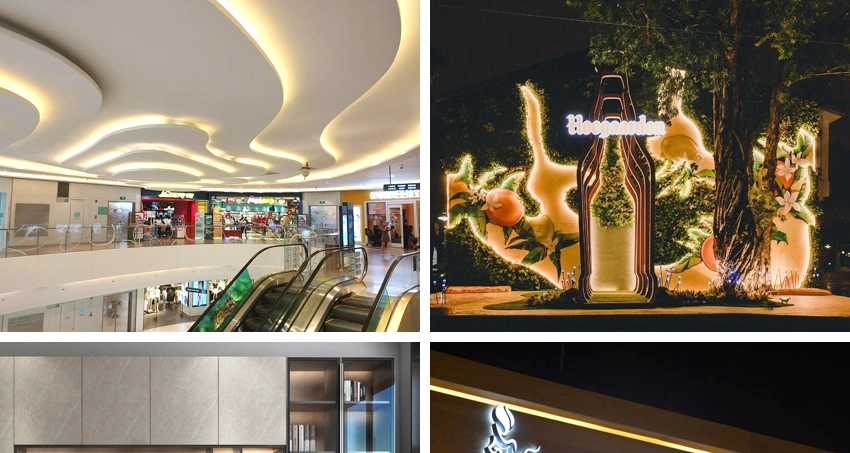

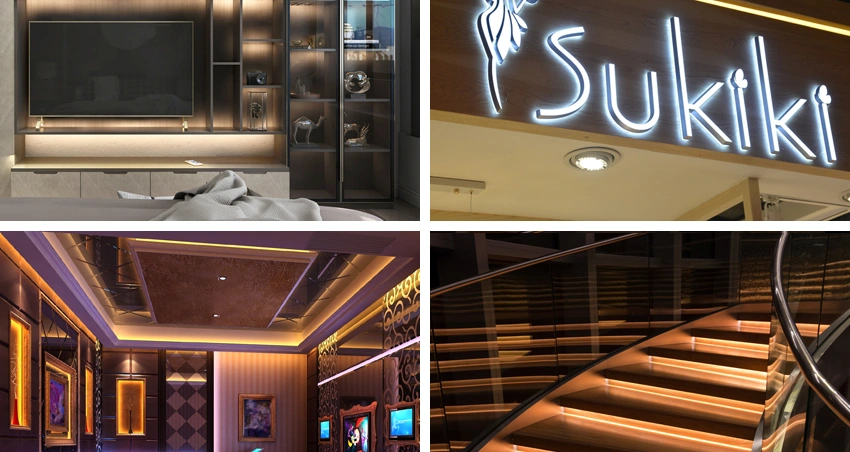

| Application | |
128LEDs 5630 150 LM/W Outdoor LED Strip Lighting 5Years Warranty with widely application below: 1. It’s widely used as a decorative lights, and use it as the lights |

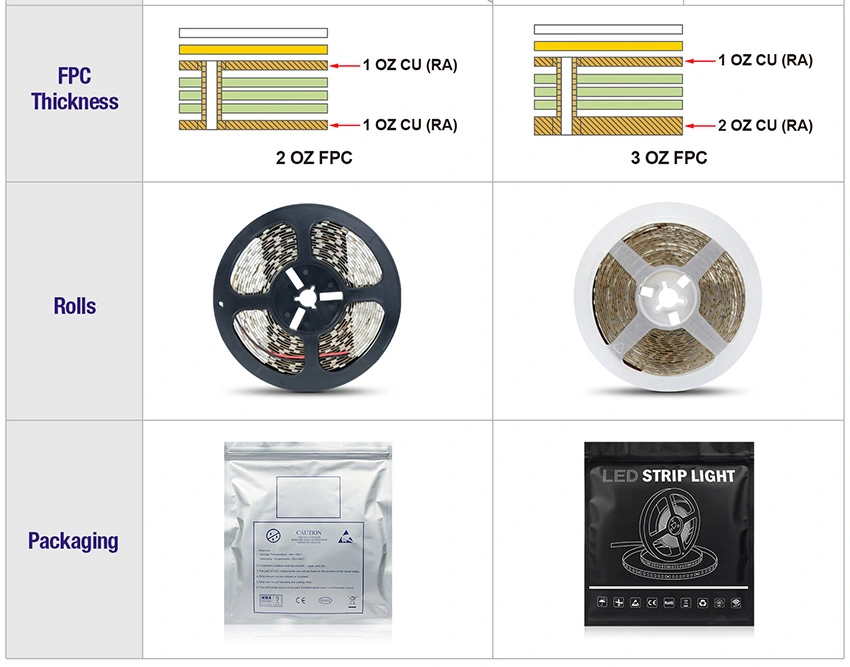

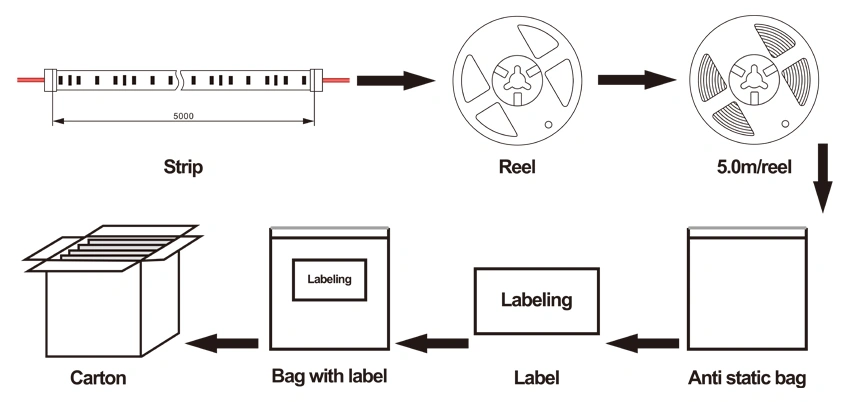

| Product packaging |

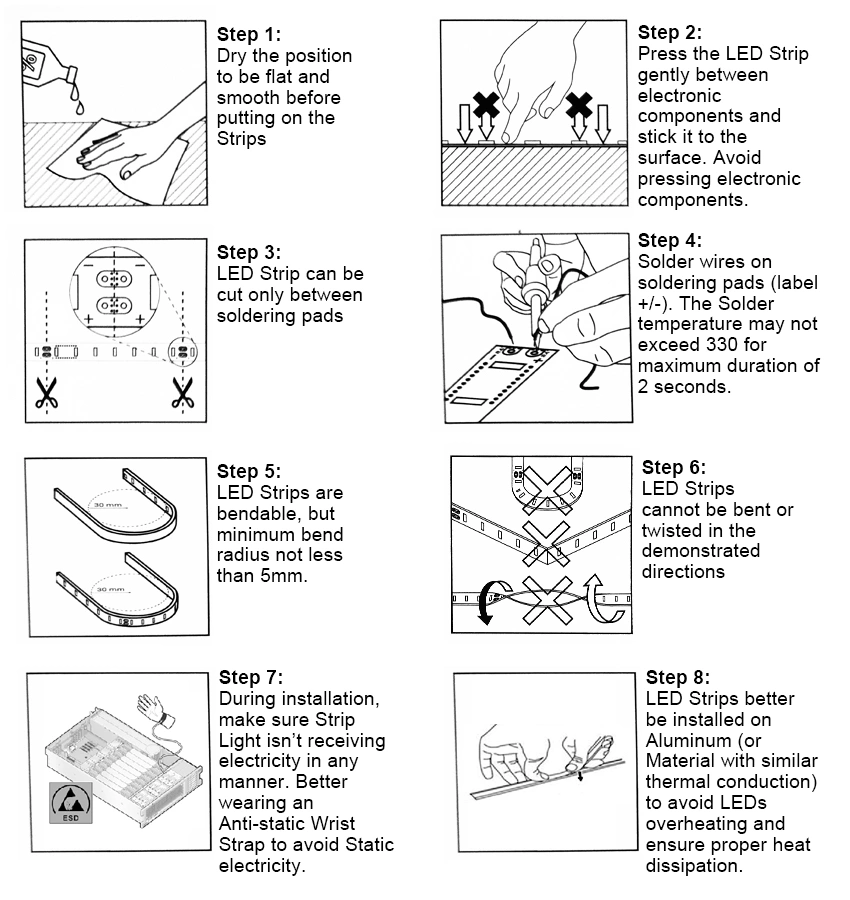

| Installation Instructions |
