| Product Parameter | |
| Model Number | SELS-COBX360-12-YA |
| Working Temperature(℃) | -20-50℃ |
| Length | 5mt, any length can be customized |
| FPC Width | 8mm |
| Cutting Unit | 50mm |
| Beam Angle | 180° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700K/3000K/3500K/ 4000K/5000K/6500K |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 12V |
| Lamp Body Material | Copper |
| Certification | CE/ROHS/ERP/EN62471 SAA/PSE/SASO |
| Source | LED |
| Warranty(Year) | 2-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Luminous Efficacy(lm/w) | 80-90 LM/W / 65-75 LM/W |
| Life time(Hour) | 50,000 |
| Lamp Power | 4.5W/mt |
| CRI (Ra>) | 80/90 |
| COB X360 Series | ||
| Part No. | SELS-COBX360-12-YA | SELS-COBX360-12-YB |
| Voltage | DC 12V | DC 12V |
| LED Qty/mt | 360pcs | 360pcs |
| Watt/mt | 4.5W | 8W |
| FPCB Width | 8mm | 8mm |
| Cutting Unit | 50mm | 50mm |
| Efficiency | 80-90 LM/W / 65-75 LM/W | 80-90 LM/W / 65-75 LM/W |
| SDCM | < 4 | |
| Product Description | |

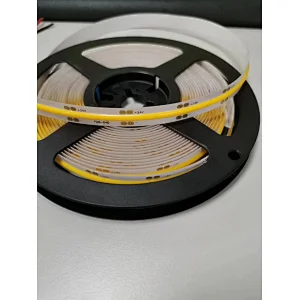

12VLED COB Strip Light Flexible 360LEDs 8mm can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1. Adopt brand LED chip,high brightness, low light decay,lifespan more than 50000 hours; | |
| Application | |

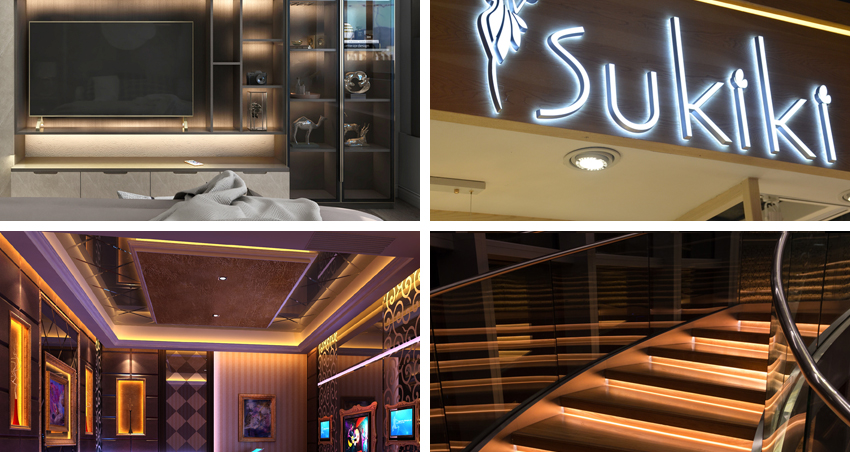

12V LED COB Strip Light Flexible 360LEDs 8mm with widely application below: 1. It’s widely used as a decorative lights, and use it as the lights |
| Product packaging |
| Installation Instructions |
Notice：
1. Installation 12V LED COB Strip Light Flexible must comply with local international electrical safety instructions.
2. In order to ensure 12V LED COB Strip Light Flexible safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of 12V LED COB Strip Light Flexible should comply with CE standard; With constant voltage LED power supply.
4. Do not install the 12V LED COB Strip Light Flexible in overheat environment.
5. Do not install the non-waterproof 12V LED COB Strip Light Flexible in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, 12V LED COB Strip Light Flexible and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The 12V LED COB Strip Light Flexible with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
More videos of our LED COB Strip Light Flexible on Youtube.
Youtube:https://www.youtube.com/@se.lighting
