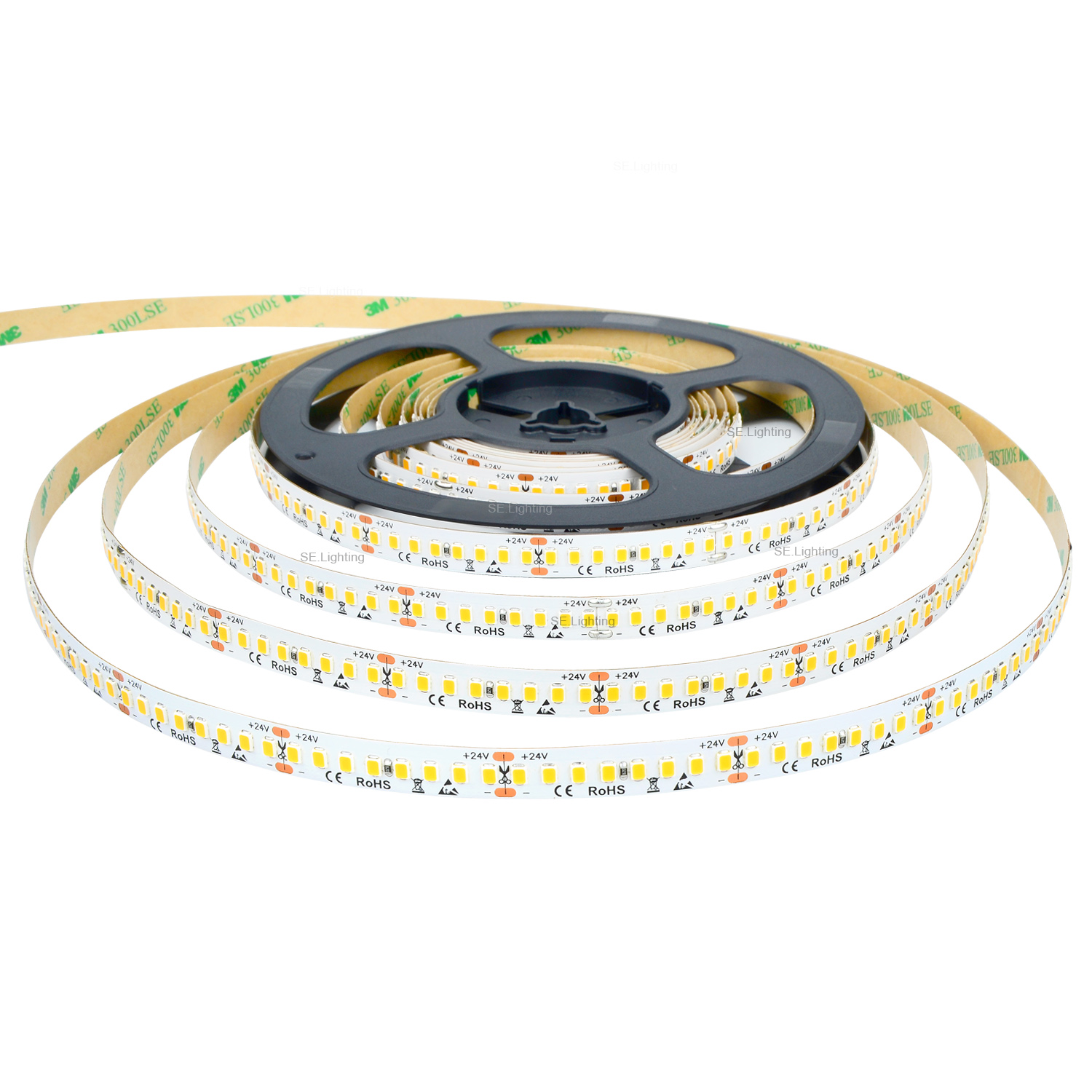

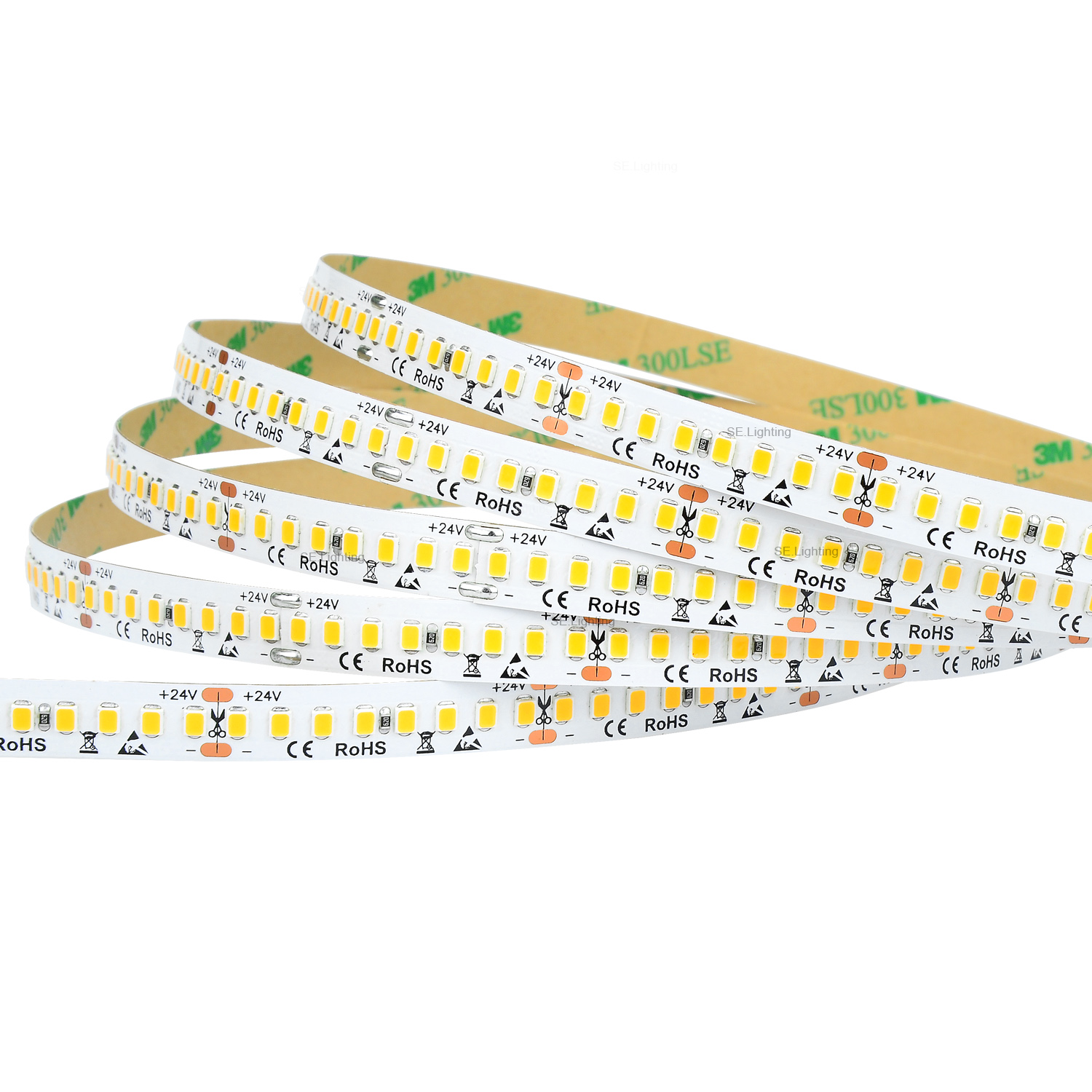

192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light
192LEDs 175LM/W 2835 LED Strip Light

192LEDs 175LM/W 2835 LED Strip Light

Model NO.
SELS-2835X192-12/24-Y
Delivery:
EXW FOB
Minimum order quantity:
100 meters
Supply Ability:
300000.0 meters / Month
Country of Origin:
SHENZHEN
Stock Time:
5-10 Days
Quantity:

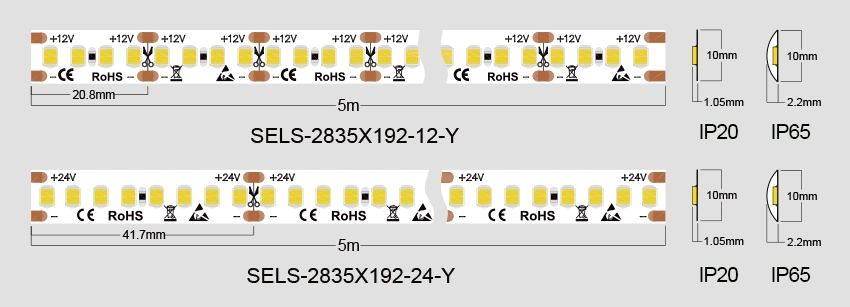

Product Parameter
Model NumberSELS-2835X192-12/24-Y
Working Temperature()-20-50
Length5mt, any length can be customized
FPC Width10mm
Cutting Unit20mm 41mm
Beam Angle120°
Waterproof GradeIP20/IP65
Color Temperature(CCT)2700K / 3000K / 4000K / 6000K
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design; DIALux evo layout; CAD layout
Input Voltage(V)DC 12V / 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source2835 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control Wifi Manual Button
Luminous Efficacy(lm/w)175
Life time(Hour)50,000
Lamp Power21W/mt
Lamp Luminous Flux(lm)3675lm/w
CRI (Ra>)80

2835 High Lumen Series
Part No.SELS-2835X70-24-YSELS-2835X126-24-YASELS-2835X126-24-YBSELS-2835X182-24-YSELS-2835X144-12/24-YSELS-2835X192-12/24-YSELS-2835X240-12/24-YC
VoltageDC 24VDC 24VDC 24VDC 24VDC 12 / 24VDC 12 / 24VDC 12 / 24V
LED Qty/mt70pcs126pcs126pcs182pcs144pcs192pcs240pcs
Watt/mt6W11W17W20W16W21W26W
FPCB Width8mm10mm10mm10mm10mm10mm10mm
Cutting Unit100mm55mm55mm38mm27 / 55mm20 / 41mm16 / 33mm
Efficiency125-140lm/W120-135lm/W115-130lm/W115-130lm/W175lm/W175lm/W175lm/W
Lumen/mt750-840LM1320-1480LM1950-2200LM2300-2600LM2800LM3675LM4550LM
Product Description
192LEDs 175LM/W 2835 LED Strip Light can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Normal Packing is 5meter/roll for Anti-static foil bag, any length can be customized if needed
2. High brightness, low power, long life, easy installation, the production of highly customizable
3. IP65 is Silicon Glue, IP67 is Silicon Tube, IP68 is Silicon Glue + Silicon Tube.
4. Flexible ribbon for curving around bends
5. Long life span 50,000+ hours
6. Super bright 2835 SMD top LED, high intensity and reliability.
7. CCT range 2700K (2600-2800K), 3000K (2800-3000K), 4000K (4000-4500K), 6000K (6000-6500K)
8. Ultra-bright but running at low temperature
9. Low power consumption.
10. Cut table every 7LEDs along the cutting marks, according to practical requirement.
Application

192LEDs 175LM/W 2835 LED Strip Light with widely application below:

1. It’s normally used as a lights decoration;
2. Indoor or outdoor;
3. Backlight of signage, Channel letters lighting;
4. Festival, exhibition,Stage decoration, weedings;
5. hotels, conference, rooms, schools, colleges, hospitals.

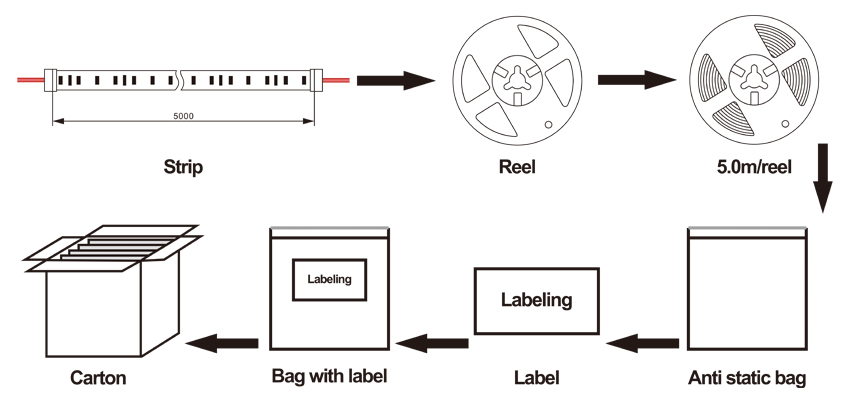

Product packaging

Installation Instructions
