| Product Parameter | |
| Model Number | SE-2T20W |
| Beam Angle | 120° |
| Waterproof Grade | IP65 |
| Color Temperature (CCT) | 3000K/4000K/5000K/6000K |
| Power | 20W |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Certification | CE ROHs SAA ETL DLC |
| Application | Parking Lot, Car Washing, Cold Storage |
| Warranty(Year) | 5-YEAR |
| Luminous Efficacy(lm/w) | 130/150 |
| Life time(Hour) | 50,000 |
| Power Factor (PF) | ≥0.95 |
| IK Rate | IK10 |
| Flicker Free | yes |
| Function | Normal / 0-10V Dimmable / DALI Dimmable/ Emergency / Sensor |
| Input Voltage(V) | AC 220-240V/100-277V |
| LED | 2835 SMD |
| Ambient Temp. (℃) | -20~+50℃ |
| Storage Temp. (℃) | -40~+85℃ |
| Key Material | Aluminum Housing +PC Cover |
| Driver | LiFud, Passed TUV |
| CRI (Ra>) | 80 / 90 |
| Various Specifications | |||||
| Part No. | SE-2T20W | SE-4T40W | SE-4T50W | SE-5T50W | SE-5T60W |
| Power | 20W | 40W | 50W | 50W | 60W |
| Size/mm | 600*85*74 | 1200*85*74 | 1200*85*74 | 1500*85*74 | 1500*85*74 |
| Luminous (LM) | 2600LM | 5200LM | 6500LM | 6500LM | 7800LM |
| Product Description | |

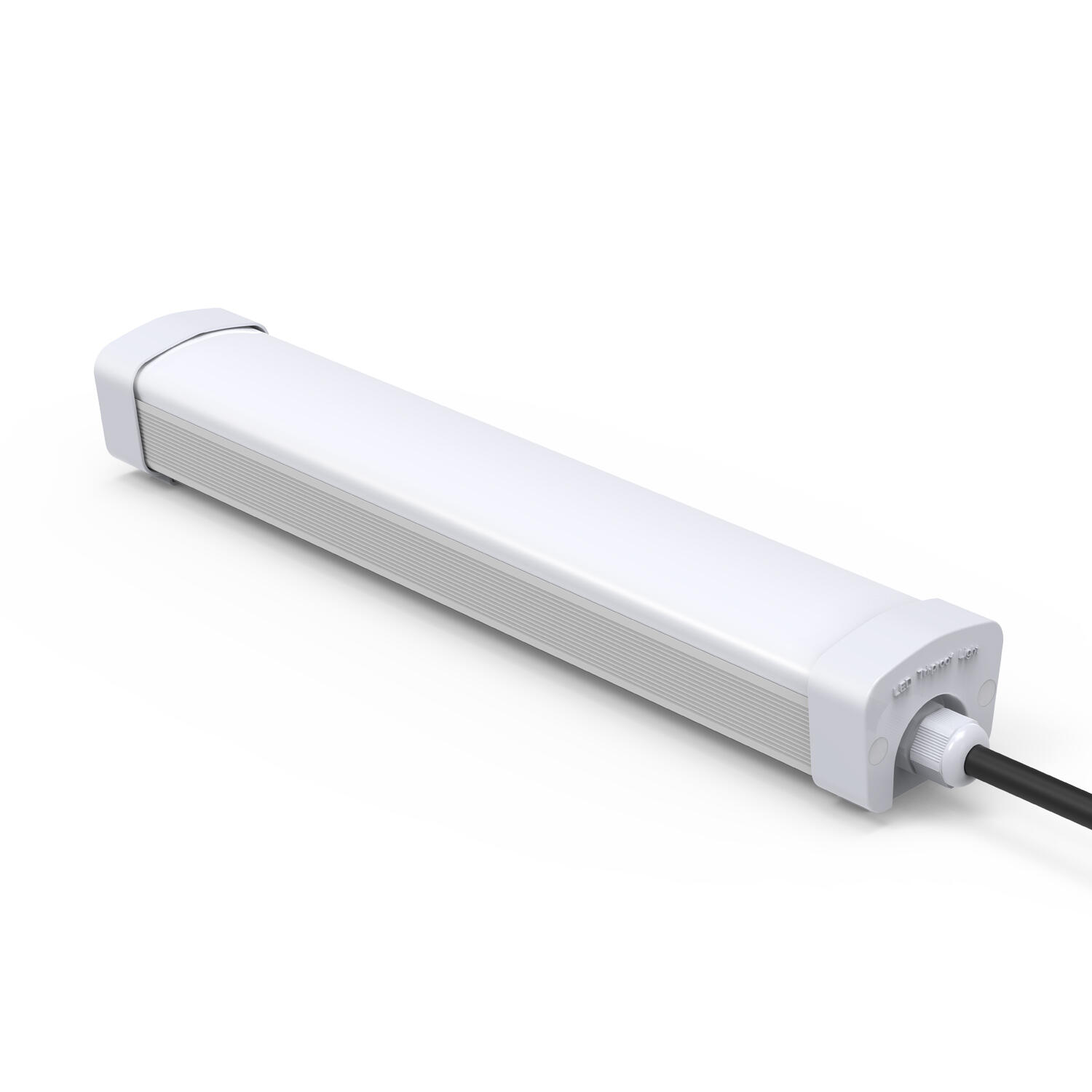

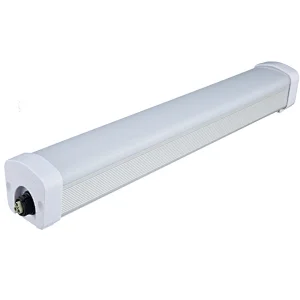

20W 2FT 60CM IP65 LED Tri Proof Light Flicker Free, Vapor and Dust Proof, can be different function like 0~10V Dimmable, DALI Dimmable, Emergency, Microwave Sensor, Flicker Free, IK10, 130LM/W or 150LM/W efficiency, CRI 80Ra, with 5 Years Warranty. This is SE.Lighting own designed 20W 2FT 60CM IP65 LED Tri Proof Light Flicker Free, can be OEM and ODM for you, Silver Color or Black Color, can Laser your LOGO onto the product. 1. High Lumen output up to 130LM/W or 150LM/W. |
| Emergency |
| Model NO. | Emergency Time (hour) | Emergency Brightness (Power) | Battery Parameters |
| SE-2T20W | 3 | 6W (30% Brightness) | 7.2V 3600mAH |
| SE-4T40W | 3 | 13W (30% Brightness) | 12V 4000mAH |
| SE-4T50W | 3 | 16W (30% Brightness) | 12V 5000mAH |
| SE-5T50W | 3 | 16W (30% Brightness) | 12V 5000mAH |
| SE-5T60W | 3 | 20W (30% Brightness) | 12V 6000mAH |
| Self-Inspection Function: 1. By Monthly: After charge in 48hours continuously, it will start to counting, 30days a cycle, and then turn on in the emergent mode and lighting on 30second for self Inspection. 2. By Yearly: Likewise, 12 months a cycle, it will turn on in the emergent mode and lighting on ≥30 minutes for self Inspection. | |||
| Light Distribution Graph |
| Model No. | Power | Flux (Lux)* | |||
| 1M | 2M | 3M | 4M | ||
| SE-2T20W | 20W | 875lux | 218lux | 97 lux | 54 lux |
| SE-4T40W | 40W | 1948 lux | 487lux | 216lux | 121 lux |
| SE-4T50W | 50W | 2370 lux | 592lux | 263lux | 148 lux |
| SE-5T50W | 50W | 2388 lux | 591 lux | 265 lux | 149 lux |
| SE-5T60W | 60W | 2596 lux | 649 lux | 288 lux | 162 lux |
| Application | |
| IP65 Tri-proof Light can be widely used in Public Lighting, Commercial Lighting and Industrial Lighting, such as Train Stations Lighting, Airports Lighting, Tunnels Lighting, Supermarkets Lighting, Car Parks Lighting, Service Centre Lighting, Gallery Lighting, Swimming Pool Lighting, Warehouses Lighting, Workshop Lighting and etc. |
| Dimension |
| Model | Size A(mm) | Size B(mm) | Size C(mm) | Size D(mm) |
| SE-2T20W | 600 | 74 | 85 | 350 |
| SE-4T40W | 1200 | 74 | 85 | 350 |
| SE-4T50W | 1200 | 74 | 85 | 350 |
| SE-5T50W | 1500 | 74 | 85 | 350 |
| SE-5T60W | 1500 | 74 | 85 | 350 |
| Product packaging |
| Model No | Pcs/CTN | N.W./Pcs* | G.W/CTN * | CTNA Size(MM) | CTNB Size(MM) |
| SE-2T20W | 6 | 0.72kg | 5.52 kg | 650*90*80 | 670*200*260 |
| SE-4T40W | 6 | 1.90 kg | 12.23 kg | 1250*90*80 | 1270*200*260 |
| SE-4T50W | 6 | 1.90 kg | 13.96 kg | 1250*90*80 | 1270*200*260 |
| SE-5T50W | 6 | 2.44 kg | 14.72 kg | 1550*90*80 | 1570*200*260 |
| SE-5T60W | 6 | 2.44 kg | 14.72 kg | 1550*90*80 | 1570*200*260 |
| Installation Instructions |
