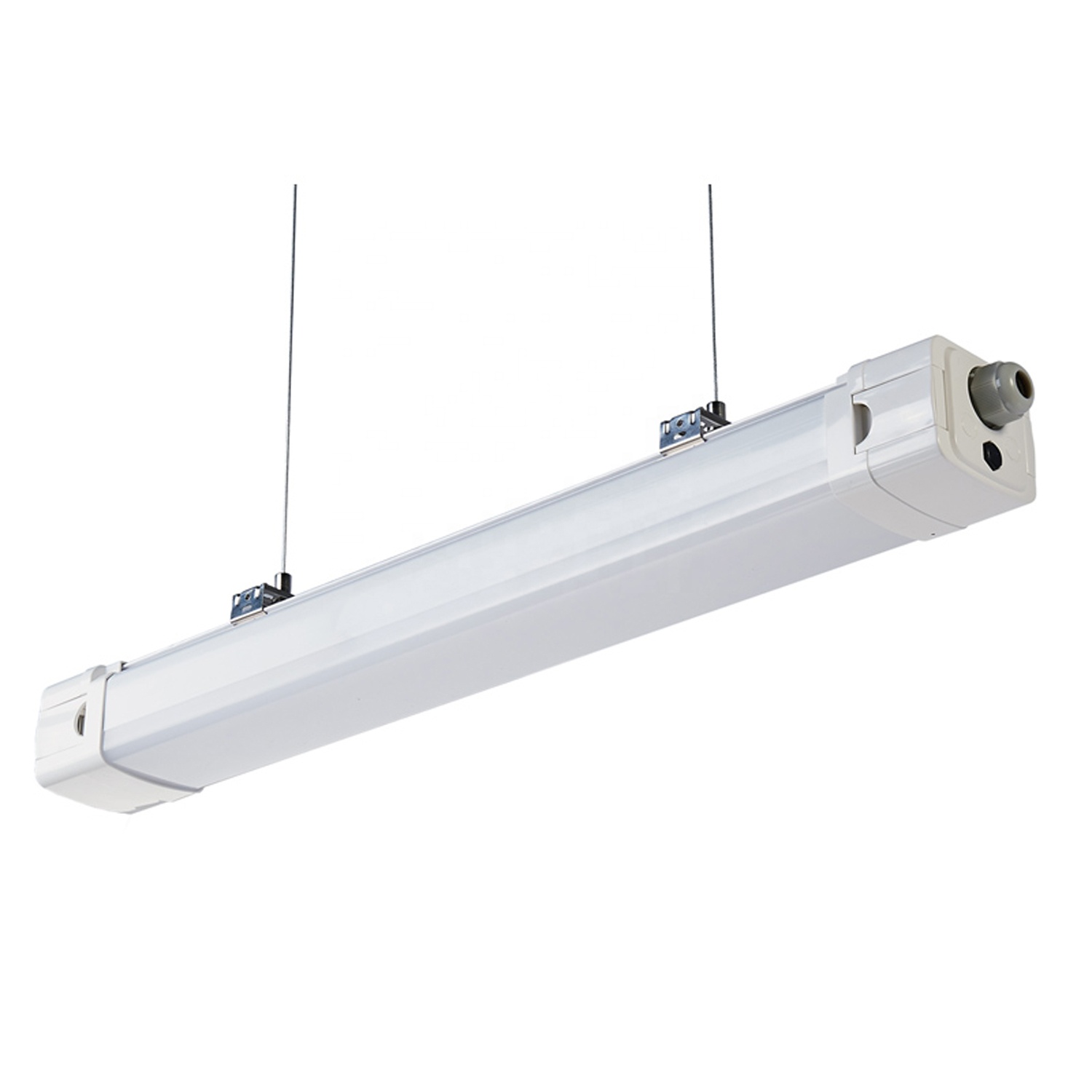

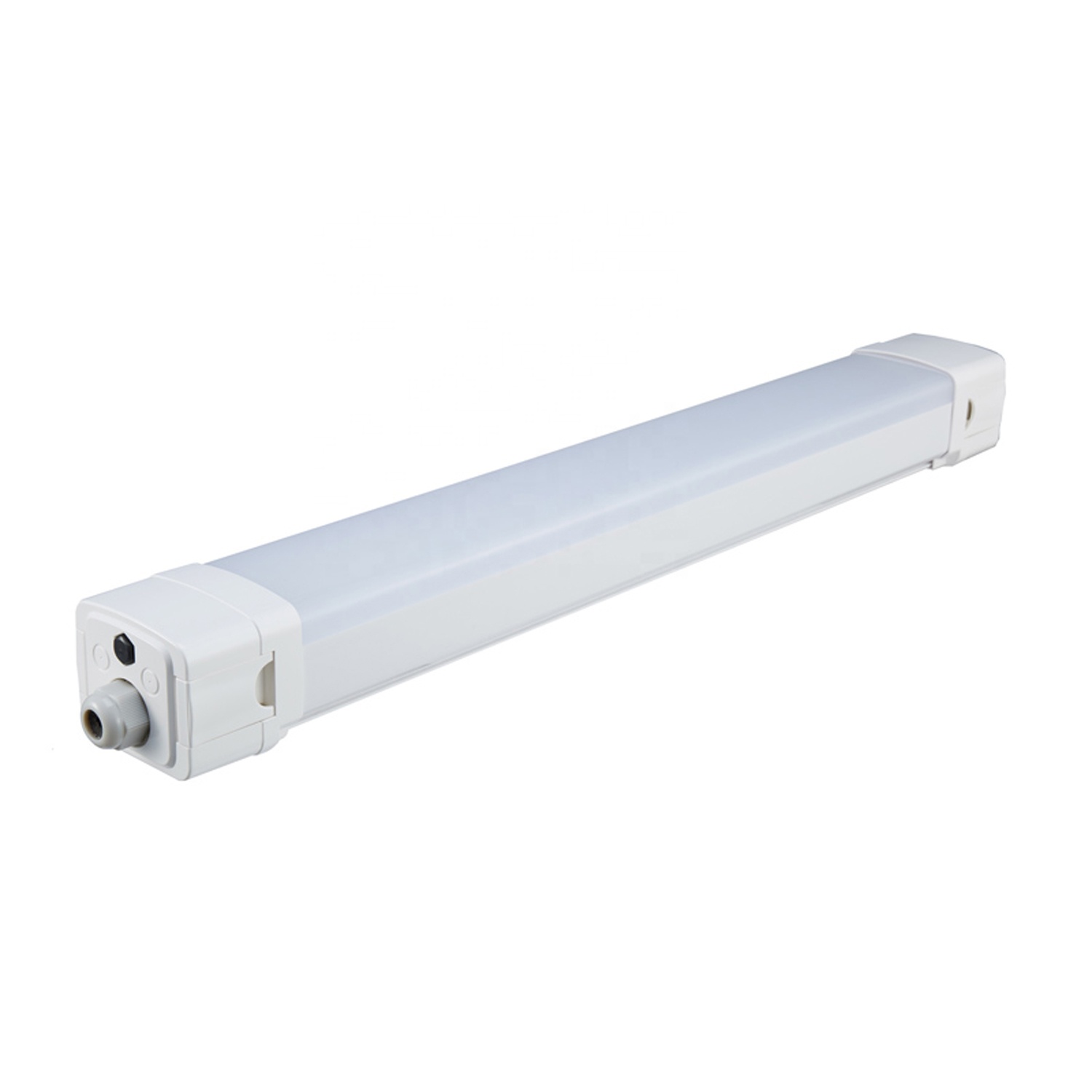

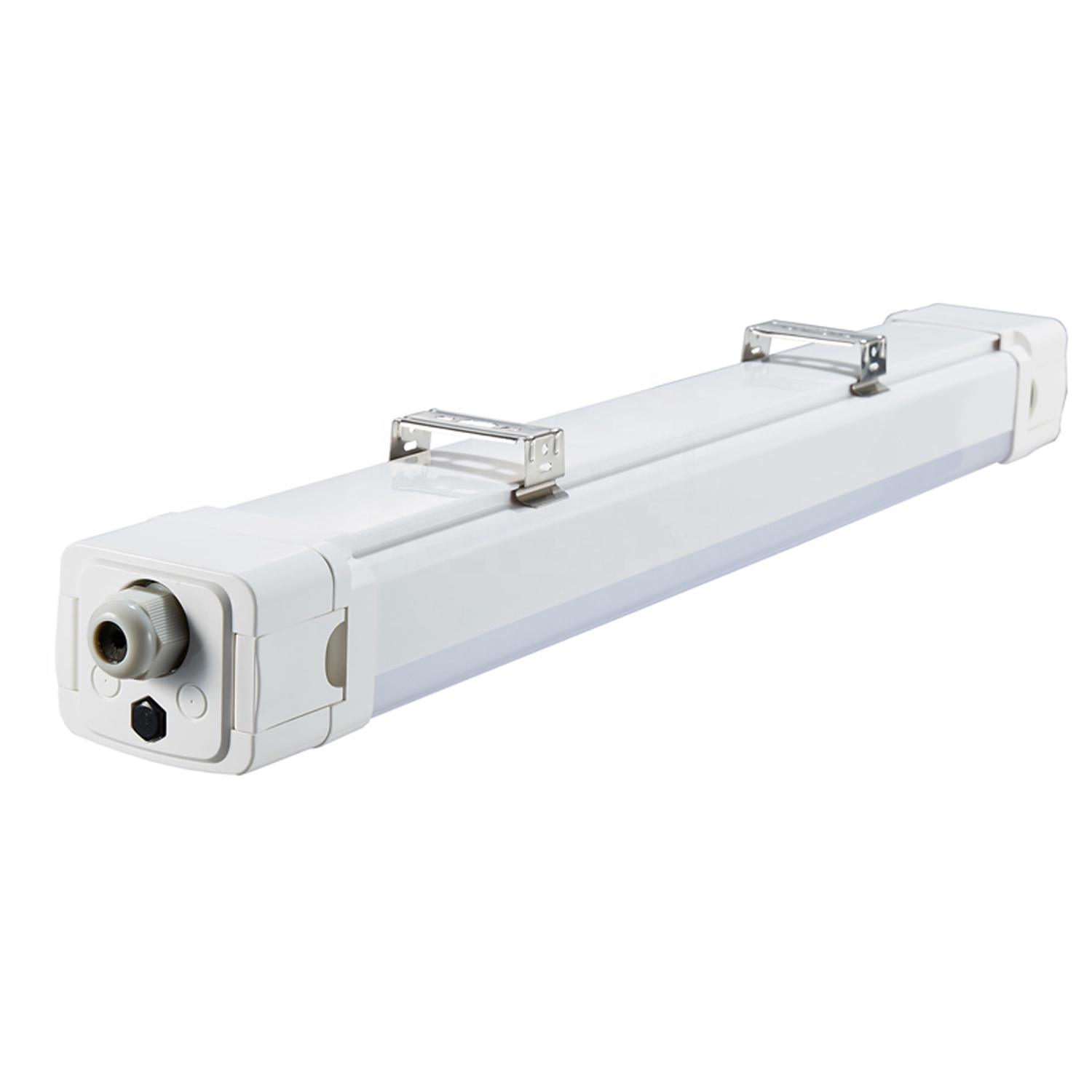

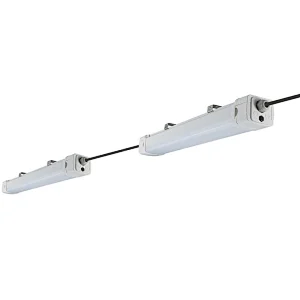

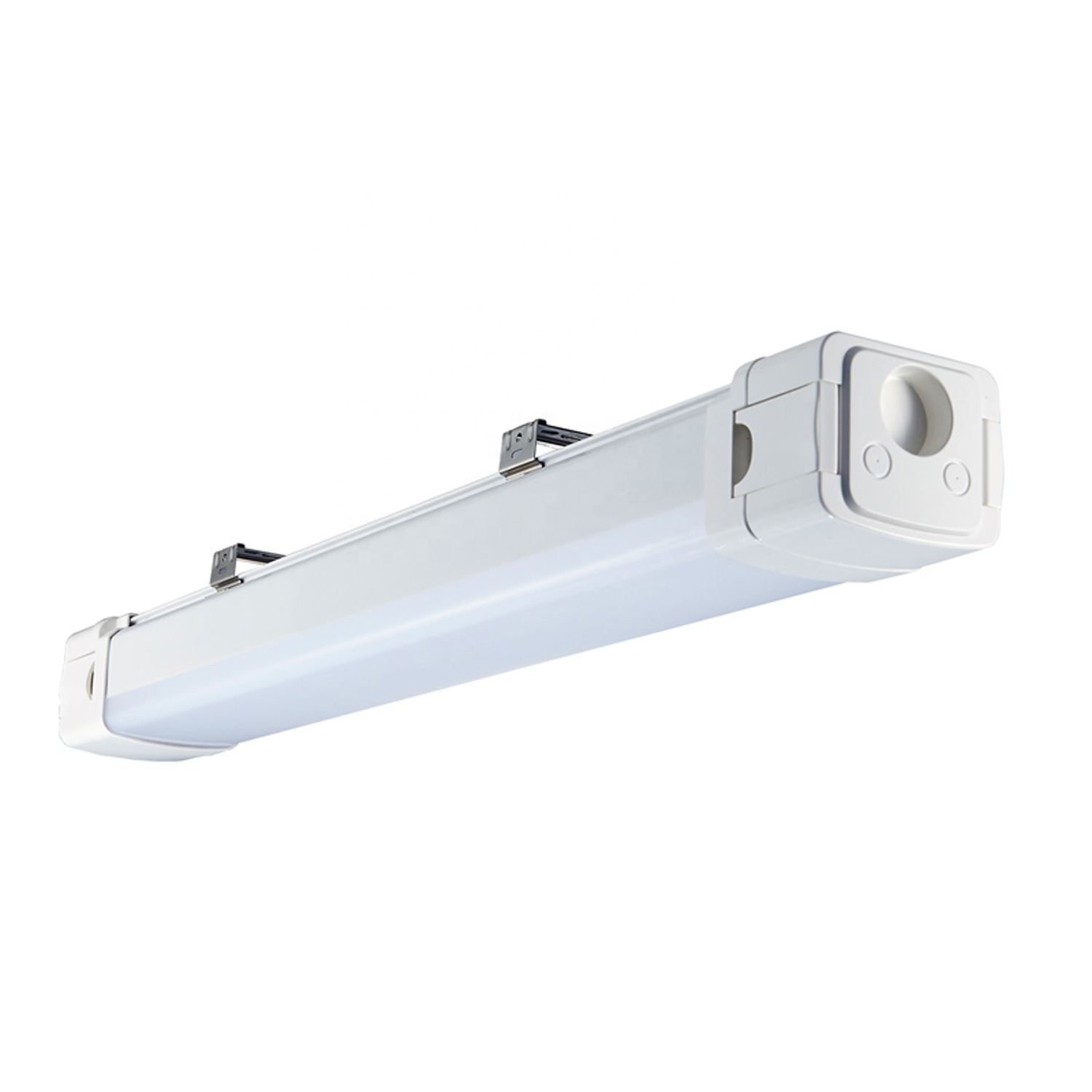

20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light
20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light

20W 2FT 60CM IP66 Tri Proof Fixture Waterproof Light

Model NO.
SE-2T20W C
Quantity:
Product Parameter
Model NumberSE-2T20W C
Beam Angle120°
Waterproof GradeIP66
Color Temperature(CCT)2800-6500K
Power20W
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout
CertificationCE ROHs SAA ETL DLC
ApplicationParking Lot,
Car Washing, Cold Storage
Warranty(Year)5-YEAR
Luminous Efficacy(lm/w)130/150
Life time(Hour)50,000
Power Factor (PF)≥0.95
IK RateIK10
Flicker Freeyes
Dimmable0~10V DALI
Input Voltage(V)AC 220-240V/100-277V
LED2835 SMD
Ambient Temp. ()-20~+50℃
Storage Temp. ()-40~+85℃
Key MaterialAluminum Housing +PC Cover
DriverLiFud, Passed TUV
CRI (Ra>)80 / 90
Various Specifications
Part No.SE-2T20W CSE-4T40W CSE-4T50W CSE-5T50W CSE-5T60W C
Power20W40W50W50W60W
Size/mm600*74*60mm1200*74*60mm1200*74*60mm1500*74*60mm1500*74*60mm
LED Type192PCS312PCS364PCS / 376PCS364PCS / 376PCS432PCS / 456PCS
Luminous (LM)2600LM5200LM6500LM6500LM7800LM
Product Description

20W 2FT 60CM IP66 Tri Proof Lighting is Water, Vapor and Dust Proof, can be different function like 0~10V Dimmable, DALI Dimmable, Emergency, Microwave Sensor, Flicker Free, IK10, 130LM/W or 150LM/W efficiency, CRI 80Ra, with 5 Years Warranty. This is SE.Lighting own designed 20W 2FT 60CM IP66 Tri Proof Lighting, can be OEM and ODM for you, Silver Color or Black Color, can Laser your LOGO onto the product.

1. High Impact IK10 Test.

2. Lower maintenance cost thanks to over 3 times longer lifetime.

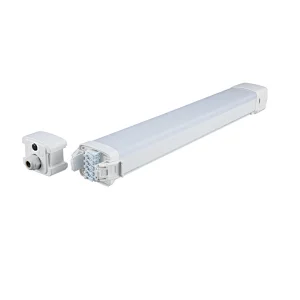

3. Fast and easy to install and replace.

4. High Lumen Epistar 2835 Led Chips and Lifud Led Driver, 5 Years warranty.

Application
IP66 Tri Proof Lighting Fixture can be widely used in Commercial Lighting and Industrial Lighting, such as Like , Train Stations Lighting, Bus Stations Lighting, Tunnels Lighting, Corridor Lighting, Car Parks Lighting, Service Centre Lighting, Horse Farm Lighting, Swimming Pool Lighting, Factories Lighting, Warehouses Lighting, Exhibition Hall Lighting, etc.



Product packaging

Installation Instructions
