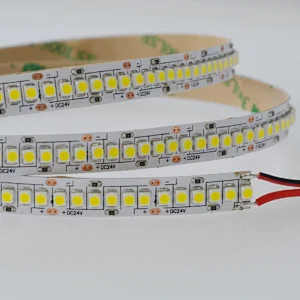

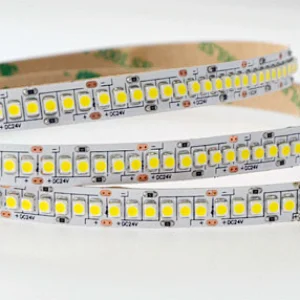

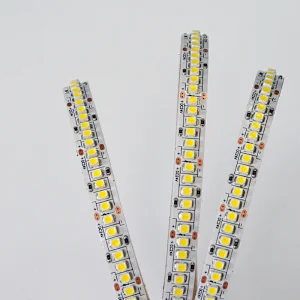

240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip
240LEDs 3528 LED Strip

240LEDs 3528 LED Strip

Model NO.
SELS-3528X240-24-Y
Minimum order quantity:
1
Quantity:
Product Parameter
Model NumberSELS-3528X240-12/24-Y
Working Temperature()-20-50
Package5m per roll,
any length can be customized
FPC Width10mm
Cutting Unit25mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)2400K/2700K/Special/
3000K/4000K/6000K
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout
Input Voltage(V)DC 12V / 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source3528 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control
Wifi Manual Button
Luminous Efficacy(lm/w)90-95
Life time(Hour)50,000
Lamp Power9W/mt
Lamp Luminous Flux(lm)1620-1700lm/w
CRI (Ra>)80/90

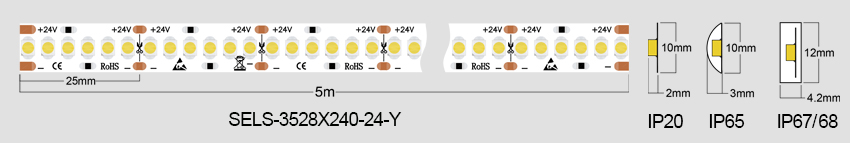

3528 Series
Part No.SELS-3528X60-12/24-YSELS-3528X120-12/24-YSELS-3528X240-24-Y
VoltageDC12 / 24VDC12 / 24VDC 24V
LED Qty/mt60pcs120pcs240pcs
Watt/mt4W9W18W
FPCB Width8mm8mm10mm
Cutting Unit50/100mm25/50mm25mm
Efficiency90~95lm/W90~95lm/W90~95lm/W
Lumen/mt360~380LM810~855LM1620~1700LM
Color2400K/2700K/Special/3000K/4000K/6000K2400K/2700K/Special/3000K/4000K/6000K2400K/2700K/3000K/4000K/6000K
Red/Green/Blue/YellowRed/Green/Blue/Yellow
Product Description
240LEDs 3528 LED Strip can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Completely smooth and even light spread, solving the uneven luminous problem
2. Cuttable every 6LEDs along the cutting marks, according to practical requirement

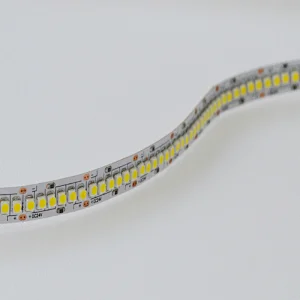

3. Flexible ribbon for curving around bends
4. Continuous length, packed with 5 meter.
5. Super bright 3528 SMD top LED, high intensity and reliability.
6. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection
7. High brightness, low power, long life, easy installation, the production of highly customizable.
8. Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers

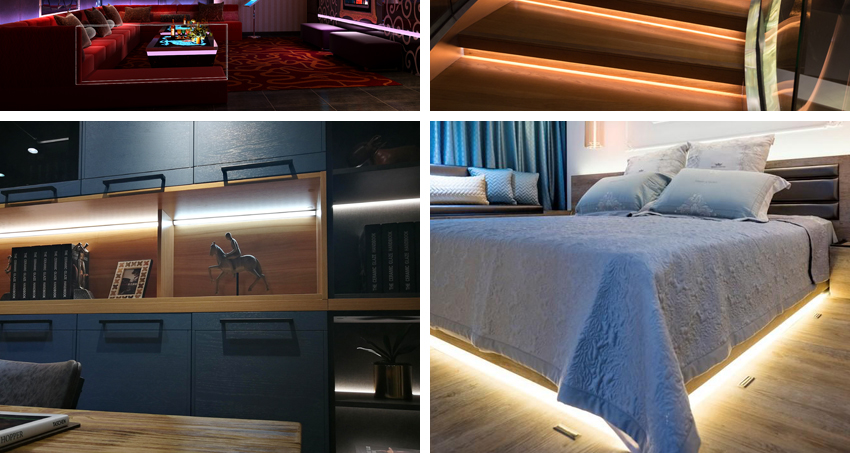

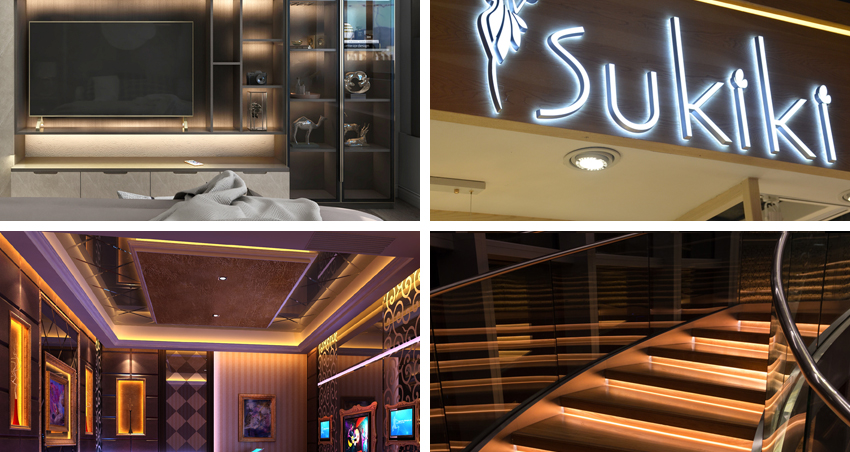

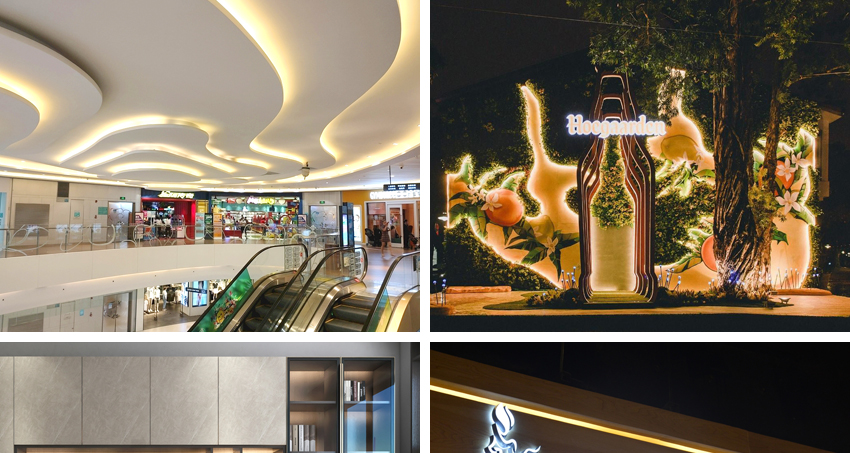

Application

240LEDs 3528 LED Strip with widely application below:

1. This LED ribbon is a cool and efficient way to decorate tables, shelves, entertainment rooms, kitchens, bedrooms, closets, etc
2. Stage decoration, Festival, exhibition, weedings;
3. Backlight of signage, Channel letters lighting;
4. LED Luminous characters;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

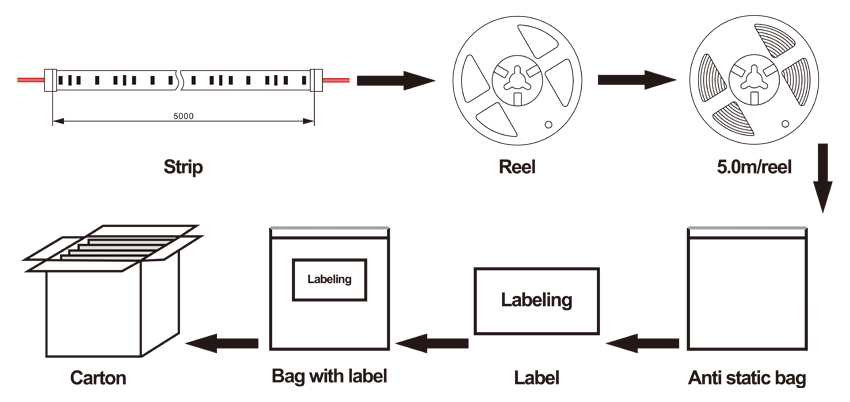

Product packaging

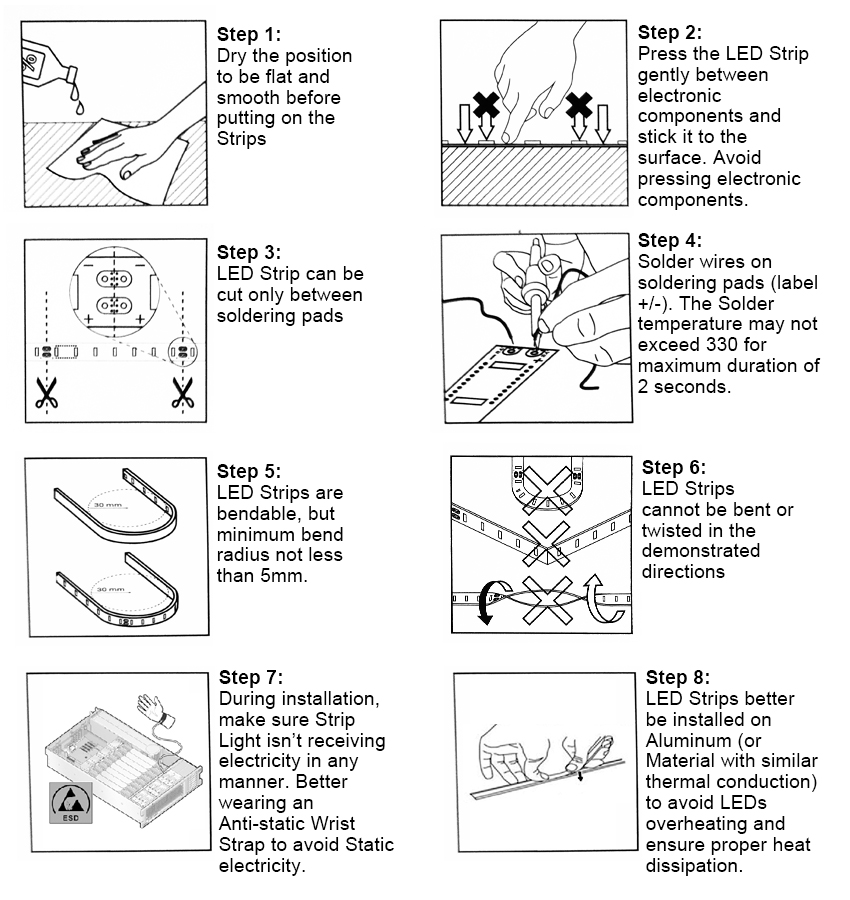

Installation Instructions
