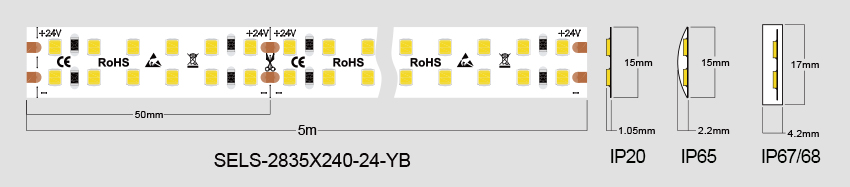

Model NO.
SELS-2835X240-24-YB
Quantity:

Product Parameter
Model NumberSELS-2835X240-24-YB
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)2700K / 3000K / 4000K / 6500K
Lamp Power24W/mt
Luminous Efficacy(lm/w)115
Lamp Luminous Flux(lm)2760lm/w
FPC Width15mm
Warranty(Year)3-YEAR
CRI (Ra>)80/90
Life time(Hour)50,000
Switch ModeBluetooth Remote Control
Wifi Manual Button
Source2835 SMD
Support Dimmeryes
Cutting Unit50mm
Input Voltage(V)DC 12/24V
Length5mt, any length can
be customized
Ambient Temp. ()(-20~+50)
Storage Temp. ()(-20~+60)
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout

2835 Standard Series
Part No.SELS-2835X60-12/24-YSELS-2835X120-12/24-YSELS-2835X240-12/24-YASELS-2835X240-24-YB
VoltageDC12 / 24VDC12 / 24VDC12 / 24VDC24V
LED Qty/mt60pcs120pcs240pcs240pcs
Watt/mt5W10W22W24W
FPCB Width8mm10mm10mm15mm
Cutting Unit50 100mm50 100mm25mm50mm
Efficiency100~110lm/W105~115lm/W110~120lm/W105~115lm/W
Lumen/mt500~550LM1050~1150LM2420~2640LM2500~2760LM
Color2700K/ 3000K / 4000K / 6000K Red Green Blue Yellow2700K/ 3000K / 4000K / 6000K Red Green Blue Yellow2700K/ 3000K / 4000K / 6000K2700K/ 3000K / 4000K / 6000K

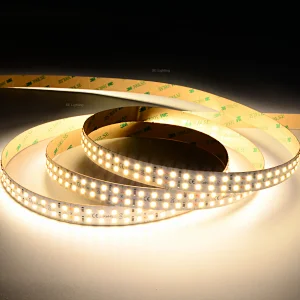

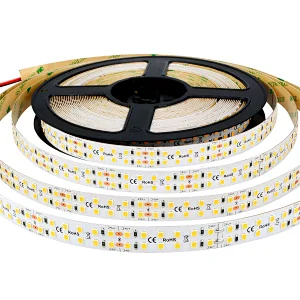

Product Description
240LEDs Double Row 2835 IP67 LED Strip Lighting can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Low power consumption
2. Continuous length, packed with 5 meter.
3. Cuttable every 6 LEDs along the cutting marks, according to practical requirement.
4. Thick 2oz PCB board for maximum heat dispersion
5. CE & RoHS-recognized, high output 24V LED strip with 1200xSMD2835 LEDs
6. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
7. Adhesive back for easy installation on dry, flat, smooth, non-porous surfaces
8. High brightness, low power, long life, easy installation, the production of highly customizable.
9. Completely smooth and even light spread, solving the uneven luminous problem

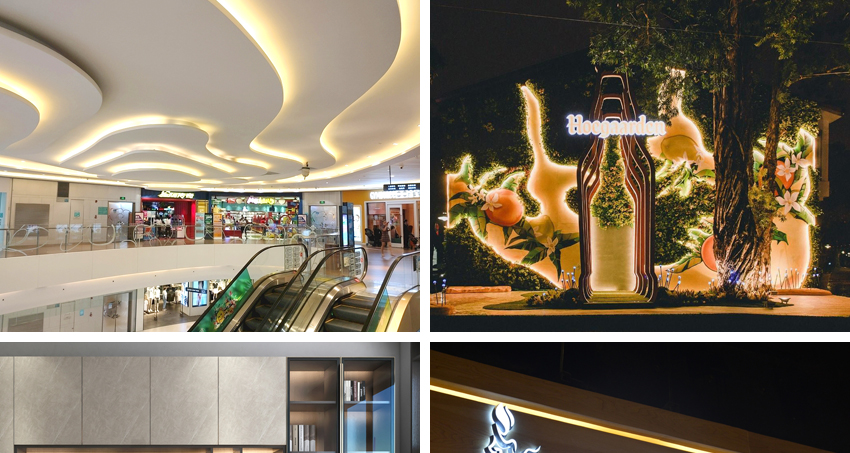

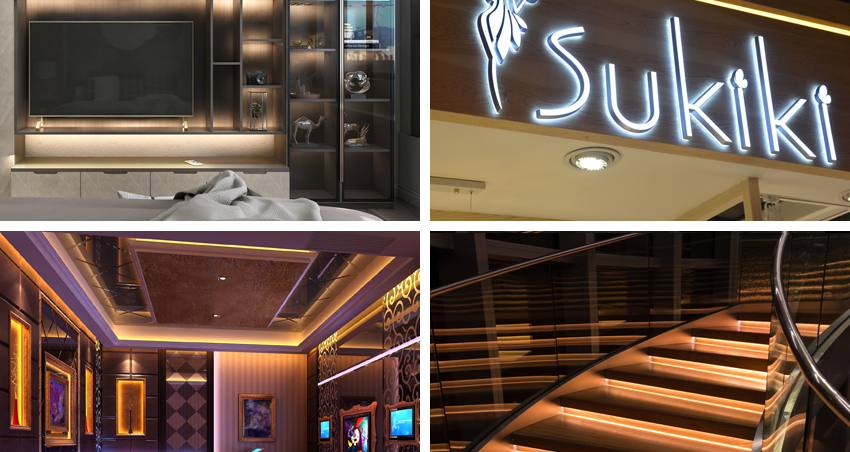

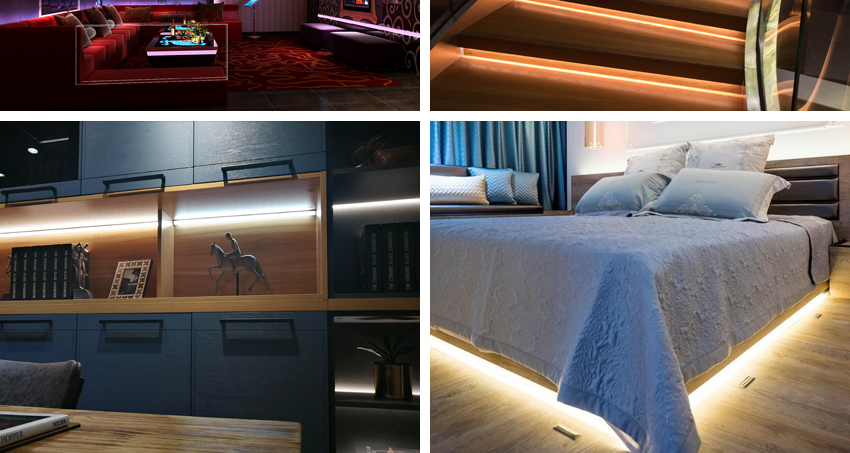

Application

240LEDs Double Row 2835 IP67 LED Strip Lighting with widely application below:

1. It’s widely used as a decorative lights, and use it as the lights
2. LED Luminous characters;
3. Backlight of signage, Channel letters lighting;
4. Festival, exhibition,Stage decoration, weedings;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

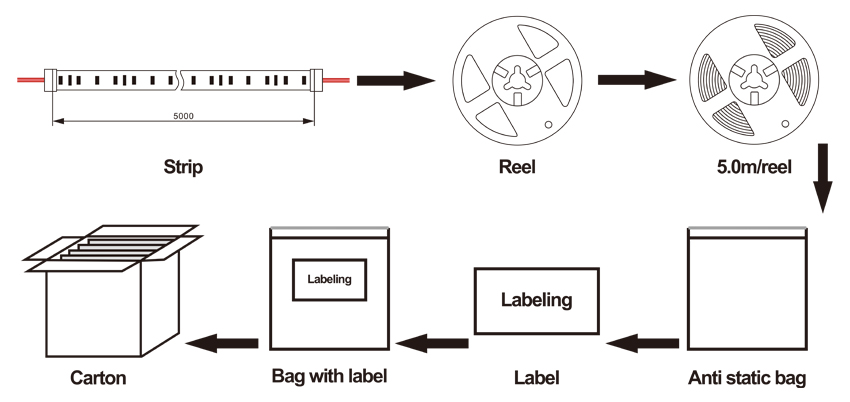

Product packaging

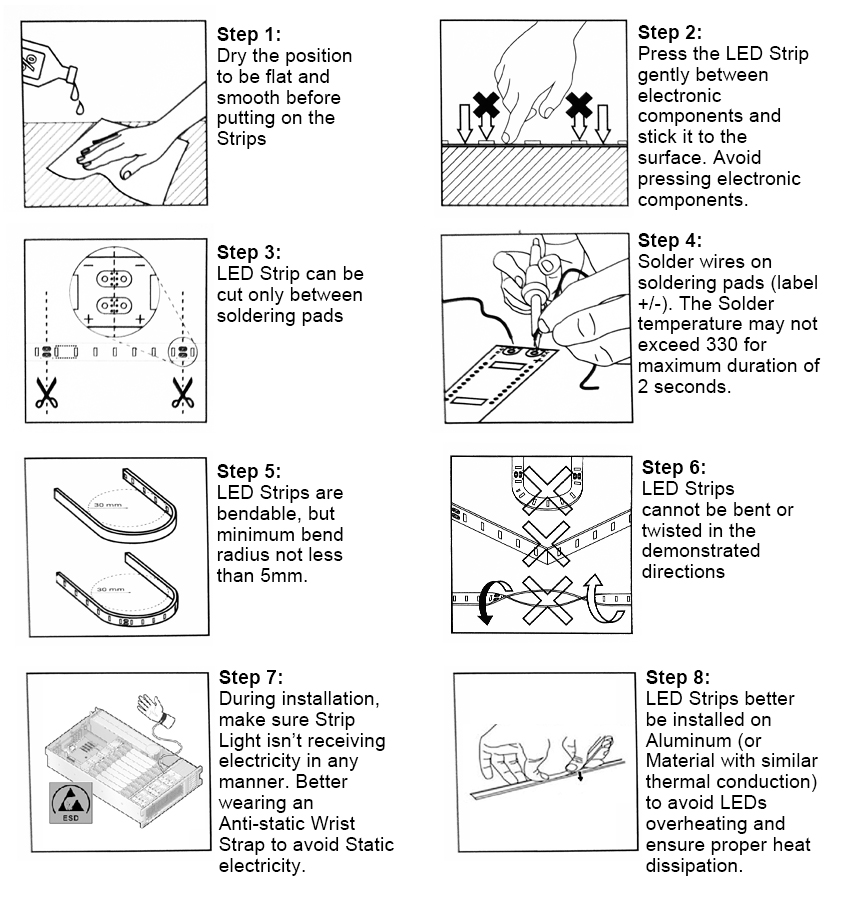

Installation Instructions
