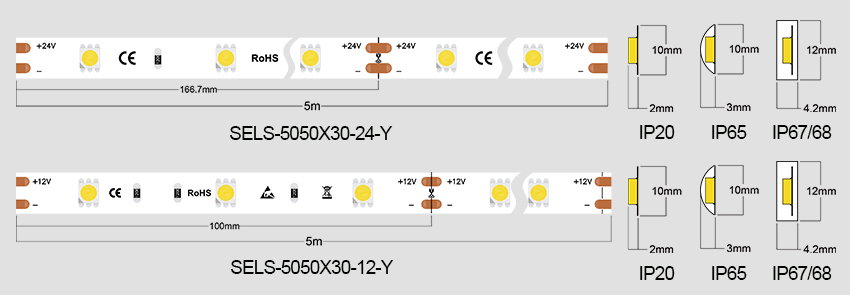

| Product Parameter | |
| Model Number | SELS-5050X30-12/24-Y |
| Working Temperature(℃) | -20-50℃ |
| Package | 5m per roll, any length can be customized |
| FPC Width | 10mm |
| Cutting Unit | 50mm 100mm |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700-6500K Red Green Blue Yellow Orange |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 12V / 24V |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Application | Residential, Shopping Mall Light |
| Source | 5050 SMD |
| Warranty(Year) | 3-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Luminous Efficacy(lm/w) | 80-85 |
| Life time(Hour) | 50,000 |
| Lamp Power | 7W/mt |
| Lamp Luminous Flux(lm) | 560-630lm/w |
| CRI (Ra>) | 80/90 |
| Same Series | ||
| Part No. | 5050X30-12/24-Y | 5050X60-12/24-Y |
| Voltage | DC12 / 24V | DC12 / 24V |
| LED Qty/mt | 30pcs 5050 | 30pcs 5050 |
| Watt/mt | 7W | 14W |
| FPCB Width | 10mm | 10mm |
| Cutting Unit | 50 100mm | 50 100mm |
| Efficiency | 80~85lm/W | 75~80lm/W |
| Color Temperature(CCT) | 2800-3200K 4000-4500K 6000-6500K Red Green Blue Yellow Orange | |
| Product Description | |
| 30LEDs 5050 LED Strip Lights can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1. Super bright 5050 SMD top LED, high intensity and reliability. 2. Long life span 50,000+ hours 3. Cuttable every 3 LEDs(DC12V) or 6 LEDs (DC24V) along the cutting marks, according to practical requirement. 4. Ultra-bright but running at low temperature 5. Completely smooth and even light spread, solving the uneven luminous problem 6. Flexible ribbon for curving around bends 7. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection. 8. High brightness, low power, long life, easy installation, the production of highly customizable. | |

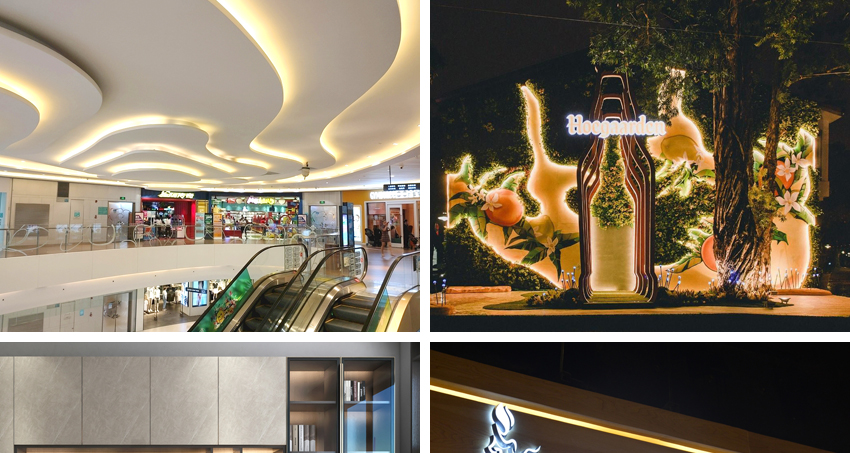

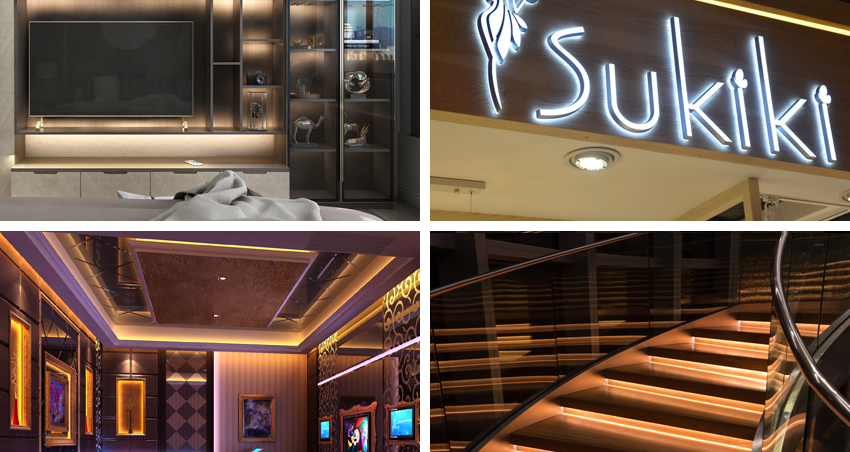

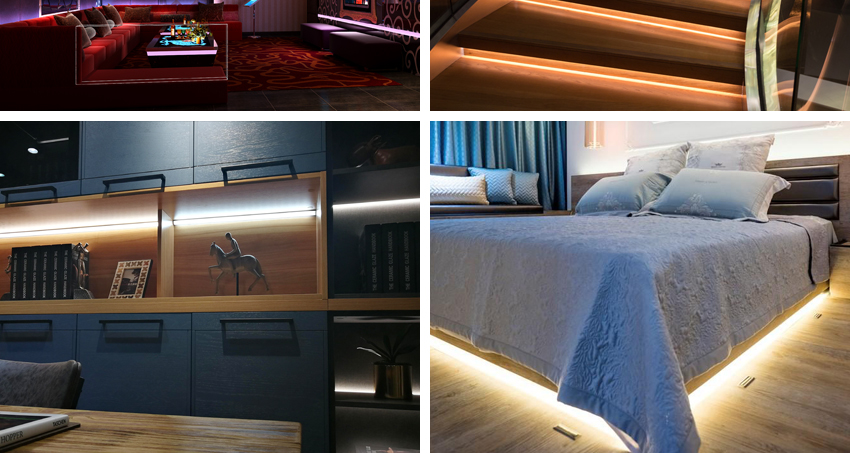

| Application | |
30LEDs 5050 LED Strip Lights with widely application below: 1. It’s widely used as a decorative lights, and use it as the lights |

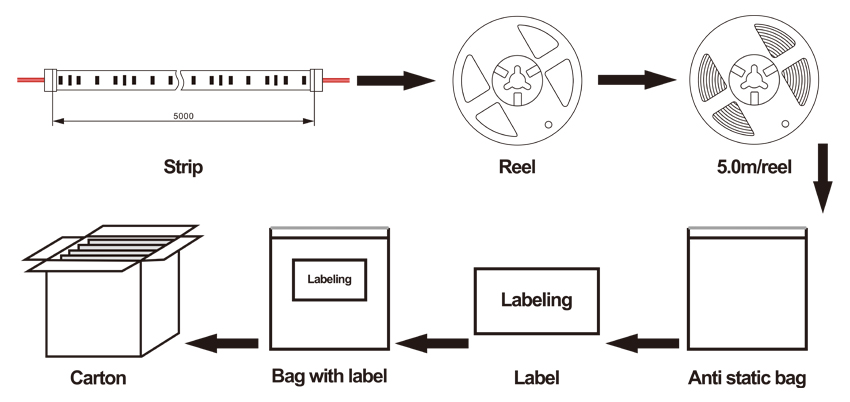

| Product packaging |

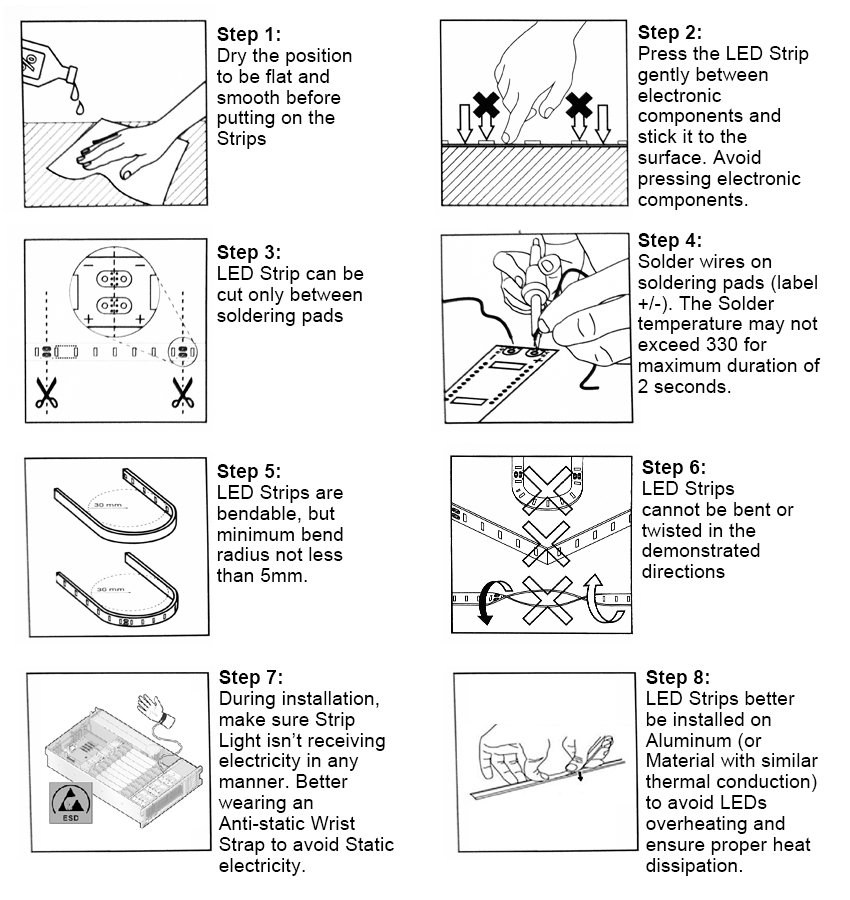

| Installation Instructions |
