| Product Parameter | |
| Model Number | SELS-COBX480-24-YA |
| Working Temperature(℃) | -20-50℃ |
| Length | 5mt, any length can be customized |
| FPC Width | 6mm |
| Cutting Unit | 50mm |
| Beam Angle | 180° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 24V |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Source | LED |
| Warranty(Year) | 2-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Luminous Efficacy(lm/w) | 95-105 LM/W |
| Life time(Hour) | 50,000 |
| Lamp Power | 5W/mt |
| CRI (Ra>) | 90 |
| COB X480 Series | |||||
| Part No. | SELS-COBX480-24-YA | SELS-COBX480-24-YB | SELS-COBX480-24-YB | SELS-COBX480-24-YC | SELS-COBX480-24-YD |
| Voltage | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V |
| LED Qty/mt | 480pcs | 480pcs | 480pcs | 480pcs | 480pcs |
| Watt/mt | 5W | 5W | 10W | 10W | 5W |
| FPCB Width | 6mm | 4mm | 8mm | 8mm | 2.8mm |
| Cutting Unit | 50mm | 50mm | 50mm | 50mm | 50mm |
| Efficiency | 95-105 LM/W | 95-105 LM/W | 455-630 LM/W | 85-95 LM/W | 95-105 LM/W |
| SDCM | < 3 | < 3 | / | < 4 | < 3 |

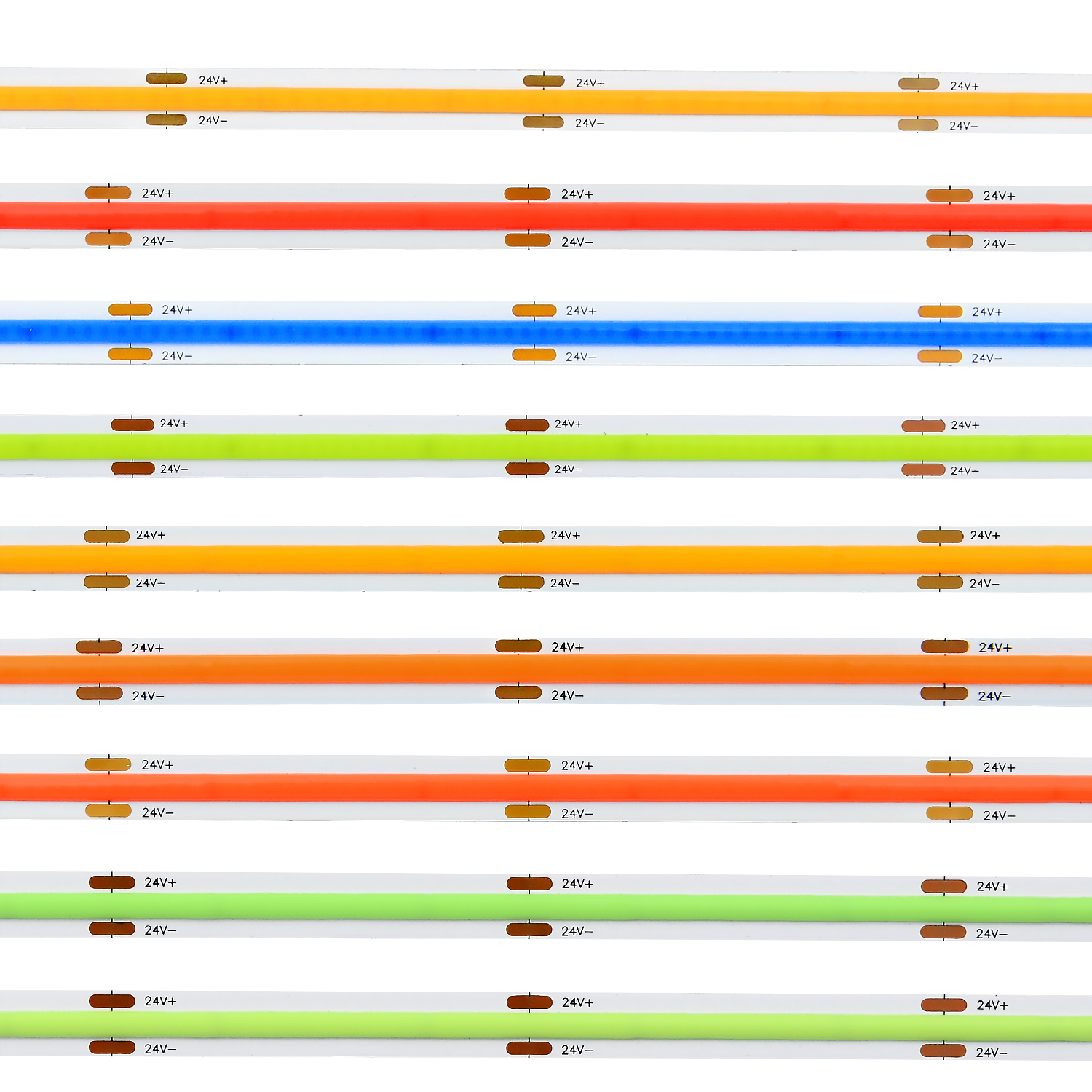

| Color Option | 2700-6500K | 2700-6500K | Blue/Red/Yellow/Green/Orange/Plastic Pink/Mars Green/Tiffany Blue | 2700-6500K | 2700-6500K |
| Product Description | |

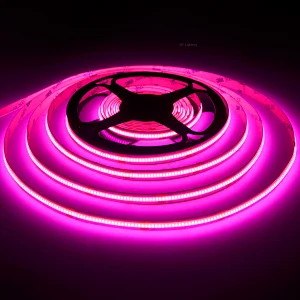

LED COB Strip Lights 480LEDs 6mm 5W White Color can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1. LED COB Strip Lights Adopt brand LED chip,high brightness, low light decay,lifespan more than 50000 hours; | |

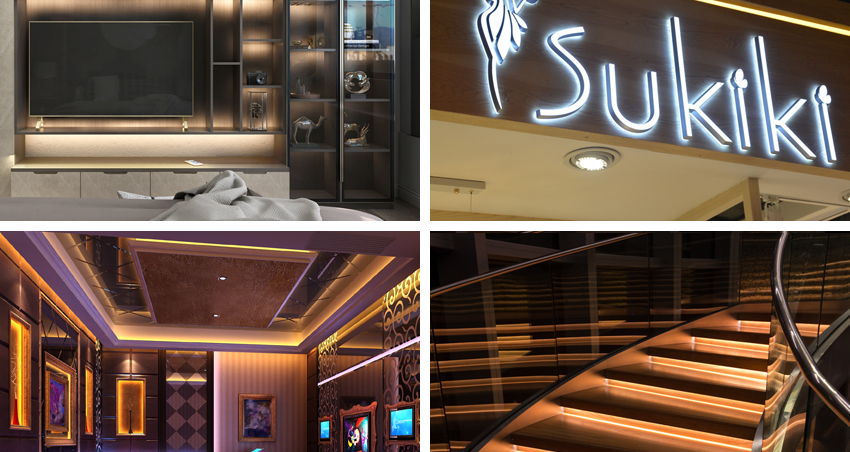

| Application | |
LED COB Strip Lights 480LEDs 6mm 5W White Color with widely application below: 1. It’s widely used as a decorative lights, and use it as the lights |

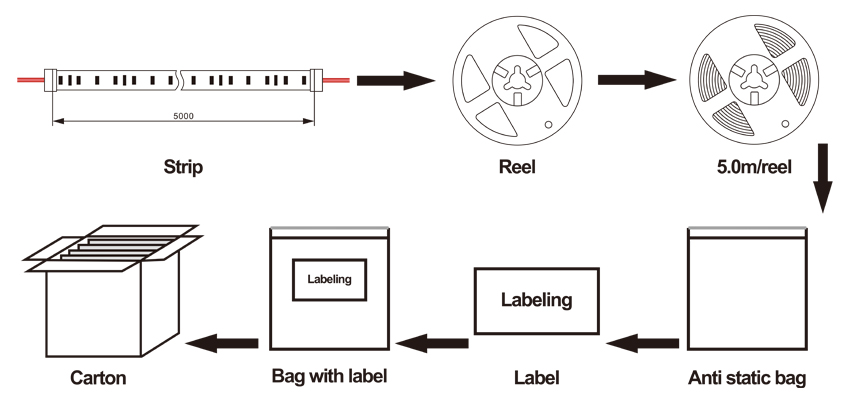

| Product packaging |

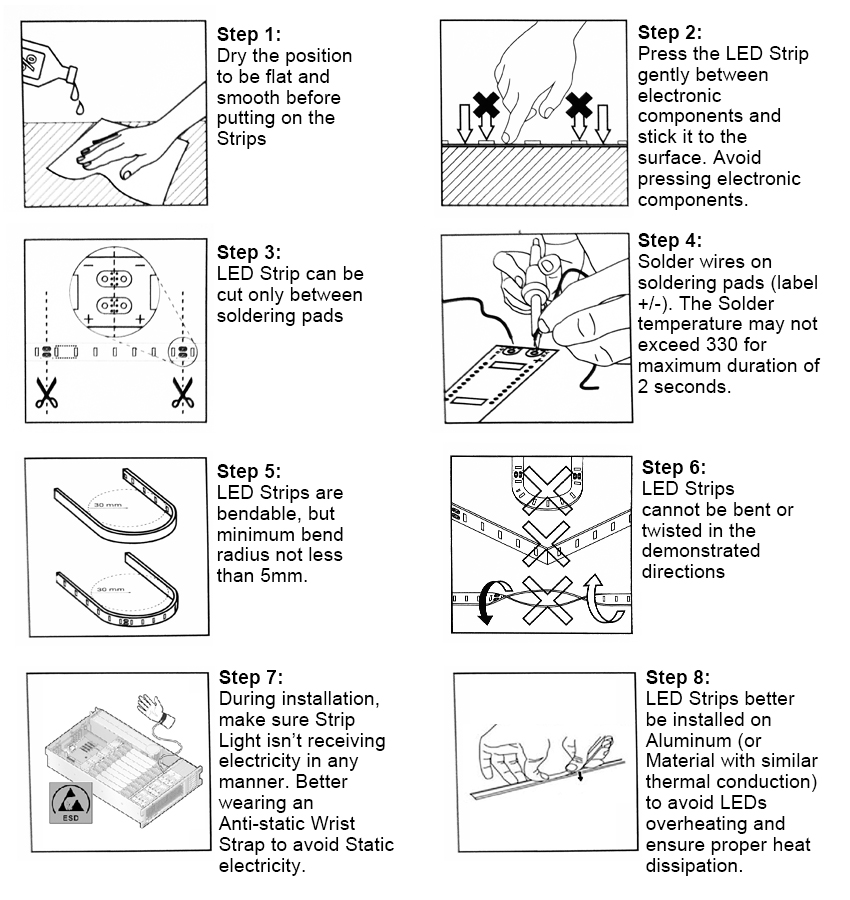

| Installation Instructions |
Notice：
1. Installation LED COB Strip Lights must comply with local international electrical safety instructions.
2. In order to ensure LED COB Strip Lights safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of led strip light should comply with CE standard; With constant voltage LED power supply.
4. Do not install the LED COB Strip Lights in overheat environment.
5. Do not install the non-waterproof LED COB Strip Lights in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, LED COB Strip Lights and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The LED COB Strip Lights with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
More videos of our LED COB Strip Lights on Youtube.
