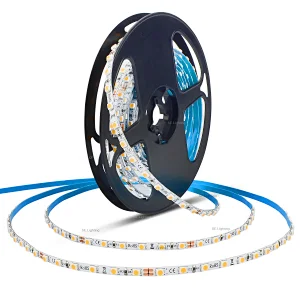

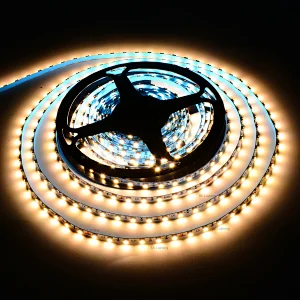

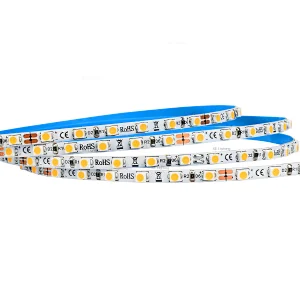

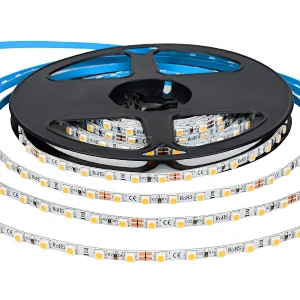

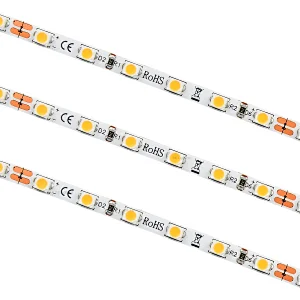

4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights

4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights

Model NO.
SELS-3528X96-12/24-Y
Quantity:

Product Parameter
Model NumberSELS-3528X96-12/24-Y
Working Temperature()-20-50
Package5m per roll,
any length can be customized

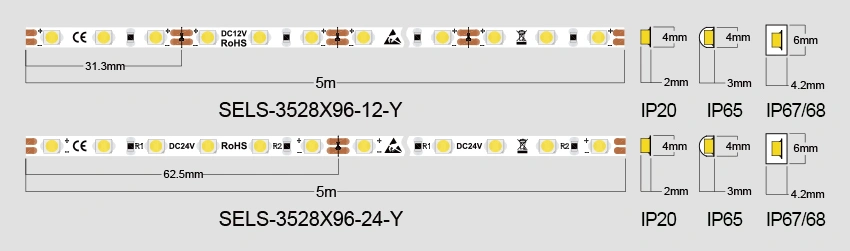

FPC Width4mm
Cutting Unit62mm / 31mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)2400K/2700K/Special/
3000K/4000K/6000K
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout
Input Voltage(V)DC 12V / 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source3528 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control
Wifi Manual Button
Luminous Efficacy(lm/w)95-100
Life time(Hour)50,000
Lamp Power5W/mt
Lamp Luminous Flux(lm)475-500lm/w
CRI (Ra>)80

Ultra Slim Series
Part No.SELS-2835X126-24-YCSELS-2835X60-12/24-YSSELS-3528X96-12/24-Y
VoltageDC 24VDC12 / 24VDC 12 / 24V
LED Qty/mt126pcs60pcs96pcs
Watt/mt7W5W5W
FPCB Width6mm6mm4mm
Cutting Unit55mm50/100mm31/62mm
Efficiency135~160lm/W100~110lm/W95~100lm/W
Lumen/mt945~1120LM500~550LM475~500LM
Color2700K/3000K/4000K/6000K2700K/3000K/4000K/6000K2400K/2700K/Special/3000K/4000K/6000K
Product Description
4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. 3528 LED Strip Lights Completely smooth and even light spread, solving the uneven luminous problem
2. 3528 LED Strip Lights Low power consumption
3. 3528 LED Strip Lights Long life span 50,000+ hours
4. 3528 Strip Lights Cut table every 7LEDs along the cutting marks, according to practical requirement
5. 3528 Strip Lights Flexible ribbon for curving around bends
6. LED Strip Lights Continuous length, packed with 5 meter.
7. LED Strip Light Super bright 3528 SMD top LED, high intensity and reliability.
8. 3528 LED Strip Lights Easy for transporting, decorative effect is brilliant, energy saving, environmental protection
9. 3528 LED Strip Lights High brightness, low power, long life, easy installation, the production of highly customizable.
10. 3528 LED Strip Lights Ultra-bright but running at low temperature.

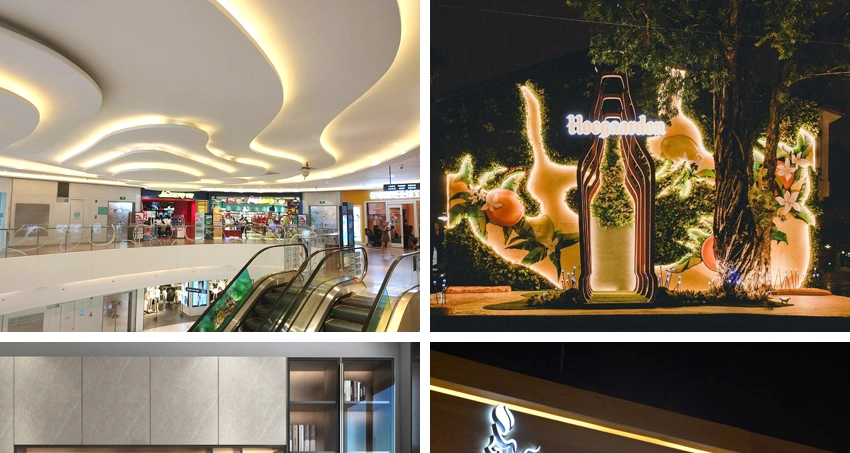

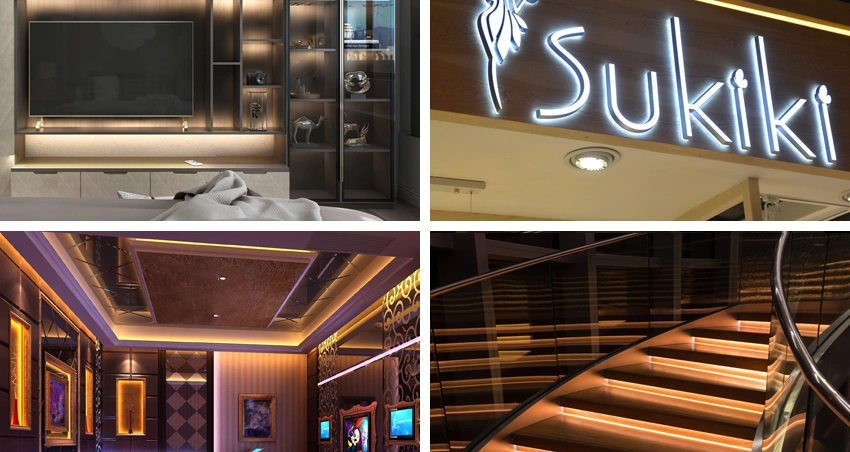

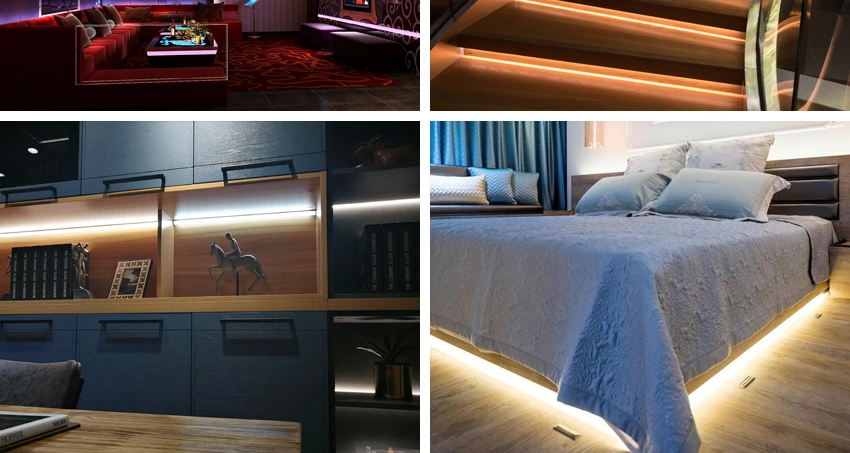

Application

4mm 96LEDs 3528 3OZ FPC Mini LED Strip Lights with widely application below:

1. It’s wodely used as a decorative lights, and use it as the lights
2. Stage decoration, Festival, exhibition, weedings;
3. Backlight of signage, Channel letters lighting;
4. LED Luminous characters;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

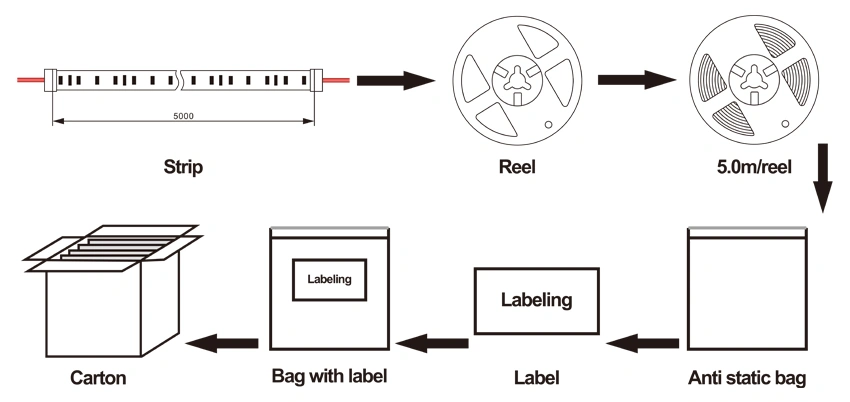

Product packaging

Installation Instructions
