| Product Parameter | |
| Model Number | SEL-5032 |
| Beam Angle | 120° |
| Waterproof Grade | IP44 |
| Color Temperature (CCT) | 3000K/4000K/5000K/6000K |
| Power | 15W/25W/36W |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Certification | Reach RoHS CE-EMC CE-LVD ERP EN62471 SAA PSE SASO ETL DLC |
| Application | Supermarket, Stores, Warehouses, Workshop, Office |
| Warranty(Year) | 5-YEAR |
| Efficacy (Lm/W) | 90 |
| Life time(Hour) | 50,000 |
| Luminous (LM) | 3240 |
| Power Factor (PF) | ≥0.95 |
| IK Rate | IK08 |
| Flicker Free | yes |
| Input Voltage(V) | AC220~240V AC100-277V |
| LED | 2835 SMD |
| Ambient Temp. (℃) | -20~+50℃ |
| Storage Temp. (℃) | -40~+85℃ |
| Key Material | Aluminum Housing + Lens / PC Cover |
| Driver | LiFud, Passed TUV |
| UGR | <19 |
| CRI (Ra>) | 80 |
| Various Specifications | |||
| Part No. | SEL-5032-15W | SEL-5032-25W | SEL-5032-36W |
| Power | 15W | 25W | 36W |
| Size/mm | 600*50*32 | 1200*50*32 | 1500*50*32 |
| Luminous (LM) | 1350 | 2250 | 3240 |
| Product Description | |
5032 LED Linear lights Office Light 5 Years Warranty 90lm/W Linkable CE ROHS 1. Extrusion aluminum lamp body, Slim and modern design. |
| Application | |
| LED Linear lights can provide perfect lighting solution for supermarket, stores, warehouses, workshop, office and any indoor working place where require high quality light distribution. |
| Product packaging |
| Installation Instructions |
LED Linear Light Sleek and Attractive lighting for Modern and Traditional Spaces Alike!
Linear lighting has become a popular design feature. The sleek lines of light produce bright and powerful light that acts as a unique architectural feature of your space. Architects and designers are increasingly incoporating linear lighting into their designs for new and modern homes, remodeling traditional homes with a modern touch, and throughout commercial and retail spaces.
Linear lighting has become a popular design feature. The sleek lines of light produce bright and powerful light that acts as a unique architectural feature of your space. Architects and designers are increasingly incoporating linear lighting into their designs for new and modern homes, remodeling traditional homes with a modern touch, and throughout commercial and retail spaces.
SE.Lighting's LED Linear Lights with the best material, design, and concept, have With Lens and Without Lens, with high lumen linear light series and office linear light series option, Driver use Philips, Osram, Tridonic, to assure 5 Years Warranty. can be different function like DALI Dimmable, 0~10V Dimmable, Flicker Free. SE.Lighting can provide OEM and ODM service for you, White / Silver / Black Color available, can Laser your LOGO onto the product.
Here, you’ll find linear lighting fixtures that produce high-quality, low-glare illumination (thanks to our proprietary SE.Lighting technology and other thoughtfully engineered features). And with thoughtful features like continuous row mounting, flexible mounting options and built-in dimming, installation is also seamless.
LED Linear is a phrase we often hear in the realms of commercial interior design, but what exactly does it mean and how do we use it? This article aims to ‘de-mystify’ commercial LED Linear lighting and give you an insight into how and where to use it.
So what is LED Linear Light?
LED Linear lighting is simply the use of many ‘Light-emitting diodes’ packaged together in a long, narrow housing to create a strip of light. This simple concept revolutionised the way we light spaces.
LED Linear lighting is simply the use of many ‘Light-emitting diodes’ packaged together in a long, narrow housing to create a strip of light. This simple concept revolutionised the way we light spaces.
Why LED Linear Light?
Used for commercial or public spaces that require consistent lighting over long runs, linear LED fixtures are a cost-effective choice. Our clients appreciate a host of benefits boasted by LED Linear lighting, including:
Aesthetics – if looks are important to you, then LED Linear has a pretty strong offering. It provides a massive amount of versatility for creating unique and eye-catching designs.
Directional light – LEDs are directional, reducing the need for reflectors and diffusers that can trap light.
Colour temperature – LED Linear lights offer a large range of colour temperatures, which affect the way the eye interprets the light. From cool white to warm white, different temperatures can be used to create mood and atmosphere in a space. Neutral white, or 4000 kelvin to use its technical name, is recommended for offices and retail areas which provides the most comfortable environment.
Cost-effective – an obvious advantage, LED Linear is extremely efficient to run due to its low energy usage, and also its inherent longevity; an LED will typically last many times longer than a fluorescent tube.
Linear LED light fixtures can solve many commercial lighting problems, from safety concerns to issues of scale. Over recent years, they've become more economically feasible and present great return on investment through significant savings on energy efficiency and longevity.
Once you’ve made the decision to use LED Linear lighting for your space, there are a bewildering array of options, so we’ve broken it down into some of the key factors for you to consider:
Used for commercial or public spaces that require consistent lighting over long runs, linear LED fixtures are a cost-effective choice. Our clients appreciate a host of benefits boasted by LED Linear lighting, including:
Aesthetics – if looks are important to you, then LED Linear has a pretty strong offering. It provides a massive amount of versatility for creating unique and eye-catching designs.
Directional light – LEDs are directional, reducing the need for reflectors and diffusers that can trap light.
Colour temperature – LED Linear lights offer a large range of colour temperatures, which affect the way the eye interprets the light. From cool white to warm white, different temperatures can be used to create mood and atmosphere in a space. Neutral white, or 4000 kelvin to use its technical name, is recommended for offices and retail areas which provides the most comfortable environment.
Cost-effective – an obvious advantage, LED Linear is extremely efficient to run due to its low energy usage, and also its inherent longevity; an LED will typically last many times longer than a fluorescent tube.
Linear LED light fixtures can solve many commercial lighting problems, from safety concerns to issues of scale. Over recent years, they've become more economically feasible and present great return on investment through significant savings on energy efficiency and longevity.
Once you’ve made the decision to use LED Linear lighting for your space, there are a bewildering array of options, so we’ve broken it down into some of the key factors for you to consider:
LED Linear Light Types

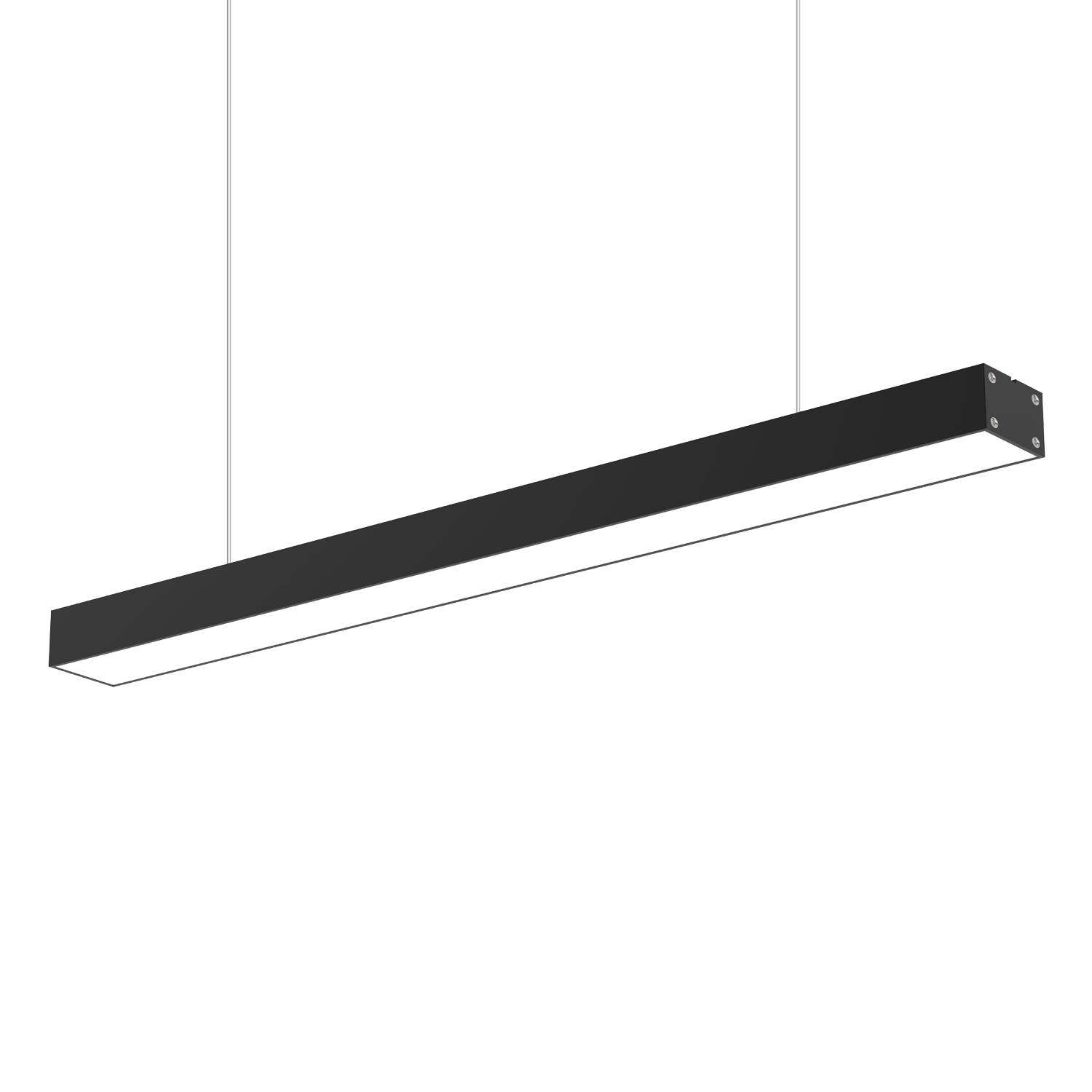

LED Linear pendant lights use suspension wires to hang from the ceiling and are most suited to rooms with generous ceiling height. These are also ideal for creating stunning accent lighting – think about hanging over reception desks, stairways or atriums.
Surface Mounted LED Linear lights are mounted onto the surface of the ceiling and are suited to situations where pendant lights could be too low due to ceiling height.
Recessed LED linear are recessed into a surface, be it a ceiling, wall or another surface. This offers clean, uninterrupted lines.
LED Linear pendant lights use suspension wires to hang from the ceiling and are most suited to rooms with generous ceiling height. These are also ideal for creating stunning accent lighting – think about hanging over reception desks, stairways or atriums.
Surface Mounted LED Linear lights are mounted onto the surface of the ceiling and are suited to situations where pendant lights could be too low due to ceiling height.
Recessed LED linear are recessed into a surface, be it a ceiling, wall or another surface. This offers clean, uninterrupted lines.
If you have any demand, please don't hesitate to contact us, We’ll be happy to hear from you.
