Lighting and circuitry design; DIALux evo layout; CAD layout
Input Voltage(V)
DC 24V
Lamp Body Material
Copper
Certification
CE EMC FCC PSE RoHS
Application
Residential, Shopping Mall Light
Source
5050 SMD
Warranty(Year)
3-YEAR
Switch Mode
Bluetooth Remote Control Wifi Manual Button
IC Type
WS2811
Life time(Hour)
50,000
Lamp Power
14W/mt
Magic (Dream) RGB Color Series
Part No.
SELS-5050RGB30-12-YICD
SELS-5050RGB60-12-YICD
SELS-5050RGB60-5-YIC
SELS-5050RGB84-5-YIC

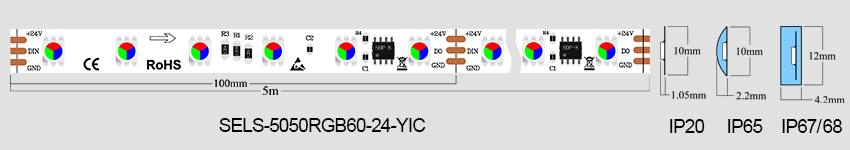

SELS-5050RGB60-24-YIC
Voltage
DC 12V
DC 12V
DC 5V
DC 5V
DC 24V
LED Qty/mt
30pcs
60pcs
60pcs
84pcs
60pcs
Watt/mt
10W
20W
14W
14W
14W
FPCB Width
10mm
10mm
10mm
10mm
10mm
Cutting Unit
50mm
50mm
16.7mm
16.7mm
100mm
Product Description

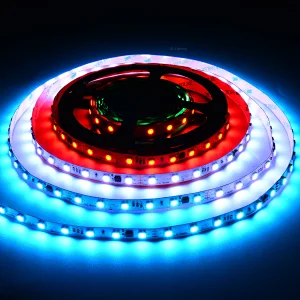

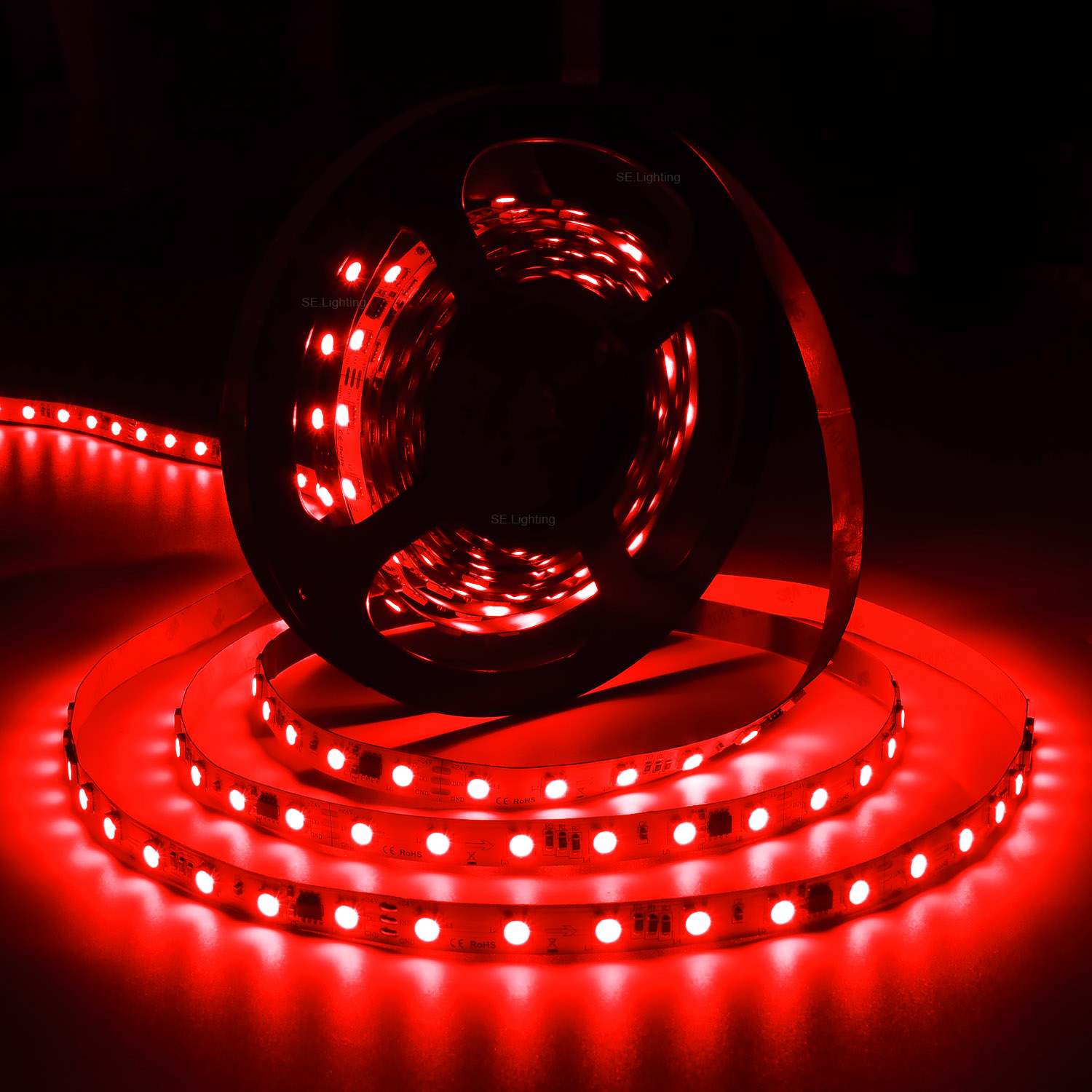

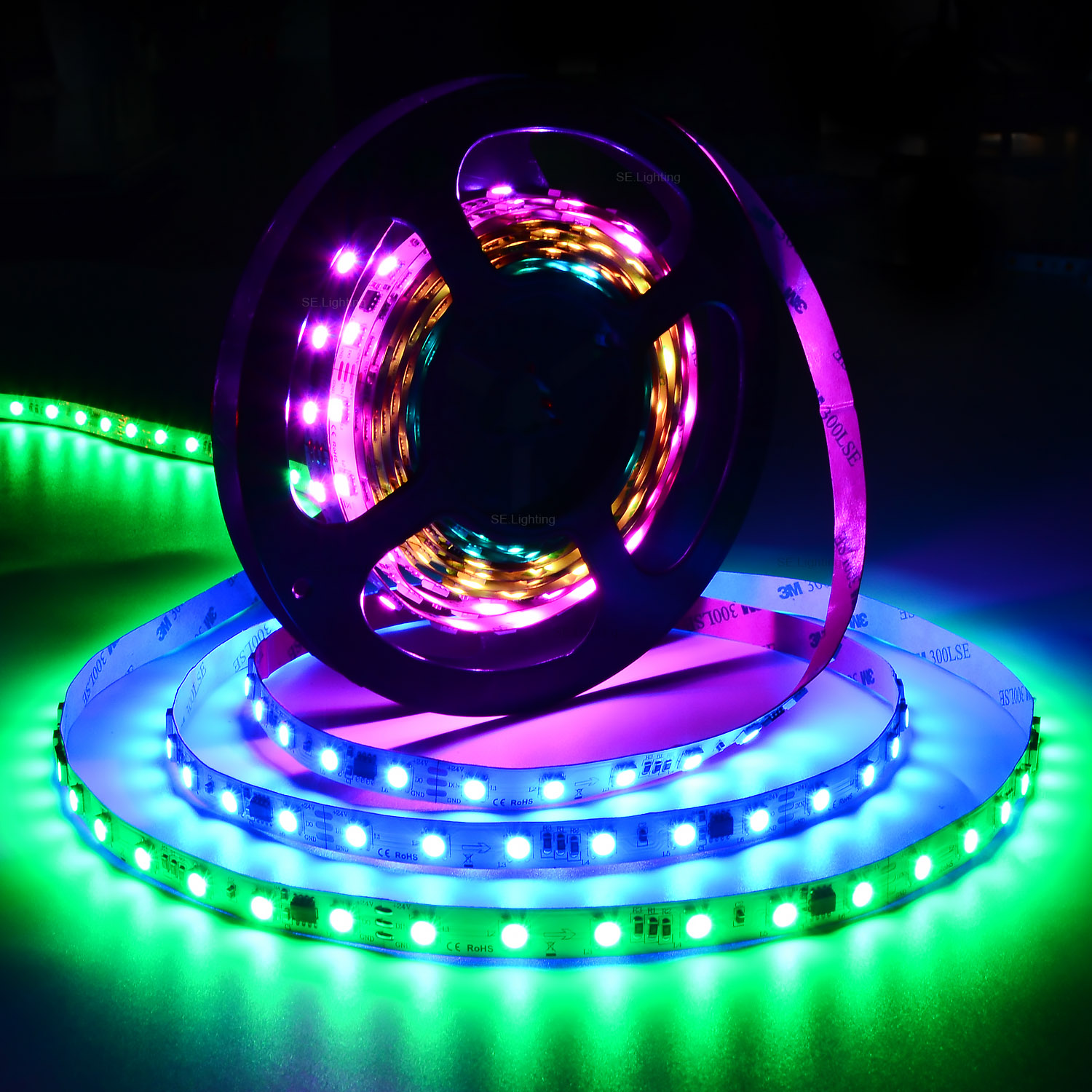

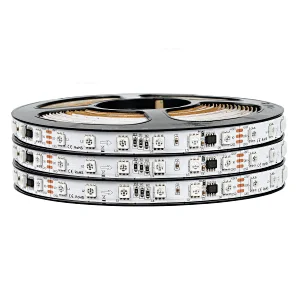

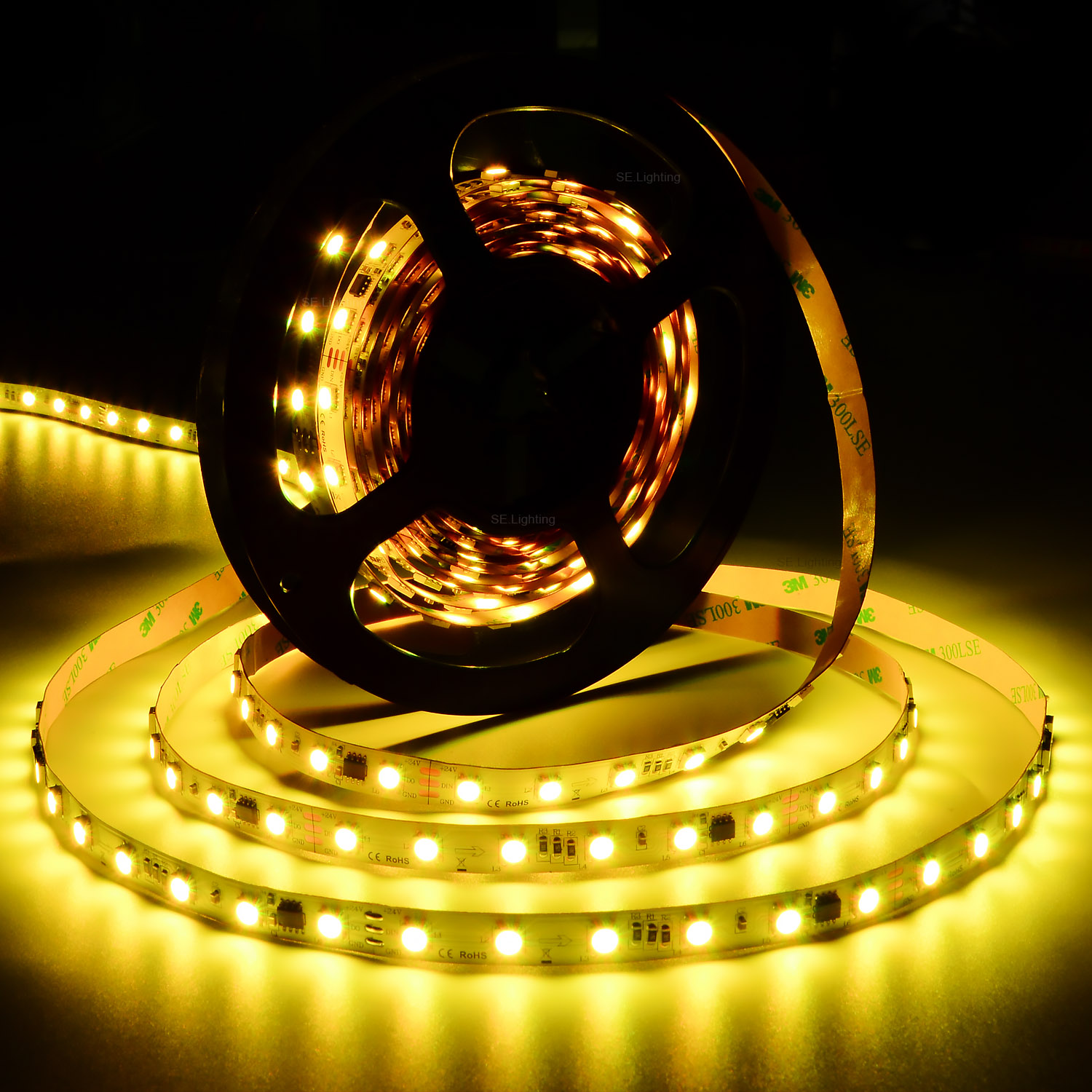

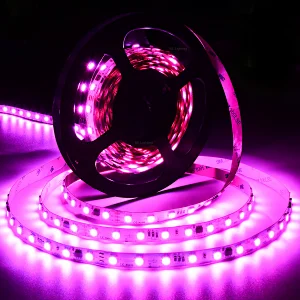

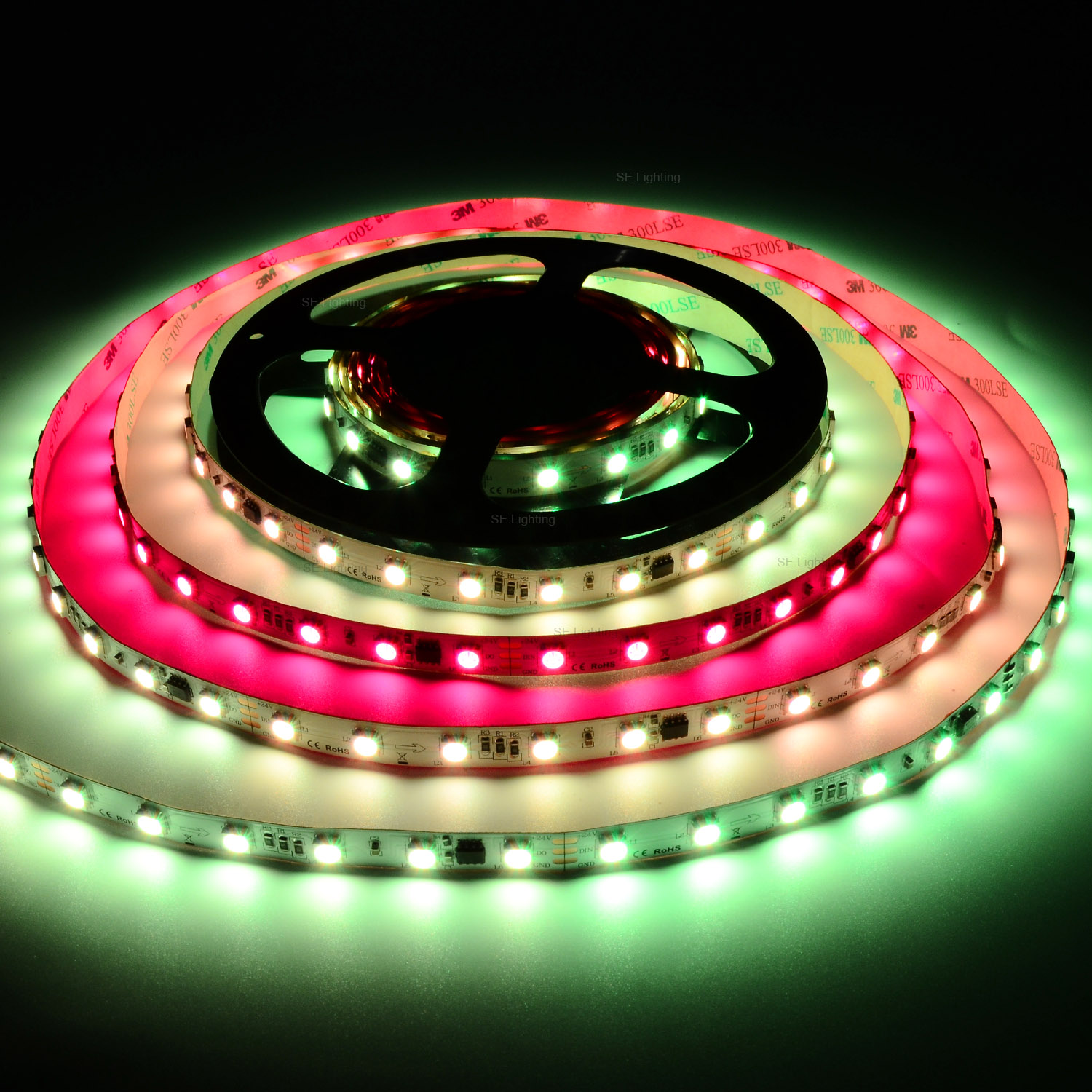

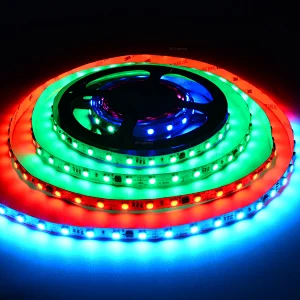

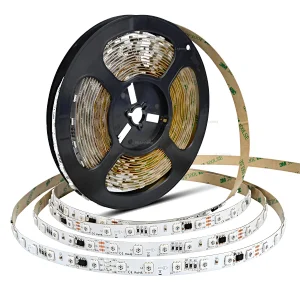

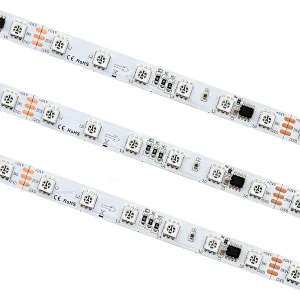

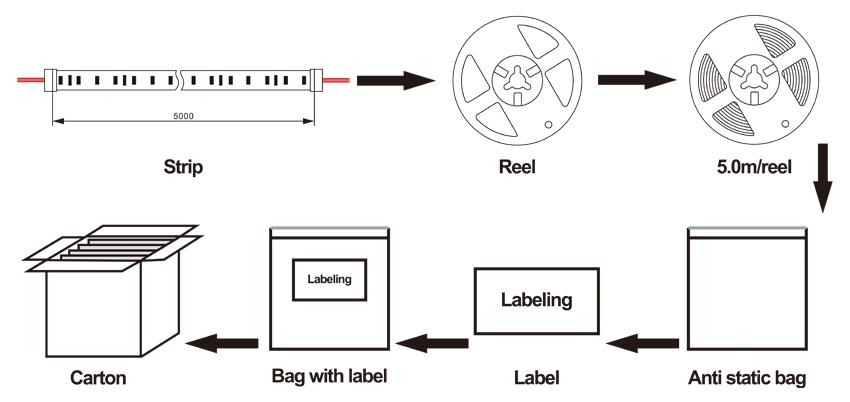

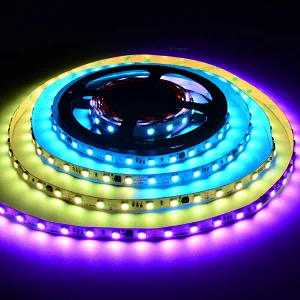

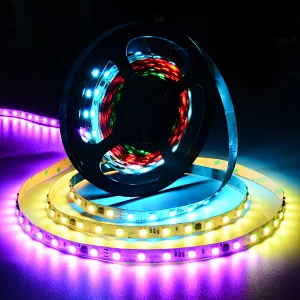

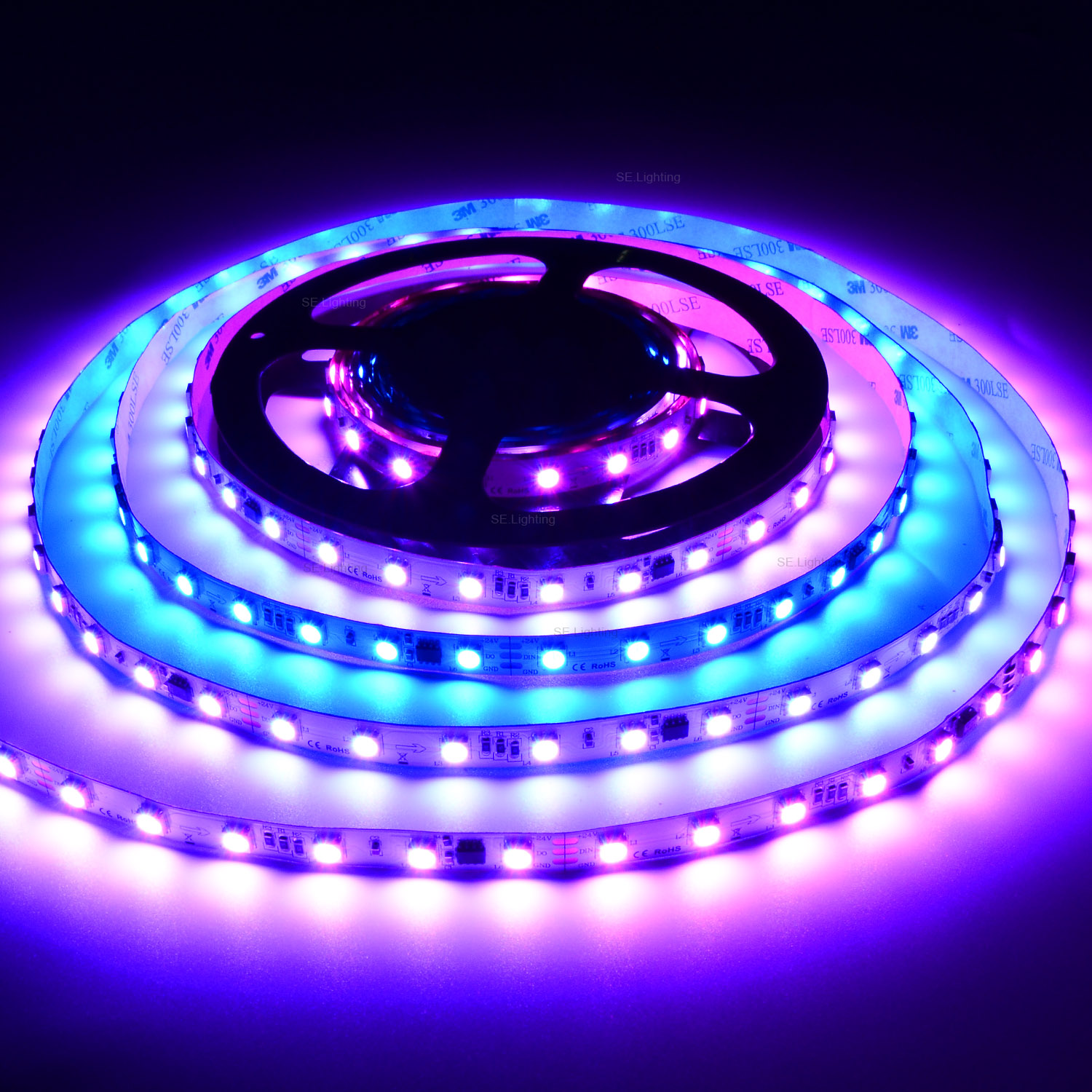

5050 60LEDs 24V Magic (Dream) RGB LED Strip Light can do IP20/IP65/IP67/IP68, Different waterproof grade. Can be RGB and Different Color. 1. RGB IC LED Magic Strip Light, can achieve single‐point control, point by point scanning, to achieve RGB color chase, horse racing, gradient, running water; 2. RGB Strip Lights Normal working voltage is 24V DC; Every 6 LEDs as a unit can be cut; 3. RGB LED Strip Light Standard packing is 5m per roll; Any other different length can be customized; 4. LED Strip Lights Different waterproof grade can meet requirements in different use condition; 5. MagicRGB Strip Light 3 years warranty. 6. MagicRGB Strip Light High grade, long lasting resistors to stop LED chip damage
Application
5050 60LEDs 24V Magic (Dream) RGB LED Strip Light with widely application below:
1. This strip produces vibrant colors while at the same time being very energy efficient and not consuming a lot of power 2. LED Luminous characters; 3. Backlight of signage, Channel letters lighting; 4. Festival, exhibition,Stage decoration, weedings; 5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.
