Shenzhen Standard Technology Co.,LTDABOUT US3F, No.17, LangKou Industrial Park (WeiPengDa), LangKou Community, DaLang SubDistrict Office, LongHua District, ShenZhen, GuangDong 518109Shenzhen Standard Technology Co.,LTD (SE.Lighting) is a Chinese National Hi-Tech Enterprise specialized in LED lighting products, a professional LED lighting manufacturer & supplier in China. Our products mainly include LED Linear Light, LED Tri-Proof Light, LED Strip Light, LED High Bay Light, LED Flood Light, LED Street Light, LED Aluminum Profiles etc. all of these products with good quality, perfect heat dissipation, long life span, low light decay and high luminous intensity, which are widely used for indoor and outdoor lighting.Shenzhen Standard Technology Co.,LTDABOUT US3F, No.17, LangKou Industrial Park (WeiPengDa), LangKou Community, DaLang SubDistrict Office, LongHua District, ShenZhen, GuangDong 518109Shenzhen Standard Technology Co.,LTD (SE.Lighting) is a Chinese National Hi-Tech Enterprise specialized in LED lighting products, a professional LED lighting manufacturer & supplier in China. Our products mainly include LED Linear Light, LED Tri-Proof Light, LED Strip Light, LED High Bay Light, LED Flood Light, LED Street Light, LED Aluminum Profiles etc. all of these products with good quality, perfect heat dissipation, long life span, low light decay and high luminous intensity, which are widely used for indoor and outdoor lighting.Shenzhen Standard Techno
Lighting and circuitry design; DIALux evo layout; CAD layout
Certification
CE ROHs SAA ETL DLC
Application
Parking Lot, Car Washing, Cold Storage
Warranty(Year)
5-YEAR
Luminous Efficacy(lm/w)
130/150
Life time(Hour)
50,000
Power Factor (PF)
≥0.95
IK Rate
IK10
Flicker Free
yes
Dimmable
0~10V DALI
Input Voltage(V)
AC 220-240V/100-277V
LED
2835 SMD
Ambient Temp. (℃)
-20~+50℃
Storage Temp. (℃)
-40~+85℃
Key Material
Aluminum Housing +PC Cover
Driver
LiFud, Passed TUV
CRI (Ra>)
80 / 90
Various Specifications
Part No.
SE-2T20W C
SE-4T40W C
SE-4T50W C
SE-5T50W C
SE-5T60W C
Power
20W
40W
50W
50W
60W
Size/mm
600*74*60mm
1200*74*60mm
1200*74*60mm
1500*74*60mm
1500*74*60mm
LED Type
192PCS
312PCS
364PCS / 376PCS
364PCS / 376PCS
432PCS / 456PCS
Luminous (LM)
2600LM
5200LM
6500LM
6500LM
7800LM
Product Description

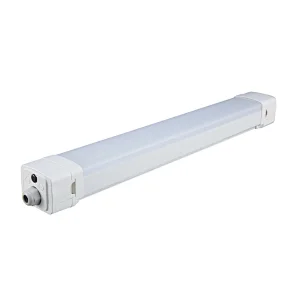

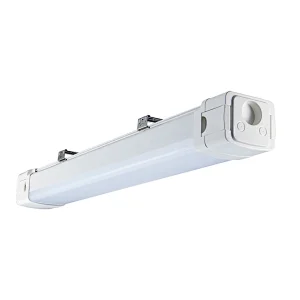

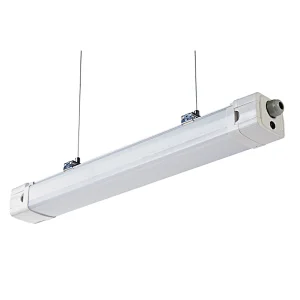

50W 5FT 150CM IP66 LED Tri-proof Lighting IK10 is Water, Vapor and Dust Proof, can be different function like 0~10V Dimmable, DALI Dimmable, Emergency, Microwave Sensor, Flicker Free, IK10, 130LM/W or 150LM/W efficiency, CRI 80Ra, with 5 Years Warranty. This is SE.Lighting own designed 50W 5FT 150CM IP66 LED Tri-proof Lighting IK10, can be OEM and ODM for you, Silver Color or Black Color, can Laser your LOGO onto the product.
Features of our IP66 LED Tri-proof Lighting:
1. LED Tri-proof Lighting Up to 50% energy saving compared to tradition lights.
2. LED Tri-proof Lighting With high Lumen 2835 Led Chips and Lifud Led Driver, 5 Years warranty.
3. LED Tri-proof Lighting High Impact IK10 Test.
4.LED Tri-proof Lighting High Lumen output up to 150lm/w.
Application
IP66 Waterproof LED Tri-proof Lighting Fixture can be widely used in Public Lighting and Commercial Lighting . Like Metro Station Lighting, Train Stations Lighting, Bus Stations Lighting, Airports Lighting, Corridor Lighting, Car Parks Lighting, Stairwells Lighting, Service Centre Lighting, Gallery Lighting, Horse Farm Lighting, Swimming Pool Lighting and etc.
