5mm 170LM/W 128LEDs 2835 LED Strip Light
5mm 170LM/W 128LEDs 2835 LED Strip Light

5mm 170LM/W 128LEDs 2835 LED Strip Light

Model NO.
SELS-2835X128-12/24-YC
Quantity:
Product Parameter
Model NumberSELS-2835X128-12/24-YC
Working Temperature()-20-50
Package5m per roll,
any length can be customized
FPC Width5mm

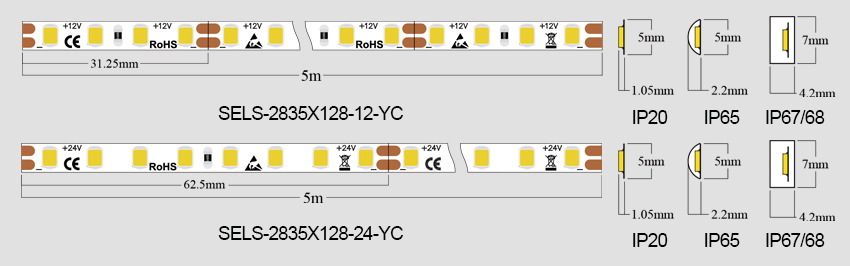

Cutting Unit31.25mm 62.5mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)2700K/3000K/4000K/6000K
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout
Input Voltage(V)DC 12/24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source2835 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control
Wifi Manual Button
Luminous Efficacy(lm/w)170
Life time(Hour)50,000
Lamp Power5W/mt
Lamp Luminous Flux(lm)850lm/w
CRI (Ra>)80/90

Ultra Slim Series
Part No.SELS-2835X126-24-YCSELS-2835X60-12/24-YSSELS-3528X96-12/24-Y
VoltageDC 24VDC12 / 24VDC 12 / 24V
LED Qty/mt126pcs60pcs96pcs
Watt/mt7W5W5W
FPCB Width6mm6mm4mm
Cutting Unit55mm50/100mm31/62mm
Efficiency135~160lm/W100~110lm/W95~100lm/W
Lumen/mt945~1120LM500~550LM475~500LM
Color2700K/3000K/4000K/6000K2700K/3000K/4000K/6000K2400K/2700K/Special/3000K/4000K/6000K
Product Description
5mm 170LM/W 128LEDs 2835 LED Strip Light can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. 2835 LED Strip Light Super-bright, steady burn, energy saving and long life
2. 2835 LED Strip Light Environmental friendly: Low carbon, no radiation, no flicker, and no pollution to human and environment, safe and stable.
3. 2835 LED Strip Light Low power consumption, with 50,000+ hour’s long life span
4. 2835 LED Strip Light Cuttable every 8LEDs along the cutting marks, according to practical requirement
5. 2835 Strip Lights 120-degree wide angle illumination, smooth and even light spread.
6. 2835 Strip Lights White PCB circuit board, brightness but unaffected.
7. 2835 Strip Lighst Super bright SMD2835 top LED, high intensity and reliability.
8. 2835 LED Strip Light Easy for transporting, decorative effect is brilliant, energy saving, environmental protection
Application

5mm 170LM/W 128LEDs 2835 LED Strip Light with widely application below:

1. High light efficiency strips widely used for architectural lighting, concealed lighting, sign letter lighting, perimeter lighting among many other applications
2. Stage decoration, Festival, exhibition, weedings;
3. Backlight of signage, Channel letters lighting;
4. Applicable for automobile and bicycle decoration, border or contour lighting.
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

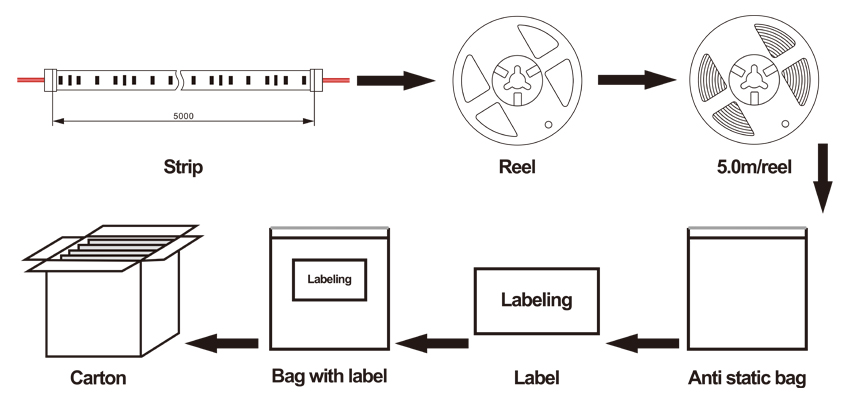

Product packaging

Installation Instructions
