Model NO.
SELS-2835X60-12/24-Y
Delivery:
EXW FOB
Minimum order quantity:
100 meters
Supply Ability:
300000 meters / Month
Country of Origin:
SHENZHEN
Stock Time:
5-10 Days
Quantity:
Product Parameter
Model NumberSELS-2835X60-12/24-Y
Working Temperature()-20-50
Length5mt, any length can be customized
FPC Width8mm
Cutting Unit50mm 100mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)2700-6000K Red / Green / Blue / Yellow
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design; DIALux evo layout; CAD layout
Input Voltage(V)DC 12V / 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source2835 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control Wifi Manual Button
Luminous Efficacy(lm/w)100-110
Life time(Hour)50,000
Lamp Power5W/mt
Lamp Luminous Flux(lm)500-550lm/w
CRI (Ra>)80/90

2835 Standard Series
Part No.SELS-2835X60-12/24-YSELS-2835X120-12/24-YSELS-2835X240-12/24-YASELS-2835X240-24-YB
VoltageDC12 / 24VDC12 / 24VDC12 / 24VDC24V
LED Qty/mt60pcs120pcs240pcs240pcs
Watt/mt5W10W22W24W
FPCB Width8mm10mm10mm15mm
Cutting Unit50 100mm50 100mm25mm50mm
Efficiency100~110lm/W105~115lm/W110~120lm/W105~115lm/W
Lumen/mt500~550LM1050~1150LM2420~2640LM2500~2760LM
Color2700K/ 3000K / 4000K / 6000K Red Green Blue Yellow2700K/ 3000K / 4000K / 6000K Red Green Blue Yellow2700K/ 3000K / 4000K / 6000K2700K/ 3000K / 4000K / 6000K
Product Description
60LEDs 2835 12V 24V LED Strip Light can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Low power consumption, 5W per meter
2. Continuous length, packed with 5 meter and can be customized

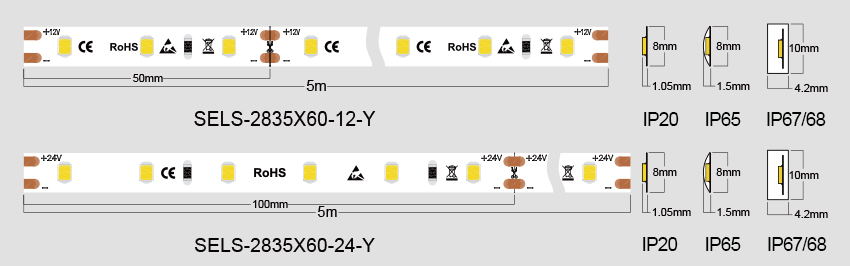

3. Cuttable every 3LEDs at 12V and 6LEDs at 24V along the cutting marks, according to practical requirement.
4. Flexible ribbon for curving around bends
5. Super bright 2835 SMD top LED, high intensity and reliability.
6. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
7. Ultra-bright but running at low temperature
8. Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).
Application

60LEDs 2835 12V 24V LED Strip Light with widely application below:

1. It’s widely used as a decorative lights, and use it as the lights
2. Applicable for automobile and bicycle decoration, car decoration, border or contour lighting.
3. Backlight of signage, Channel letters lighting;
4. Festival, exhibition,Stage decoration, weedings;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

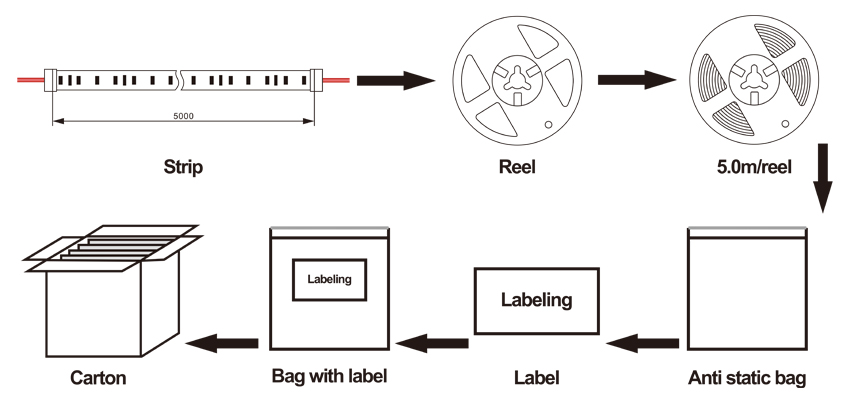

Product packaging

Installation Instructions
