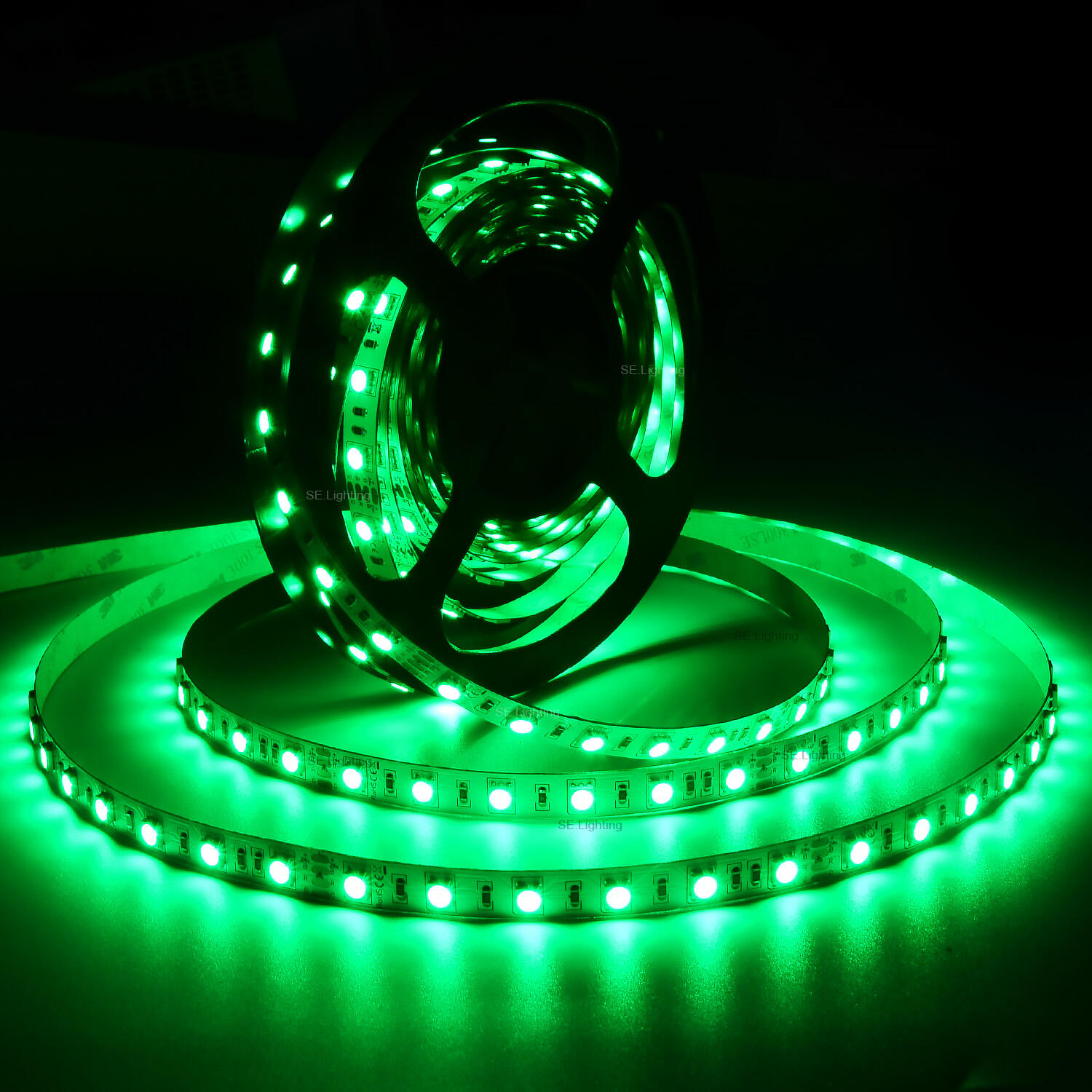

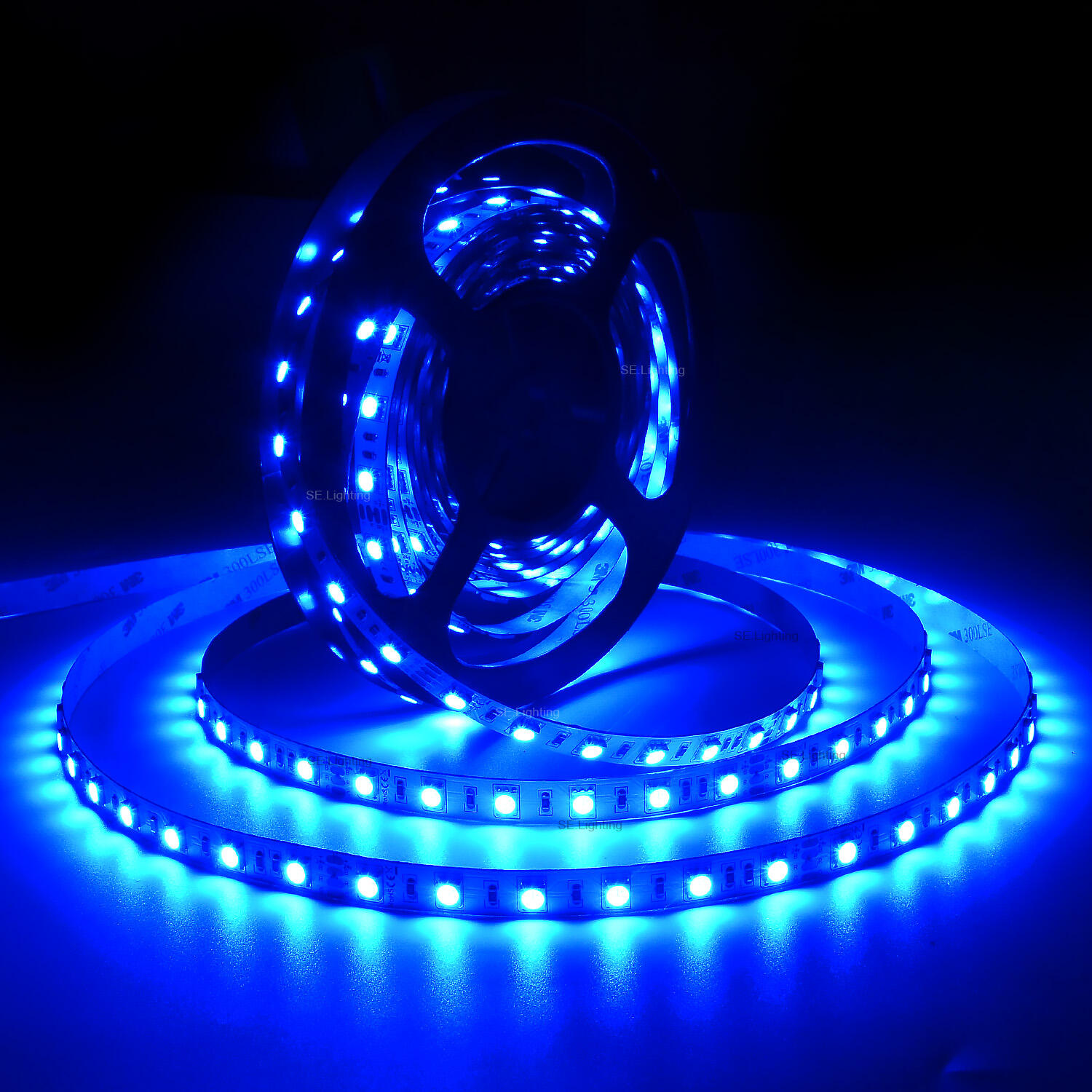

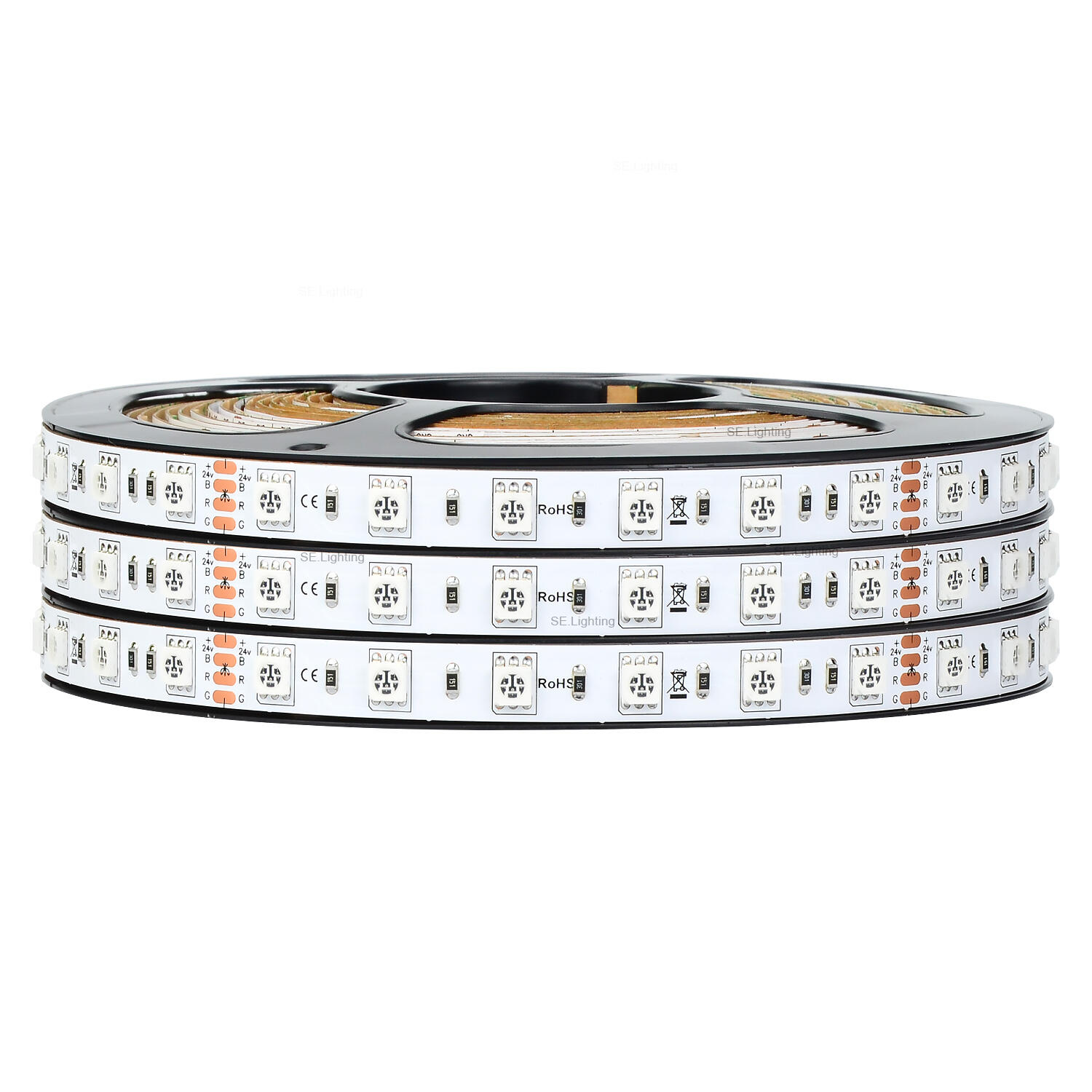

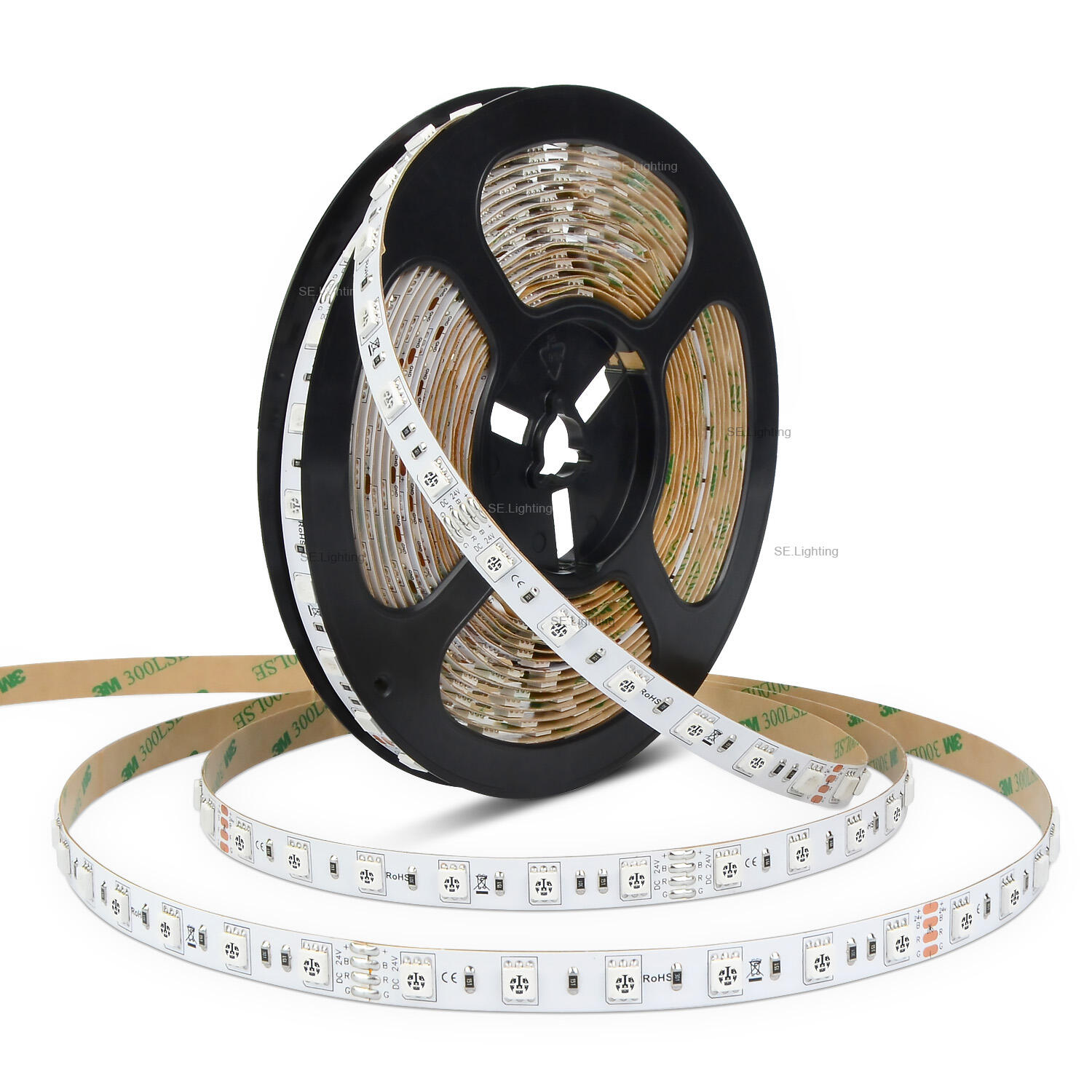

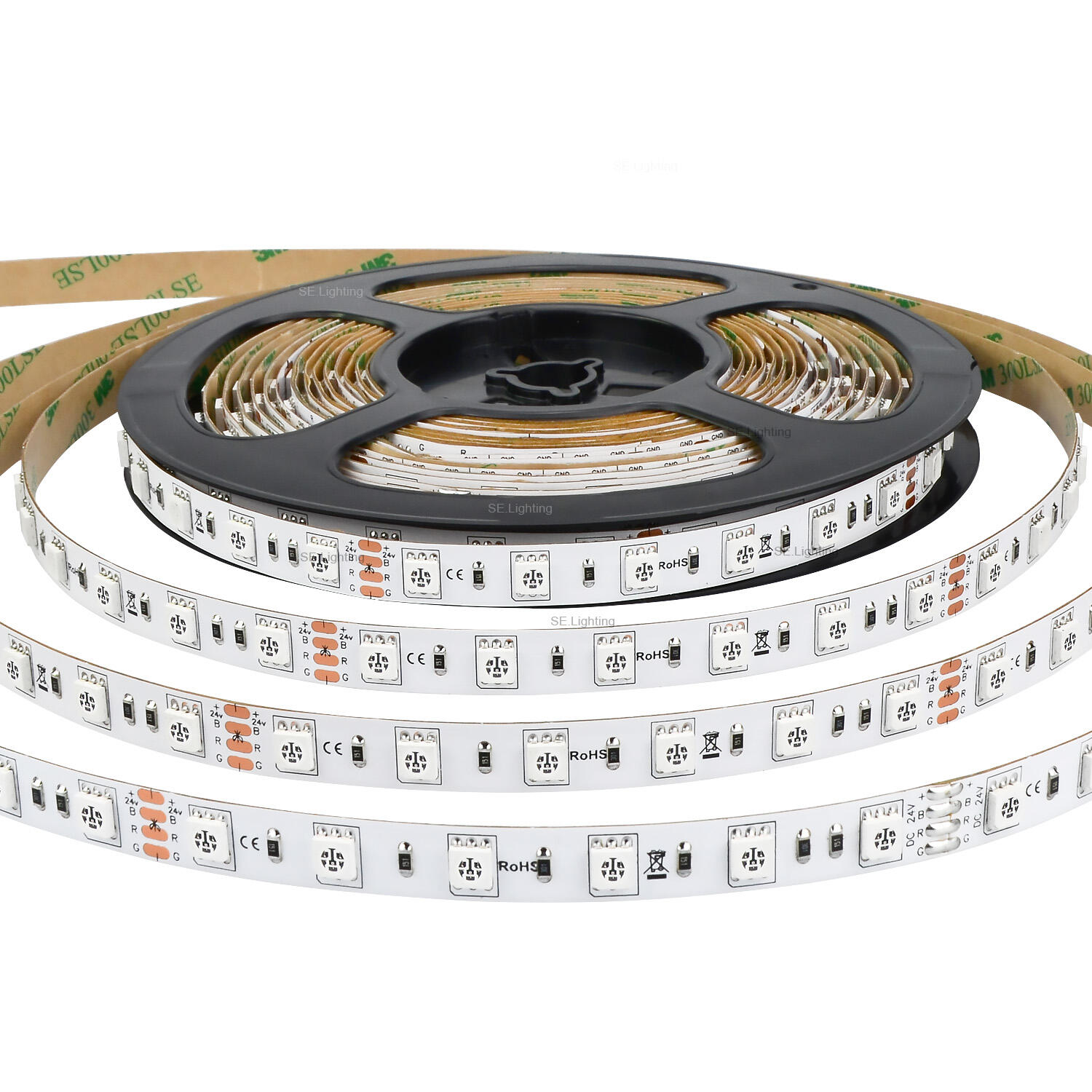

60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip
60LEDs 5050 24V 12V RGB LED Strip

60LEDs 5050 24V 12V RGB LED Strip

Model NO.
SELS-5050RGB60-12/24-Y
Delivery:
EXW FOB
Minimum order quantity:
100 meters
Supply Ability:
300000 meters / Month
Country of Origin:
SHENZHEN
Stock Time:
5-10 Days
Quantity:
Product Parameter
Model NumberSELS-5050RGB60-12/24-Y
Working Temperature()-20-50
Length5mt, any length can be customized
FPC Width10mm
Cutting Unit50mm/100mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)RGB
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design; DIALux evo layout; CAD layout
Input Voltage(V)DC 12 / 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source5050 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control Wifi Manual Button
Life time(Hour)50,000
Lamp Power14W/mt

RGB Color Series
Part No.SELS-5050RGB84-24-YSELS-5050RGB60-12/24-YSELS-3838RGB120-24-YSELS-2835RGB120-24-Y
VoltageDC 24VDC 12 / 24VDC 24VDC 24V
LED Qty/mt84pcs60pcs120pcs120pcs
Watt/mt14W14W14W14W
FPCB Width10mm10mm10mm8mm
Cutting Unit50mm50mm/100mm50mm50mm
Product Description

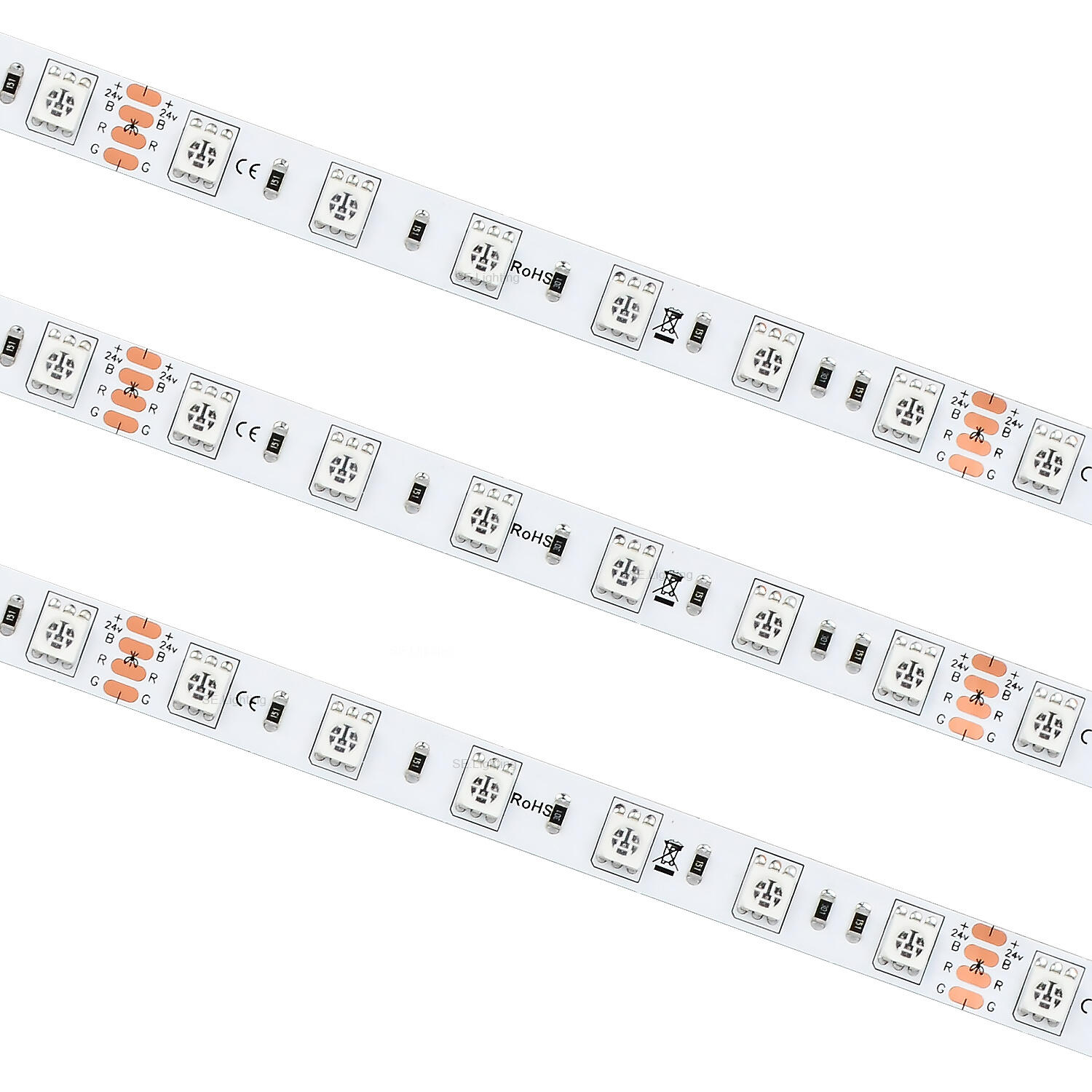

60LEDs 5050 24V 12V RGB LED Strip can do IP20/IP65/IP67/IP68, Different waterproof grade. Can be RGB and Different Color.
1. Cut table every 3 LEDs(DC12V) or 6 LEDs (DC24V) along the cutting marks, according to practical requirement
2. Flexible ribbon for curving around bends
3. Long life span 50,000+ hours
4. 5050 RBG SMD top LED, high intensity and reliability.
5. Completely smooth and even light spread, solving the uneven luminous problem
6. Unused wires of LED strip must be isolated to prevent potential short circuit.
7. Test all components before cutting or permanently mounting the strip.
8. Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).
Application

60LEDs 5050 24V 12V RGB LED Strip with widely application below:

1. It’s widely used as a decorative lights, and use it as the lights
2. IP20 Non-waterproof used in indoor lighting, such as hotels, night clubs, shopping malls, offices...etc
3. Emergency & security lighting, advertisement sign lighting
4. Festival, exhibition,Stage decoration, weedings;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

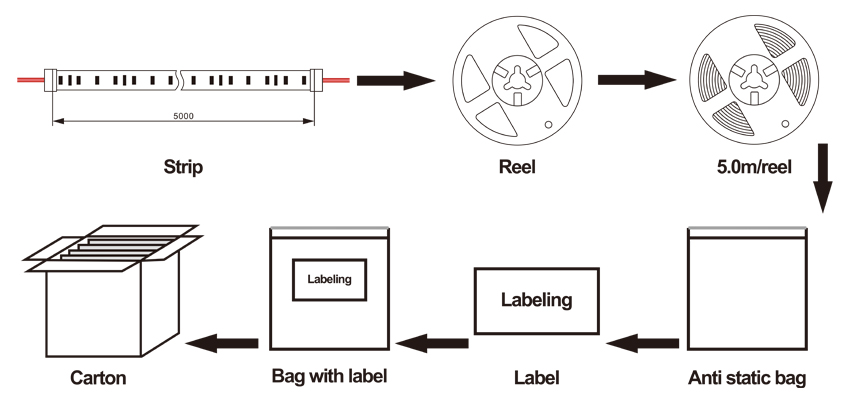

Product packaging

Installation Instructions
