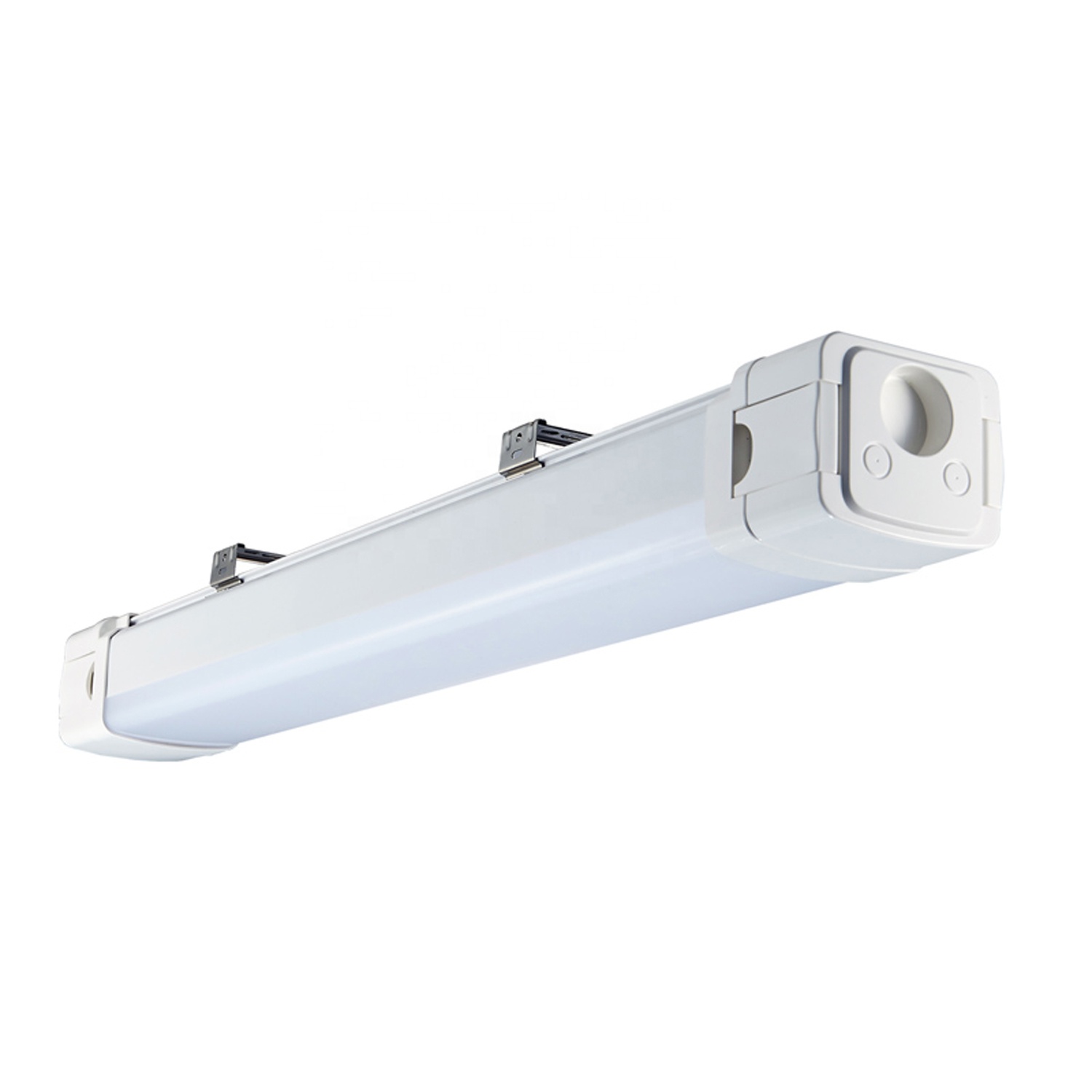

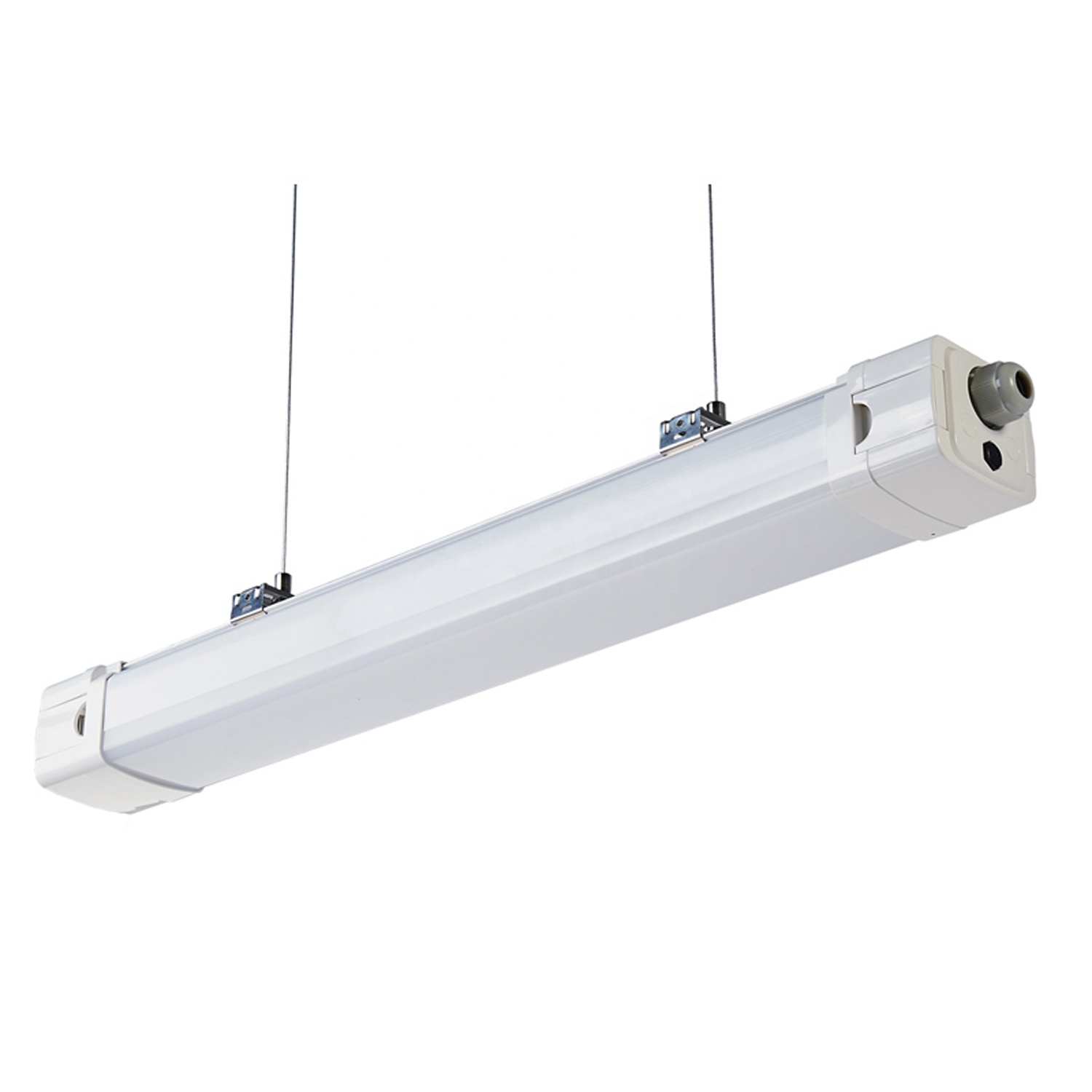

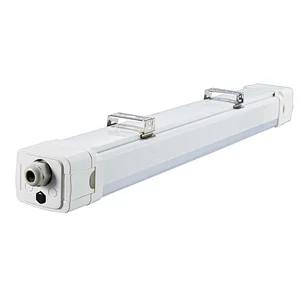

60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture
60W 5FT 150CM IP66 LED Vapor Tight Fixture

60W 5FT 150CM IP66 LED Vapor Tight Fixture

Model NO.
SE-5T60W C
Minimum order quantity:
1
Quantity:
Product Parameter
Model NumberSE-5T60W C
Beam Angle120°
Waterproof GradeIP66
Color Temperature(CCT)2800-6500K
Power60W
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout
CertificationCE ROHs SAA ETL DLC
ApplicationParking Lot, Car Washing,
Cold Storage
Warranty(Year)5-YEAR
Luminous Efficacy(lm/w)130/150
Life time(Hour)50,000
Power Factor (PF)≥0.95
IK RateIK10
Flicker Freeyes
Dimmable0~10V DALI
Input Voltage(V)AC 220-240V/100-277V
LED2835 SMD
Ambient Temp. ()-20~+50℃
Storage Temp. ()-40~+85℃
Key MaterialAluminum Housing +PC Cover
DriverLiFud, Passed TUV
CRI (Ra>)80 / 90
Various Specifications
Part No.SE-2T20W CSE-4T40W CSE-4T50W CSE-5T50W CSE-5T60W C
Power20W40W50W50W60W
Size/mm600*74*60mm1200*74*60mm1200*74*60mm1500*74*60mm1500*74*60mm
LED Type192PCS312PCS364PCS / 376PCS364PCS / 376PCS432PCS / 456PCS
Luminous (LM)2600LM5200LM6500LM6500LM7800LM
Product Description

60W 5FT 150CM IP66 LED Vapor Tight Light is Water, Vapor and Dust Proof, can be different function like 0~10V Dimmable, DALI Dimmable, Emergency, Microwave Sensor, Flicker Free, IK10, 130LM/W or 150LM/W efficiency, CRI 80Ra, with 5 Years Warranty. This is SE.Lighting own designed 60W 5FT 150CM IP66 LED Vapor Tight Light, can be OEM and ODM for you, Silver Color or Black Color, can Laser your LOGO onto the product.

Features of our 0-10V Dimmable IP66 LED Tri-proof Light:

1. LED Vapor Tight Light High luminous flux output, high efficiency, energy saving up to 90%.

2. With IK10 and IP66 suitable for most scene.

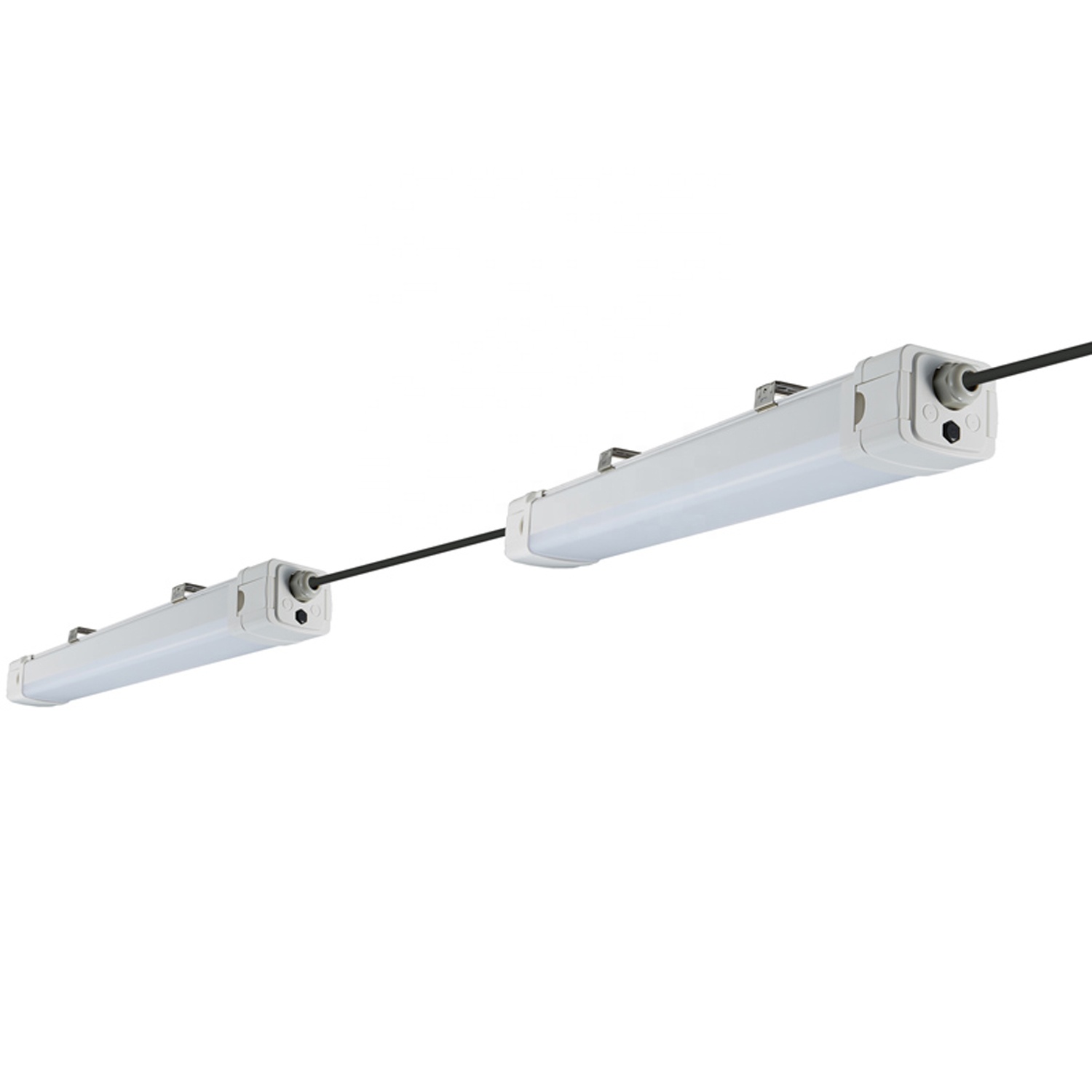

3. Multiple mounting option, plug-and-play connection.

4. High Lumen output up to 150lm/w.

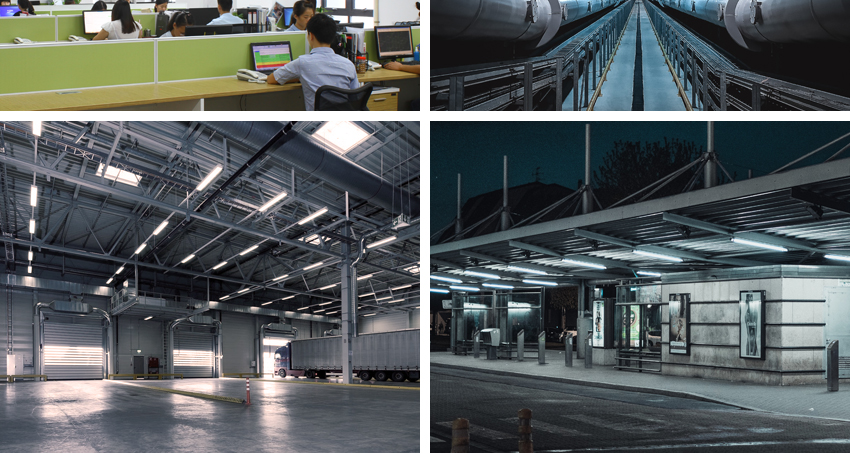

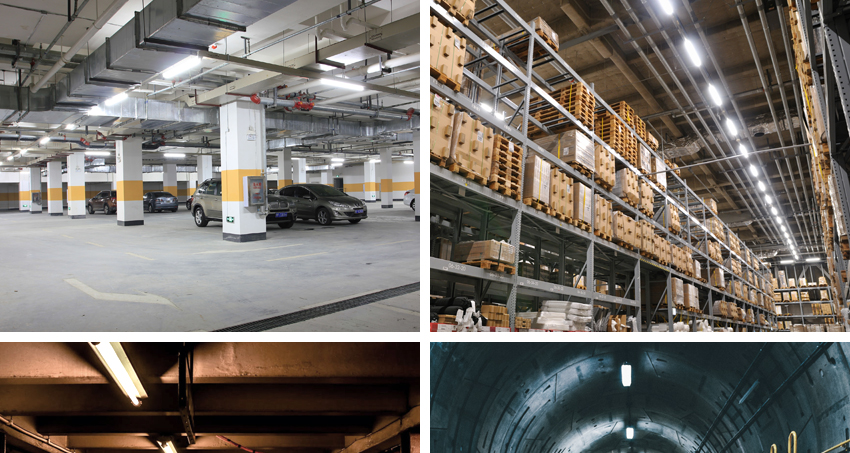

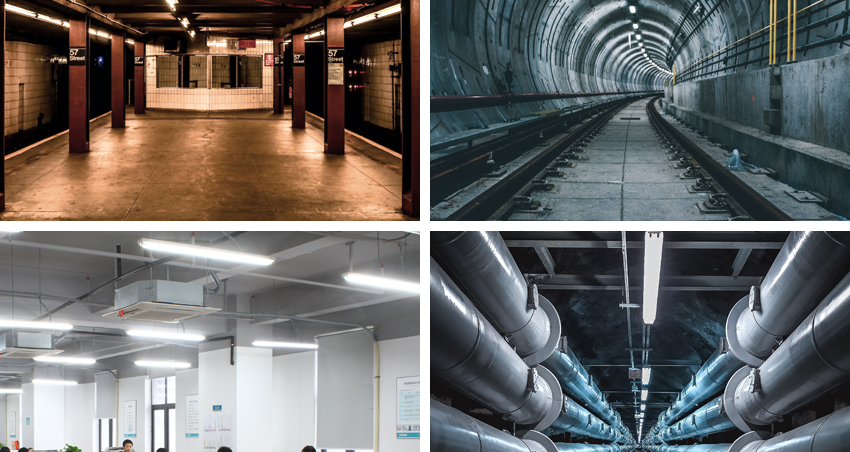

Application
IP66 Waterproof LED Tri-Proof Light Fixture can be widely used in Public Lighting, Commercial Lighting and Industrial Lighting. Like, Train Stations Lighting, Bus Stations Lighting, Tunnels Lighting, Supermarkets Lighting,Stairwells Lighting, Gallery Lighting, Horse Farm Lighting, Factories Lighting, Warehouses Lighting, Exhibition Hall Lighting, etc.

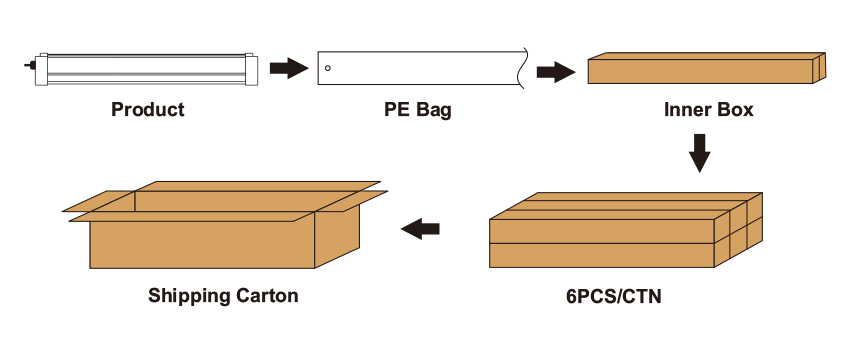

Product packaging

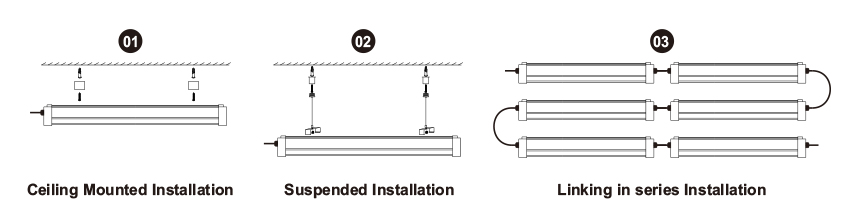

Installation Instructions
