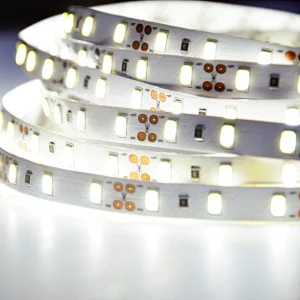

60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip
60LEDs 5630 110LM/W 12V 24V LED Strip

60LEDs 5630 110LM/W 12V 24V LED Strip

Model NO.
SELS-5630X60-12/24-Y
Quantity:
Product Parameter
Model NumberSELS-5630X60-12/24-Y
Working Temperature()-20-50
Package5m per roll,
any length can be customized
FPC Width10mm
Cutting Unit50mm / 100mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)2700-6000K/Red/Green/Blue
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout
Input Voltage(V)DC 12V/ 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential,
Shopping Mall Light
Source5630 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control
Wifi Manual Button
Luminous Efficacy(lm/w)110
Life time(Hour)50,000
Lamp Power12W/mt
Lamp Luminous Flux(lm)1320lm/w
CRI (Ra>)80

5630 Series

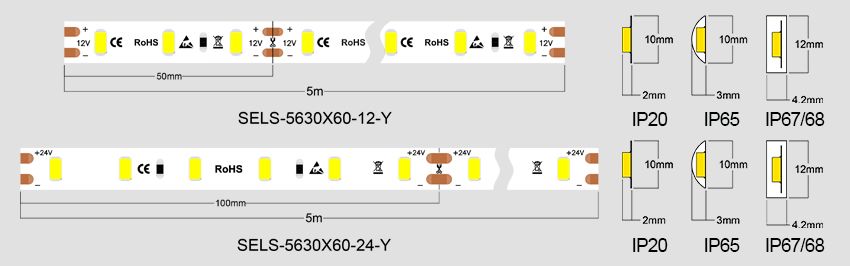

Part No.SELS-5630X60-12/24-YSELS-5630X64-12/24-YSELS-5630X120-12/24-Y
VoltageDC12 / 24VDC12 / 24VDC12 / 24V
LED Qty/mt60pcs64pcs120pcs
Watt/mt12W12W20W
FPCB Width10mm10mm12mm
Cutting Unit50/100mm50/100mm25/50mm
Efficiency110lm/W150lm/W115lm/W
Lumen/mt1320LM1800LM2300LM
Color2700K/ 3000K / 4000K / 6000K/Red/Green/Blue2700K/ 3000K / 4000K / 6000K2700K/ 3000K / 4000K / 6000K
Product Description

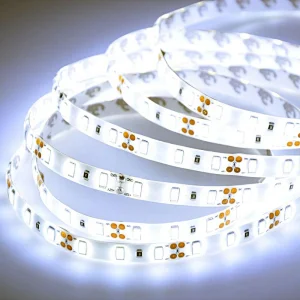

60LEDs 5630 110LM/W 12V 24V LED Strip can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. Super bright 5630 SMD top LED, high intensity and reliability.
2. Packed with 5 meter, any length can be customized.
3. Cut table every 6LEDs along the cutting marks, according to practical requirement.
4. Long life span 50,000+ hours, 3 years warranty
5. Flexible ribbon for curving around bends
6. Low power consumption
7. Completely smooth and even light spread, solving the uneven luminous problem
8. Ultra-bright but running at low temperature
9. CCT Range: 2700K/3000K/4000K/5000K/6500K.
10. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Application

60LEDs 5630 110LM/W 12V 24V LED Strip with widely application below:

1. It’s widely used as a decorative lights, and use it as the lights
2. Stage decoration, Festival, exhibition, weedings;
3. Backlight of signage, Channel letters lighting;
4. LED Luminous characters;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

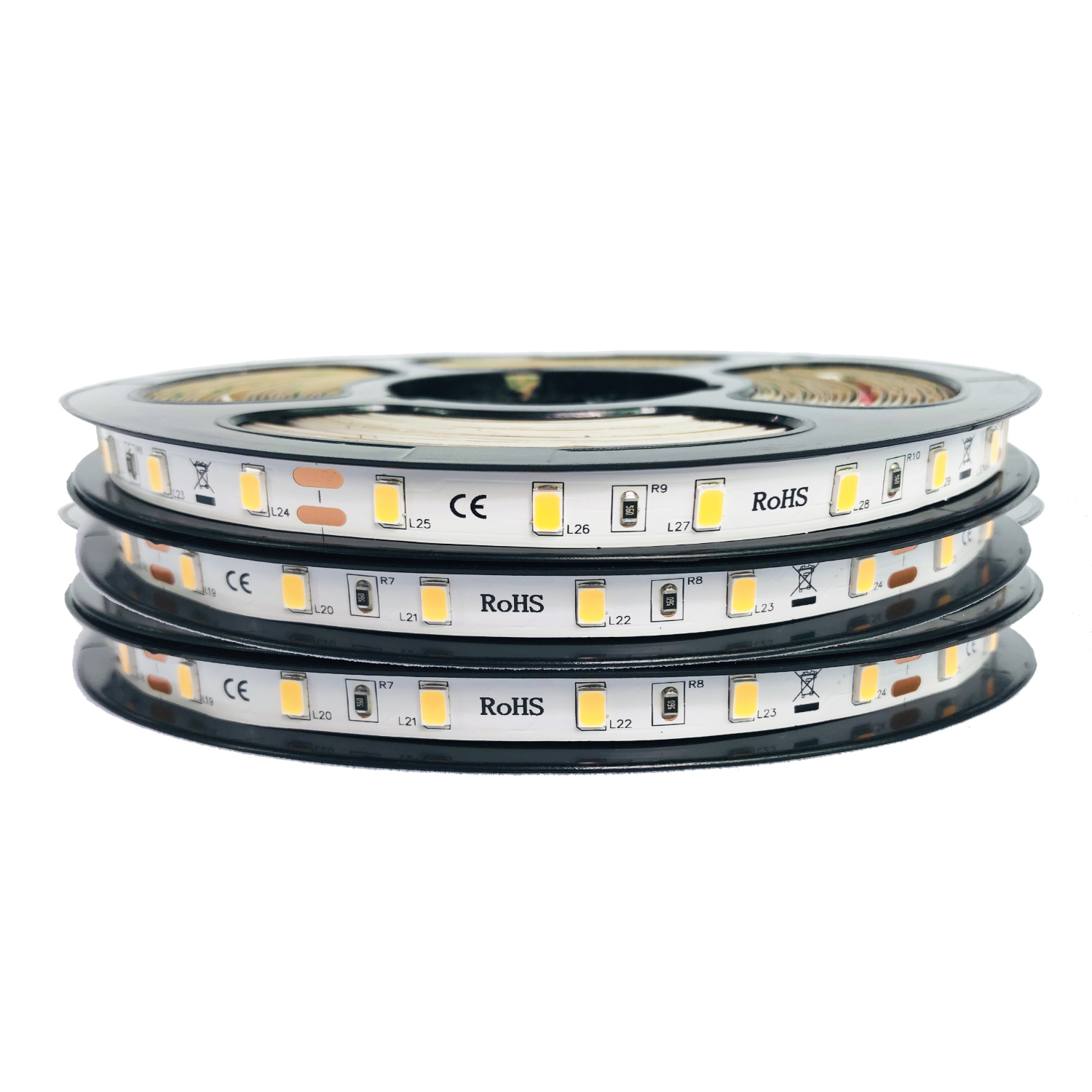

Product packaging

Installation Instructions
