| Product Parameter | |
| Model Number | SEF-200CCT |
| Beam Angle | 20°/30°/60°/90°/120° |
| Waterproof Grade | IP65 |
| Color | 3000K+6500K |
| Power | 100W/150W/200W |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Certification | CE ROHs |
| Application | Park, Garden Lighting; Yard, Square Lighting; etc |
| Warranty(Year) | 5 Years |
| Life time(Hour) | 50,000 |
| Luminous Efficacy(lm/w) | 115 |
| Power Factor (PF) | ≥0.9 |
| Control Methods | DMX Control or RF Remote Control or DMX Wireless Control |
| Input Voltage(V) | AC 100~277V / DC 24V |
| LED | 3030 SMD |
| Ambient Temp. (℃) | -20~+50℃ |
| Storage Temp. (℃) | -40~+85℃ |
| Key Material | AluminumAlloy+Toughened Glass |
| Model | Power ±10% | CCT | Efficiency ±10% | Luminous ±10% |
| SEF-100CCT | 100W | 4000K | 131LM/W | 13100LM |
| 50W | 3000K | 122LM/W | 6100LM | |
| 50W | 6500K | 127LM/W | 6350LM | |
| SEF-150CCT | 150W | 4000K | 126LM/W | 18900LM |
| 75W | 3000K | 119LM/W | 8925LM | |
| 75W | 6500K | 128LM/W | 9600LM | |
| SEF-200CCT | 200W | 4000K | 125LM/W | 25000LM |
| 100W | 3000K | 124LM/W | 12400LM | |
| 100W | 6500K | 127LM/W | 12700LM |
| Product Description | |

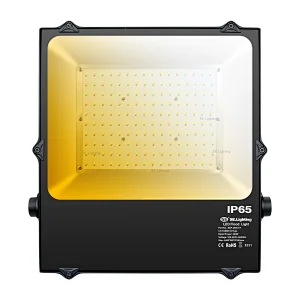

DMX LED Flood Light CCT 100W 150W 200W Multi Color Changing Flood Lights |

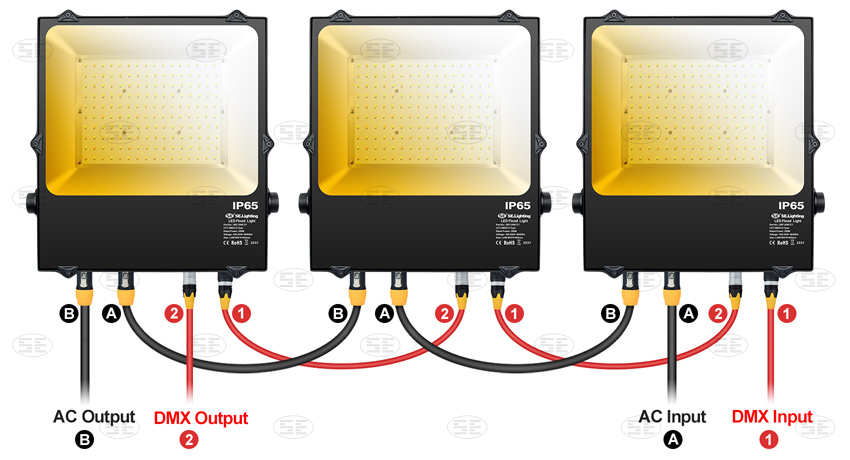

| Connection Method |
| DMX Type Connection |
| RF Type Connection |
| DMX Wireless Type Connection |
| Dimension |
| Model | Size A(mm) | Size B(mm) | Size C(mm) |
| SEF-100CCT | 413 | 315 | 63 |
| SEF-150CCT | 440 | 349 | 63 |
| SEF-200CCT | 480 | 379 | 63 |
| Packing Data |
| Model | CTN/PCS | N.W* | Packaging size |
| SEF-100CCT | 1 | 4.96KG | 500* 390* 135MM |
| SEF-150CCT | 1 | 6.2KG | 510* 435* 135MM |
| SEF-200CCT | 1 | 7.16KG | 550* 460* 135MM |
| Application | |
| LED Flood Light,DMX LED Flood Light,CCT Flood Lights,Multi color LED Flood Light,Color changing Flood Light, is usually used in Public Lighting and Industrial Lighting. SE.Lighting's CCT Flood Lights is suitable for a variety of Stages, include Concerts, Stadiums, Bars, Theater, Music Festival, Carnivals, Live Music, DJ & Disco, Weddings, Theatres, Trade Shows, Corporate Events, Houses of Worship. |
Best CCT, RGB, RGBW, RGBCCT, DMX LED Flood Lights
DMX is short for"Digital Multiplex", we can simplely understand it as a digital protocol. Nowadays, normally DMX is refered to DMX512(support maximum 512 channels, one color each channel).
Our CCT Flood Lights can show many different color effects by working with DMX512, we need to use an external DMX controller and add hardware parts to the lights. The program is held in the controller and the signal will be sent to the lights to generate different colors or effects. Our CCT Flood Lights supports universal DMX512 controller as long as it supports standard DMX512 protocol. You can buy the controller from us or in your local market.
Our DMX LED Flood Lights can also be LED Stage Lights and can be used for Stage Lighting.
Our DMX LED Flood Light is smart and can generate multiple color changing effects. Such as Flash, Strobe, Jumping, Fade, Smooth, etc. If working with a DMX controller, it can generate more complicated effects.
Our DMX Flood Lights has 3 kinds of Control Methods, one is DMX Control, one is RF Remote Control, one is DMX Wireless.
Our DMX LED Flood Lights can generate better colors and beam angles, this is because we use our self-developed and self-designed solution, we improve the shortages for traditional CCT Flood Lights.
Our DMX LED Flood Lights can be made from 100W to 500W, especially 500W. High Power is our advantage, it needs special technology.
The narrowest beam angle of our DMX LED Flood Lights is 20 degree, the widest beam angle is 120 degree. By using narrow beam angle, our lights can illuminate over 100 meters long distance.

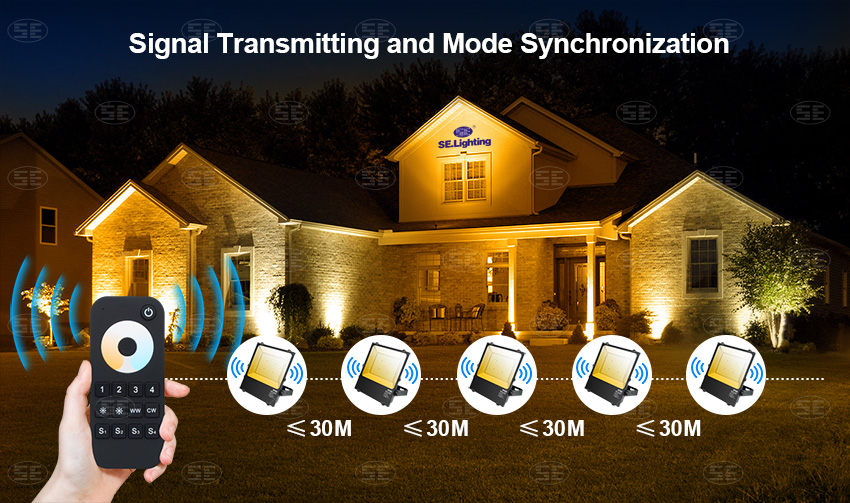

If it is difficult to lay the DMX cables in your application, we can customize the wireless solution for you. By using this wireless solution, you only need to use one DMX controller and one DMX wireless transmitter, don’t need the extra layout for DMX cables.
Our DMX LED Flood light has obtained a series of certificates such as CE, RoHS, etc. If you has special requirement, you can also tell us directly.
Our DMX Flood Lights are one of the most widely used light sources both indoors and outdoors, and provide even illumination that washes across an entire area. They are very commonly used in night lighting and as part of the decorations of a place. This is especially the case for the CCT Flood Lights, and with just a change in color, one can completely change the atmosphere of a place. As such, DMX LED Flood Lights are seen at wedding ceremonies, holiday parties, Stages, include Concerts, Stadiums, Bars, Theater, Music Festival, Carnivals, Live Music, DJ & Disco, Weddings, Theatres, Trade Shows, Corporate Events, Houses of Worship, as well as part of the landscape decorations, where they are the background lighting of choice.
Below is an introduction to 4 of the most popular DMX LED Flood Lights for your consideration.
1.DMX CCT LED Flood Light
2.DMX RGB LED Flood Light
3.DMX RGBW LED Flood Light
4.DMX RGBCCT LED Flood Light
2.DMX RGB LED Flood Light
3.DMX RGBW LED Flood Light
4.DMX RGBCCT LED Flood Light
IP65 Waterproof: DMX Flood Lights are made from a waterproof material, so you can safely install them in your garden, backyard, by poolside or other outdoor places.
DMX LED Flood Lights Easy to Install: All you need to do is to connect it to the power supply, no wiring is required. The colored outdoor LED Flood Light fixture can be adjusted 180°, so it is very convenient to install and use, whether it is on the ceiling, the ground or the wall.
DMX LED Flood Lights, The product is equipped with a remote control and DMX Controller, and adjustable light colors, Additionally, you can also adjust the brightness, as well as turn on flashing mode and control the speed of the color change. With these options, you can easily create different lighting effects.
On top of all this, DMX LED Flood Lights serve a practical function. Just like traditional CCT Flood Lights, they light up your property, which can deter thieves. So not only are you making your yard more festive, but you’re protecting your home at the same time.
More videos of our DMX LED Flood Lights on Youtube.
