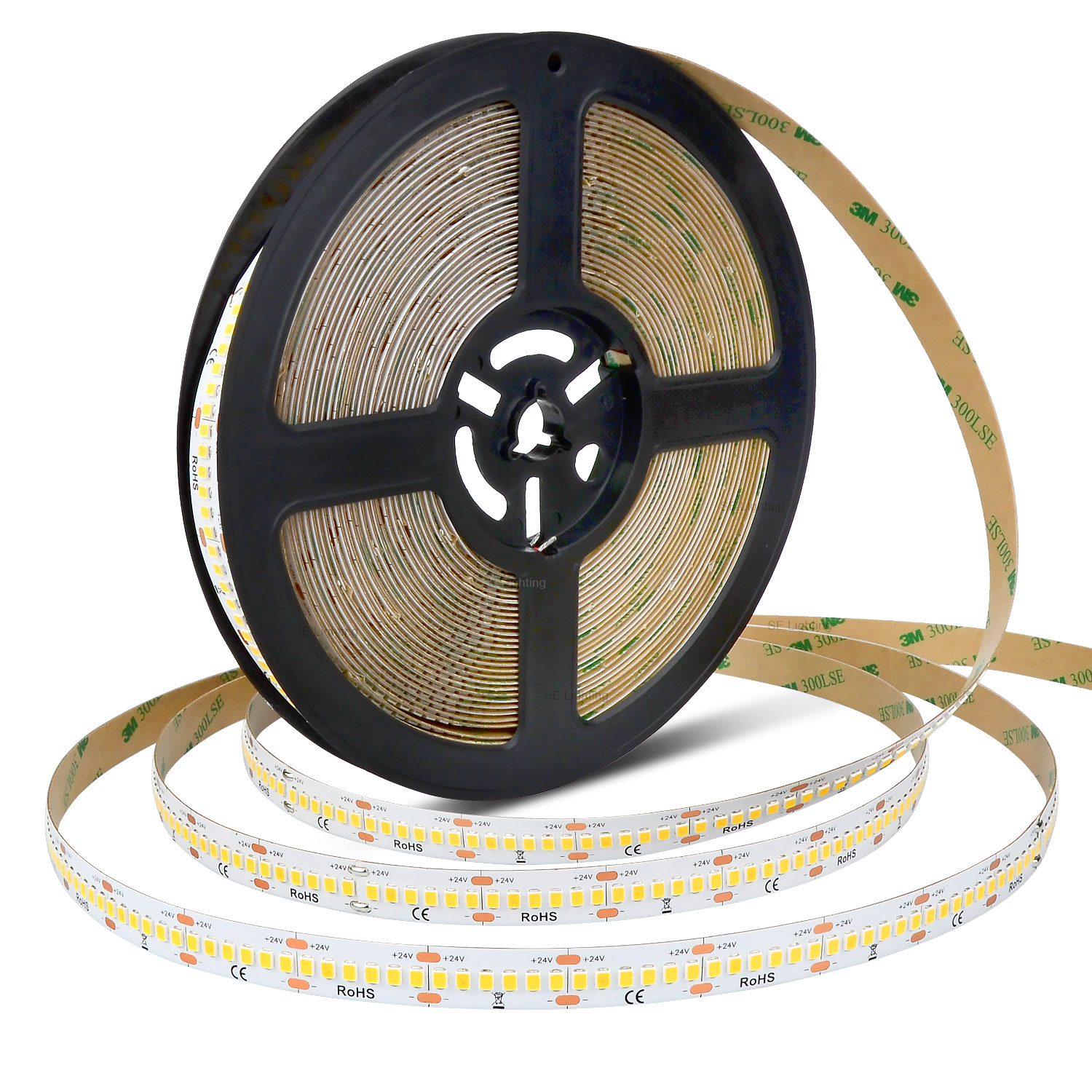

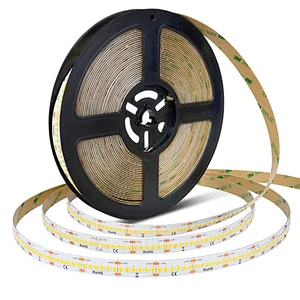

Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips
Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips

Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips

Model NO.
SELS-2835X240-24-YCC
Delivery:
EXW FOB
Minimum order quantity:
100 pieces
Supply Ability:
300000.0 pieces / Month
Country of Origin:
SHENZHEN
Stock Time:
5-10 Days
Quantity:

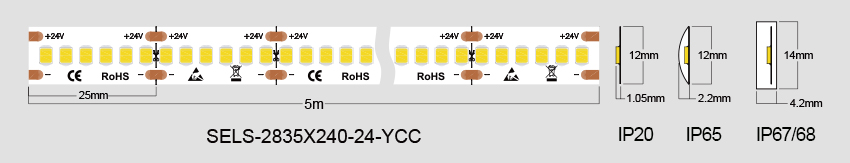

Product Parameter
Model NumberSELS-2835X240-24-YCC
Working Temperature()-20-50
Length5mt, any length can be customized
FPC Width12mm
Cutting Unit25mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)3000K 4000K 6000K
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design; DIALux evo layout; CAD layout
Input Voltage(V)DC 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source2835 SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control Wifi Manual Button
Luminous Efficacy(lm/w)120
Life time(Hour)50,000
Lamp Power20W/mt
Lamp Luminous Flux(lm)2400lm/w
CRI (Ra>)80

2835 Constant Current Series
Part No.SELS-2835X60-24-YCCSELS-2835X120-24-YCCSELS-2835X240-24-YCC
VoltageDC 24VDC 24VDC 24V
LED Qty/mt60pcs120pcs240pcs
Watt/mt5W10W20W
FPCB Width10mm10mm12mm
Cutting Unit100mm50mm25mm
Efficiency110lm/W115lm/W120lm/W
Lumen/mt550LM1150LM2400LM
Product Description

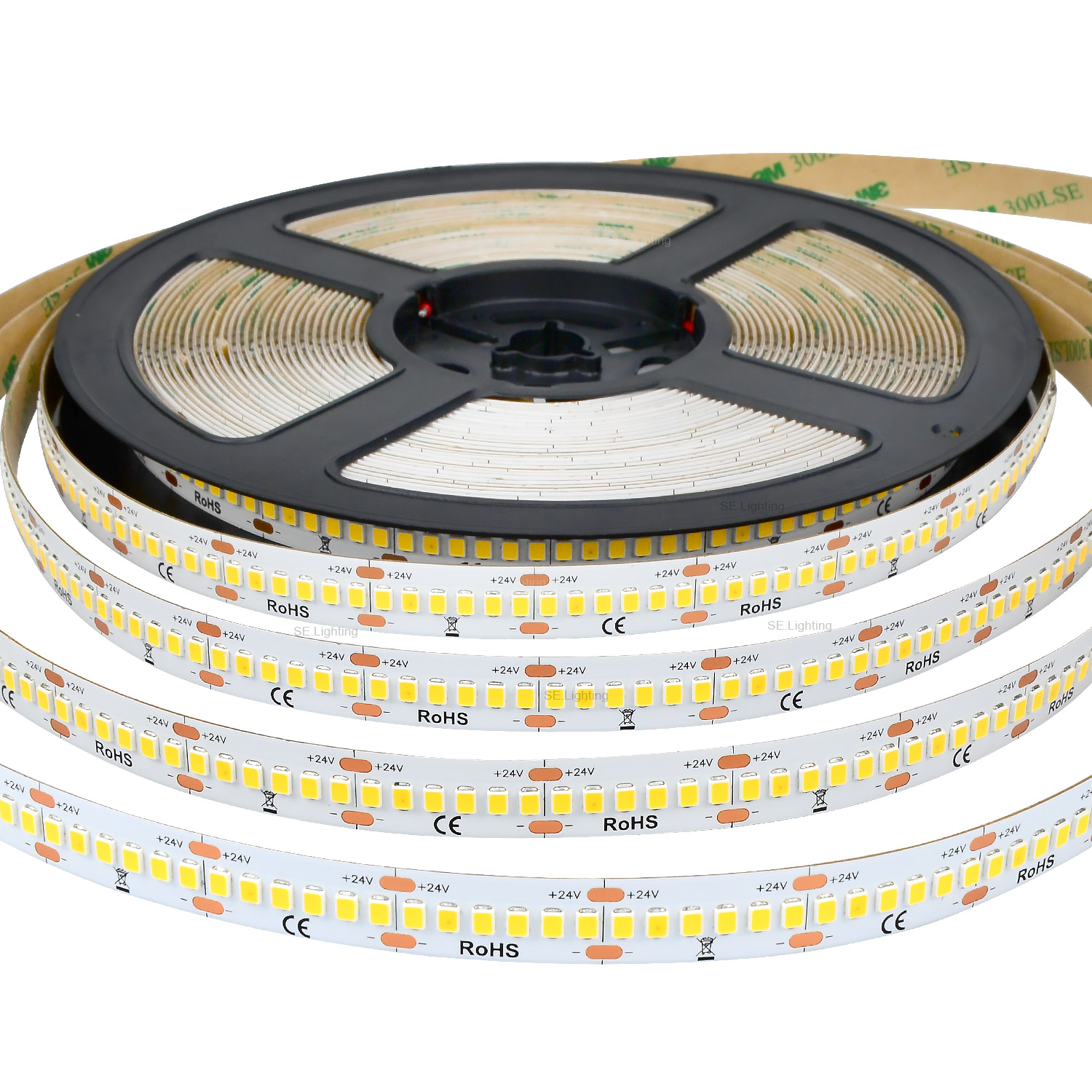

Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc.
1. 240led 2835smd/m without resistors, IC BuildIn LED with constant current, ensure each led working in same current to assure longer lifetime;
2. Quality guaranteed, 3 years warranty
3. Normal working voltage is 24V DC, wide voltage range can reach from 16V to 40V;
4. Different waterproof grade can meet requirements in different use condition;
5. Standard packing is 20m per roll; Any other different length can be customized;
6. Every 6leds as a unit can be cut.

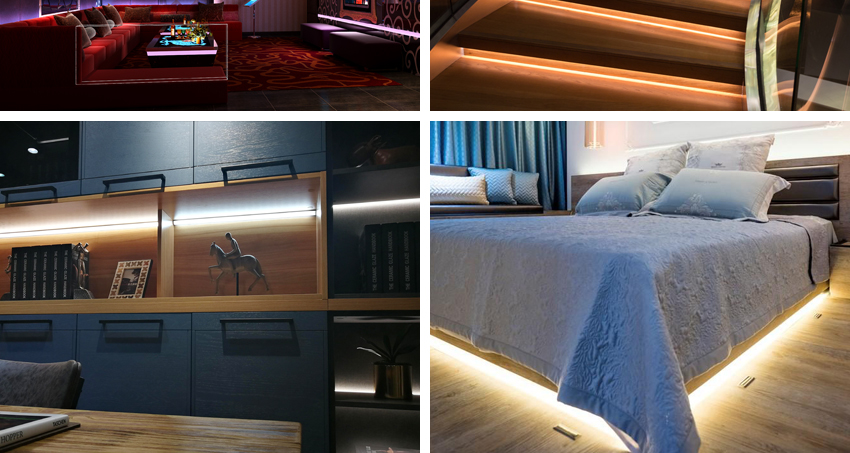

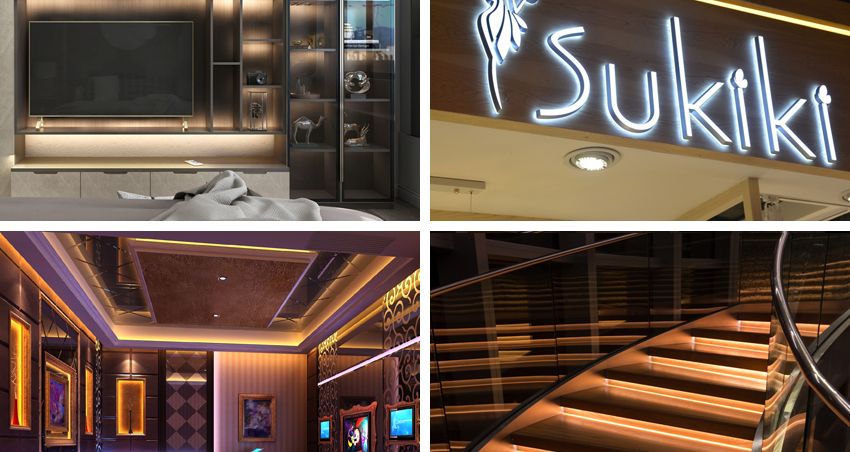

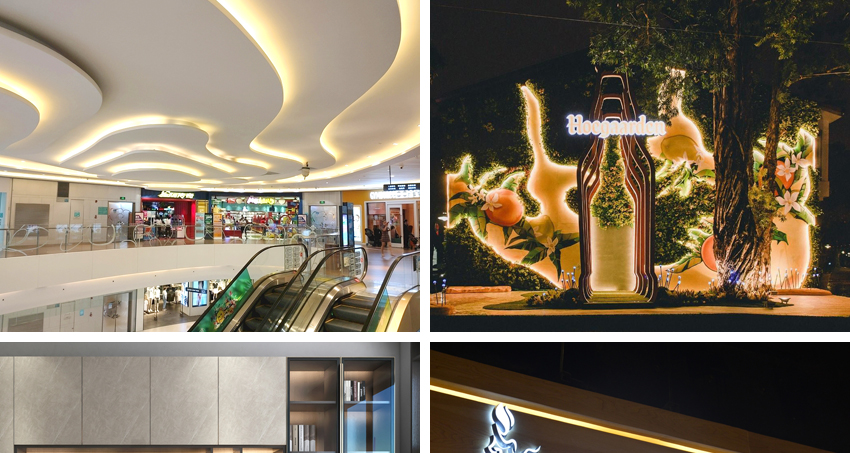

Application

Max 30mt 240LEDs Constant Current 2835 Long LED Light Strips with widely application below:

1. It’s widely used as a decorative lights, and use it as the lights
2. LED Luminous characters;
3. Backlight of signage, Channel letters lighting;
4. Festival, exhibition,Stage decoration, weedings;
5. Landscape layout lighting; Hotels, night clubs, shopping malls, offices.

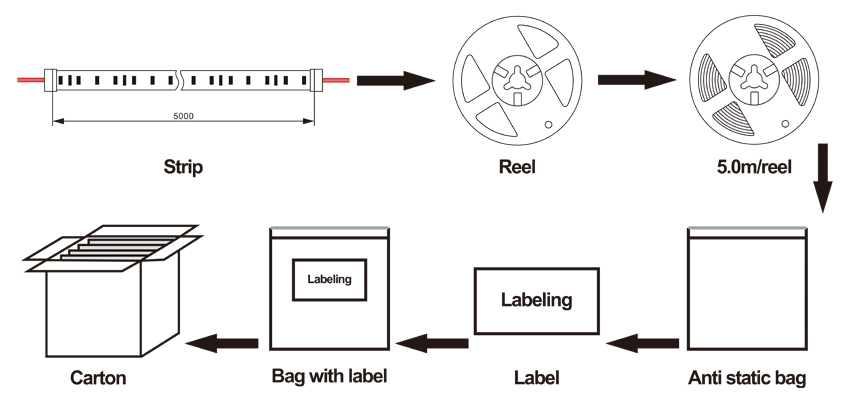

Product packaging

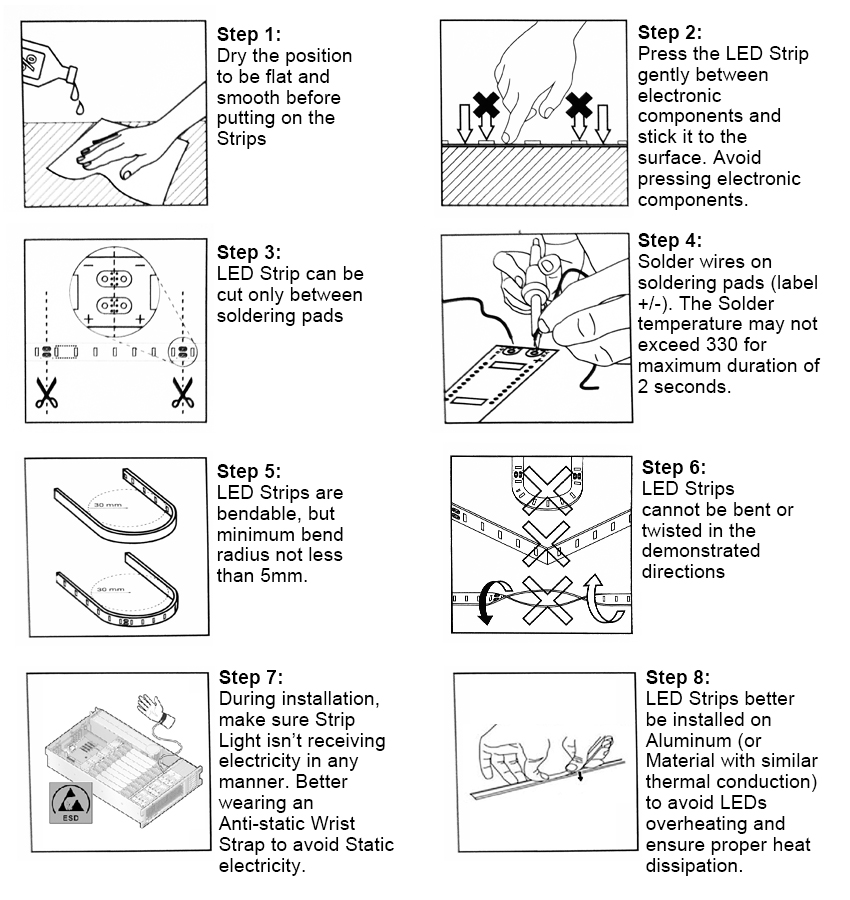

Installation Instructions
