| Product Parameter | |
| Model Number | SELS-COBX480-24-YD |
| Working Temperature(℃) | -20-50℃ |
| Length | 5mt, any length can be customized |
| FPC Width | 2.8mm |
| Cutting Unit | 50mm |
| Beam Angle | 180° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | 2700K / 3000K / 3500K/ 4000K / 5000K / 6500K |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 24V |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Source | LED |
| Warranty(Year) | 2-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Luminous Efficacy(lm/w) | 95-105 LM/W |
| Life time(Hour) | 50,000 |
| Lamp Power | 5W/mt |
| CRI (Ra>) | 90 |
| COB X480 Series | |||||
| Part No. | SELS-COBX480-24-YA | SELS-COBX480-24-YB | SELS-COBX480-24-YB | SELS-COBX480-24-YC | SELS-COBX480-24-YD |
| Voltage | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V |
| LED Qty/mt | 480pcs | 480pcs | 480pcs | 480pcs | 480pcs |
| Watt/mt | 5W | 5W | 10W | 10W | 5W |
| FPCB Width | 6mm | 4mm | 8mm | 8mm | 2.8mm |
| Cutting Unit | 50mm | 50mm | 50mm | 50mm | 50mm |
| Efficiency | 95-105 LM/W | 95-105 LM/W | 455-630 LM/W | 85-95 LM/W | 95-105 LM/W |
| SDCM | < 3 | < 3 | / | < 4 | < 3 |
| Color Option | 2700-6500K | 2700-6500K | Blue/Red/Yellow/Green/Orange/Plastic Pink/Mars Green/Tiffany Blue | 2700-6500K | 2700-6500K |
| Product Description | |

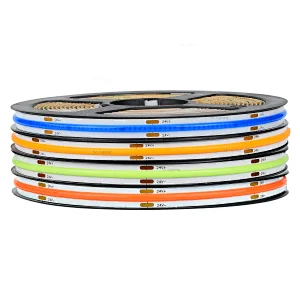

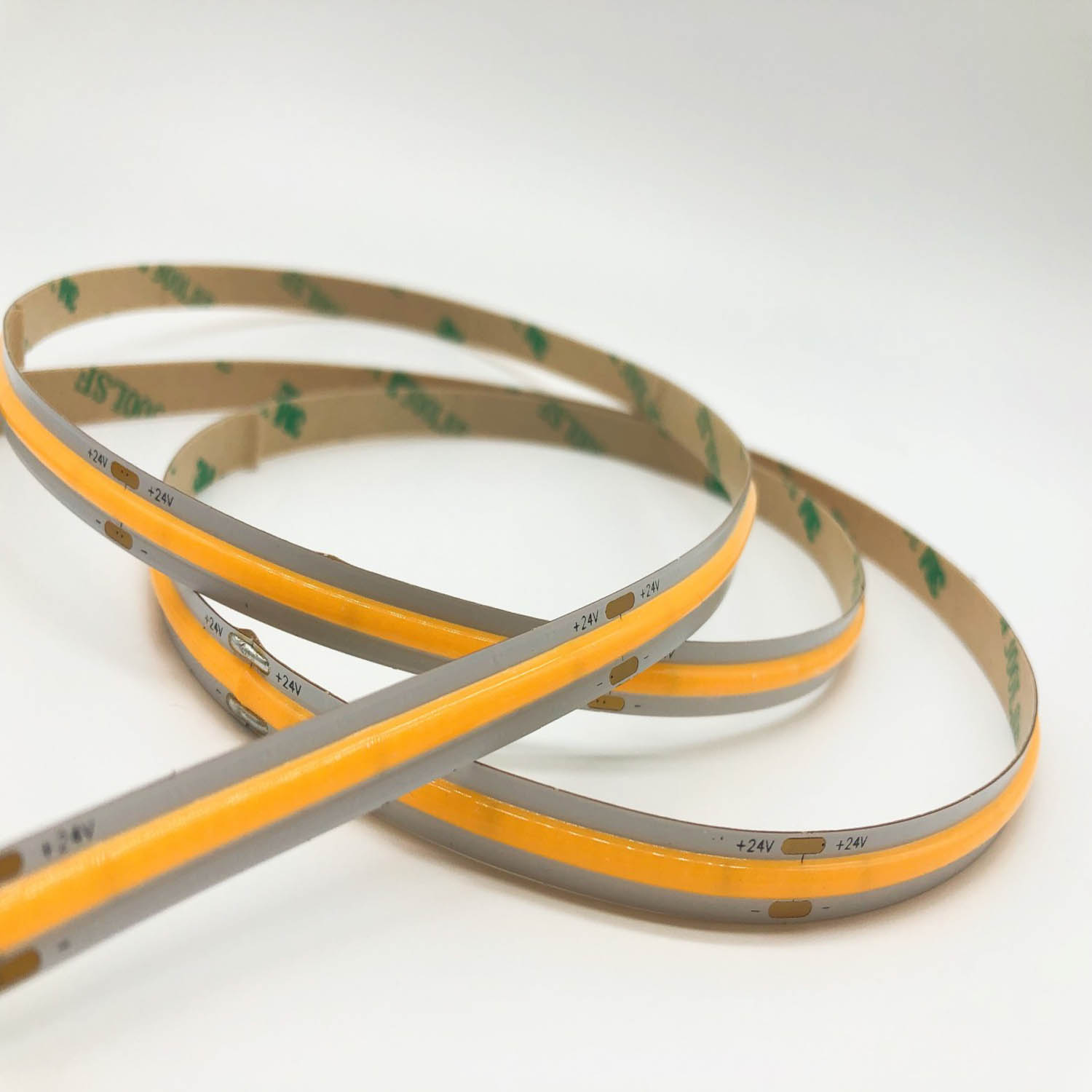

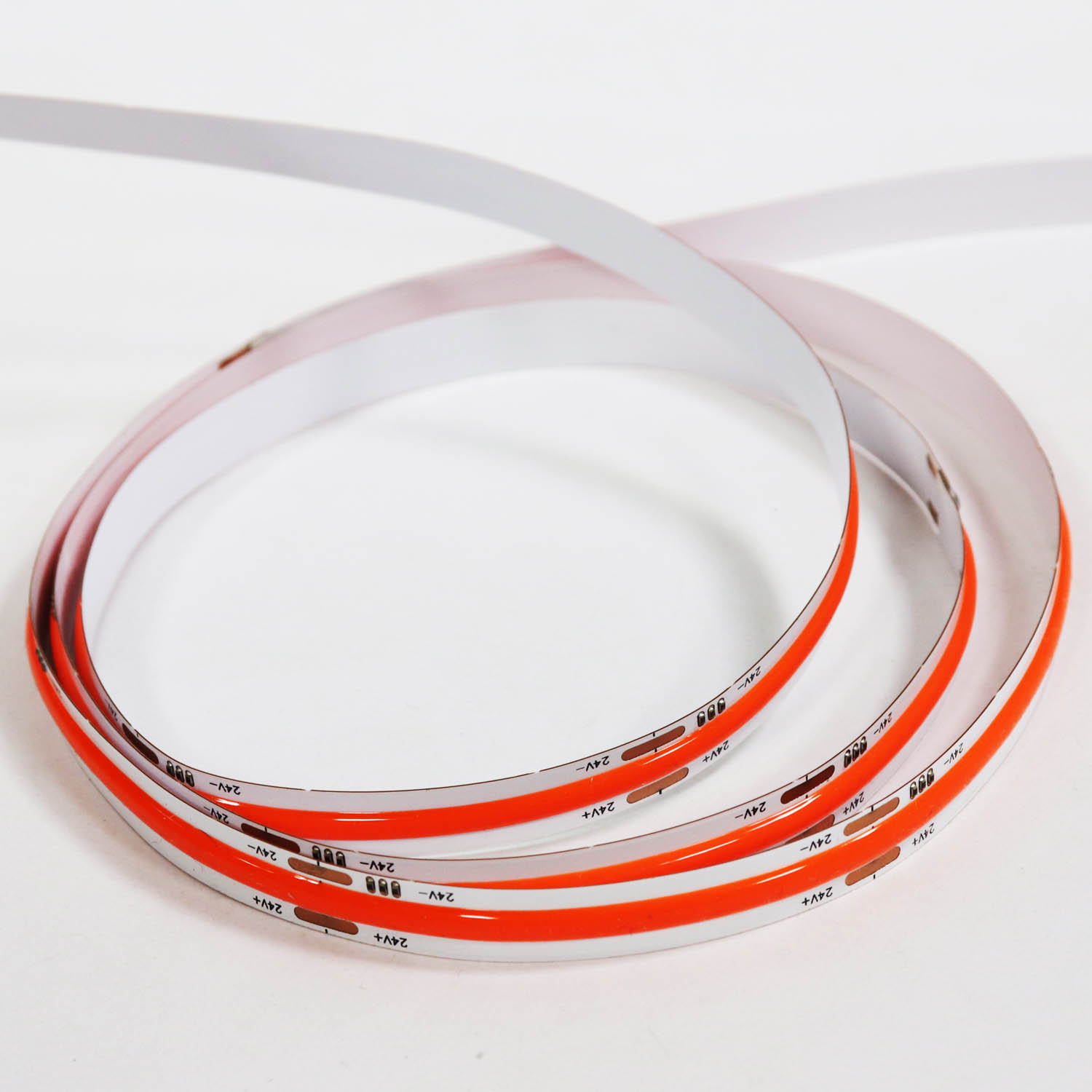

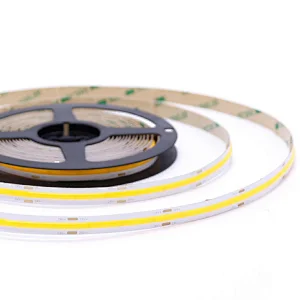

COB LED Strip Light Waterproof 480LEDs 2.8mm 5W can do IP20/IP65/IP67/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1. COB LED Strip Light Waterproof Adopt brand LED chip,high brightness, low light decay,lifespan more than 50000 hours; | |
| Application | |
COB LED Strip Light Waterproof 480LEDs 2.8mm 5W with widely application below: 1. This high quality, high density LED chips, widely used with LED aluminium channel, no light spot. |

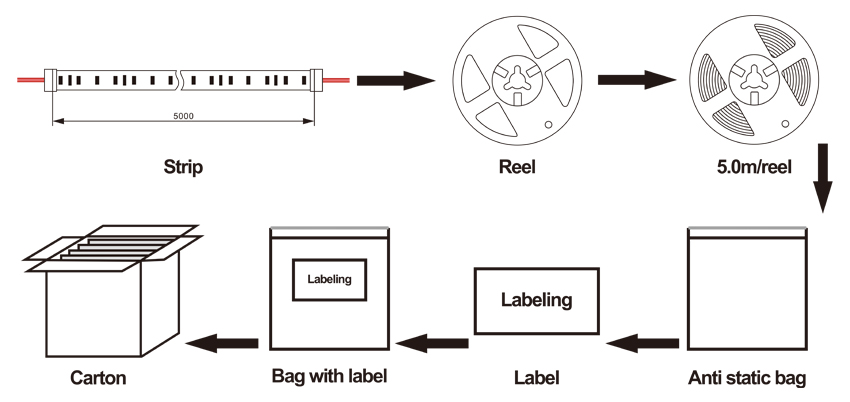

| Product packaging |
| Installation Instructions |
Notice：
1. Installation COB LED Strip Light Waterproof must comply with local international electrical safety instructions.
2. In order to ensure COB Strip Light Waterproof safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of COB LED Strip Light Waterproof should comply with CE standard; With constant voltage LED power supply.
4. Do not install the COB LED Strip Light Waterproof in overheat environment.
5. Do not install the non-waterproof COB LED Strip Light in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, COB Strip Light Waterproof and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The COB Strip Light Waterproof with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
Our COB LED Strip Light is precisely designed for a waterproof seal, making it perfect for your next outdoor lighting project. Enjoy brilliant, long-lasting illumination with peace of mind knowing that your lights will stand up to the elements.
Light up your life with this COB Strip Light! With its waterproof design, you can never worry about a rainy day spoiling your plans. Put a little sparkle in your life and make tonight your brightest night yet!
This premium COB Strip Light makes a striking addition to any décor, indoors or outdoors. It is equipped with advanced waterproof technology, allowing you to enjoy its luminous brilliance under even the toughest weather conditions. With its exquisite design, this light will make a stylish statement for years to come.
This COB Strip Light is perfect for various indoor and outdoor lighting applications. It is waterproof, making it perfect for areas exposed to rain or moisture. Enjoy long-lasting and reliable lighting for your home or garden.
- More videos of our COB LED Strip Light on Youtube.
- Youtube: https://www.youtube.com/@se.lighting
