Shenzhen Standard Technology Co.,LTDABOUT US3F, No.17, LangKou Industrial Park (WeiPengDa), LangKou Community, DaLang SubDistrict Office, LongHua District, ShenZhen, GuangDong 518109Shenzhen Standard Technology Co.,LTD (SE.Lighting) is a Chinese National Hi-Tech Enterprise specialized in LED lighting products, a professional LED lighting manufacturer & supplier in China. Our products mainly include LED Linear Light, LED Tri-Proof Light, LED Strip Light, LED High Bay Light, LED Flood Light, LED Street Light, LED Aluminum Profiles etc. all of these products with good quality, perfect heat dissipation, long life span, low light decay and high luminous intensity, which are widely used for indoor and outdoor lighting.Shenzhen Standard Technology Co.,LTDABOUT US3F, No.17, LangKou Industrial Park (WeiPengDa), LangKou Community, DaLang SubDistrict Office, LongHua District, ShenZhen, GuangDong 518109Shenzhen Standard Technology Co.,LTD (SE.Lighting) is a Chinese National Hi-Tech Enterprise specialized in LED lighting products, a professional LED lighting manufacturer & supplier in China. Our products mainly include LED Linear Light, LED Tri-Proof Light, LED Strip Light, LED High Bay Light, LED Flood Light, LED Street Light, LED Aluminum Profiles etc. all of these products with good quality, perfect heat dissipation, long life span, low light decay and high luminous intensity, which are widely used for indoor and outdoor lighting.Shenzhen Standard Techno
Lighting and circuitry design; DIALux evo layout; CAD layout
Certification
CE ROHs
Application
Park, Garden Lighting; Yard, Square Lighting; etc
Warranty(Year)
5 Years
Life time(Hour)
50,000
Luminous Efficacy(lm/w)
115
Power Factor (PF)
≥0.9
Control Methods

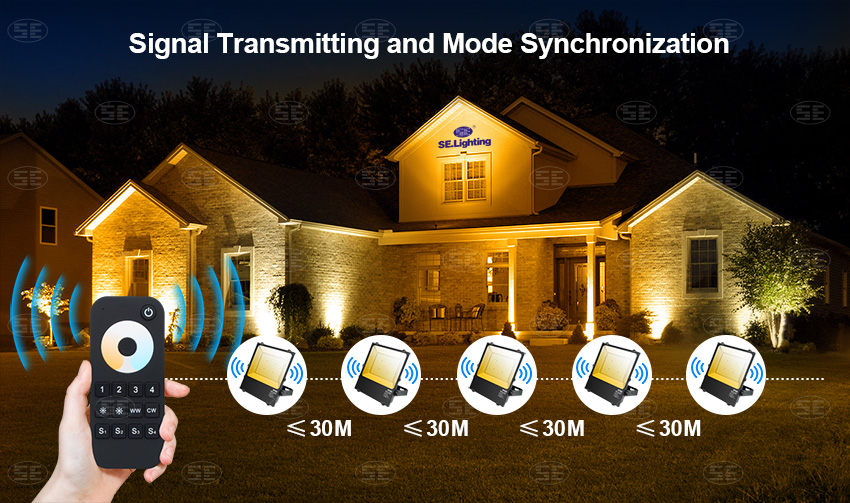

DMX Control or RF Remote Control or DMX Wireless Control
Input Voltage(V)
AC 100~277V / DC 24V
LED
3030 SMD
Ambient Temp. (℃)
-20~+50℃
Storage Temp. (℃)
-40~+85℃
Key Material
AluminumAlloy+Toughened Glass
Model
Power ±10%
CCT
Efficiency ±10%
Luminous ±10%
SEF-100CCT
100W
4000K
131LM/W
13100LM
50W
3000K
122LM/W
6100LM
50W
6500K
127LM/W
6350LM
SEF-150CCT
150W
4000K
126LM/W
18900LM
75W
3000K
119LM/W
8925LM
75W
6500K
128LM/W
9600LM
SEF-200CCT
200W
4000K
125LM/W
25000LM
100W
3000K
124LM/W
12400LM
100W
6500K
127LM/W
12700LM
Product Description

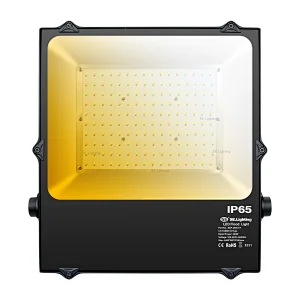

DMX LED Flood Light CCT 100W 150W 200W Multi Color Changing Flood Lights DMX LED Flood Light 5 Years Warranty, RF type: 5 Years Warranty. CCT control methods are: DMX Control or RF Remote Control or DMX Wireless Control options. CCT Flood Light Cable connector, quick lock with securing lever. DMX Flood Light cct Adopting integrated Chip as light source with high lighting efficiency, good quality heat dissipation, low light degradation. LED Flood Light High efficiency and high quality constant current drive, not only ensure the product stability, but greatly reduce the electricity consumption. Color changing DMX Flood Lights source with low light decay, high lighting efficiency, stable light color, no glare and more favorable visual health. Multi color CCT Flood Lights Aluminium alloy die cast sheel, good strength, and high quality heat dissipation. Anti corrosion and baking varnish surface, can be for outdoor using. DMX LED Flood Lights Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options for lighting distribution, one is for focusing, another is for divergencing.
Connection Method

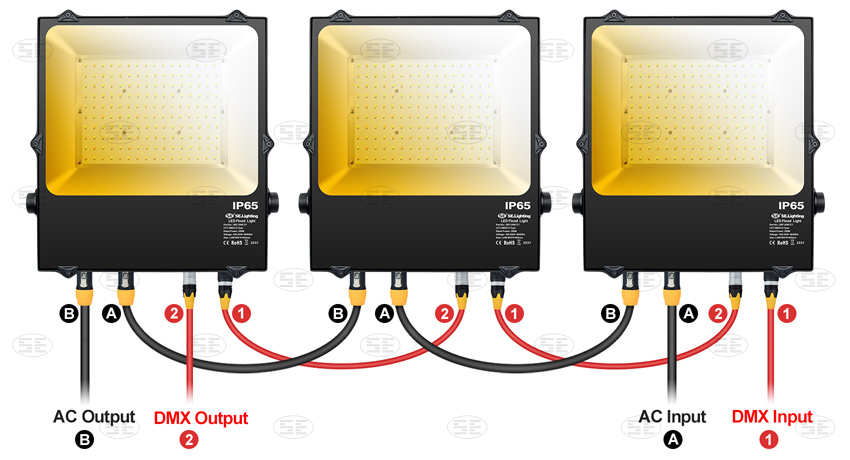

DMX Type Connection
RF Type Connection
DMX Wireless Type Connection
Dimension
Model
Size A(mm)
Size B(mm)
Size C(mm)
SEF-100CCT
413
315
63
SEF-150CCT
440
349
63
SEF-200CCT
480
379
63
Packing Data
Model
CTN/PCS
N.W*
Packaging size
SEF-100CCT
1
4.96KG
500* 390* 135MM
SEF-150CCT
1
6.2KG
510* 435* 135MM
SEF-200CCT
1
7.16KG
550* 460* 135MM
Application
LED Flood Light,DMX LED Flood Light,CCT Flood Light,Multi color LED Flood Light,Color changing Flood Light, is usually used in Public Lighting and Industrial Lighting. SE.Lighting's LED Stage Light is suitable for a variety of Stages, include Concerts, Stadiums, Bars, Theater, Music Festival, Carnivals, Live Music, DJ & Disco, Weddings, Theatres, Trade Shows, Corporate Events, Houses of Worship.
