| Product Parameter | |
| Model Number | SEF-200RGBCCT |

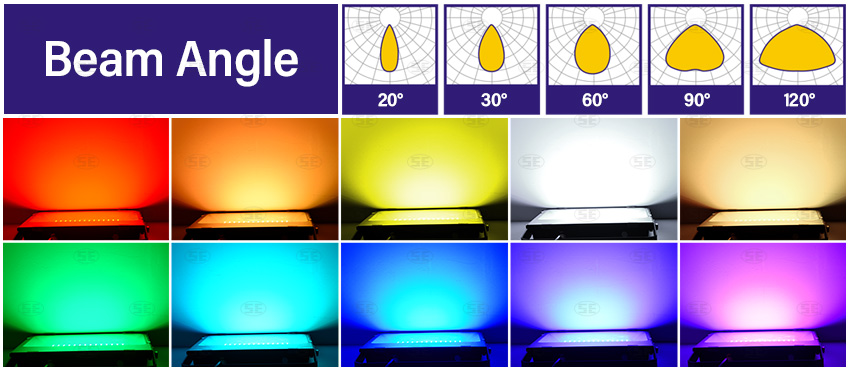

| Beam Angle | 20°/30°/60°/90°/120° |
| Waterproof Grade | IP65 |
| Color | RGBCCT |
| Power | 100W/150W/200W |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Certification | CE ROHs |
| Application | Building, Park, etc |
| Warranty(Year) | 5 Years |
| Life time(Hour) | 50,000 |
| Power Factor (PF) | ≥0.9 |
| Control Methods | DMX Control or RF Remote Control or DMX Wireless Control |
| Input Voltage(V) | AC 100~277V / DC 24V |
| LED | 3030RGB+3030White SMD |
| Ambient Temp. (℃) | -20~+50℃ |
| Storage Temp. (℃) | -40~+85℃ |
| Key Material | AluminumAlloy+Toughened Glass |
| Model | Power ±10% | Color | Efficiency ±10% | Luminous ±10% |
| SEF-100RGB CCT | 100W | RGBCCT | 77LM/W | 7700LM |
| 22W | R | 38LM/W | 836LM | |
| 20W | G | 63LM/W | 1260LM | |
| 20W | B | 16LM/W | 320LM | |
| 20W | WW | 109LM/W | 2180LM | |
| 20W | PW | 112LM/W | 2240LM | |
| SEF-150RGB CCT | 150W | RGBCCT | 76LM/W | 11400LM |
| 25W | R | 42LM/W | 1050LM | |
| 30W | G | 68LM/W | 2040LM | |
| 30W | B | 17LM/W | 510LM | |
| 32W | WW | 114LM/W | 3648LM | |
| 32W | PW | 118LM/W | 3776LM | |
| SEF-200RGB CCT | 200W | RGBCCT | 73LM/W | 14600LM |
| 32W | R | 38LM/W | 1216LM | |
| 40W | G | 65LM/W | 2600LM | |
| 40W | B | 17LM/W | 680LM | |
| 44W | WW | 114LM/W | 5016LM | |
| 44W | PW | 116LM/W | 5104LM |
| Product Description | |

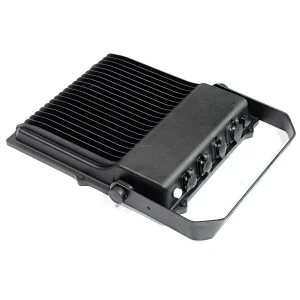

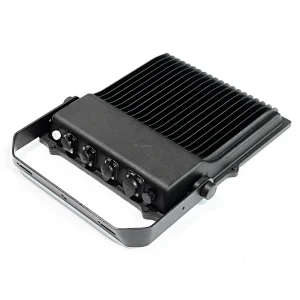

| DMX LED Stage Lighting & Multi Colored Flood Lights RGB CCT DMX LED Stage Lighting & Multi Colored Flood Lights 5 Years Warranty. DMX LED Stage Lighting & Multi Colored Flood Lights Control Methods: DMX Control or RF Remote Control or DMX Wireless Control. LED Stage Flood Light Cable connector, quick lock with securing lever. LED Stage Flood Light Adopting integrated Chip as light source with high lighting efficiency, good quality heat dissipation, low light degradation. LED Stage Flood Light Aluminium alloy die cast sheel, good strength, and high quality heat dissipation. Anti corrosion and baking varnish surface, can be for outdoor using. DMX LED Stage Lighting Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options for lighting distribution, one is for focusing, another is for divergencing. DMX LED Stage Lighting High efficiency and high quality constant current drive, not only ensure the product stability, but greatly reduce the electricity consumption. Multi Colored Flood Lights RGB CCT source with low light decay, high lighting efficiency, stable light color, no glare and more favorable visual health. DMX512 and is the most common DMX language. It is a digital communication that started simply with sending command information from the lighting controller to the dimmer. |

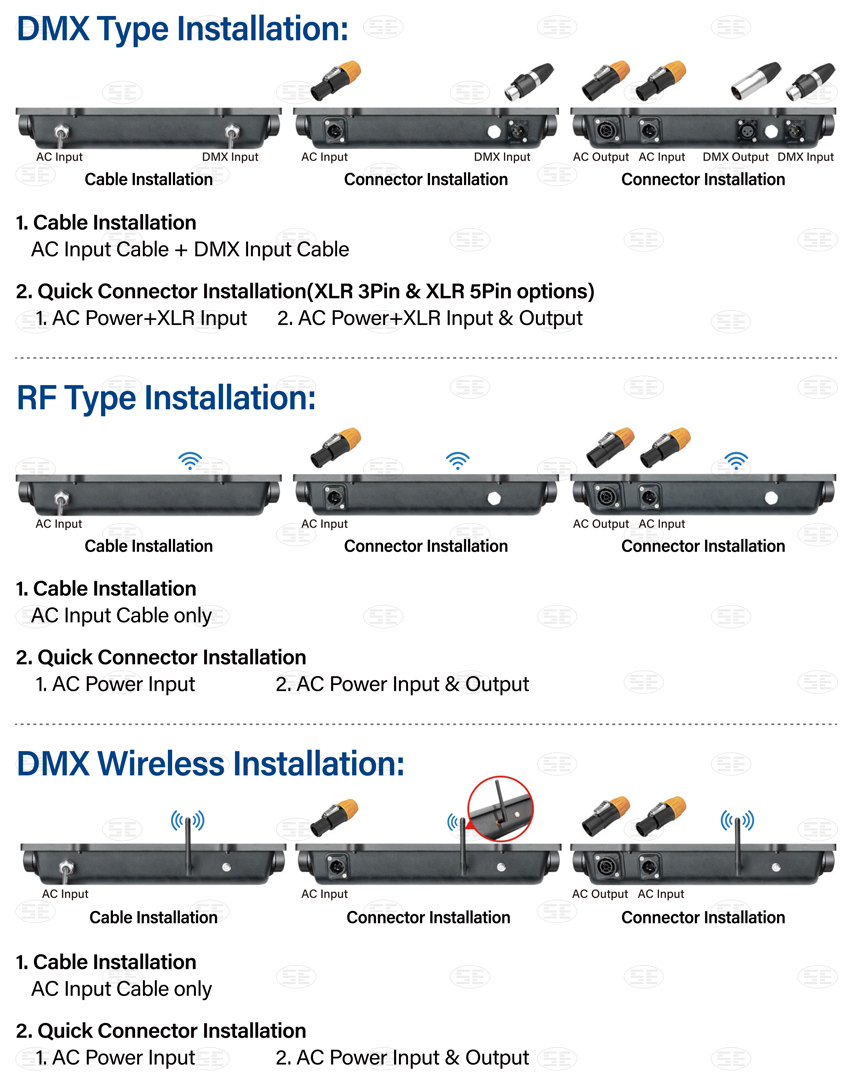

| Connection Method |
| DMX Type Connection |
| RF Type Connection |

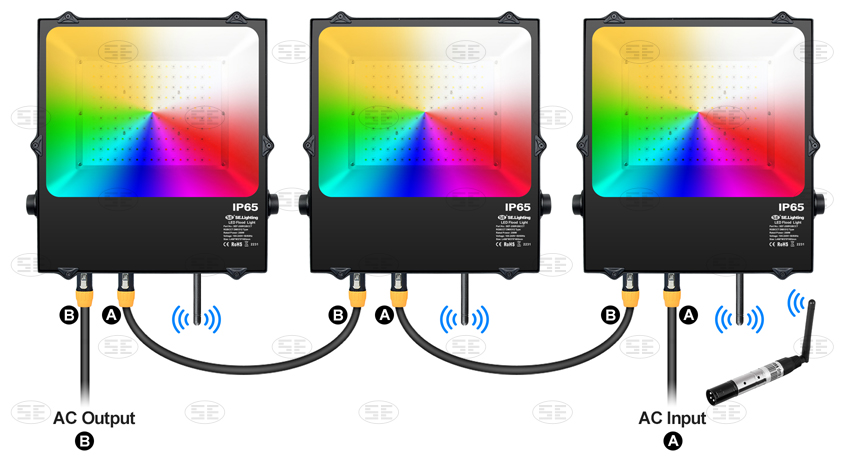

| DMX Wireless Type Connection |

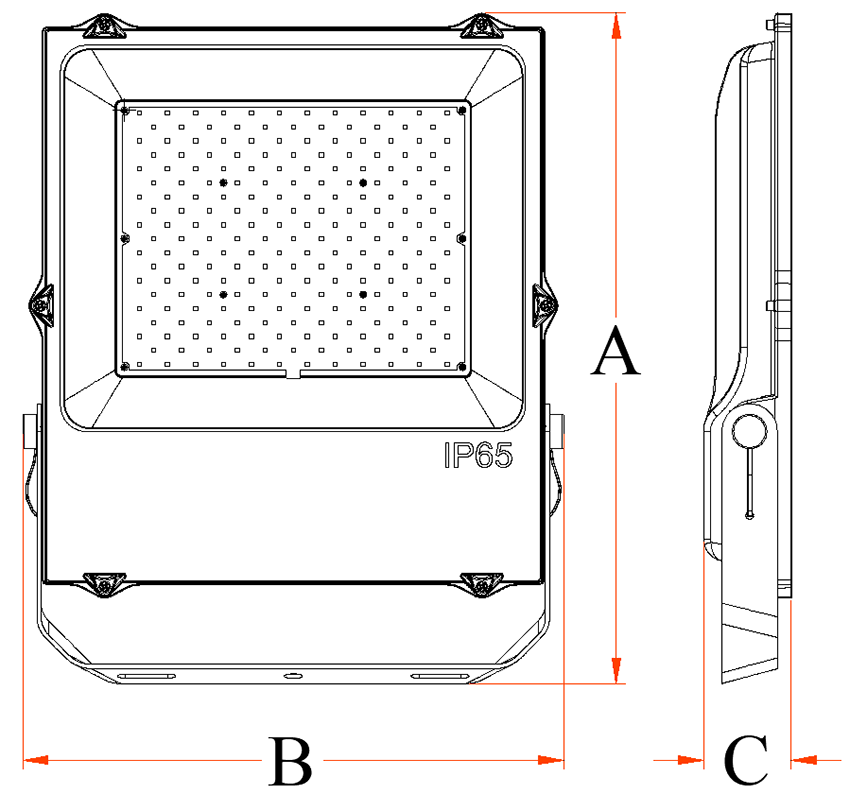

| Dimension |
| Model | Size A(mm) | Size B(mm) | Size C(mm) |
| SEF-100RGBCCT | 413 | 315 | 63 |
| SEF-150RGBCCT | 440 | 349 | 63 |
| SEF-200RGBCCT | 480 | 379 | 63 |
| Packing Data |
| Model | CTN/PCS | N.W* | Packaging size |
| SEF-100RGBCCT | 1 | 4.96KG | 480* 390* 135MM |
| SEF-150RGBCCT | 1 | 6.2KG | 510* 435* 135MM |
| SEF-200RGBCCT | 1 | 7.16KG | 550* 460* 135MM |
| Application | |

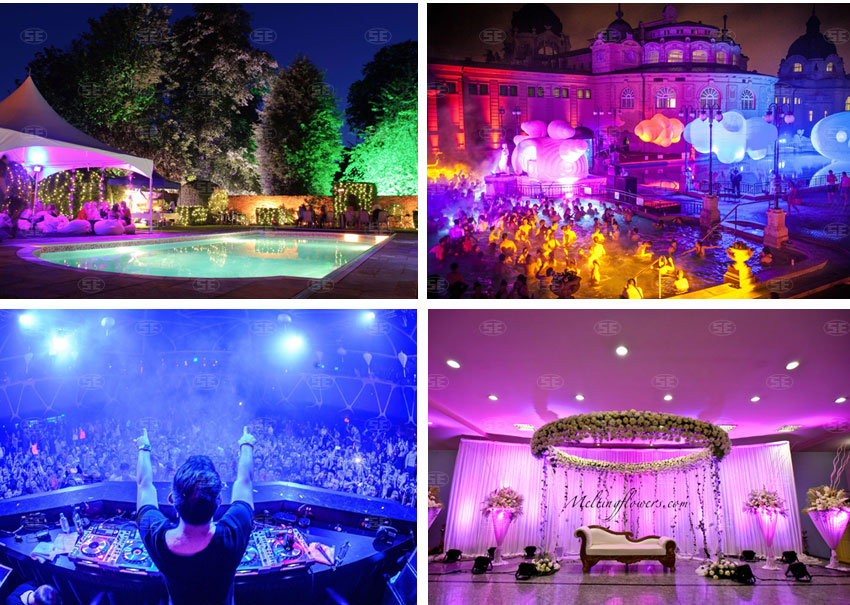

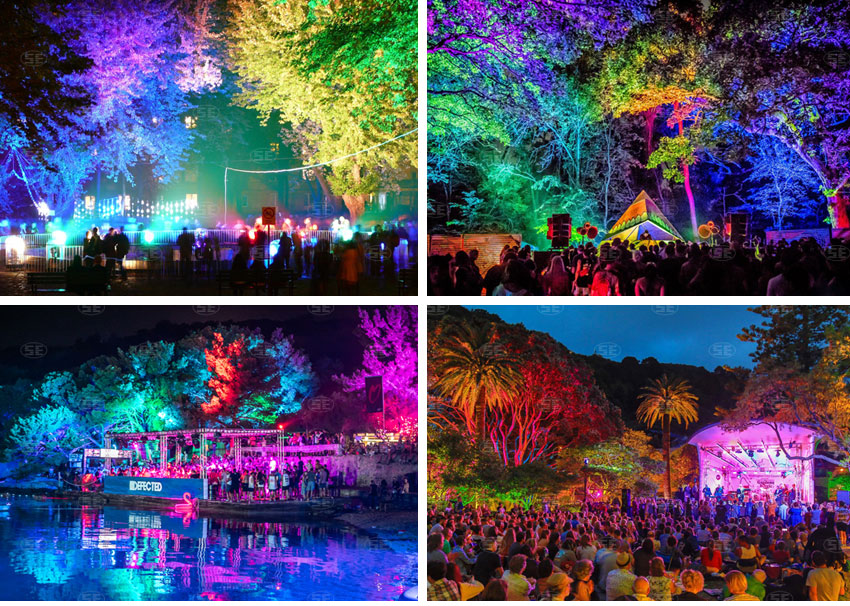

| SE.Lighting's DMX LED Stage Lighting & Multi Colored Flood Lights is suitable for a variety of Stages, include Concerts, Stadiums, Bars, Theater, Music Festival, Carnivals, Live Music, DJ & Disco, Weddings, Theatres, Trade Shows, Corporate Events, Houses of Worship. |
Best DMX LED Stage Lighting & Multi Colored Flood Lights RGB CCT
DMX is short for"Digital Multiplex", we can simplely understand it as a digital protocol. Nowadays, normally DMX is refered to DMX512(support maximum 512 channels, one color each channel).
Our LED Stage Flood Light can show many different color effects by working with DMX512, we need to use an external DMX controller and add hardware parts to the lights. The program is held in the controller and the signal will be sent to the lights to generate different colors or effects. Our Multi Colored Flood Lights supports universal DMX512 controller as long as it supports standard DMX512 protocol. You can buy the controller from us or in your local market.
Our Multi Colored Flood Lights can also be LED Stage Flood Light and can be used for LED Stage Lighting.

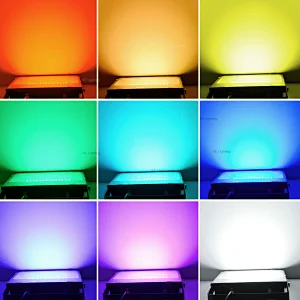

Our Multi Colored Flood Lights is smart and can generate multiple color changing effects. Such as Flash, Strobe, Jumping, Fade, Smooth, etc. If working with a DMX controller, it can generate more complicated effects.

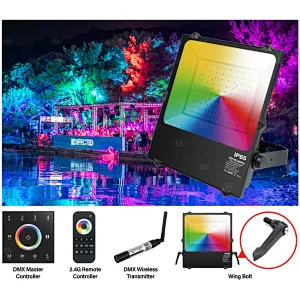

Our DMX LED Stage Lighting has 3 kinds of Control Methods, one is DMX Control, one is RF Remote Control, one is DMX Wireless.
Our DMX LED Stage Lighting can generate better colors and beam angles, this is because we use our self-developed and self-designed solution, we improve the shortages for traditional DMX LED Stage Lighting.
Our LED Stage Flood Light can be made from 100W to 500W, especially 500W. High Power is our advantage, it needs special technology.
The narrowest beam angle of our LED Stage Flood Light is 20 degree, the widest beam angle is 120 degree. By using narrow beam angle, our lights can illuminate over 100 meters long distance.
If it is difficult to lay the DMX cables in your application, we can customize the wireless solution for you. By using this wireless solution, you only need to use one DMX controller and one DMX wireless transmitter, don’t need the extra layout for DMX cables.
Our DMX LED Stage Lighting has obtained a series of certificates such as CE, RoHS, etc. If you has special requirement, you can also tell us directly.
Our LED Stage Flood Light are one of the most widely used light sources both indoors and outdoors, and provide even illumination that washes across an entire area. They are very commonly used in night lighting and as part of the decorations of a place. This is especially the case for the LED Stage Flood Light , and with just a change in color, one can completely change the atmosphere of a place. As such, LED Stage Flood Light are seen at wedding ceremonies, holiday parties, Stages, include Concerts, Stadiums, Bars, Theater, Music Festival, Carnivals, Live Music, DJ & Disco, Weddings, Theatres, Trade Shows, Corporate Events, Houses of Worship, as well as part of the landscape decorations, where they are the background lighting of choice.
IP65 Waterproof: DMX LED Stage Lighting are made from a waterproof material, so you can safely install them in your garden, backyard, by poolside or other outdoor places.
Multi Colored Flood Lights Easy to Install: All you need to do is to connect it to the power supply, no wiring is required. The colored outdoor Multi Colored Flood Lights fixture can be adjusted 180°, so it is very convenient to install and use, whether it is on the ceiling, the ground or the wall.
Multi Colored Flood Lights, The product is equipped with a remote control and DMX Controller, and adjustable light colors, Additionally, you can also adjust the brightness, as well as turn on flashing mode and control the speed of the color change. With these options, you can easily create different lighting effects.
On top of all this, DMX LED Stage Lighting serve a practical function. Just like traditional Multi Colored Flood Lights, they light up your property, which can deter thieves. So not only are you making your yard more festive, but you’re protecting your home at the same time.
More videos of our DMX LED Stage Lighting & Multi Colored Flood Lights on Youtube.
