Name: DMX LED Wall Washer Lights RGBWA 5 IN 1 Indoor 150W
Rating: 5 (4 reviews)

Model NO.: SEW-150RGBWA IP20 Type
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 50000 piece / Month
Country of Origin: Shenzhen, China
Stock Time: 7~15 Days

Quantity:

Product Description
All comments(4)

Product Description

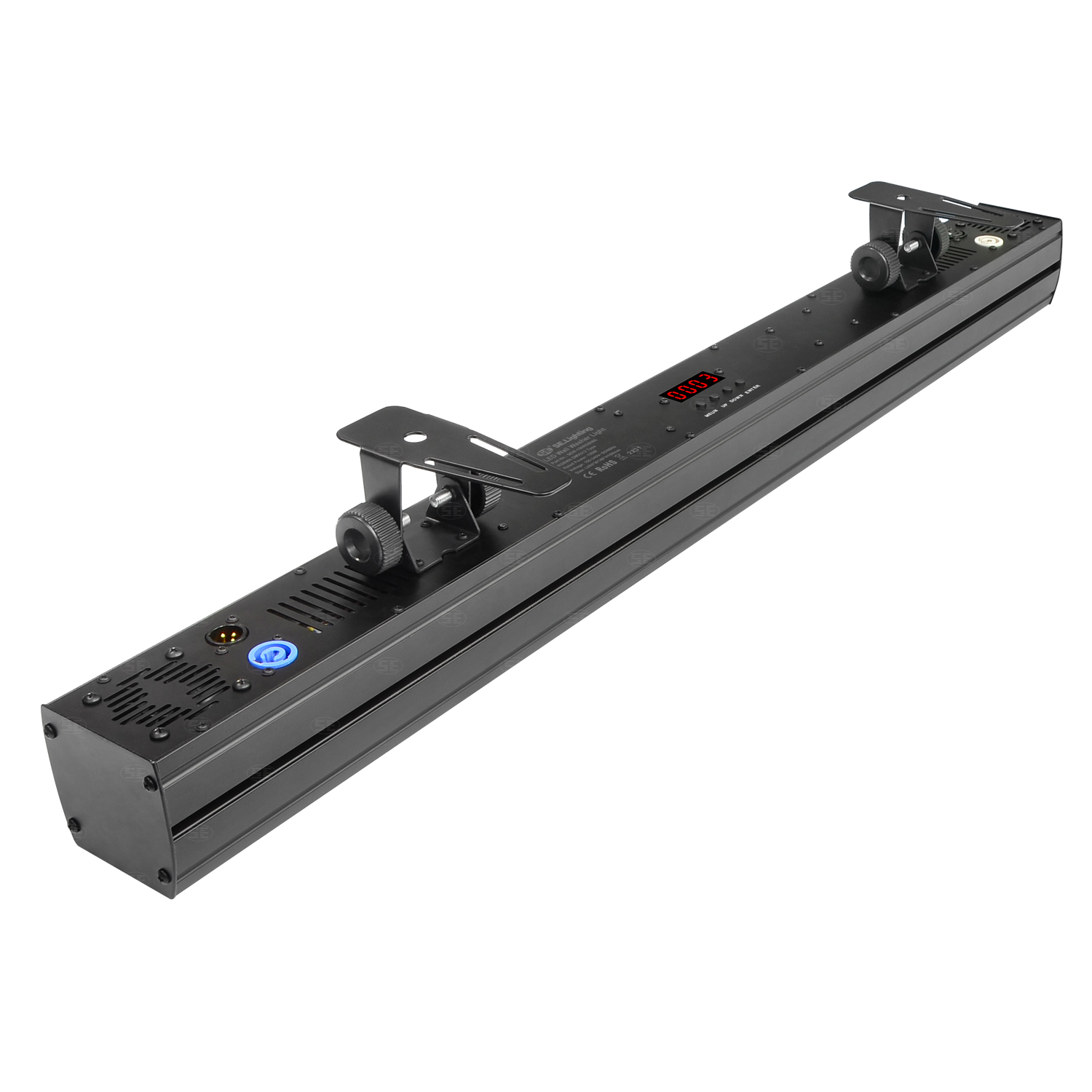

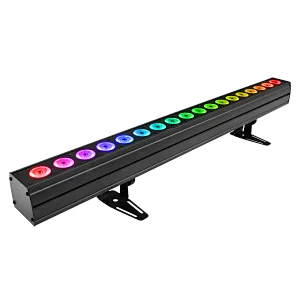

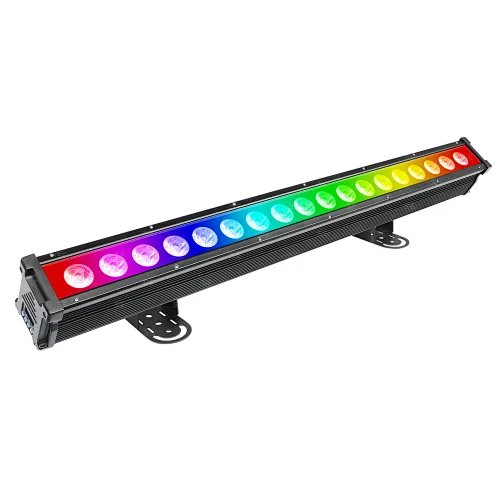

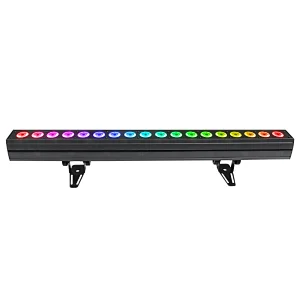

DMX LED Wall Washer Lights RGBWA 5 IN 1 Indoor 150W
This DMX LED Wall Washer Light provides vibrant illumination and an eye-catching wall display. Its adjustable RGB colors and indoor/outdoor design make this light perfect for parties, special occasions, and outdoor decor. Create a brilliant atmosphere and wow your guests with these stunningly vibrant lights!

Bring life to your walls with these DMX LED Wall Washer Lights. Advanced technology creates a stunning experience with rich, vibrant colors that you can control with the touch of a button. Experience new levels of excitement, whether for entertainment or an immersive display. Transform any space with these dynamic lights!

This DMX LED Wall Washer Lights use high power light-emitting element, a new generation of green lighting products. Long-distance and wide-angle colorful visual effects bring a new visual experience. Each light can be individually controlled, letting people immerse in the ever-changing color world.

DMX LED Wall Washer Lights have Long light source life, fast cooling, high brightness, low consumption, low heat dissipation, long service life.

DMX LED Wall Washer Lights use High-quality aluminum: not easy to rust, not easy to corrode, good heat dissipation.

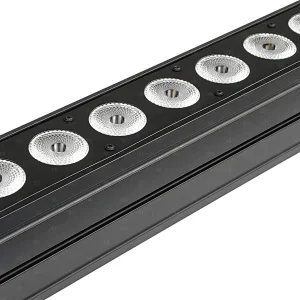

This DMX LED Wall Washer Lights RGBWA 5 IN 1 uses 18pcs new generation of 30% brighter 10W RGBWA multichip LEDs (5 in 1) to enhance 18 pixel smooth, Colour mixing and linear dimming, without RGB ’breakup’ or grey shadows. It can be widely used for projection lighting, event lighting, stage lighting, etc.

Technical Specification

DMX LED Wall Washer Lights Source:

Input Voltage: AC100-240V, 50/60Hz；
Power Consumption: 150W；
LightSourceType: 18x 10W RGBWA LED multichips;
LEDColourVariants: RGBWA (Red, Green, Blue, White, Amber);
Warranty:2 Years
Life Span: 36 000 hours

DMX LED Wall Washer Lights Optical System;

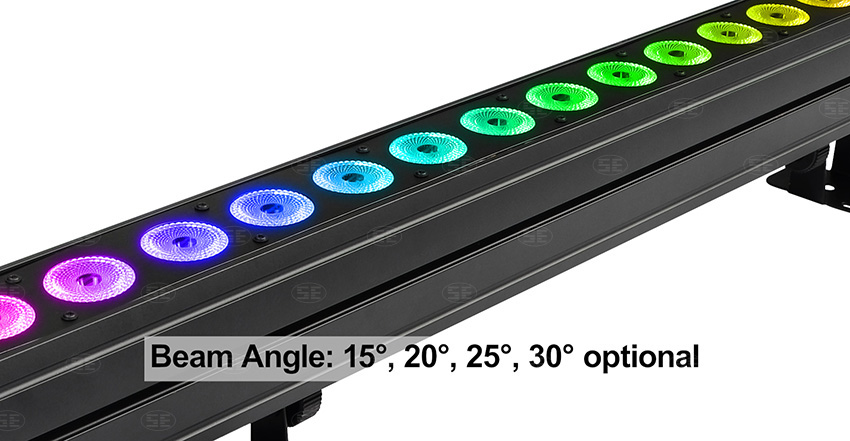

Beam Angle: 15°,20°, 25°, 30° optional;
Fixture total lumen output:

4015 lm (Integrating sphere) 3870 lm (Goniophotometer)

Brightness:1077 lx @ 3m

DMX LED Wall Washer Lights Dynamic Effects and Features:

Colour rainbow effect with variable speed;
Build-inprogrammed pixel effects with colour, dimming and strobe chases, waves and pulse at variable speed and direction;
Strobe effect: variable speed (max 20 flashes per second);
Build-inprogrammed random strobe & pulse effects;
High resolution electronic dimming: 0-100%;

DMX LED Wall Washer Lights Control and Programming:

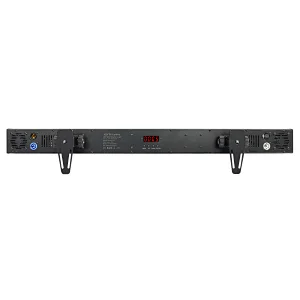

Setting & Addressing: 4-segment LED display & 4 control buttons;
Protocols: USITT DMX-512;
DMX Protocol modes: 4 including SunStrip emulation mode (Halogen Strip);
DMXChannels:2CH,5CH, 7CH, 9CH, 90CH, 92CH ;
ColourMixing: RGBWA or CMY;
Manual control of all effects via control panel;
OperatingMode: DMX512, Master-Slave, Stand Alone,Voice-Control,Auto Run.

Beam angle

Total Lumen Output

(Integrating Sphere)

Total Lumen Output

(Goniophotometer)

Peak Candela

Power

15°

4015 lm

3870 lm

24887 cd

150W

Distance	3 m	5 m	10m	15m	20m	25m	Total lumens
R+G+B+W+A	2745	988.2	247.1	109.8	61.76	39.53	3870.7
Red	614.9	221.4	55.3	24.6	13.8	8.8	613.2
Green	729.9	262.7	65.6	29.1	16.4	10.5	1043.2
Blue	161.3	58.0	14.5	6.4	3.6	2.3	229.7
White	888.6	319.9	79.9	35.5	19.9	12.8	1178.7
Amber	337.8	121.6	30.4	13.5	7.6	4.8	467.2
Average illumination when the luminaire is at different distance [lx]; Total lumen output [lm] measured by goniophotometer;

Color Temperature	CCT	N/A	Color Rendering Index	CRI	N/A
Color Deviation from Black	Duv	N/A	Red Component	CRI R9	N/A
Color Coordinate CIE 1931	x	0.2898	Color Fidelity	TM30 Rf	N/A
Color Coordinate CIE 1931	y	0.2517	Color Gamut	TM30 Rg	N/A
Color Coordinate	u	0.2131	Television Consistency Index	TLCI	N/A
Color Coordinate	v	0.4163	/

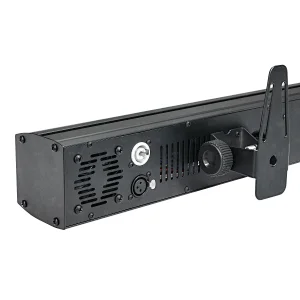

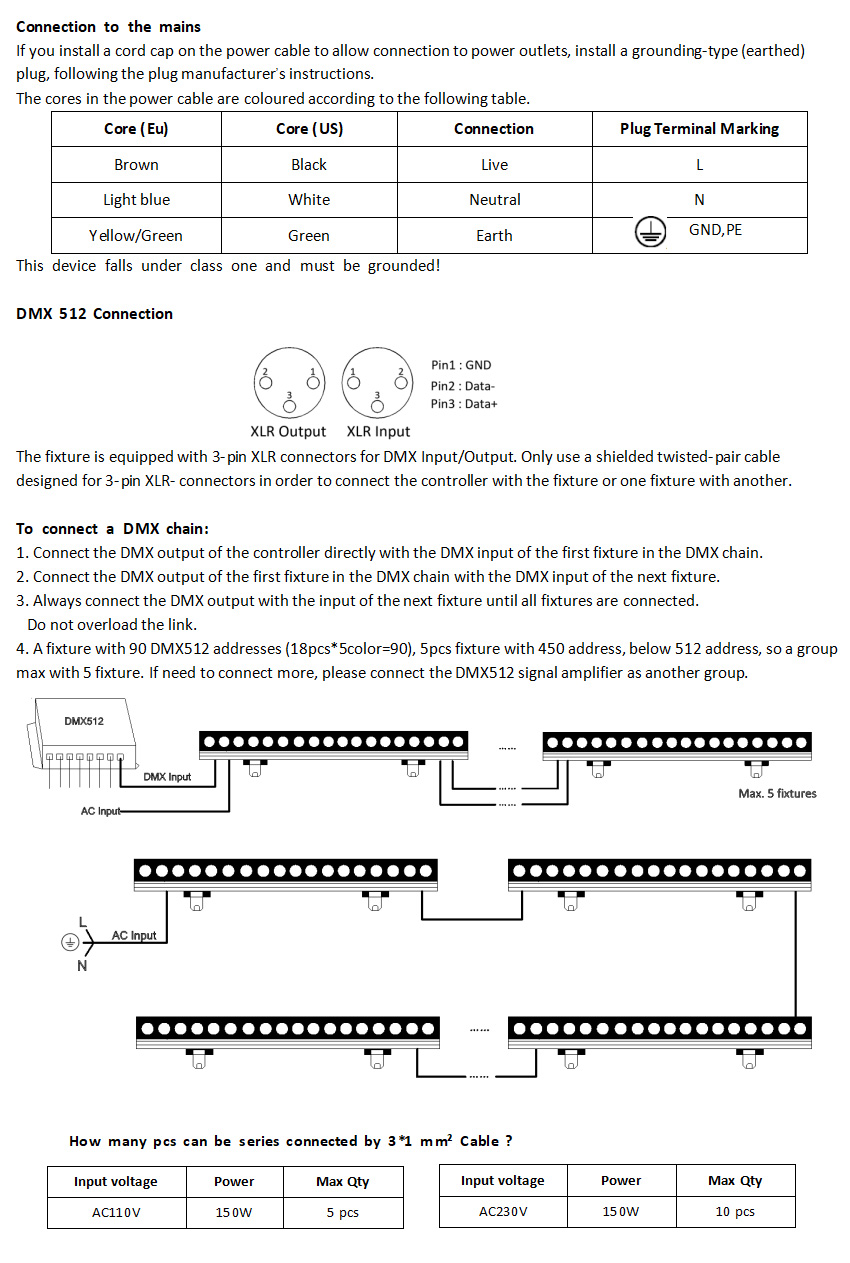

Interface Description

Dimension

Packing Data

Model No	Pcs/CTN	N.W./Pcs*	G.W/CTN *	CTNASIZE(MM)	CTNB SIZE(MM)
SEW-150RGBWA IP20 Type	4	4.18 kg	18.45 kg	98087150	1240200390

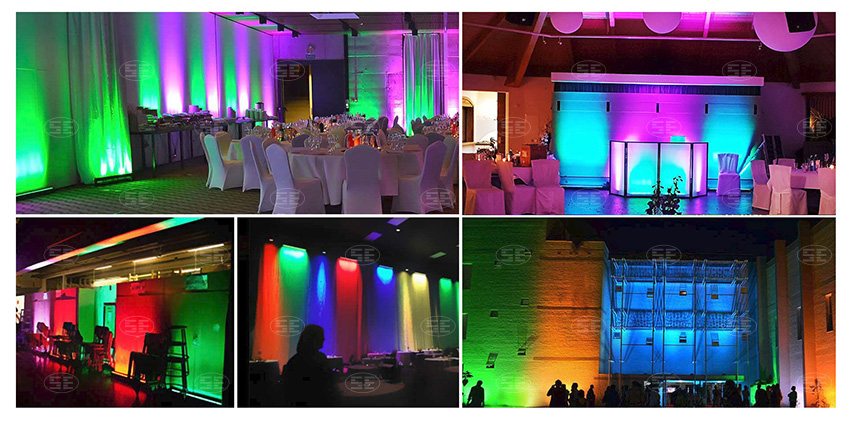

Application
SE.Lighting's DMX LED Wall Washer Lights widely used indoors and outdoors, such as a garden, balcony, terrace, bridge, billboards, commercial lighting, birthday party, stage, projection lighting, event lighting, Sculpture and statue illumination, Museum and art gallery lighting, Landscape lighting, etc.
