Widely use like Courtyard, Sports Stadiums, Warehouse, Ground, Building etc.
Warranty(Year)
5-YEAR
Luminous Efficacy(lm/w)
120
Life time(Hour)
50,000
Power Factor (PF)
≥0.95
Input Voltage(V)
AC 100-240V
LED
Lumileds 3030SMD
Ambient Temp. (℃)
-20~+50℃
Storage Temp. (℃)
-40~+85℃
Key Material
AluminumAlloy+Toughened Glass
CRI (Ra>)
80
Model
Power
Efficiency ±10%
Luminous ±10%
SEF-50W
50W
120 LM/W
6000LM
SEF-80W
80W
120 LM/W
9600LM
SEF-100W
100W
120LM/W
12000LM
SEF-150W
150W
120LM/W
18000LM
SEF-200W
200W
120LM/W
24000LM
SEF-300W
300W
120LM/W
36000LM
SEF-400W
400W
120LM/W
48000LM
SEF-450W
450W
120LM/W
54000LM
Product Description

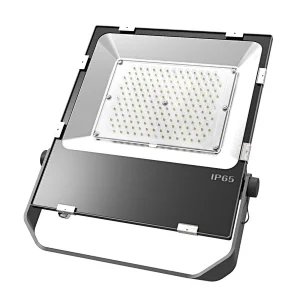

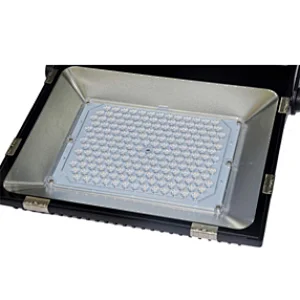

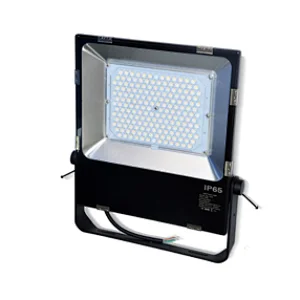

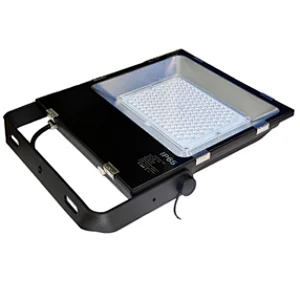

High-intensity Light Lens type Hot Sell IP65 LED Flood Light LED Lamp Waterproof
1. IP65 flood light 5 Years Warranty. 2. led flood lighting Adopting integrated Chip as light source with high lighting efficiency, good quality heat dissipation, low light degradation. 3. Lens flood light Aluminium alloy die cast sheel, good strength, and high quality heat dissipation. Anti corrosion and baking varnish surface, can be for outdoor using. 4. led flood lights Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options for lighting distribution, one is for focusing, another is for divergencing. 5. High efficiency and high quality constant current drive, not only ensure the product stability, but greatly reduce the electricity consumption. 6. LED light source with low light decay, high lighting efficiency, stable light color, no glare and more favorable visual health.
Model
Size A (mm)
Size B (mm)
SizeC (mm)
SEF-50W
310
220
60
SEF-80W
354
245
60
SEF-100W
402
295
60
SEF-150W
430
330
60
SEF-200W
470
360
60
SEF-300W
565
475
65
SEF-400W
585
559
70
SEF-450W
585
559
70
Model
PCS
N.W*
Packaging size
SEF-50W
8
16KG
530*365*255mm
SEF-80W
1
3.5KG
435*340*130mm
SEF-100W
1
4.2KG
510*430*135mm
SEF-150W
1
5.5KG
510*430*135mm
SEF-200W
1
6.1KG
555*460*135mm
SEF-300W
1
11KG
620*515*135mm
SEF-400W
1
12.5KG
660*615*144mm
SEF-450W
1
12.5KG
660*615*144mm
Application
High-intensity Light Lens type Hot Sell IP65 LED Flood Light LED Lamp Waterproof, is usually used in Public Lighting and Industrial Lighting
