| Product Parameter | |
| Model Number | SES-W200 |
| Beam Angle | TypeⅡ130*60° / TypeⅢ 150*75° option |
| Waterproof Grade | IP65 |
| Color Temperature (CCT) | 3000K/4000K/5000K/6000K |
| Power | 40W/80W/120W/160W/200W |
| Certification | CE ROHs SAA ETL DLC |
| Application | Highway lighting and other outdoor places. |
| Warranty(Year) | 5-YEAR |
| Luminous Efficacy(lm/w) | 130 |
| Life time(Hour) | 50,000 |
| Power Factor (PF) | ≥0.95 |
| IK Rate | IK10 |
| Flicker Free | yes |
| Dimmable | Yes (0-10V dimmable) |
| Input Voltage(V) | AC 85-265V |
| LED | Philips 3030LED |
| Ambient Temp. (℃) | -20~+50℃ |
| Storage Temp. (℃) | -40~+85℃ |
| Key Material | Aluminum Alloy + PMMA |
| Driver | TUV/Meanwell |
| CRI (Ra>) | 80 |
| Model | Power ±5% | CCT | Luminous ±10% |
| SES-W40 | 40W | 3000K | 5200LM |
| 4000K | 5400LM | ||
| 5000K | 5400LM | ||
| 6000K | 5300LM | ||
| SES-W80 | 80W | 3000K | 10400LM |
| 4000K | 10800LM | ||
| 5000K | 10800LM | ||
| 6000K | 10600LM | ||
| SES-W120 | 120W | 3000K | 15600LM |
| 4000K | 16200LM | ||
| 5000K | 16200LM | ||
| 6000K | 16000LM | ||
| SES-W160 | 160W | 3000K | 20800LM |
| 4000K | 21600LM | ||
| 5000K | 21600LM | ||
| 6000K | 21300LM | ||
| SES-W200 | 200W | 3000K | 26000LM |
| 4000K | 27000LM | ||
| 5000K | 27000LM | ||
| 6000K | 26600LM |
| Product Description | |
High lumen 130lm/W IP65 Waterproof Outdoor 5 Years Warranty LED Street Light, with 5 Years Warranty. can be OEM and ODM for you. 1.Aluminum Alloy Housing,Modular design, convenient assembly, replacement and maintenance, |

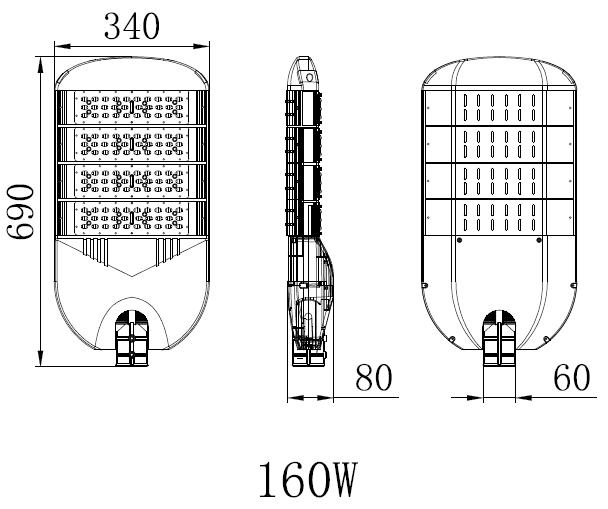

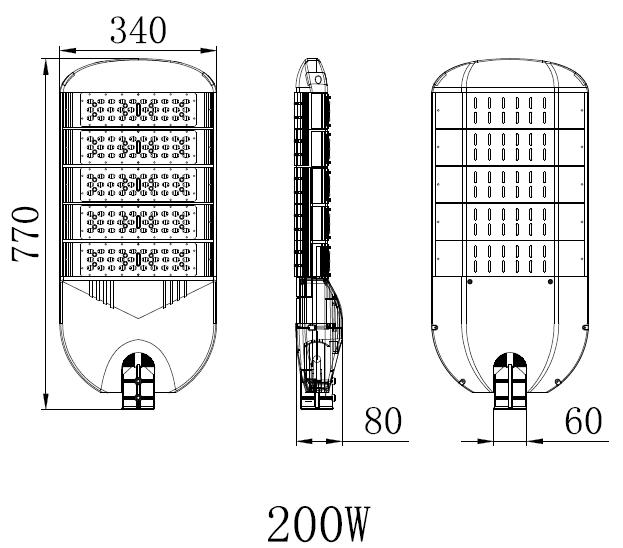

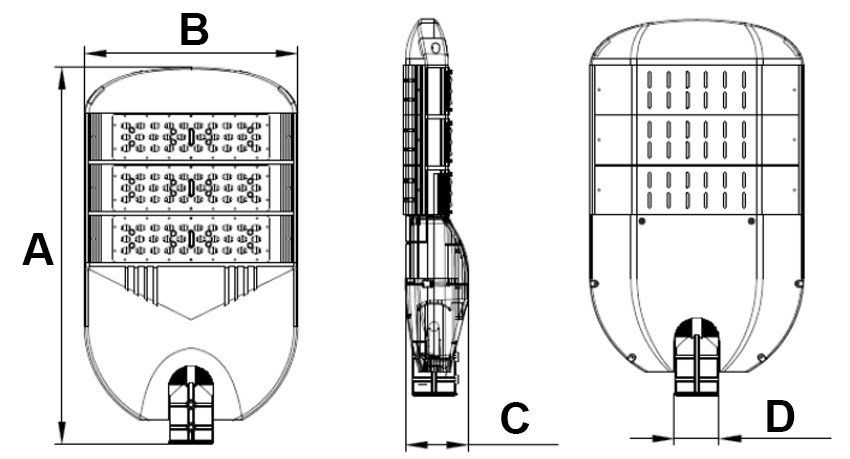

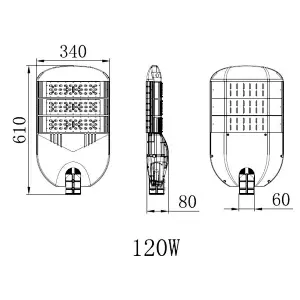

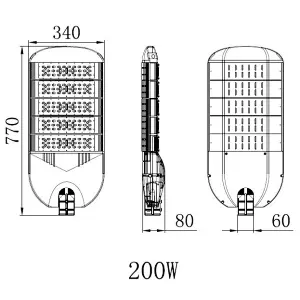

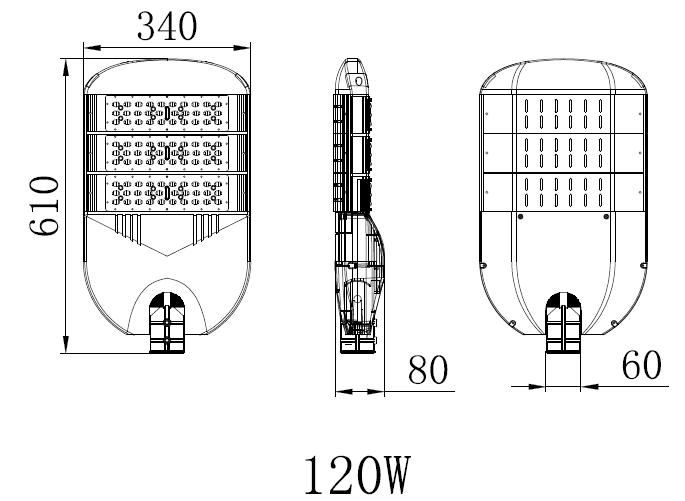

| Model | Size A (mm) | Size B (mm) | SizeC (mm) | SizeD (mm) |
| SES-W40 | 450 | 340 | 80 | 60 |
| SES-W80 | 530 | 340 | 80 | 60 |
| SES-W120 | 610 | 340 | 80 | 60 |
| SES-W160 | 690 | 340 | 80 | 60 |
| SES-W200 | 770 | 340 | 80 | 60 |

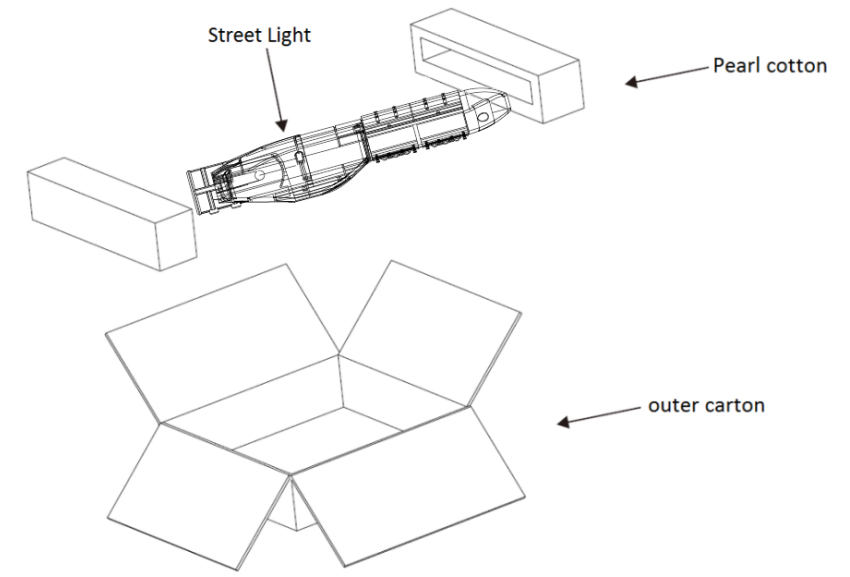

| Product packaging |
| Model | Qty/ctn | N.W/PCS | G.W/CTN | CTN Size (mm) |
| SES-W40 | 1pcs | 3.6kg | 4.0kg | 460*350*100 |
| SES-W80 | 1pcs | 4.7kg | 5.2kg | 540*350*100 |
| SES-W120 | 1pcs | 5.8kg | 6.4kg | 620*350*100 |
| SES-W160 | 1pcs | 6.7kg | 7.4kg | 700*350*100 |
| SES-W200 | 1pcs | 8.0kg | 8.8kg | 780*350*100 |
| Application | |
| High lumen 130lm/W IP65 Waterproof Outdoor 5 Years Warranty LED Street Light Suitable for Parking Lights, Road Lighting, Ramp Lighting, Sidewalk Lighting, Campus Lighting, Highway lighting and other outdoor places. |
