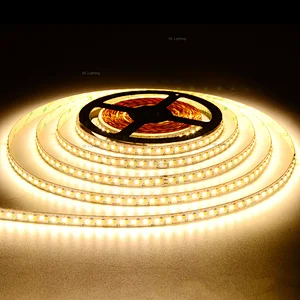

Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting

Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting

Model NO.
SELS-2835CCT216-24-YCC
Quantity:
Product Parameter
Model NumberSELS-2835CCT216-24-YCC
Beam Angle120°
Waterproof GradeIP20
Color Temperature(CCT)3000K / 4000K / 6500K
Lamp Power14W/mt
Luminous Efficacy(lm/w)115
Lamp Luminous Flux(lm)1610lm/w
FPC Width10mm
Warranty(Year)3-YEAR
CRI (Ra>)80
Life time(Hour)50,000
Switch ModeBluetooth Remote Control
Wifi Manual Button
Source2835 SMD
Support Dimmeryes
Cutting Unit55.6mm
Input Voltage(V)DC 24V
Length30mt, any length can
be customized
Ambient Temp. ()(-20~+50)
Storage Temp. ()(-20~+60)
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout

Product Description
Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting can do IP20 waterproof grade.
1.216led 2835smd/m without resistors, IC Build-In LED with constant current, ensure each led working in same current to assure longer lifetime;
2.216LED 2835SMD per meter (108pcs 6500K + 108pcs 3000K); The adjusting white shades or changing color temperature from 3000K to 6000K is achieved through a tunable white LED controller;
3.Normal working voltage is 24V DC.

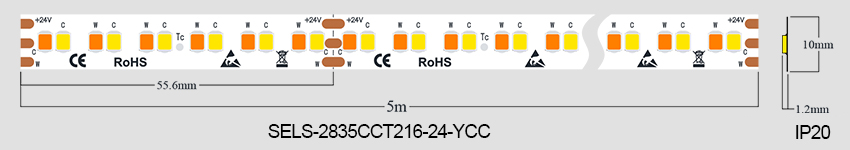

4.30 meters super long,Every 12leds as a unit can be cut(12LED/step=55.6mm);
5.3 years warranty.
Application

Max 30mt 216LEDs Constant Current 2835 24V LED Strip Lighting with widely application below:
1.It’s widely used as a decorative lights, and use it as the lights;
2.Stage decoration, festival, exhibition, wedding;
3.Backlight of signage, channel letters lighting;
4.LED Luminous characters;
5.Landscape layout lighting;
Hotels, night clubs, shopping malls, offices;



Product packaging

Installation Instructions
