| Product Parameter | |

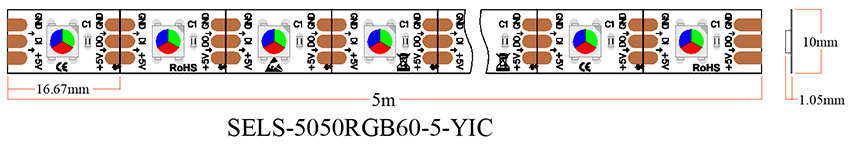

| Model Number | SELS-5050RGB60-5-YIC |
| Working Temperature(℃) | -20-50℃ |
| Length | 5mt, any length can be customized |
| FPC Width | 10mm |
| Cutting Unit | 16.67mm |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | ●●●RGB Magic |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 5V |
| Lamp Body Material | Copper |
| Certification | CE/ROHS/ERP/EN62471/ SAA/PSE/SASO |
| Application | Residential, Shopping Mall Light |
| Source | 5050 SMD |
| Warranty(Year) | 3-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| IC Type | WS2811 |
| Life time(Hour) | 50,000 |
| Lamp Power | 14W/mt |
| Magic (Dream) RGB Color Series | |||||
| Part No. | SELS-5050RGB30-12-YICD | SELS-5050RGB60-12-YICD | SELS-5050RGB60-5-YIC | SELS-5050RGB84-5-YIC | SELS-5050RGB60-24-YIC |
| Voltage | DC 12V | DC 12V | DC 5V | DC 5V | DC 24V |
| LED Qty/mt | 30pcs | 60pcs | 60pcs | 84pcs | 60pcs |
| Watt/mt | 10W | 20W | 14W | 14W | 14W |
| FPCB Width | 10mm | 10mm | 10mm | 10mm | 10mm |
| Cutting Unit | 50mm | 50mm | 16.7mm | 16.7mm | 100mm |
| Product Description | |

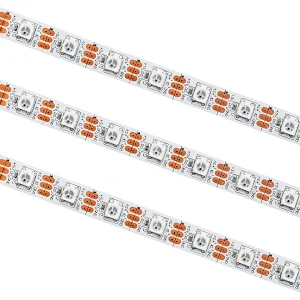

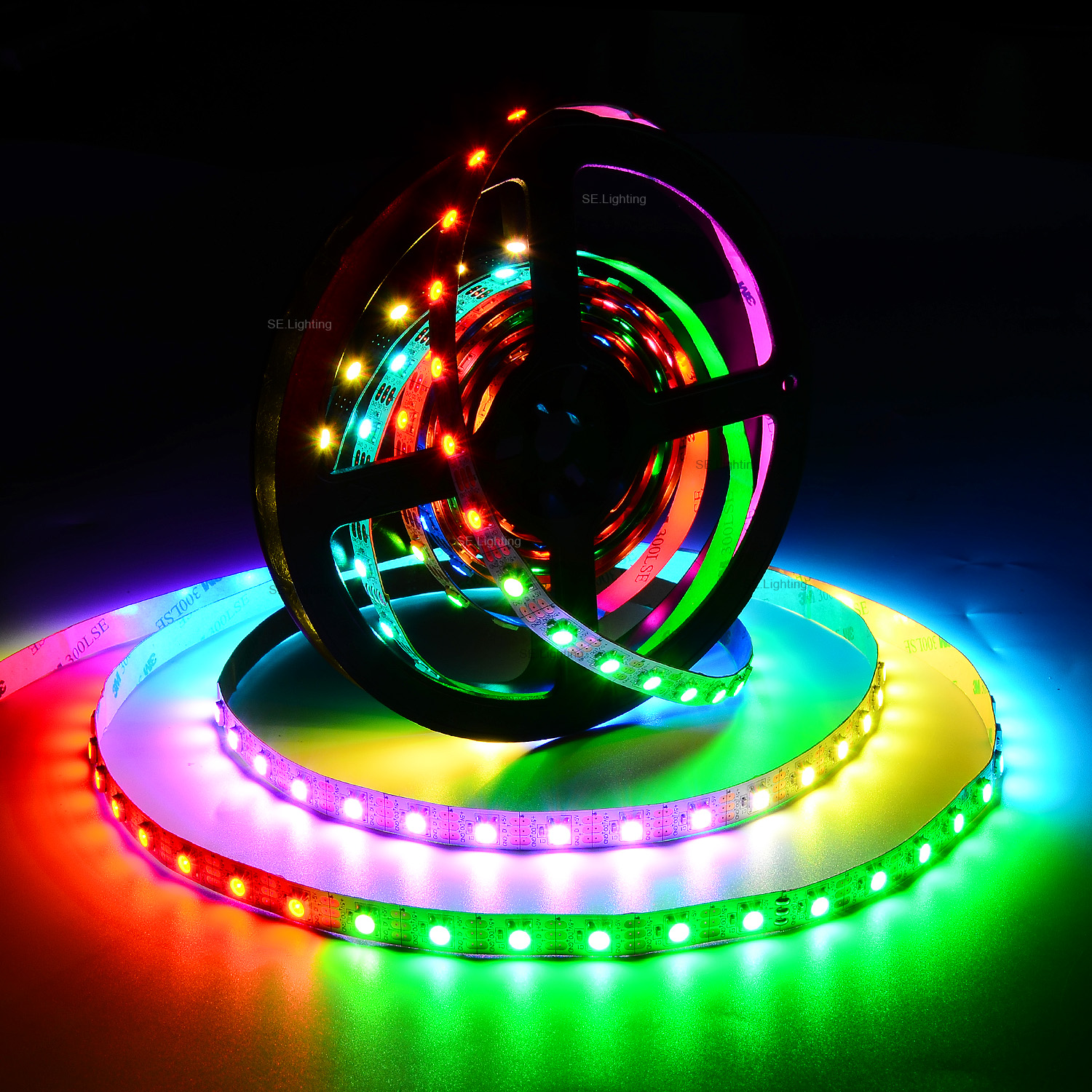

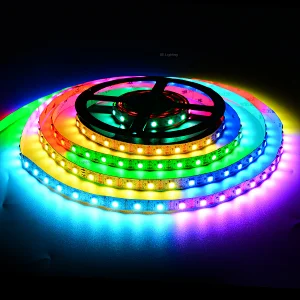

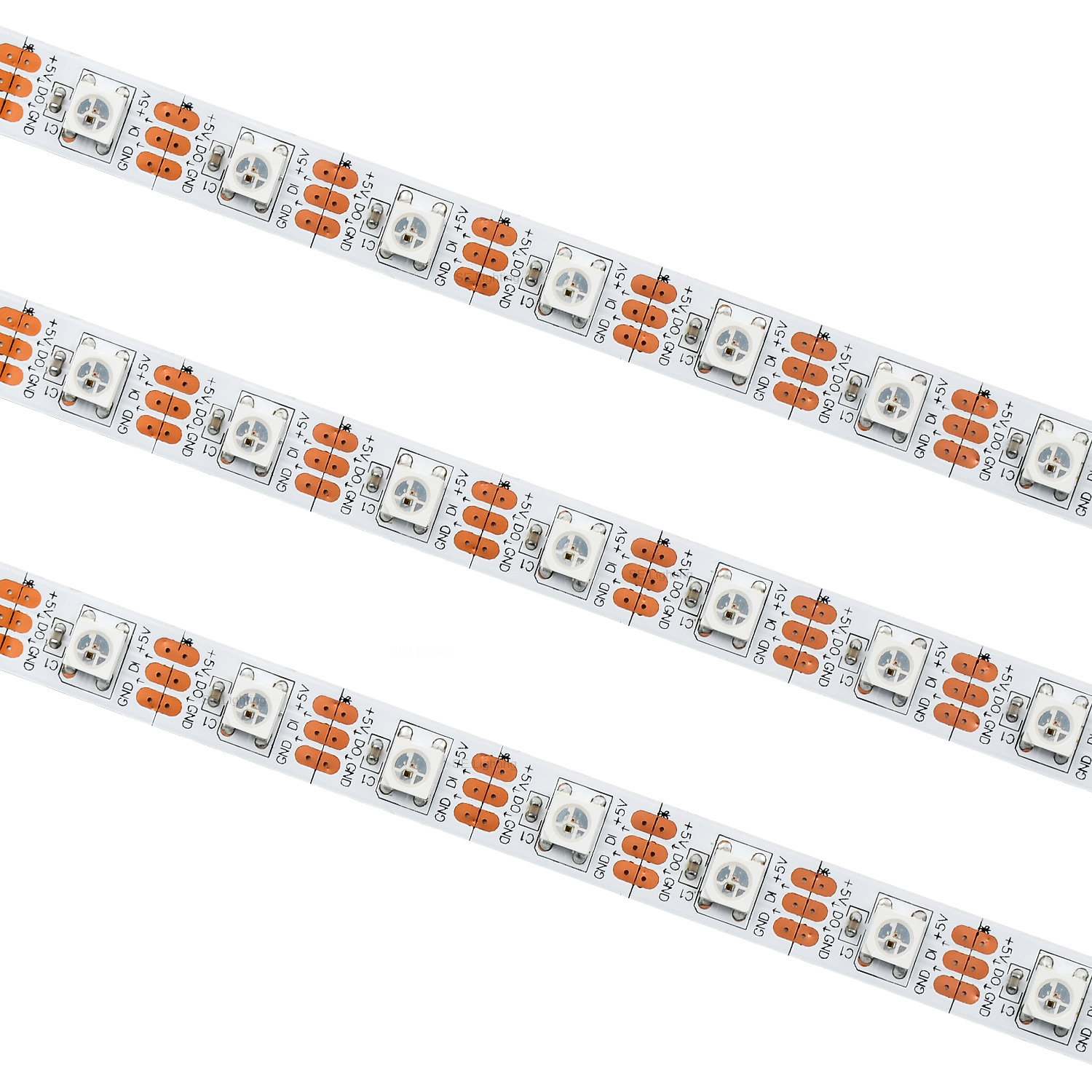

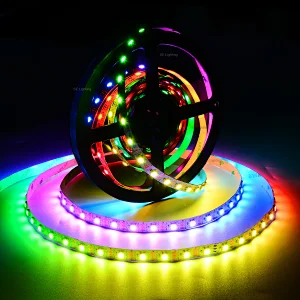

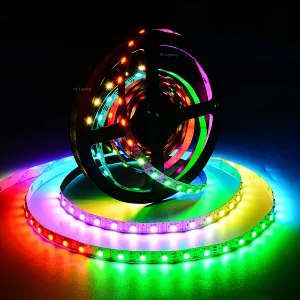

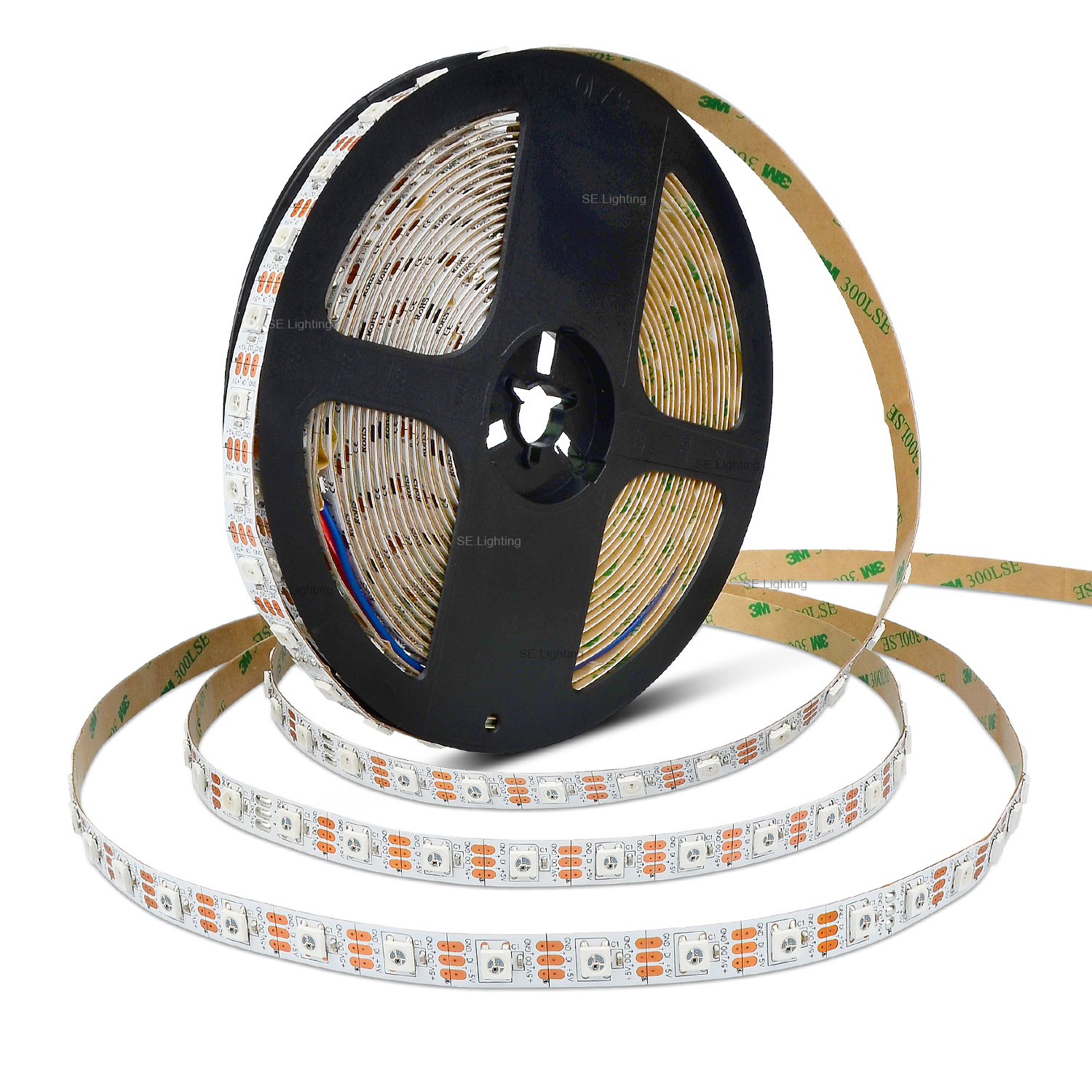

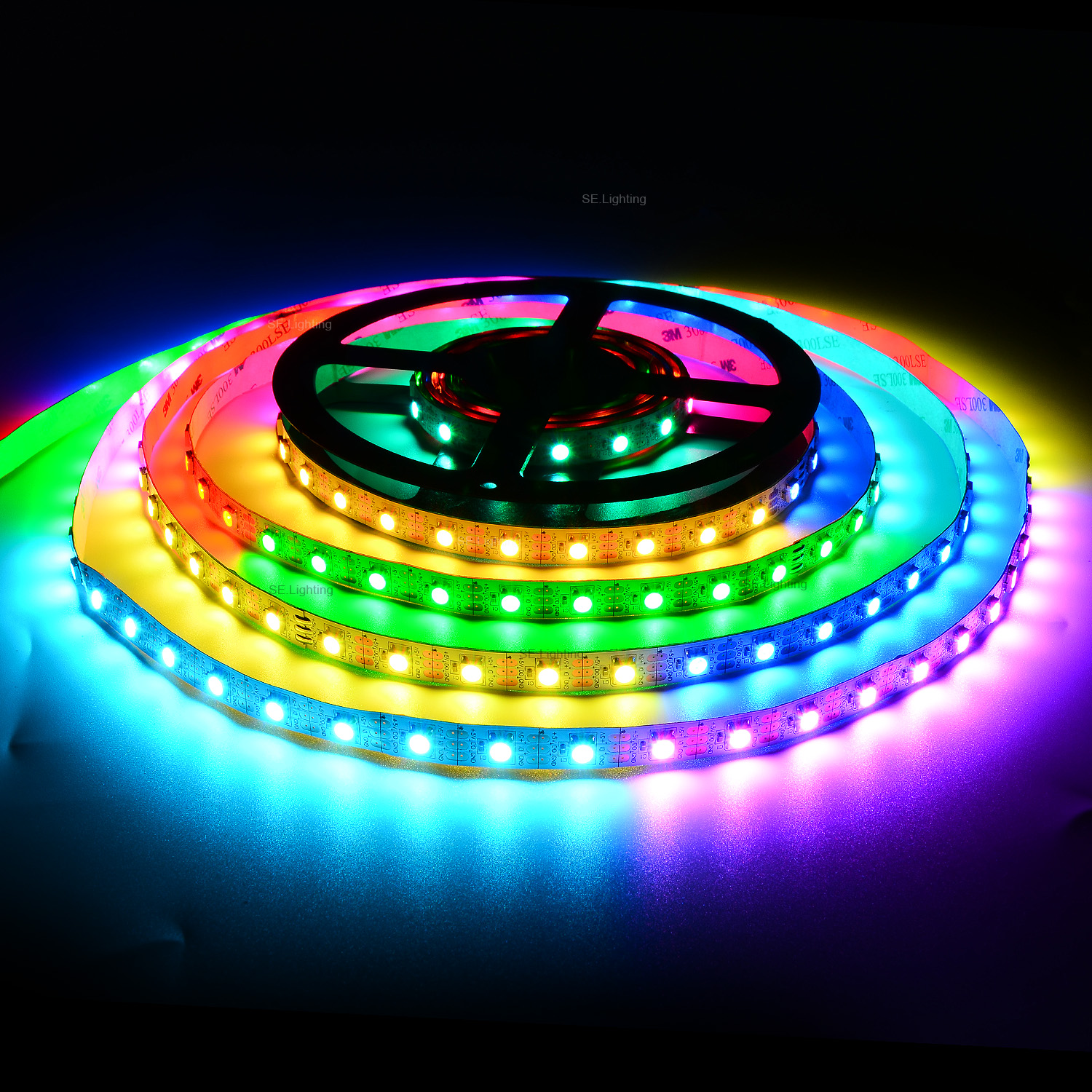

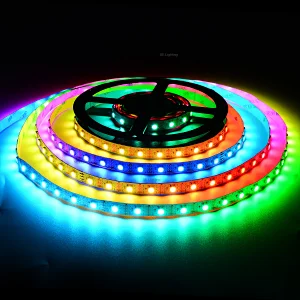

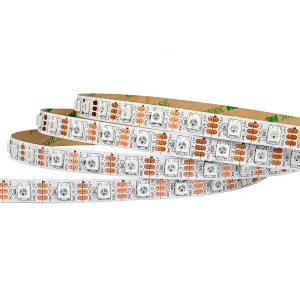

| RGB Magic LED Strip Light 5050 Multi Color 5V 60LEDs can do IP20/IP65/IP67/IP68, Different waterproof grade. Can be RGB and Different Color. 1. 5050 Magic RGB LED Strip Light, Built-in WS2811 IC in each SMD LED, can achieve single‐point control, point by point scanning, to achieve RGB color chase, horse racing, gradient, running water; 2. Normal working voltage is 5V DC; Every 6 LEDs as a unit can be cut; 3. Standard packing is 5m per roll; Any other different length can be customized; 4. Different waterproof grade IP65/ IP67/ IP68 can meet requirements in different use condition; 5. 3 years warranty. | |
| Application | |

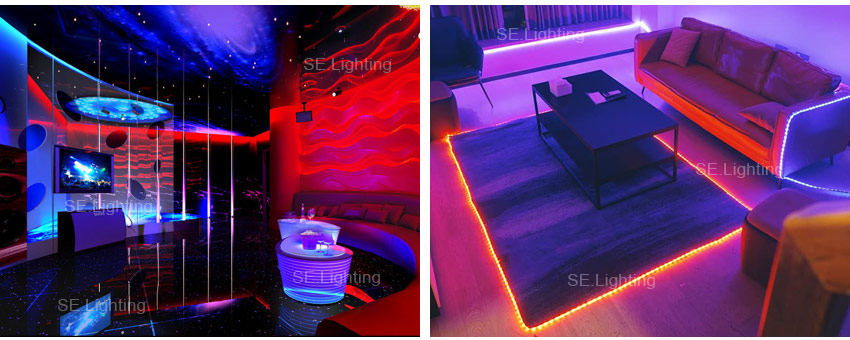

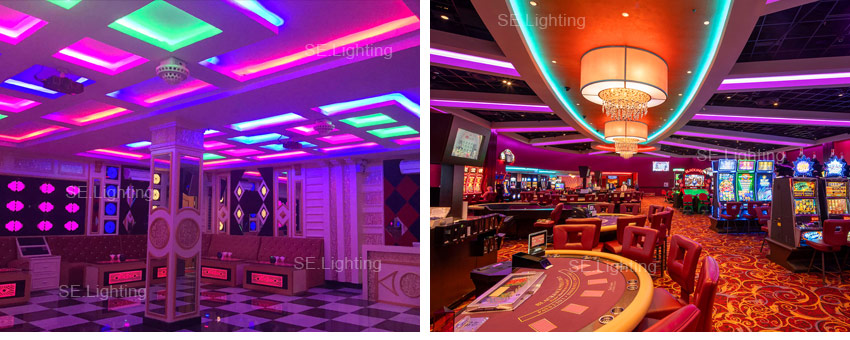

RGB Magic LED Strip Light 5050 Multi Color 5V 60LEDs with widely application below: 1. It’s wodely used as a decorative lights, and use it as the lights |

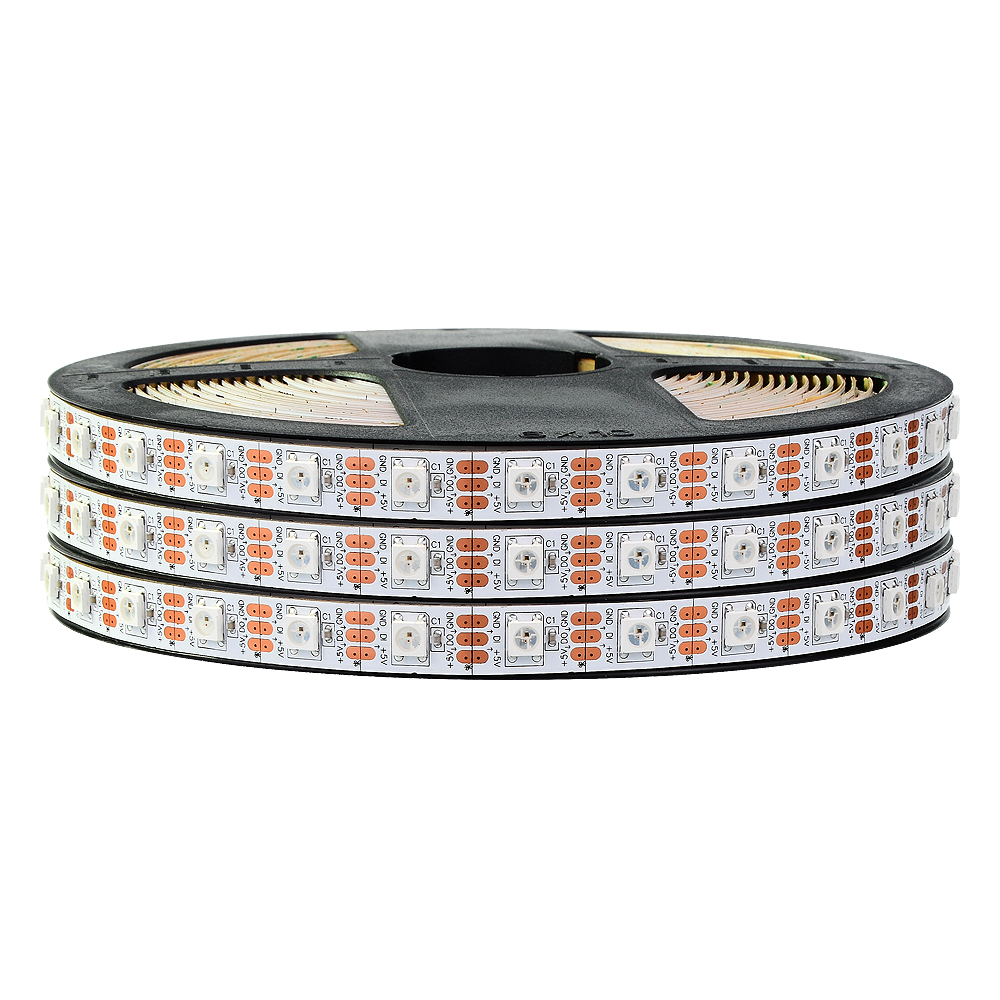

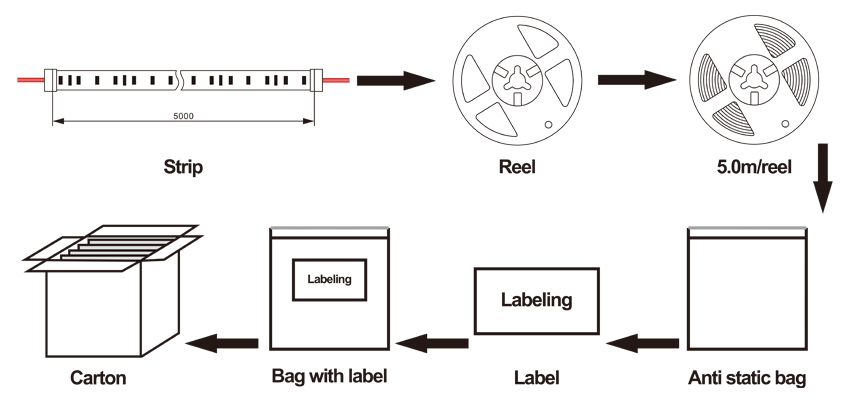

| Product packaging |

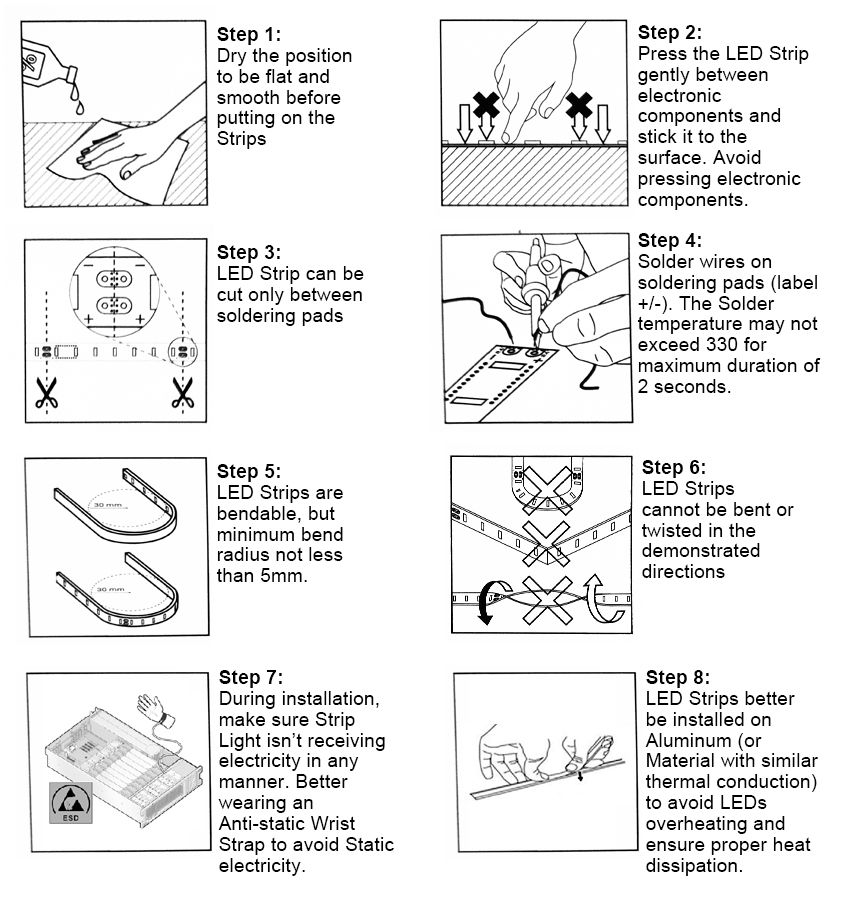

| Installation Instructions |
Notice：
1. Installation Magic RGB LED Strip Light must comply with local international electrical safety instructions.
2. In order to ensure Magic RGB LED Strip Light safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of Magic RGB LED Strip Light should comply with CE standard; With constant voltage LED power supply.
4. Do not install the Magic RGB LED Strip Light in overheat environment.
5. Do not install the non-waterproof RGB Magic LED Strip Light in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, RGB Magic LED Strip Light and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The RGB Magic LED Strip Light with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
What makes the best RGB Magic LED Strip Light?
Creating the highest quality RGB Magic LED Strip Light was not easy. It began with a passion and desire to build a truly “SE.Lighting” lighting solution. Component quality, phosphor selection, heat dissipation, color rendering, brightness, longevity, and run length are all components to consider when building an RGB Magic LED Strip Light. we guarantee performance and satisfaction!
SE.Lighting RGB Magic LED Strip Light are extremely popular in many facets of lighting design due to their compact size, high brightness, and low power consumption. Our RGB Magic LED Strip Light are made High brightness LED chips, high quality thermal performing PCB, and an unmatched quality control process. We feature CE and RoHS listing on our RGB Magic LED Strip Light. RGB Magic LED Strip Light are also extremely versatile, as shown by architects, homeowners, bars, restaurants, Commercial Applications and countless others who are using them in every way imaginable. Whether you’re looking for static white light Multi Color LED Strip Light, or RGB Magic LED Strip Light, you’ll find the best Multi Color LED Strip Light for your project here..
Our Multi Color LED Strip Light for longevity with the longest warranty in the industry. We design our own LEDs for the highest brightness, consistency, and color rendering. can offer OEM and ODM support. Once you see the SE.Lighting difference, you'll be a customer for life. Check out our Multi Color LED Strip Light options below.
FAQs:
Multi Color LED Strip Light come with many pros and a few cons. Whether you’re looking for Magic RGB LED Strip Light for bedrooms, Magic RGB LED Strip Light for kitchen cabinets, or bedroom Magic RGB LED Strip Light etc… the answers to these common questions may help.
Q: Are Multi Color LED Strip Light safe?
Multi Color LED Strip Light are safe as long as they’re installed and operated according to the manufacturer’s instructions. For example, indoor lights shouldn’t be installed outside, and some lights should not be installed where they can get wet.
Q: How long can you run RGB Magic LED Strip Light?
Multi Color LED Strip Light can run for hours on end without being shut off. They get warm, but they’re designed to underdrive the LEDs, which means they don’t overheat.
Q: Do Multi Color LED Strip Light have to be plugged in to work?
Yes, you have to leave Multi Color LED Strip Light plugged in for them to work.
Q: Do Multi Color LED Strip Light work with dimmer switches?
Almost every Multi Color LED Strip Light is compatible with a dimmer switch. In order to make an Magic RGB LED Strip Light dimmable, it’s input wire must first be connected to a dimmer unit, then connect the unit to the power supply.
Q: How can I create ambient light with RGB Magic LED Strip Light?
To create ambient light in your home with Magic RGB LED Strip Light, the optimal locations are under or above cabinets and counters in the kitchen, behind mirrors in the bathroom, or even around large pieces of furniture like bookshelves and home entertainment units.
Q: How do you properly recycle old RGB Magic LED Strip Light?
Magic RGB LED Strip Light can be disposed of by recycling them by taking them to a local recycling center.
Q: How long do Multi Color LED Strip Light last?
Most Magic RGB LED Strip Light are built to last for up to 50,000 hours of use, which is roughly 10 to 20 years of runtime.
SE.Lighting's LED Strip Light, with 2835 / 3528 / 5050 / 5630 / COB etc, SDCM3 / SDCM5, CRI 80 / 90 / 95, CCT&Color: 1600~30000K / CCT / RGB / RGBW / RGBCCT / RGB Magic, Various Specifications option, any needs pls feel free to contact us.
We’ll be more than happy to hear from you.
