| Product Parameter | |
| Model Number | SELS-5050RGBX60-24-YB |
| Working Temperature(℃) | -20-50℃ |
| Length | 5mt, any length can be customized |
| FPC Width | 12mm |
| Cutting Unit | 50mm |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP67/IP68 |
| Color Temperature(CCT) | ●●●RGB+ WW 3000K / NW 4000K / PW6000K |
| Support Dimmer | yes |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| Input Voltage(V) | DC 24V |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Application | Residential, Shopping Mall Light |
| Source | 5050RGB+ 2216 SMD |
| Warranty(Year) | 3-YEAR |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Life time(Hour) | 50,000 |
| Lamp Power | 17W/mt |

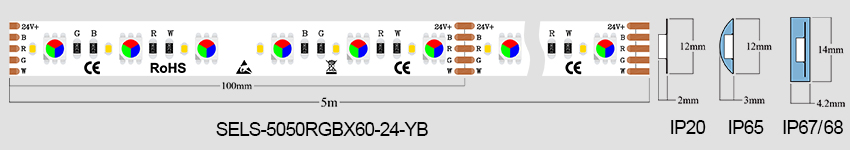

| 5050 RGB + White Color Series | ||||
| Part No. | SELS-5050RGBX60-12/24-YA | SELS-5050RGBCCT60-24-YA | SELS-5050RGBCCT60-24-YB | SELS-5050RGBX60-24-YB |
| Voltage | DC 12V / 24V | DC 24V | DC 24V | DC 24V |
| LED Qty/mt | 60pcs | 60pcs | 60pcs | 60pcs |
| Watt/mt | 17W | 22W | 20W | 17W |
| FPCB Width | 12mm | 12mm | 14mm | 12mm |
| Cutting Unit | 50mm/100mm | 50mm | 50mm | 50mm |

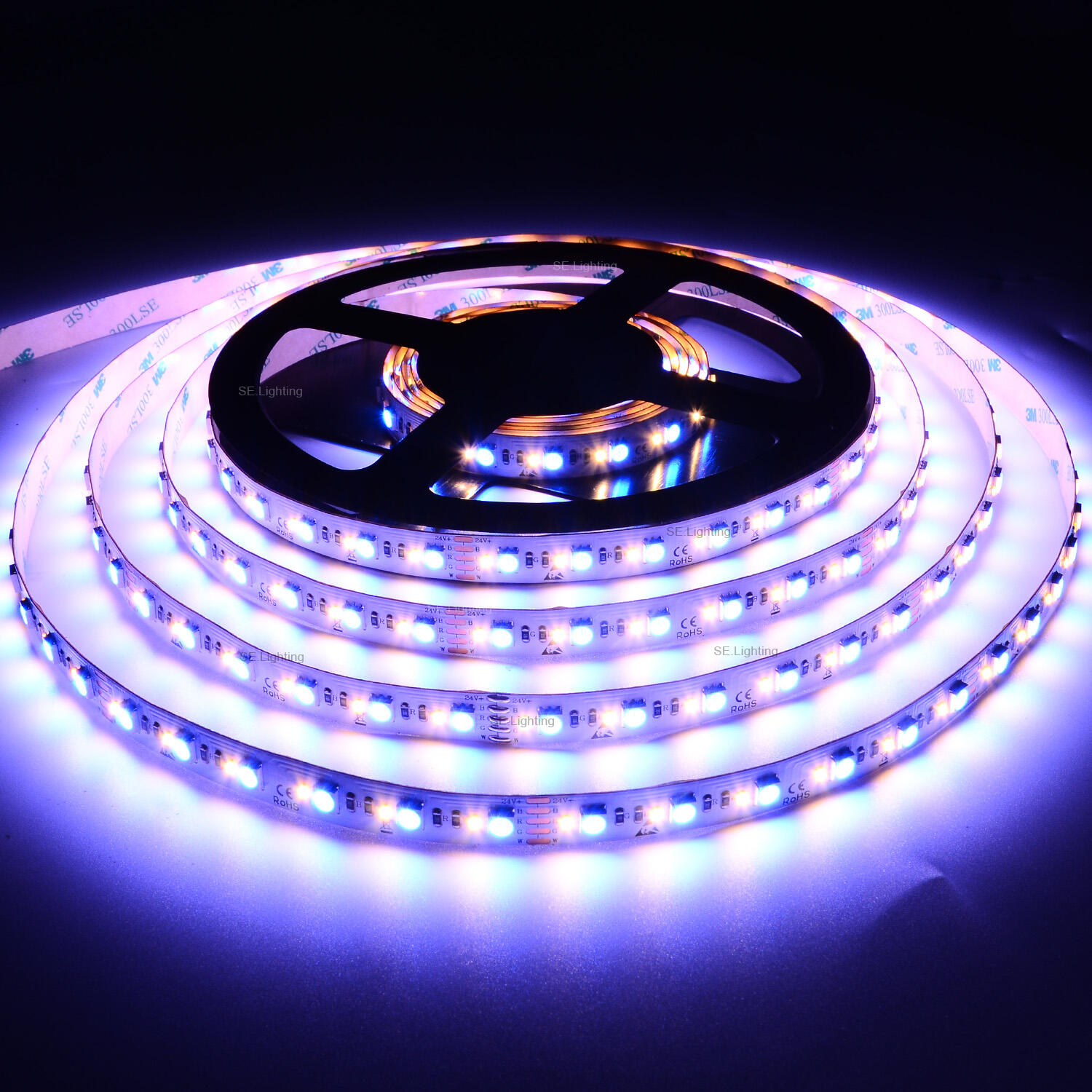

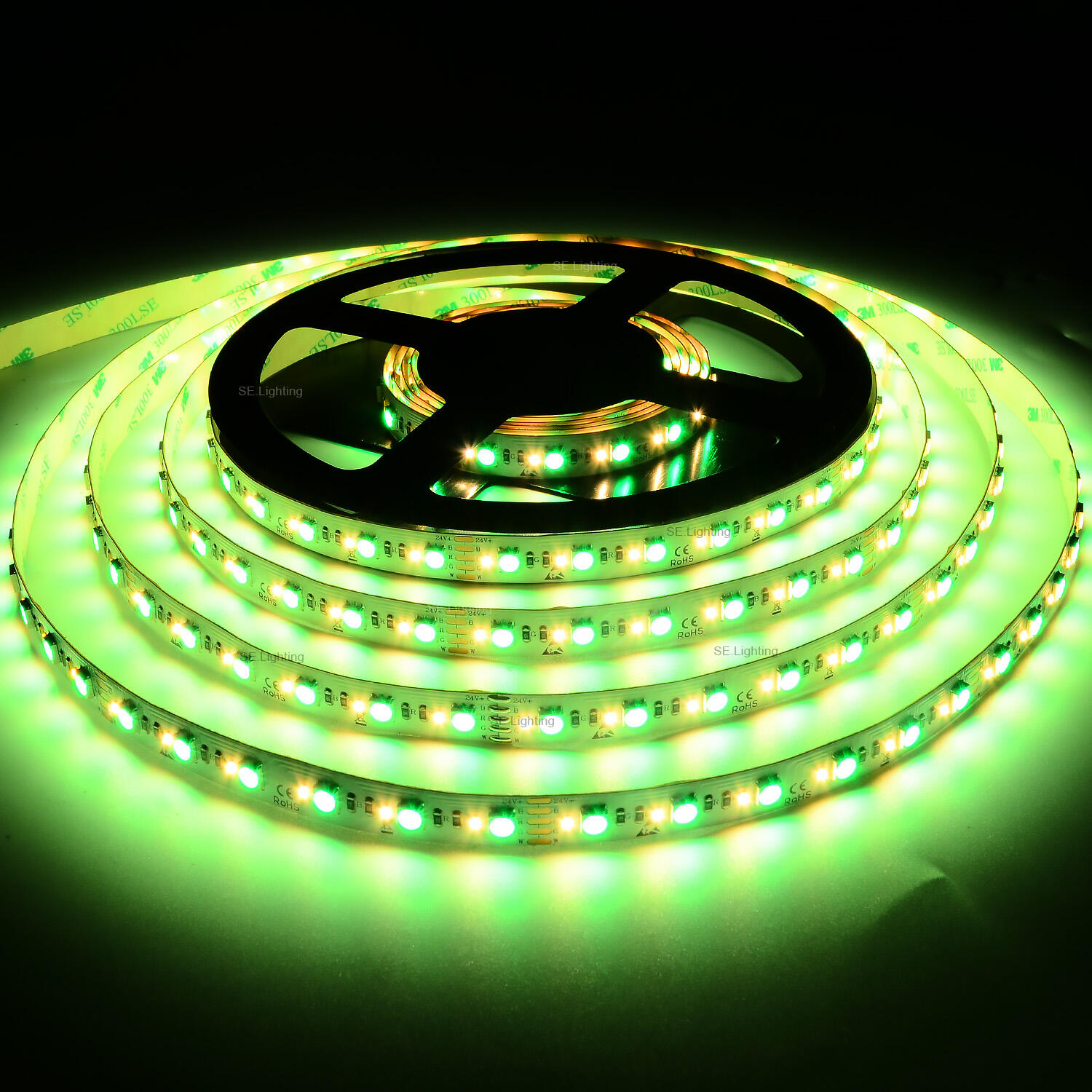

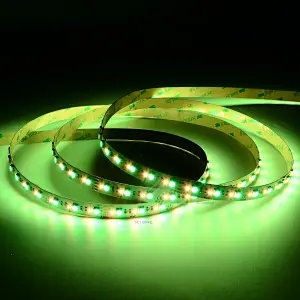

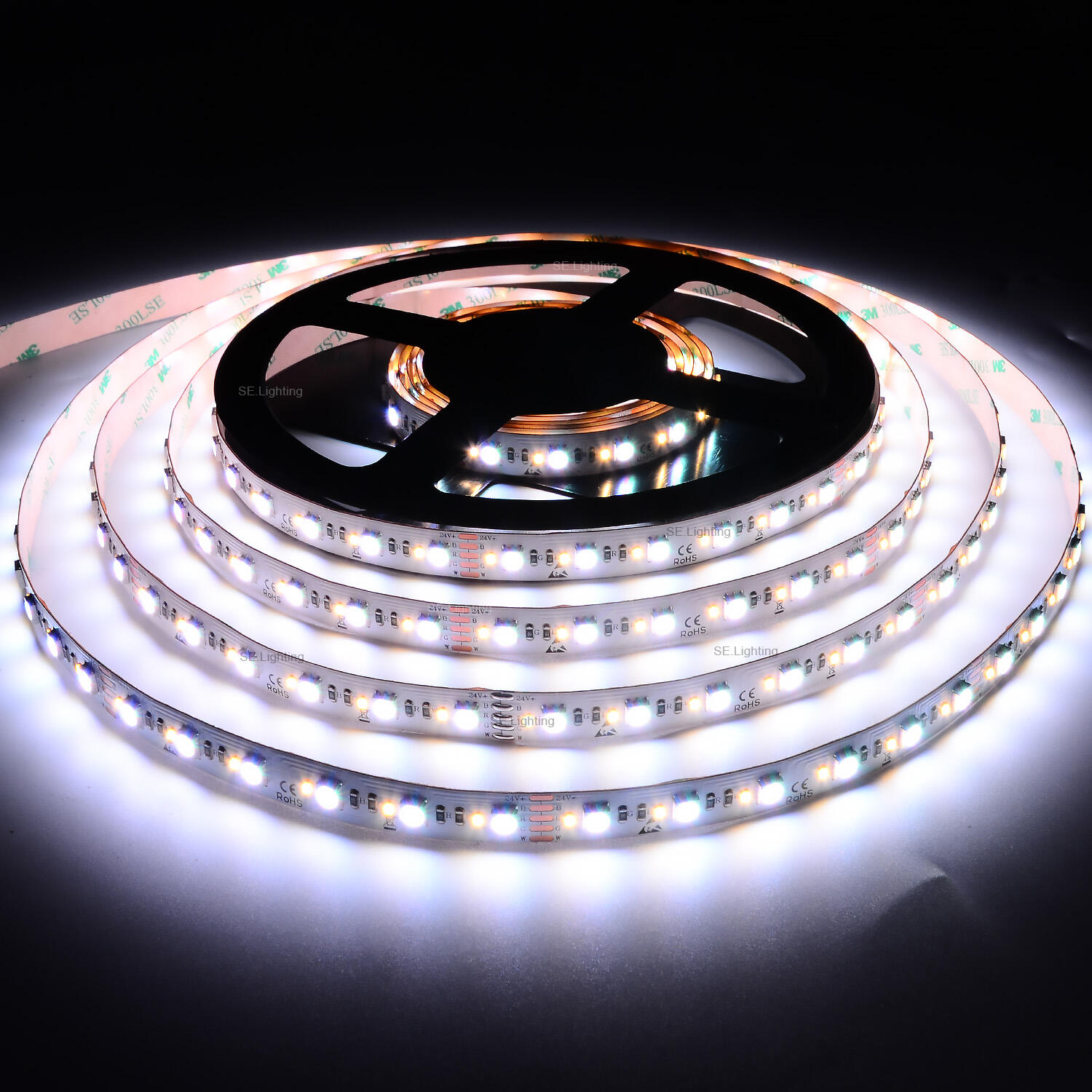

| Product Description | |

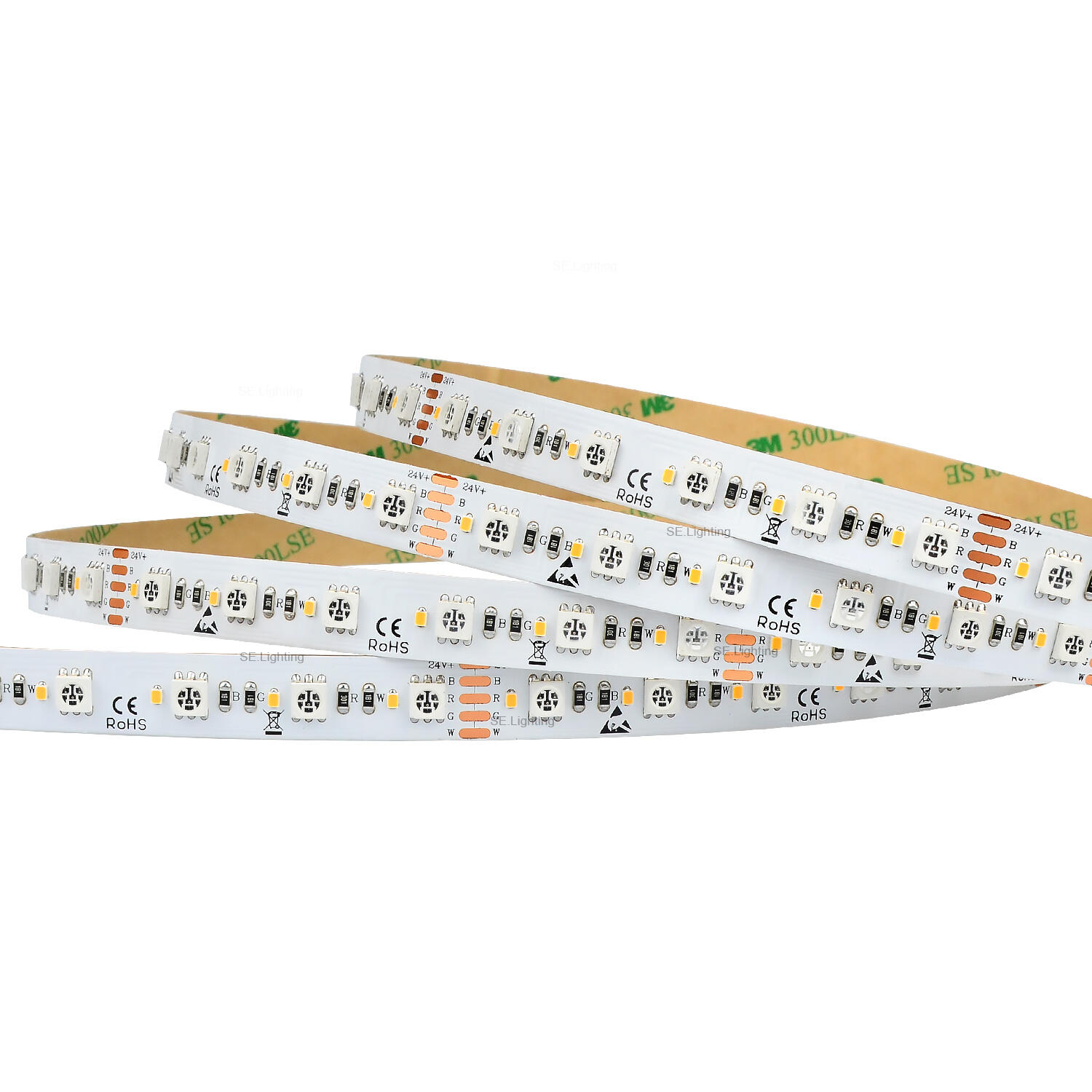

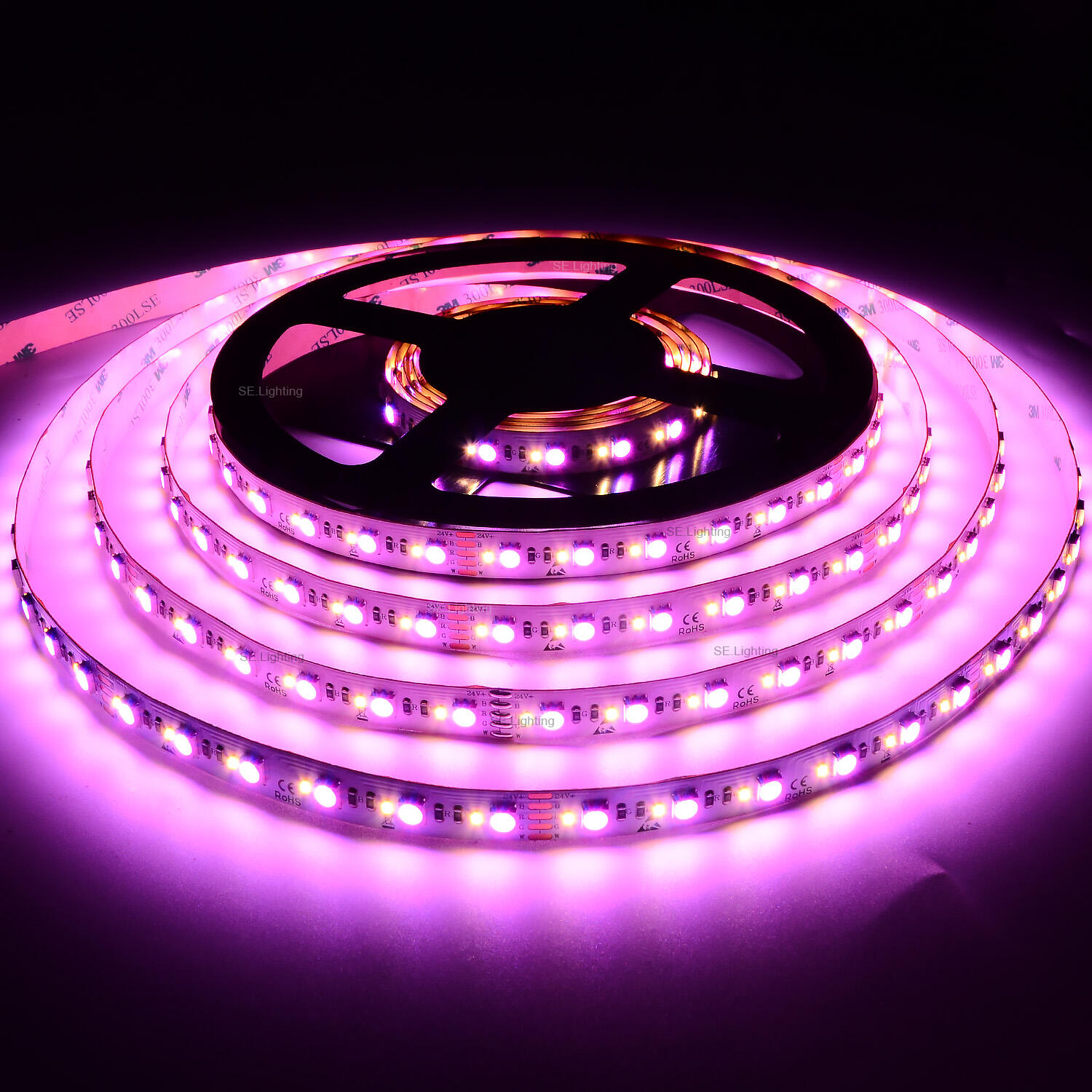

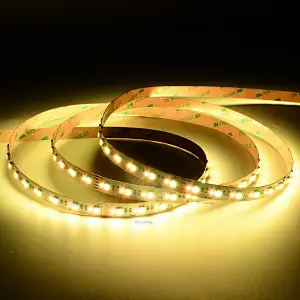

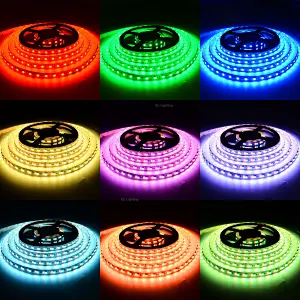

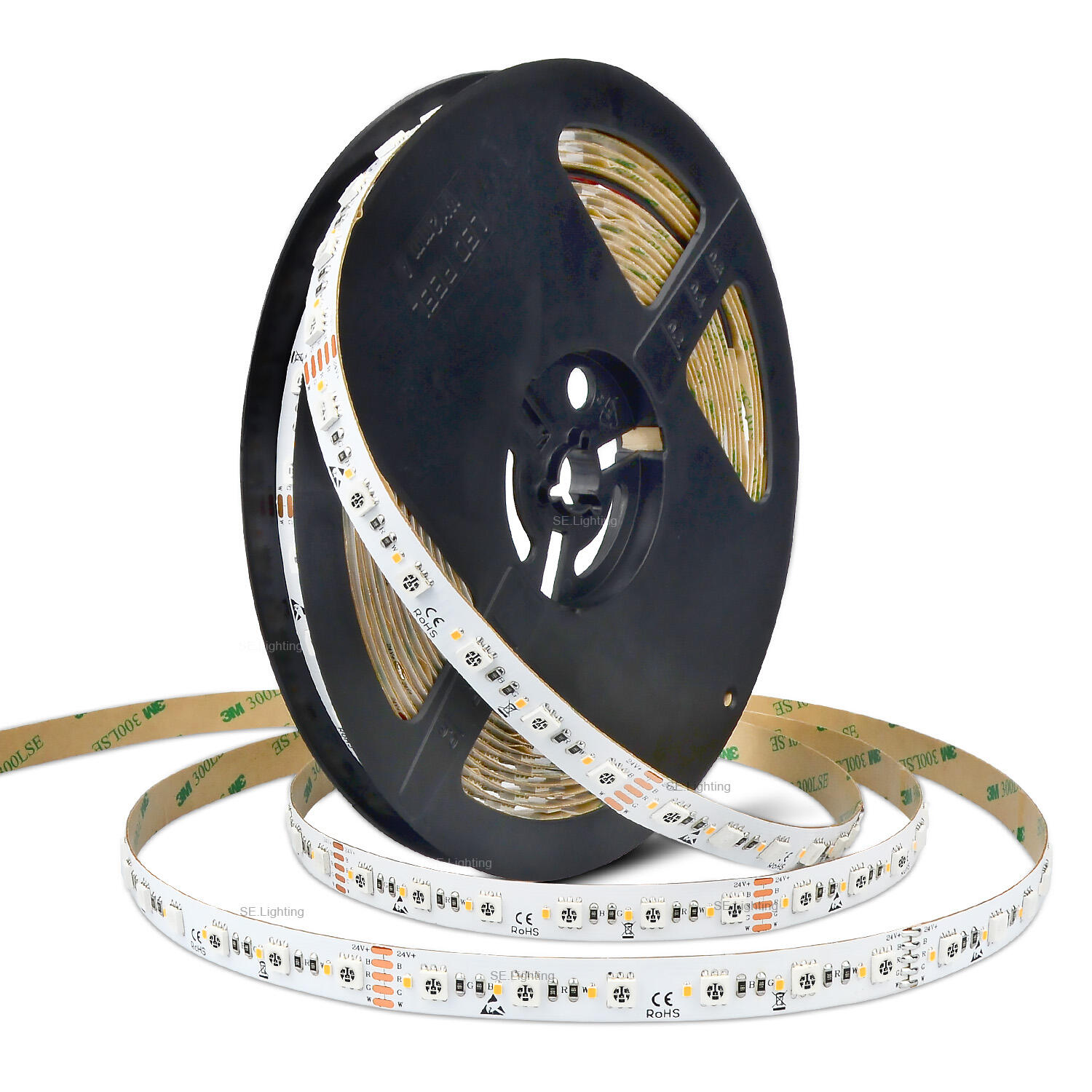

| RGBW 5050+2216 LED Strip Lights can do IP20/IP65/IP67/IP68, Different waterproof grade. Can be RGB and Different Color. 1. LED Strip Lights 60pcs 5050RGB+ 60pcs 2216 SMD/mt; 2. RGBW Strip LightsSuper bright SMD5050 RBG+W top LED, high intensity and reliability; 3. RGB LED Strip Lights Cut table every 6 LEDs (6PCS 5050RGB+6PCS 2216) along the cutting marks, according to practical requirement; 4. LED Strip Lights Standard packing is 5m per roll; Any other different length can be customized; 5. LED Strip Lights Different waterproof grade can meet requirments in different use condition; 6. LED Strip Lights 3 years warranty. | |

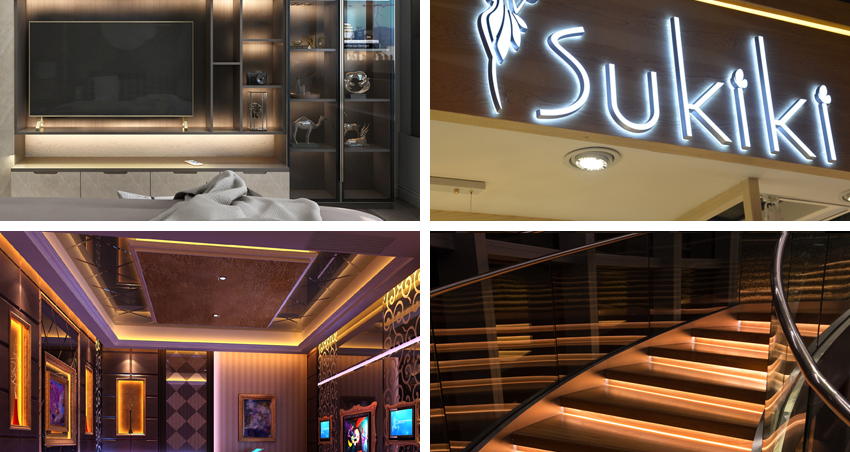

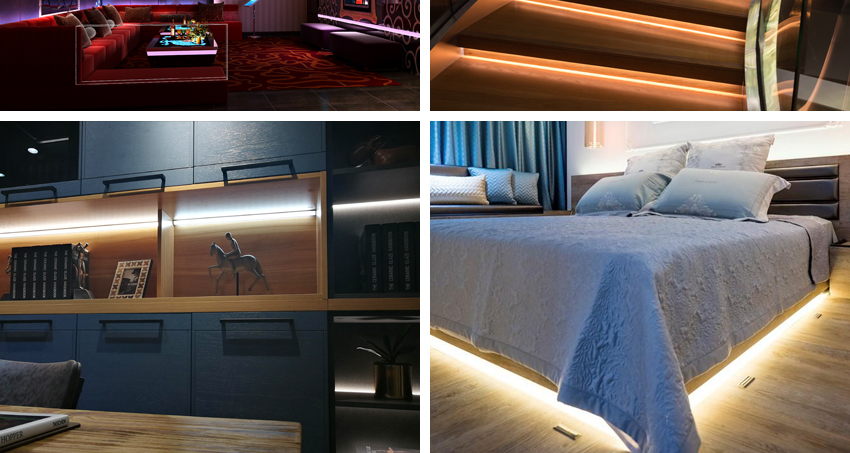

| Application | |
RGBW 5050+2216 LED Strip Lights with widely application below: 1. It’s widely used as a decorative lights, and use it as the lights |

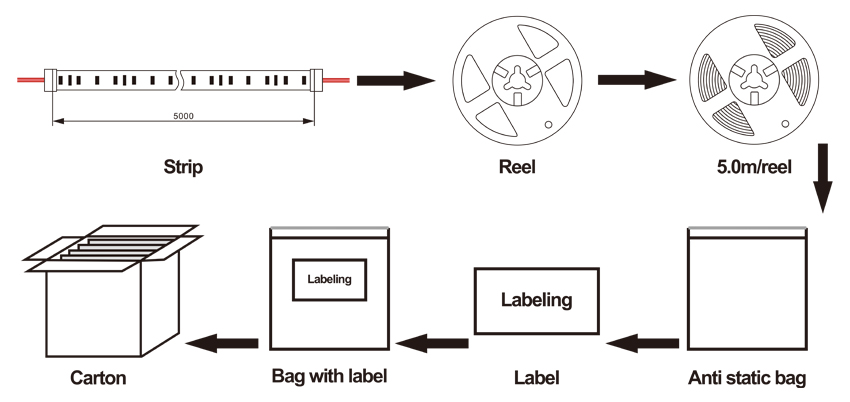

| Product packaging |

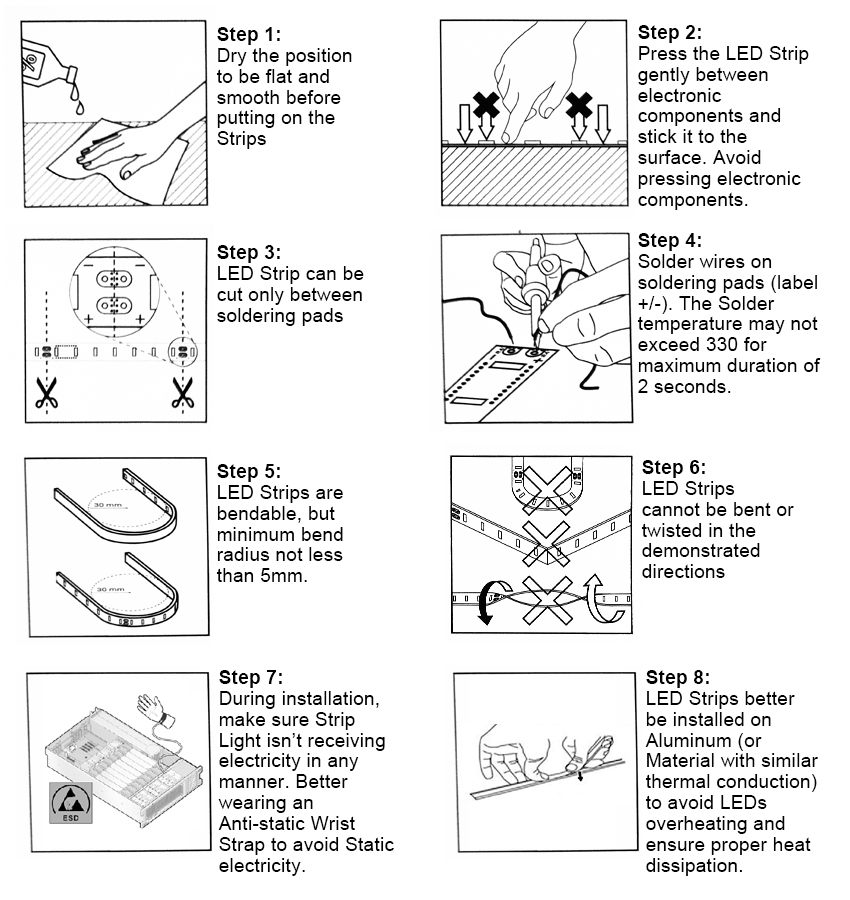

| Installation Instructions |
