RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip
RGBW 5050+2216 LED Strip

RGBW 5050+2216 LED Strip

Model NO.
SELS-5050RGBCCT60-24-YB
Minimum order quantity:
1
Quantity:
Product Parameter
Model NumberSELS-5050RGBCCT60-24-YB
Working Temperature()-20-50
Length5mt,
any length can be customized
FPC Width14mm
Cutting Unit50mm
Beam Angle120°
Waterproof GradeIP20/IP65/IP67/IP68
Color Temperature(CCT)RGB+PW 6000K/WW 3000K
Support Dimmeryes
Lighting solutions serviceLighting and circuitry design;
DIALux evo layout; CAD layout
Input Voltage(V)DC 24V
Lamp Body MaterialCopper
CertificationCE EMC FCC PSE RoHS
ApplicationResidential, Shopping Mall Light
Source5050 RGB+2216 PW&WW SMD
Warranty(Year)3-YEAR
Switch ModeBluetooth Remote Control
Wifi Manual Button
Life time(Hour)50,000
Lamp Power20W/mt

5050 RGB + White Color Series

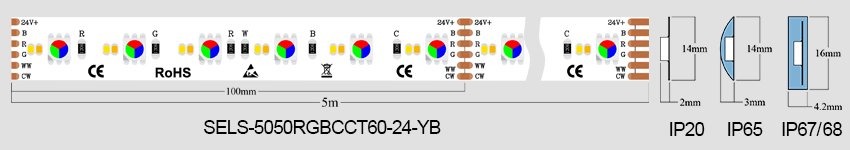

Part No.SELS-5050RGBX60-12/24-YASELS-5050RGBCCT60-24-YASELS-5050RGBCCT60-24-YBSELS-5050RGBX60-24-YB
VoltageDC 12V / 24VDC 24VDC 24VDC 24V
LED Qty/mt60pcs60pcs60pcs60pcs
Watt/mt17W22W20W17W
FPCB Width12mm12mm14mm12mm
Cutting Unit50mm/100mm50mm50mm50mm
Product Description
RGBW 5050+2216 LED Strip can do IP20/IP65/IP67/IP68, Different waterproof grade. Can be RGB and Different Color.
1. 60pcs 2216 PW 6000K (90Ra)+ 60pcs 5050 RGB + 60pcs 2216 WW 3000K (90Ra);
2. Super bright 5050 RGB+2216 PW&WW SMD top LED, high intensity and reliability;
3. Cuttable every 18 LEDs along the cutting marks, according to practical requirement;
4. Standard packing is 5m per roll; Any other different length can be customized;
5. Different waterproof grade can meet requirments in different use condition;
6. CE and RoHS certificates passed, 3 years warranty.
Application

RGBW 5050+2216 LED Strip with widely application below:

1. It’s widely used as a decorative lights, and use it as the lights
2. LED Luminous characters;
3. Backlight of signage, Channel letters lighting, LED Luminous charactersLED Luminous characters
4. Festival, exhibition,Stage decoration, weedings, landscape layout lightingLandscape layout lighting
5. Hotels, night clubs, shopping malls, officesHotels, night clubs, shopping malls, offices

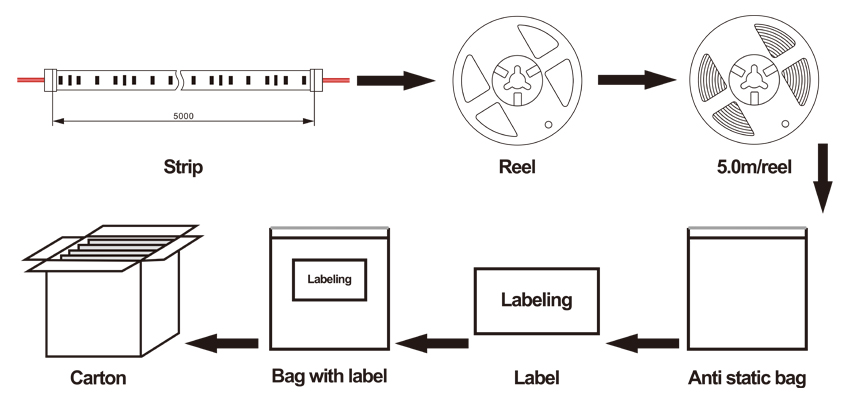

Product packaging

Installation Instructions
