| Product Parameter | |
| Model Number | SELS-2835x60-48-YCC |
| Beam Angle | 120° |
| Waterproof Grade | IP20/IP65/IP68 |
| Color Temperature(CCT) | 2700K / 3000K / 4000K / 6500K |
| Lamp Power | 4W/mt |
| Luminous Efficacy(lm/w) | 155 |
| Lamp Luminous Flux(lm) | 620lm/w |
| FPC Width | 10mm |
| Warranty(Year) | 5-YEAR |
| CRI (Ra>) | 80/90 |
| Life time(Hour) | 50,000 |
| Switch Mode | Bluetooth Remote Control Wifi Manual Button |
| Source | 2835 SMD |
| Support Dimmer | yes |
| Cutting Unit | 250mm |
| Input Voltage(V) | DC 48V |
| Length | 100mt, any length can be customized |
| Ambient Temp. (℃) | (-20~+50℃) |
| Storage Temp. (℃) | (-20~+60℃) |
| Lamp Body Material | Copper |
| Certification | CE EMC FCC PSE RoHS |
| Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
| 2835 Constant Current Series | |||
| Part No. | SELS-2835X60-48-YCC | SELS-2835X120-48-YCC | SELS-2835X240-48-YCC |
| Voltage | DC 48V | DC 48V | DC 48V |
| LED Qty/mt | 60pcs | 120pcs | 240pcs |
| Watt/mt | 4W | 10W | 16W |
| FPCB Width | 10mm | 10mm | 12mm |
| Cutting Unit | 250mm | 125mm | 62.5mm |
| Efficiency | 155lm/W | 155lm/W | 155lm/W |
| Lumen/mt | 620LM | 1510LM | 2480LM |
| Product Description | |

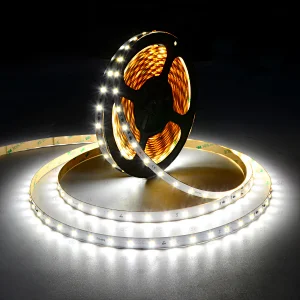

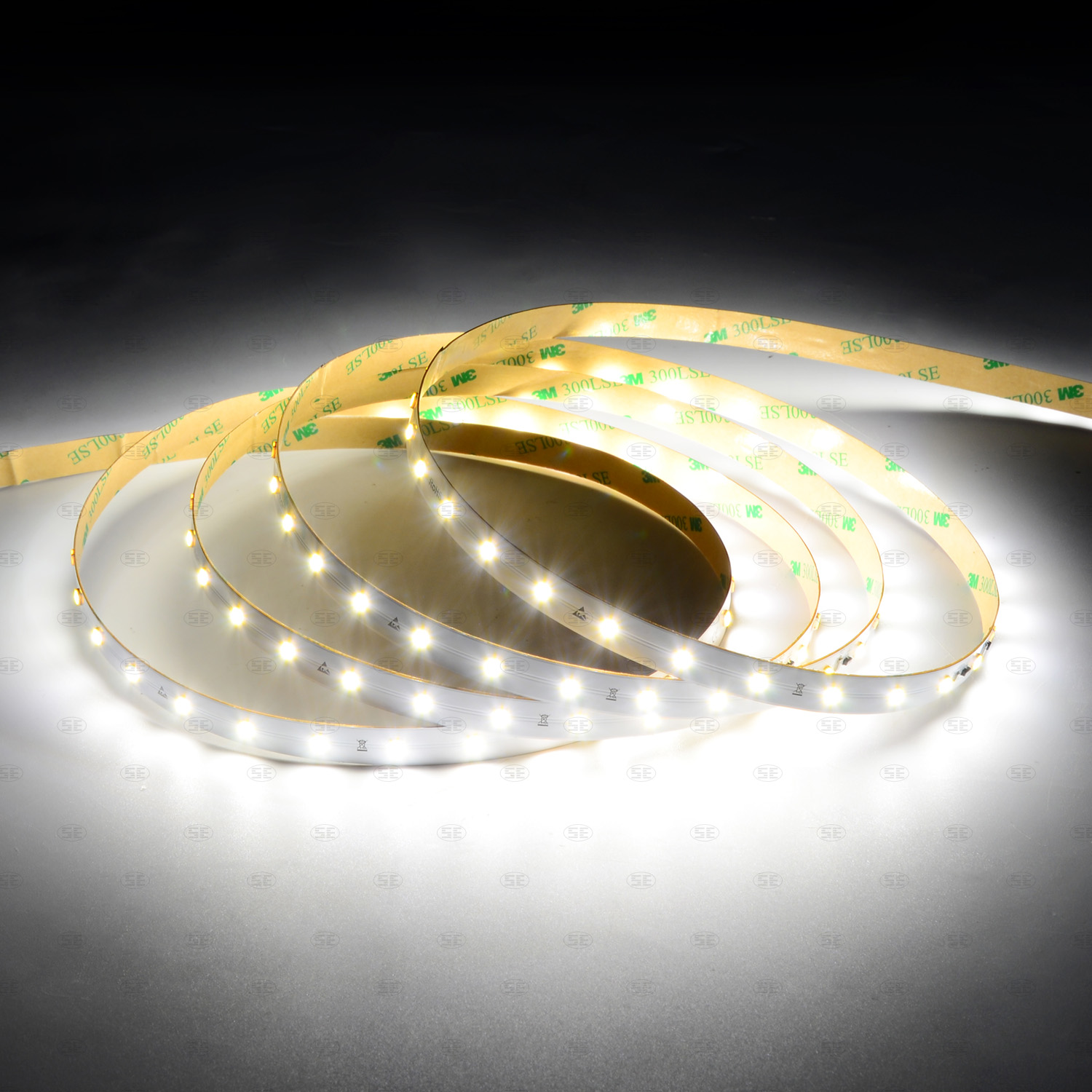

| Super Long LED Light Strips Outdoor Constant Current 60LEDs 48V can do IP20/IP65/IP68, Different waterproof grade. Color can be Warm White, Natural White, Pure White, etc. 1.DC 48V LED Strip, max run long 100 meters for both sides with power input without voltage drop; 2.High Luminous efficiency reaches up to 155LM/W; 3.Silicone integrated extrusion process, IP65 and IP68 optional; 4.3OZ double layer PCB with high current through without voltage drop, Same brightness from the beginning to the end; 5.Excellent heat dissipation, less Lumen depreciation, long life time over 50,000hours; 6.5years warranty for indoor use, 3years warranty for outdoor use. | |
| Application | |
Super Long LED Light Strips Outdoor Constant Current 60LEDs 48V with widely application below: 1.DC 48V LED Strip, ideal for indoor and outdoor architecture, ambience& decorative lighting; |
| Product packaging |
| Installation Instructions |
Notice：
1. Installation Super Long LED Light Strips must comply with local international electrical safety instructions.
2. In order to ensure Super Long LED Light Strips safe and correct installation, the installing person must be a qualified electrician with a license.
3. The installation of Super Long LED Light Strips should comply with CE standard; With constant voltage LED power supply.
4. Do not install the Super Long LED Light Strips in overheat environment.
5. Do not install the non-waterproof Super Long LED Light Strips in outdoor or damp environment.
6. Make sure the cables use for connect the power supply, Super Long LED Light Strips and any dimmer are of standard size. Please calculate the voltage drop and the maximum rated current when selecting the cables. It will cause the cable overheat and burned if select improper cables and installation.
7. The Super Long LED Light Strips with 3 or 5 years warranty，it's according to the ship out date.
8.If there is any technical or sales questions, please feel free to contact us at sales@se.lighting.
FAQs:
As a professional LED Light Strips Manufacturer & Supplier in China, SE.Lighting provides all kinds of LED Light Strips, You can wholesale and buy for sale here.
uper Long LED Light Strips Outdoor Constant Current come with many pros and a few cons. Whether you’re looking for LED Light Strips for bedrooms, LED Light Strips for kitchen cabinets, or bedroom LED light strips etc… the answers to these common questions may help.
Q: Are Super Long LED Light Strips safe?
LED Strip Lights are safe as long as they’re installed and operated according to the manufacturer’s instructions. For example, indoor lights shouldn’t be installed outside, and some lights should not be installed where they can get wet.
Q: How long can you run Super Long LED Light Strips?
Constant Current Flexible LED Strips can run for hours on end without being shut off. They get warm, but they’re designed to underdrive the LEDs, which means they don’t overheat.
Q: Do Constant Current LED Strip Lights have to be plugged in to work?
Yes, you have to leave Constant Current Flexible LED Strips plugged in for them to work.
Q: Do Constant Current LED Strip Lights work with dimmer switches?
Almost every LED Light Strip is compatible with a dimmer switch. In order to make an Constant Current 48V LED Strip dimmable, it’s input wire must first be connected to a dimmer unit, then connect the unit to the power supply.
Q: How can I create ambient light with LED Light Strips Outdoor Constant Current?
To create ambient light in your home with Constant Current 48V LED Strip, the optimal locations are under or above cabinets and counters in the kitchen, behind mirrors in the bathroom, or even around large pieces of furniture like bookshelves and home entertainment units.
Q: How do you properly recycle old LED Light Strips Outdoor Constant Current?
Constant Current LED Strips can be disposed of by recycling them by taking them to a local recycling center.
Q: How long do Super Long LED Light Strips last?
Most Super Long LED Light Strips are built to last for up to 50,000 hours of use, which is roughly 10 to 20 years of runtime.
- More videos of our Super Long LED Light Strips on Youtube.
- Youtube: https://www.youtube.com/@se.lighting
